VMware 3V0-25.25 Advanced VMware Cloud Foundation 9.0 Networking Exam Practice Test

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In aVMware Cloud Foundation (VCF)deployment, establishing a stable BGP neighborship between theTier-0 Gatewayand the physicalTop-of-Rack (ToR)switches is only the first step in enabling North-South connectivity. While the BGP state may show as "Established," this only confirms that the control plane handshake is complete and the peers are ready to exchange prefixes.

The primary reason for a lack of external connectivity in this scenario is that norouting informationis being shared. For workloads within the SDDC to reach the internet, the Tier-0 Gateway must have a path to external networks. In most enterprise VCF designs, the physical network (ToR) is expected to provide adefault route (0.0.0.0/0)to the Tier-0 Gateway.

If the Tier-0 is not receiving this route, the issue typically lies in the physical router's configuration. BGP does not automatically "originate" or "redistribute" a default route unless explicitly commanded to do so. On most physical network platforms (like Cisco, Arista, or Juniper), the administrator must specifically configure a "default-originate" command or ensure a static default route exists in the physical RIB and is allowed to be advertised into the BGP session with the NSX Edge nodes.

Options A and C are unlikely to be the primary cause of a completely missing default route in a fresh deployment. Option B describes the inverse—where the virtual network tells the physical network how to find the internet—which is incorrect for a standard VCF consumer model. Therefore, verifying and enabling thedefault route advertisement on the physical ToR switchesis the verified solution to provide the Tier-0 with the necessary egress path for internet-bound workload traffic.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

TheNSX Edgeis the workhorse of the VMware Cloud Foundation networking stack, handling demanding tasks like Geneve encapsulation, NAT, Firewalling, and BGP routing. To achieve the throughput required for modern data centers—often exceeding 10Gbps or even 40Gbps per node—NSX leverages theData Plane Development Kit (DPDK).

Traditional packet processing in a standard Linux or Unix kernel is often a bottleneck. The kernel must handle interrupts, context switching between user space and kernel space, and complex buffer management for every packet. This "overhead" limits the speed at which a CPU can move packets.DPDKchanges this by bypassing the standard kernel networking stack entirely. It operates inUser Spaceand uses a "polling" mechanism rather than an "interrupt-driven" one.

In an NSX Edge VM or Bare Metal node, specific CPU cores are dedicated to the DPDK process (often called theDatapathorFP-Main). these cores "spin" at 100% utilization, constantly checking the NICs for new packets. Because there is no context switching and the process has direct access to the network hardware buffers, the Edge can process millions of packets per second (Mpps) with extremely low latency.

WhileNUMA(Option C) is a hardware architecture that NSX is "aware" of to optimize memory access, and Intel Speed Step/AMD Power Now (Options B and D) are power management features,DPDKis the actual software technology that enables the "fast packet processing" capability of the VCF networking solution. This is why VMware documentation emphasizes the importance of ensuring that Edge VMs are sized correctly with enough "High-Performance" cores to support the intended DPDK throughput.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In aVMware Cloud Foundation (VCF)stretched cluster or Multi-Availability Zone (Multi-AZ) architecture, the networking design must account for the fact that AZ1 and AZ2 typically reside in different Layer 3 subnets. While the NSX Overlay provides Layer 2 adjacency for virtual machines across sites, the underlyingTunnel Endpoints (TEPs)must be able to communicate over the physical Layer 3 network.

According to the VCF Design Guide for Multi-AZ deployments, when stretching a workload domain, each availability zone should have its own dedicatedTEP IP Pool. This is because TEP traffic is encapsulated (Geneve) and routed via the physical underlay. If the Edge nodes in AZ2 were to use the same IP pool as AZ1 (Option C), the physical routers would likely encounter routing conflicts or reachability issues, as the subnet for AZ1 would not be natively routable or "local" to the AZ2 Top-of-Rack (ToR) switches.

The failure during the SDDC Manager workflow occurs because the automated "Liveness Check" or "Pre-validation" step attempts to verify that the newly assigned TEP IPs in AZ2 can reach the existing TEPs in the environment. To resolve this and ensure a successful deployment, the administrator must define a uniqueAZ2-specific IP Poolin NSX. Furthermore, this pool must be associated with anUplink Profile(or a Sub-Transport Node Profile in VCF 5.x/9.0) that uses the specific VLAN tagged for TEP traffic in the second data center. This ensures that the Edge Nodes in AZ2 are assigned IPs that are valid and routable within the AZ2 underlay, allowing Geneve tunnels to establish correctly to the ESXi hosts in both sites without requiring a stretched Layer 2 physical network for the TEP infrastructure.

===========

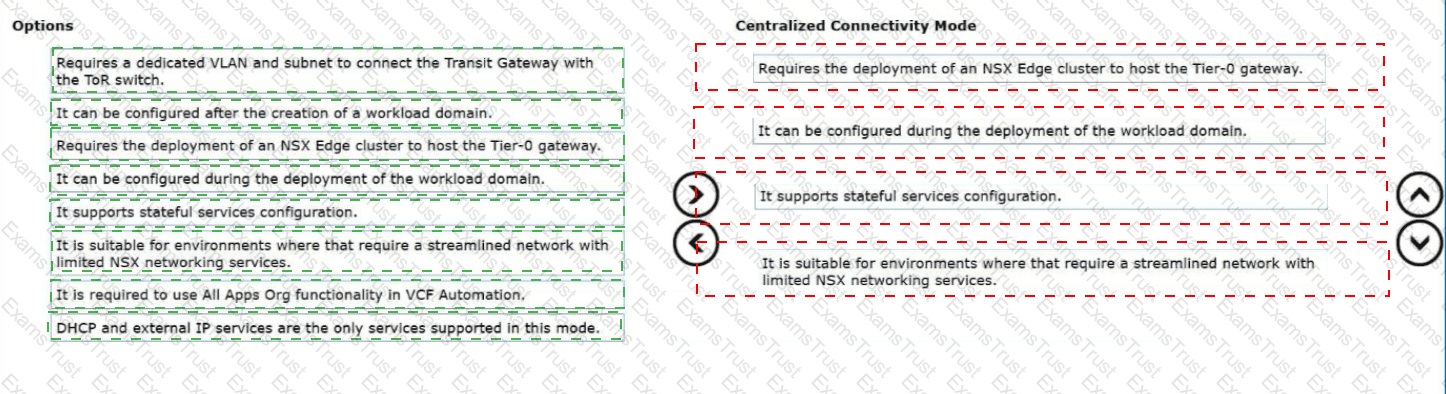

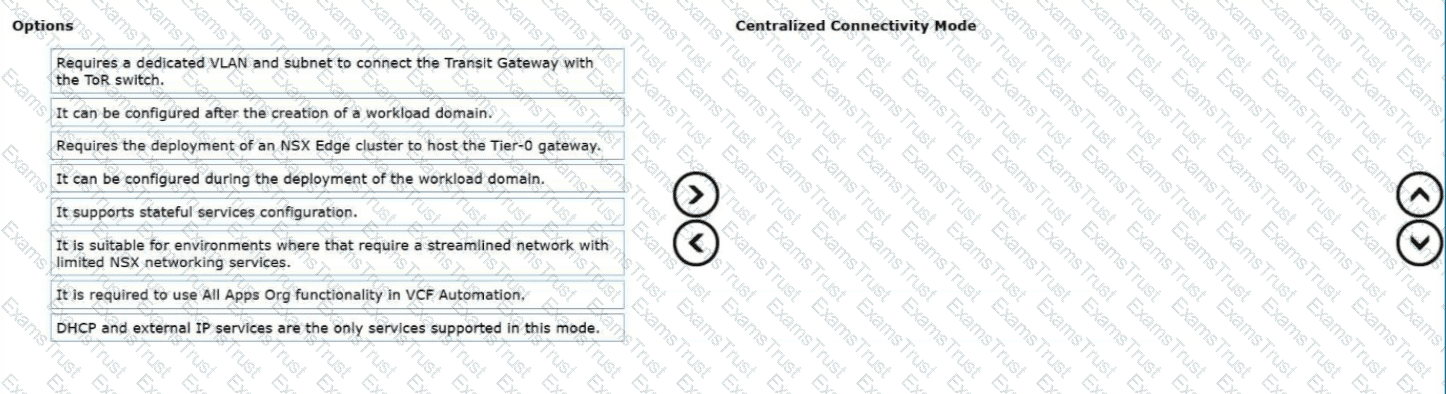

Requires the deployment of an NSX Edge cluster to host the Tier-0 gateway.

It can be configured during the deployment of the workload domain.

It supports stateful services configuration.

It is suitable for environments that require a streamlined network with limited NSX networking services.

InVMware Cloud Foundation (VCF) 9.0, the networking architecture introduces specialized connectivity modes to cater to different organizational needs, withCentralized Connectivity Modebeing a primary option for streamlined deployments. This mode is fundamentally anchored to the physical infrastructure via localized resources rather than distributed components across the entire cluster.

The most critical technical requirement for this mode is that itrequires the deployment of an NSX Edge cluster to host the Tier-0 gateway. Unlike distributed models, centralized connectivity funnels North-South traffic through specific Edge nodes that serve as the demarcation point between the virtual overlay and the physical Top-of-Rack (ToR) switches. This centralization is what enables the next key characteristic: itsupports stateful services configuration. Because traffic is anchored to specific Service Routers (SR) on Edge nodes, stateful operations such as NAT, Load Balancing, and stateful firewalls can maintain session persistence, which is not natively possible in a purely distributed Active/Active ECMP environment without specialized configuration.

From a lifecycle perspective, this mode is highly integrated into the SDDC Manager workflows andcan be configured during the deployment of the workload domain. This allows architects to define the networking posture of a new domain at "Day 0," ensuring that the necessary Edge resources and Tier-0/Tier-1 hierarchies are provisioned automatically to meet the domain's specific requirements.

Finally, Centralized Connectivity Modeis suitable for environments that require a streamlined network with limited NSX networking services. It provides a "cloud-lite" approach to networking, offering the necessary isolation and security of NSX without the complexity of managing a full-scale distributed fabric. This makes it an ideal choice for smaller workload domains, specialized labs, or legacy application environments that do not require the massive scale of a distributed transit gateway but still need robust stateful security and simplified North-South egress.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

With the introduction of theVirtual Private Cloud (VPC)consumption model inVCF 9.0and late 5.x releases, Role-Based Access Control (RBAC) has become more granular to support true multi-tenancy. A VPC is designed to be a self-contained "container" for a department's or user's networking resources.

To meet the specific requirement where a user can configure aspects of an individual VPC but is restricted from creating new subnets (which involves modifying the underlying network CIDR blocks and IPAM), a combination of specific roles is required.

VPC Admin:This is the primary role for the user within their assigned VPC. It allows the user to manage the overall VPC environment, including high-level settings and monitoring. However, the VPC Admin's power is often limited by the specific quotas and policies set by the Enterprise Admin.

Security Operator:This role allows the user to view security configurations and policies without having the permission to modify the network fabric or create new infrastructure components like subnets. It provides the "read-only" visibility into the security posture of the VPC.

Network Operator:Similar to the Security Operator, the Network Operator role provides visibility into the networking state—such as routing tables, segment status, and connectivity—without granting the "Write" permissions required to provision new subnets or alter the network topology.

AssigningNetwork Admin(Option B) orSecurity Admin(Option A) would grant too much privilege, as these roles typically include the ability to create, delete, and modify subnets and firewall policies at a structural level. By combining theVPC Adminrole withOperator-level roles, the administrator ensures the user has the necessary context to manage their assigned resources while strictly adhering to the restriction against creating new network subnets.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

InVMware Cloud Foundation (VCF), theNSX Manageruses the SFTP protocol to securely transfer configuration backups to an external repository. SFTP is built on top of the SSH protocol, which relies on a "Trust on First Use" (TOFU) model for verifying the identity of the remote host.

When an NSX Manager first connects to an SFTP server, it retrieves the server'sSSH Public Key Fingerprintand stores it in its local known_hosts equivalent database. This fingerprint ensures that future connections are made to the same, verified server, preventing man-in-the-middle attacks.

The error"Host KEY Verification Failed"occurs when the administrator changes the SFTP server (or if the SFTP server's OS was reinstalled/keys regenerated). Even if the IP address remains the same, the new server presents a different SSH fingerprint than the one currently cached in the NSX Manager configuration. Because the signatures do not match, the NSX Manager aborts the connection for security reasons.

To resolve this issue, the administrator mustUpdate the SSH fingerprint(Option B) within the NSX Manager backup settings. This involves:

Retrieving the new fingerprint from the SFTP server (e.g., via ssh-keyscan).

Navigating to System > Lifecycle > Backup & Restore in the NSX Manager.

Editing the File Server configuration and pasting the new fingerprint into the appropriate field.

Option A is incorrect as it does not address the SSH protocol handshake failure. Option C is incorrect because SFTP/SSH uses fingerprints, not SSL/TLS certificates. Option D is irrelevant as it changes the source/destination of the connection but does not fix the underlying trust mismatch. Therefore, updating the fingerprint is the verified operational step to restore the automated backup workflow in VCF.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In a VMware Cloud Foundation (VCF) environment, especially with the architectural evolution in VCF 9.0, theVirtual Private Cloud (VPC)model is the primary way to deliver self-service, isolated networking. The networking performance for North/South traffic—traffic leaving the SDDC for the physical network—is processed byNSX Edge Nodes. These Edge Nodes use DPDK (Data Plane Development Kit) to provide high-performance packet processing, but their resources (CPU and Memory) are finite.

When dealing with "noisy neighbors"—tenants or VPCs that consume a disproportionate amount of throughput—it is critical to isolate their data plane impact. According to the VMware Validated Solutions and VCF Design Guides, the most scalable and efficient way to achieve this is through the use ofMultiple Edge Clusters. By creating distinct Edge clusters, an architect can physically isolate the compute resources used for routing.

In this scenario, high-traffic VPCs can be backed by specificVRF (Virtual Routing and Forwarding)instances on a Tier-0 gateway that is hosted on a dedicated high-performance Edge Cluster. Meanwhile, the numerous low-traffic VPCs can share a different Edge Cluster. This "Traffic Profile" based distribution ensures that a spike in traffic within a "heavy" VPC only consumes the DPDK cycles of its assigned Edge nodes, leaving the resources for the "quiet" VPCs untouched.

Option A is incorrect because Edge nodes function in clusters for high availability; assigning a single node creates a single point of failure and is administratively heavy. Option B reduces the multi-tenancy benefits and doesn't solve the resource contention at the Edge level. Option C removes the benefits of the software-defined overlay and VPC consumption model. Therefore, distributingVRF-backed VPCsacross multiple Edge clusters based on their expected load is the verified design best practice for optimizing resource consumption while maintaining strict performance isolation in a VCF provider environment.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

As organizations modernize their infrastructure withVCF 5.x and 9.0, IPv6 adoption becomes more prevalent.NAT64is a critical transition technology that allows IPv6-only hosts to communicate with IPv4-only resources by translating the packet headers.

In NSX, NAT64 is astateful service. Stateful services in the NSX architecture require a centralized point of processing to maintain the session state table. Because of this requirement, any gateway (Tier-0 or Tier-1) providing NAT64 servicesmust be configured in Active-Standby high availability mode. In Active-Active mode, asymmetric return traffic could hit a different Edge node that does not have the session information, causing the translation to fail. This is a fundamental design constraint for stateful NAT in NSX.

Furthermore, VMware NSX documentation specifies that NAT64 is a flexible service that can be implemented at multiple tiers of the logical routing hierarchy. It issupported on both Tier-0 and Tier-1 gateways. The choice of where to place the NAT64 service depends on the design requirements: placing it on the Tier-1 gateway allows for tenant-specific translation and offloads the Tier-0, while placing it on the Tier-0 provides a centralized translation point for all connected segments.

Option A is incorrect because NAT64 in NSX is stateful, not stateless. Option C is incorrect because it is not limited to Tier-1. Option E is incorrect because Active-Active mode does not support the stateful nature of the NAT64 engine. Consequently, the correct architecture requires anActive-Standbyconfiguration on either aTier-0 or Tier-1gateway to properly facilitate the translation between the IPv6 workloads and the IPv4 external world.

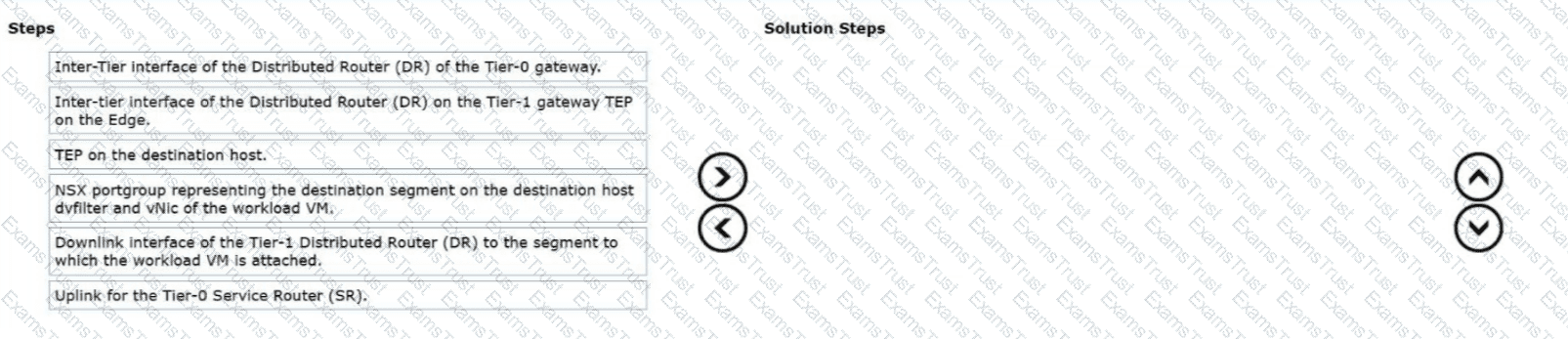

To identify why there is no data ingress into a workload domain, an administrator must understand the specific path external traffic takes. For a workload domain configured with a Tier-0 gateway and a Tier-1 gateway (Distributed Routing only), the ingress traffic flow follows a hierarchical path from the physical network through the NSX logical components to the virtual machine.

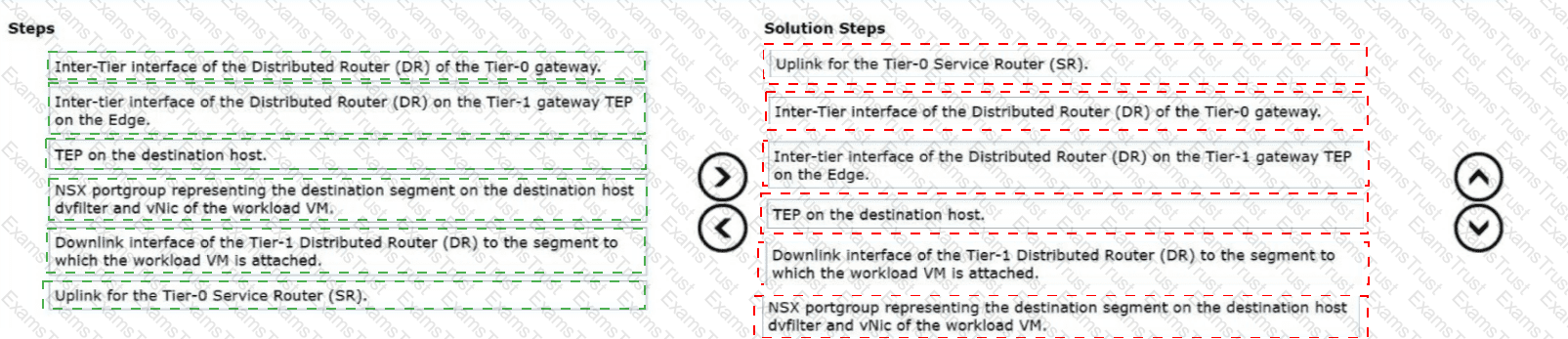

Ingress Traffic Flow Sequence

The correct sequence of steps for external network traffic to ingress the workload domain and reach the virtual machine is as follows:

Uplink for the Tier-0 Service Router (SR): Traffic enters the NSX environment from the physical network through the physical-to-logical interface on the Edge node.

Inter-Tier interface of the Distributed Router (DR) of the Tier-0 gateway: After being received by the Service Router, the packet is routed internally within the Tier-0 gateway to its distributed component.

Inter-tier interface of the Distributed Router (DR) on the Tier-1 gateway TEP on the Edge: The Tier-0 gateway routes the packet to the Tier-1 gateway. In this specific scenario, since the Tier-1 is "Distributed Routing only," this logical transition occurs on the Edge node participating in the transport zone.

TEP on the destination host: The Edge node encapsulates the packet (typically via Geneve) and tunnels it across the physical fabric to the specific ESXi host where the target virtual machine is currently residing.

Downlink interface of the Tier-1 Distributed Router (DR) to the segment to which the workload VM is attached: On the destination host, the packet is de-encapsulated. The local Tier-1 DR instance identifies the correct logical segment (VNI) for the destination IP.

NSX portgroup representing the destination segment on the destination host dvfilter and vNic of the workload VM: The packet is delivered to the virtual switch port, passes through any applied Distributed Firewall (dvfilter) rules, and finally reaches the virtual machine's network interface card (vNIC).

In NSX Multi-Tenancy (Projects), theEnterprise Adminacts as the provider-level administrator who owns global objects in the default space. This ensures central control over resources that are shared across different projects.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In aVMware Cloud Foundation (VCF)Federation deployment across multiple sites, the management architecture is designed to provide "Global Visibility" while maintaining "Local Autonomy." This is achieved through the coordinated distribution ofGlobal Managers (GMs)andLocal Managers (LMs).

For a three-site deployment,NSX Federationbest practices mandate that each site maintains its ownLocal Manager (LM) Cluster(Option A). The LM is responsible for the site-specific control plane, communicating with local Transport Nodes (ESXi and Edges) to program the data plane. If the connection to the GM is lost, the LM ensures the local site continues to function normally. For production environments, these must be clusters (typically 3 nodes) rather than single nodes to ensure local management remains available.

To protect theGlobal Manageritself—which is the source of truth for all global networking and security policies—the GM cluster should bestretched across the three sites(Option D). In a standard 3-node GM cluster, placing one node at each site ensures that the Federation management plane can survive the complete failure of an entire site. This "stretched" cluster configuration provides a high level of resilience and ensures that an administrator can still manage global policies from any surviving location.

Option B is incorrect because the GM does not communicate directly with the data plane of a site; it must go through an LM. Option C is a risk to availability. Option E is incorrect because vSphere HA cannot protect against a site-wide disaster, and a single appliance represents a significant single point of failure for the entire global network configuration.

===========

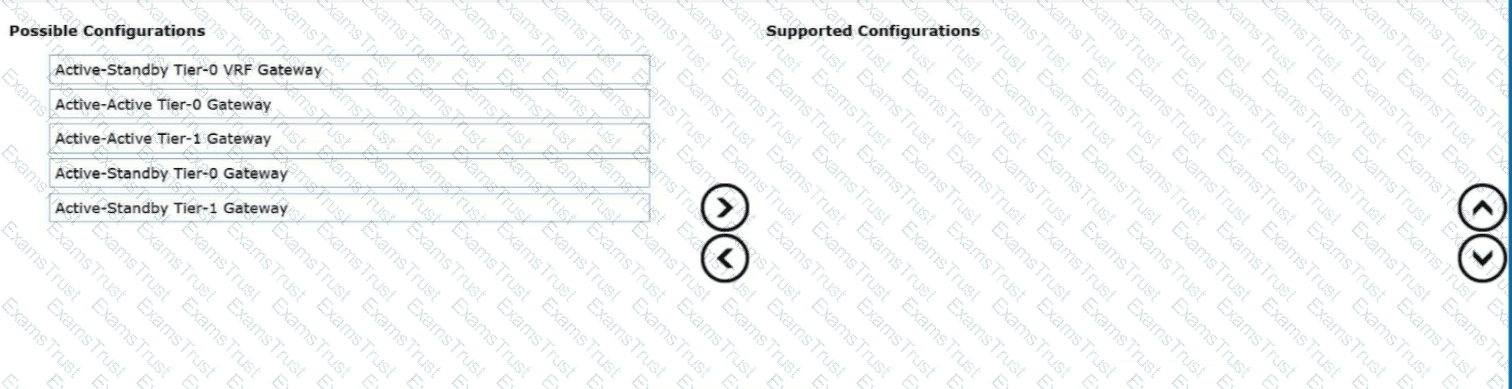

Active-Standby Tier-0 Gateway

Active-Standby Tier-1 Gateway

In aVMware Cloud Foundation (VCF)multi-site or multi-instance architecture, established viaNSX Federation, secure connectivity between sites is often achieved throughIPSec VPN. IPSec VPN is considered a stateful service within the NSX networking stack.

Stateful services—which also include NAT and Load Balancing—require a centralized point of processing to maintain the security association (SA) and session state tables. In the NSX gateway architecture, this necessitates the presence of aService Router (SR)component. For stateful consistency and to avoid session disruption that would occur if asymmetric traffic were processed by different nodes, these gateways must operate in anActive-Standbyhigh-availability mode.

According to the "NSX-T Data Center VPN Configuration Guide," IPSec VPN services can be deployed on either the provider tier (Tier-0 Gateway) or the tenant tier (Tier-1 Gateway). When configured on a Tier-0 gateway, the VPN typically provides broad connectivity between the physical infrastructure of two sites. When configured on a Tier-1 gateway, it often provides targeted connectivity for a specific project or department's workload segments.

Configurations involvingActive-Activegateways (whether Tier-0 or Tier-1) do not support the native NSX IPSec VPN service because the ECMP (Equal Cost Multi-Pathing) nature of Active-Active mode could lead to packets belonging to the same VPN tunnel being processed by different Edge nodes, which cannot share the real-time encryption state. Therefore, for an administrator to successfully implement a cross-location VPN in a VCF Fleet, they must ensure the target gateway—be it Tier-0 or Tier-1—is deployed inActive-Standbymode.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

Designing for "five nines" (99.999%) availability in aVMware Cloud Foundation (VCF)environment requires a network architecture that minimizes convergence time and eliminates single points of failure. For a critical application sensitive to network changes, the connection between the virtualized SDDC and the physical network must be highly resilient and capable of near-instantaneous failover.

TheTier-0 Gatewayis the primary interface for North-South traffic. To meet high availability requirements, the Tier-0 should be configured witheBGP (External Border Gateway Protocol)to peer with physical Top-of-Rack (ToR) switches. By enablingECMP (Equal Cost Multi-Pathing), the architect allows the Tier-0 to utilize multiple active paths to the physical world simultaneously. This not only increases available bandwidth but also ensures that if one physical link or router fails, traffic is immediately redistributed across the remaining active paths without a protocol timeout.

To complement ECMP,BFD (Bidirectional Forwarding Detection)is essential. While BGP's default keepalive and hold timers are often measured in seconds (typically 60 and 180 seconds, respectively), BFD provides sub-second failure detection. In a VCF environment, BFD operates as a lightweight "heartbeat" between the Tier-0 Edge nodes and the physical ToR routers. If a path fails, BFD detects it within milliseconds and notifies BGP to pull the failed path from the routing table. This combination ofeBGP/ECMPfor path redundancy andBFDfor rapid detection is the verified standard for VCF designs requiring extreme uptime and sensitivity to network disruptions.

Static routes (Option A) are unsuitable for high-availability designs as they lack dynamic failure detection. While 100Gbps NICs (Option E) provide bandwidth, they do not inherently provide the protocol-level resilience needed to meet a 99.999% SLA.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

NSX Federation, a core component of large-scale VCF deployments across multiple sites or "fleets," introduces a hierarchical management model where aGlobal Manager (GM)orchestrates security policies and networking objects across multipleLocal Managers (LMs).

To ensure stability and compatibility in the communication between the Global Manager and the Local Managers, VMware documentation specifies strictversion parityrequirements. When onboarding a site into a Federation, the Local Manager at that site must be running thesame NSX version and buildas the other sites in the Federation and must be compatible with the Global Manager’s version. Discrepancies in versions can lead to synchronization failures, as the API schemas and internal database structures for Global Objects (like Global Segments or Groups) may differ between builds.

While Federation allows for geographic and administrative separation, the underlying software-defined networking stack must be synchronized. Option A is incorrect; in fact, VTEP/TEP VLANs and IP poolsshouldbe unique to each site to avoid IP conflicts in the transport network, though they must have Layer 3 reachability to one another. Option B is incorrect; unique BGP AS numbers are often preferred for multi-site routing to prevent loops. Option C is also incorrect, as Federation is specifically designed to link different VCF instances (sites) together into a single manageable entity.

In aVCF 5.x or 9.0context, the SDDC Manager helps maintain this requirement by ensuring that the "Bill of Materials" (BOM) is consistent across sites intended for Federation. Before the GM can successfully register and "push" configuration to an LM, the handshake process validates the build version to prevent the corruption of the global intended state.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

InVMware Cloud Foundation (VCF), the lifecycle of the NSX Manager cluster is strictly managed bySDDC Manager. During the initial deployment of a Management Domain or the creation of a new Workload Domain (if using a separate NSX instance), the administrator selects a "Form Factor" (Small, Medium, Large, or Extra Large) based on the expected scale of the environment.

As of current VCF versions (including 5.x), theForm Factoris a parameter defined during the deployment workflow that determines the resource reservations (CPU/RAM) and the disk partitioning of the appliance OVA. Unlike a standard virtual machine where you might simply adjust the vCPU and RAM settings in vCenter, the NSX Manager appliance is an opinionated system. Changing resources manually through vCenter (Option C) is not supported and can lead to stability issues or "Out of Sync" errors within SDDC Manager, as the database and internal services are tuned for the specific size selected at install.

There is currently no supported "in-place" upgrade or downgrade for the form factor of an existing NSX Manager node via the UI or API (Option B). To change the size, the administrator mustredeploythe manager nodes. In a VCF context, this often involves using SDDC Manager to delete the cluster or manually replacing nodes one by one—essentially deploying a new node of the correct size, joining it to the management cluster, syncing the data, and then removing the old, oversized node.

VCF Operations(formerly vRealize Operations) can provide "Right-sizing"recommendations(Option D), but it cannot execute the physical resizing of an NSX Manager appliance within the VCF framework. Therefore, the manual or orchestrated redeployment of the nodes is the only verified method to change the appliance footprint.

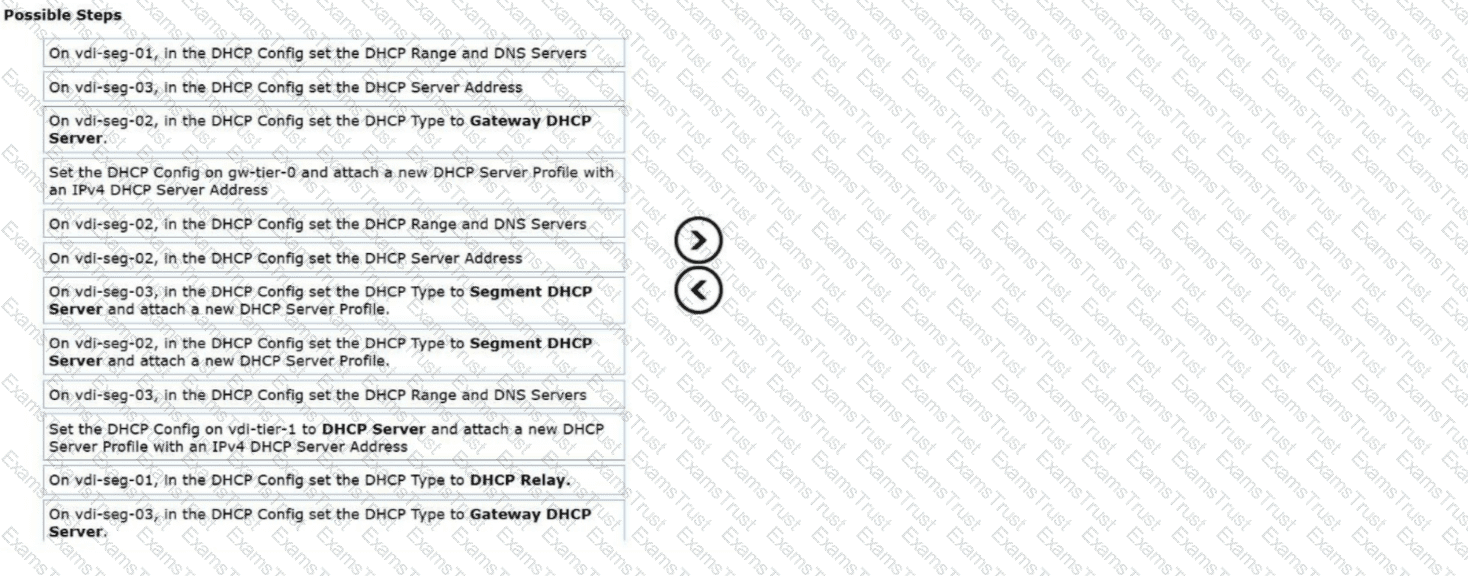

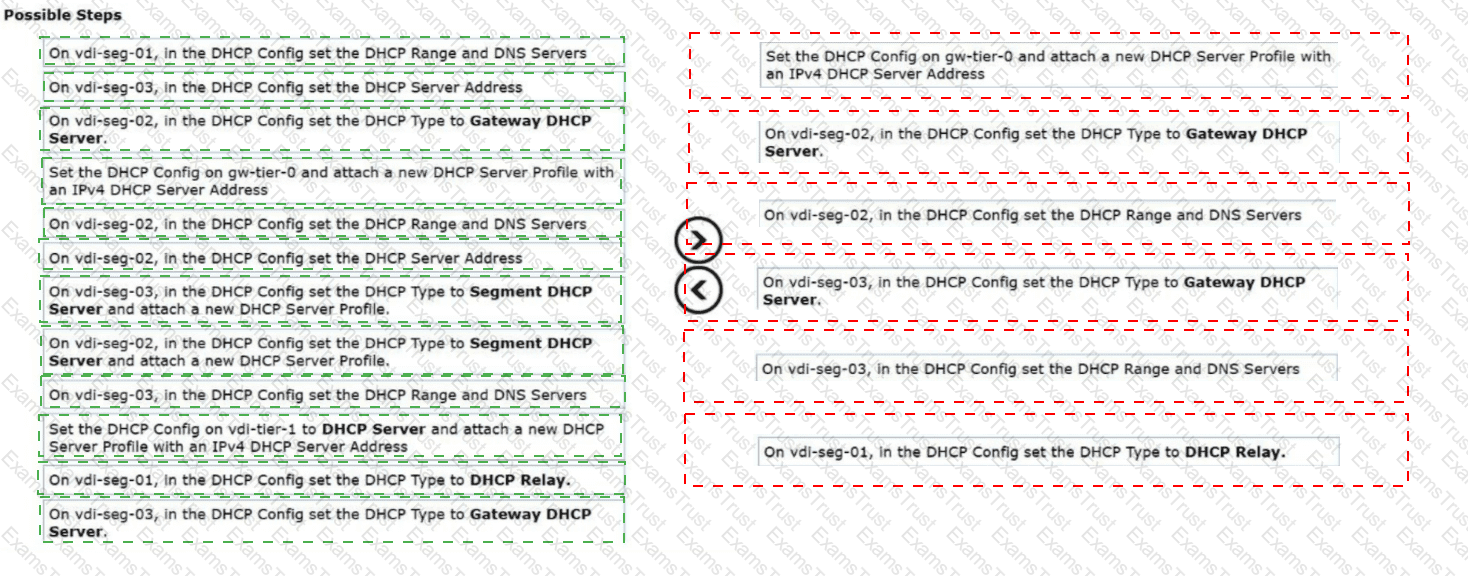

For the VDI solution requiring dedicated DHCP for desktop pool segments and static addresses for management components, the correct sequence of steps to configure DHCP is as follows:

Set the DHCP Config on vdi-tier-1 to DHCP Server and attach a new DHCP Server Profile with an IPv4 DHCP Server Address.This establishes the Tier-1 gateway as the local DHCP service provider for its attached segments.

On vdi-seg-02, in the DHCP Config set the DHCP Type to Gateway DHCP Server.This instructs the segment to use the DHCP server service configured on its parent Tier-1 gateway.

On vdi-seg-02, in the DHCP Config set the DHCP Range and DNS Servers.Defines the specific IP pool and network settings for the first desktop pool.

On vdi-seg-03, in the DHCP Config set the DHCP Type to Gateway DHCP Server.Instructs the second desktop segment to also leverage the Tier-1 DHCP service.

On vdi-seg-03, in the DHCP Config set the DHCP Range and DNS Servers.Defines the IP pool for the second desktop pool.

On vdi-seg-01, in the DHCP Config set the DHCP Type to DHCP Relay.Since management components use static addresses provided by an external mainframe-based solution or dedicated physical infrastructure, a relay is used rather than a local server to ensure proper network isolation and policy enforcement for the physical mainframe application.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In aVMware Cloud Foundation (VCF)environment utilizing theVirtual Private Cloud (VPC)model, North/South connectivity is managed by theTransit Gateway (TGW). The TGW acts as the bridge between the VPC-internal networks and the provider-level physical network.

The scenario presents a specific constraint: while an external VLAN exists across all hosts, the actual BGP peering point (the interface to the physical core routers) is restricted to theNSX Edge Cluster. In NSX terminology, when a gateway or service must be anchored to specific Edge Nodes to access physical network services—such as BGP peering, NAT, or stateful firewalls—it must be configured as aCentralizedcomponent.

ACentralized Transit Gateway(Option C) is instantiated on the Edge nodes. This allows the TGW to participate in the BGP session with the core routers on the VLAN that is only accessible to those Edges. The TGW then handles the routing for the VPC's internal segments. Traffic from the ESXi transport nodes (East-West) travels via the Geneve overlay to the Edge nodes, where it is then routed North-South by the Centralized TGW using the physical BGP peer.

Option A is incorrect because "distributed eBGP peering" would require every ESXi host to have peering capabilities, which contradicts the constraint. Option B involves EVPN, which is a significantly more complex and different architecture than what is required for standard VPC North/South access. Option D is an unnecessarily complex routing design that is not the standard VCF/VPC implementation pattern. Thus, the use of a Centralized Transit Gateway on the Edge cluster is the verified design requirement to bridge the gap between the overlay VPC and the localized BGP peering point.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

This scenario describes a classic "Overlapping IP" or "Fenced Network" challenge in a private cloud environment. In many development or lab use cases, users need to deploy identical environments where the internal IP addresses (e.g., 192.168.1.10) are the same across different instances to ensure application consistency.

To allow these identical environments to access the public internet simultaneously without causing an IP conflict on the external physical network,Source Network Address Translation (SNAT)is required. According to VCF and NSX design best practices, theTier-0 Gatewayis the most appropriate place for this translation when multiple tenants or labs need to share a common pool of external/public IP addresses.

When a VM in Lab A sends traffic to the internet, the Tier-0 Gateway intercepts the packet and replaces the internal source IP with a unique public IP (or a shared public IP with different source ports). When Lab B (which uses the same internal IP) sends traffic, the Tier-0 Gateway translates it to adifferentunique public IP (or the same shared public IP with different ports). This ensures that return traffic from the internet can be correctly routed back to the specific lab instance that initiated the request.

Option A (DNAT) is used for inbound traffic (allowing the internet to reach the lab), which doesn't solve the outbound connectivity requirement for overlapping IPs. Option B (Isolation) would prevent communication entirely. Option C (Firewall) controls access but does not solve the routing conflict caused by identical IP addresses. Thus,SNAT rules on the Tier-0 gatewayare the verified solution for providing internet access to overlapping lab environments.

===========
