UiPath UiPath-ADPv1 UiPath Automation Developer Professional v1 Exam Exam Practice Test

The UiPath Remote Runtime component is a component that enables the automation of remote applications or desktops, such as Citrix Virtual Apps, Windows Remote Desktop, or VMware Horizon, by using native selectors. Native selectors are expressions that identify UI elements reliably and accurately, without relying on OCR or image recognition activities1. The UiPath Remote Runtime component works as follows:

• It is installed on the remote server where the applications or desktops are hosted.
• It communicates with the dedicated UiPath extension that is installed on the client machine where Studio or Robot is installed.
• It gathers information about the targeted UI elements of the remote applications and sends them to the corresponding extension.
• It allows the extension to generate native selectors for the remote UI elements in UIExplorer, a tool that helps you create and edit selectors2.

The UiPath Remote Runtime component is required for automating in virtual environments, as it provides a bridge between the remote server and the client machine, and enables the use of native selectors, which are more reliable and efficient than OCR or image recognition activities3.

References:

1: Studio - About Selectors - UiPath Documentation Portal 2: Studio - About UiPath Remote Runtime - UiPath Documentation Portal 3: Automating in Virtual Environments with the UiPath Computer Vision AI - YouTube

When using the Type Into activity with the Input Method set to Simulate, the 'Alter disabled element' property should be enabled to execute the activity even if the target UI element is deactivated or read-only.

The purpose of the Invoke Code activity in UiPath is to invoke VB.NET or C# code, optionally passing it a list of input arguments. The Invoke Code activity allows the developer to write and execute custom code in VB.NET or C# within a UiPath workflow. The Invoke Code activity has a Code property, where the developer can enter the code to be executed. The Invoke Code activity also has an Arguments property, where the developer can specify the input and output arguments for the code. The Invoke Code activity can be useful for performing complex calculations, manipulating data, or integrating with external libraries or applications that are not supported by the existing UiPath activities. References: [Invoke Code]

In the Robotic Enterprise Framework (REFramework), best practices for logging at the "Information" level suggest recording entries that are informative about the progress of the automation. This would typically include:

• The start and end of a transaction.
• Status updates of a transaction.
• The result of an operation, like a successful data retrieval or submission.

From the provided options, the one that aligns best with this approach would be:

B. Whenever data is fetched from external sources.

This action is a significant step in most automation processes because it usually represents a point where the robot interacts with systems outside of its immediate control, and it's important to have a record that this step has been completed successfully. It provides a clear and traceable log entry that helps in understanding the workflow's progress and is useful for audit trails and troubleshooting.

Logging every time an argument or value is used (C) would be excessive and not practical for production-level processes. Logging every exception (A) and error on a Queue Item (D) would typically be done at a "Warning" or "Error" level, not "Information".

A state machine is a type of automation that uses a finite number of states in its execution. It can go into a state when it is triggered by an activity, and it exits that state when another activity is triggered1. A state machine consists of states, transitions, and actions1. The components that define a state within a state machine in UiPath Studio are:

•Entry Actions: These are the activities that are executed when the state is entered1. For example, an entry action can be used to initialize a variable, display a message, or log some information1.

•Exit Actions: These are the activities that are executed when the state is exited1. For example, an exit action can be used to clean up some resources, close an application, or update a status1.

•Transition Actions: These are the activities that are executed when a transition from one state to another occurs1. For example, a transition action can be used to assign a value, send an email, or invoke a workflow1.

•Trigger Conditions: These are the conditions that determine when a transition from one state to another should happen1. For example, a trigger condition can be based on a variable value, a user input, or a timer1.

The out_TransactionItem argument is an output argument of the GetTransactionData workflow, which is used to store the data of the current transaction item1. The REFramework is a template for creating robust and scalable automation projects that uses the State Machine workflow type2. The REFramework is designed for transactional processes, which are processes that handle multiple items of data in a loop3. However, it can also be adapted for linear processes, which are processes that execute a sequence of actions only once.

To use the REFramework for a linear process, the out_TransactionItem argument should be set to Nothing the first time when it enters the Get Transaction Data state. This will ensure that the process will not enter the Get Transaction Data state again, as the condition for the transition from the Get Transaction Data state to the Process Transaction state is out_TransactionItem isNot Nothing1. Setting the out_TransactionItem argument to Nothing will also trigger the End Process state, which will perform the final actions and close the application1.

Option A is incorrect, because the process will enter the Get Transaction Data state even if it is a linear process, as it is the first state in the REFramework. Option B is incorrect, because there is no queue item in a linear process, as there is only one item of data to be processed. Option D is incorrect, because setting the out_TransactionItem argument to a static value will cause the process to enter the Get Transaction Data state repeatedly, as the condition for the transition will always be true.

References: 1: The UiPath ReFramework 2: State Machine 3: Transactional Business Process : [Linear Business Process]

The recommended approach for handling tabular data when building a REFramework transactional project in UiPath is to utilize a DataTable variable to store and process the tabular data. A DataTable variable can hold data in a tabular format, with rows and columns, and can be easily manipulated using built-in activities such as Read Range, Write Range, Filter Data Table, For Each Row, etc. A DataTable variable can also be used as the input for the Get Transaction Data state in the REFramework, which retrieves each row of data as a transaction item for processing. References: [UiPath Studio Guide - Data Tables], [UiPath Studio Guide - The REFramework]

For a workflow that requires covering all possible cases and transitions, especially those not easily captured by loops and If statements, a State Machine layout is most suitable. It offers a flexible structure for complex workflows with numerous states.

In the REFramework (Robotic Enterprise Framework), the initialization of all required applications should ideally be done in the 'InitAllApplications.xaml' file. This helps in keeping the project organized and maintains a standard structure.

To work with a web application in Firefox without relying on visual elements, the developer should use the 'Input mode = Chromium API'. This option enables the robot to interact with the web elements directly, without the need for visual screen elements.

The REFramework is a project template based on State Machines, which follows the best practices regarding logging, exception handling, application initialization, and others1. The REFramework uses a queue in Orchestrator to store the transaction items, which are the units of data that need to be processed by the automation process1. The status of a transaction item can be set to Failed or Successful using the Set Transaction Status activity, which also allows specifying the ErrorType as Business or Application2. A Business ErrorType indicates that the transaction failed due to a business rule exception, such as invalid or incomplete data2. An Application ErrorType indicates that the transaction failed due to an application exception, such as a system error or a timeout2.

The REFramework has four main states: Init, Get Transaction Data, Process Transaction, and End Process1. The process transitions between these states based on the conditions and triggers defined in the state machine1. The process starts with the Init state, where the application is initialized and the Config file is read1. Then, the process moves to the Get Transaction Data state, where the next transaction item is retrieved from the queue1. If there is a transaction item available, the process moves to the Process Transaction state, where the main logic of the automation is executed1. If the transaction is processed successfully, the status is set to Successful and the process returns to the Get Transaction Data state1. If the transaction fails due to a Business ErrorType, the status is set to Failed and the process also returns to the Get Transaction Data state, without retrying the transaction1. If the transaction fails due to an Application ErrorType, the status is set to Failed and the process retries the transaction until the maximum number of retries is reached1. If there is no transaction item available, or if the maximum number of retries is reached, or if a System Error occurs, the process moves to the End Process state, where the application is closed and the final report is generated1.

Therefore, considering a process developed using REFramework, if the status of a transaction was set to “Failed” with the ErrorType specified as “Business”, the process will transition to the Get Transaction Data state, where it will fetch the next transaction item from the queue.

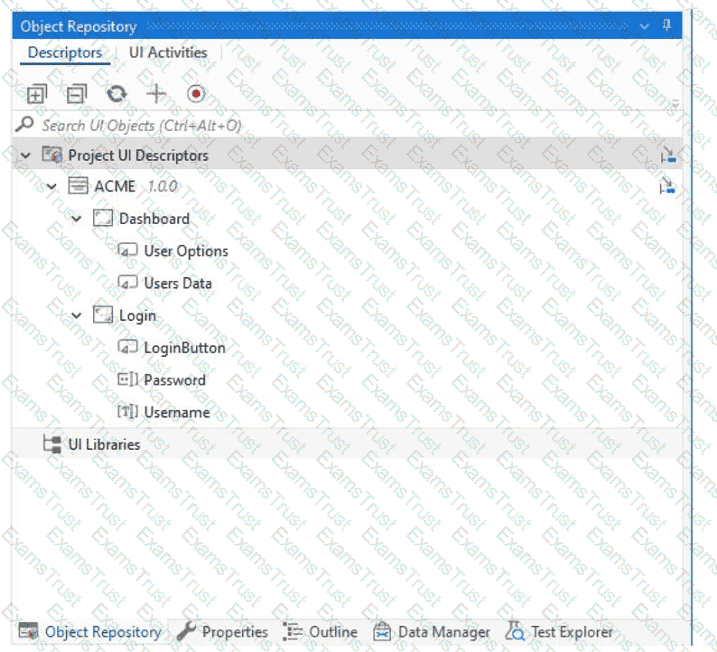

The Object Repository is a feature of UiPath Studio that allows you to store and manage UI elements that are used in your automation projects. You can create and edit UI descriptors for the UI elements, and reuse them across multiple workflows and projects. The Object Repository supports both the default UI framework and the Computer Vision framework for identifying UI elements.

The Computer Vision framework is a technology that uses artificial intelligence and machine learning to analyze the UI of any application and provide reliable selectors for the UI elements. The Computer Vision framework can handle complex and dynamic UIs that are not supported by the default UI framework, such as Citrix, SAP, or PDF applications.

The Capture All Elements feature in Object Repository is a feature that allows you to capture all the available elements of an application using the Computer Vision technology. You can use this feature to quickly and easily create UI descriptors for all the UI elements on the screen, without having to indicate each element individually. You can access this feature by clicking the Capture All Elements button on the Object Repository ribbon tab, or by using the Capture All Elements activity in the workflow.

The Capture All Elements feature has the following benefits:

• It saves time and effort by capturing all the UI elements in one go, instead of indicating each element separately.
• It ensures consistency and accuracy by using the same Computer Vision technology and selector logic for all the UI elements.
• It allows you to edit, rename, or delete the UI descriptors after capturing them, and customize them according to your needs.
• It enables you to reuse the UI descriptors across multiple workflows and projects, and share them with other developers.

The correct answer is C. To capture all the available elements of an application using the Computer Vision technology. This statement accurately describes the purpose of the Capture All Elements feature in Object Repository.

The other options are not correct statements. Option A is incorrect, because the Capture All Elements feature does not capture the selected elements of an application, but all the available elements. It also does not capture the elements from multiple screens simultaneously, but only from the current screen. Option B is incorrect, because the Capture All Elements feature does not capture the selected elements of an application, but all the available elements. Option D is incorrect, because the Capture All Elements feature does not capture the elements from multiple screens simultaneously, but only from the current screen.

References: Studio - Object Repository - UiPath Documentation Portal, Activities - Capture All Elements - UiPath Documentation Portal, Computer Vision - Introduction - UiPath Documentation Portal, Object Repository - UiPath Academy

UiPath Integration Service is a component of the UiPath Platform that allows users to automate third-party applications using both UI and API integration. It has the following primary functions1:

• Enables automation with a library of connectors: Connectors are pre-built API integrations that provide a consistent developer experience and simplify the integration process. Users can browse and import connectors from the Connector Catalog or the UiPath Marketplace, or create their own connectors using the Connector Builder (Preview).
• Manages connections easily with standardized authentication: Users can create and manage secure connections to various applications using standardized authentication methods, such as OAuth 2.0, Basic, API Key, etc. Users can also share connections with other users, groups, or automations within the UiPath Platform.
• Kicks off automations with server-side triggers or events: Users can trigger automations based on events from external applications, such as webhooks, email, or schedules. Users can also configure parameters and filters for the events to customize the automation logic.
• Provides curated activities and events: Users can access a set of curated activities and events that are specific to each connector and application. These activities and events can be used in UiPath Studio or UiPath StudioX to design and execute automations.
• Simplifies automation design: Users can leverage the UiPath Integration Service Designer to create and test integrations in a graphical interface. Users can also import common API formats, such as Swagger, YAML, or Postman collections, to generate connectors automatically.

References:

1: Integration Service - Introduction - UiPath Documentation Portal

The purpose of credential stores in UiPath Orchestrator is to securely store sensitive data such as Robot credentials and Credential Assets for use in automation processes. Credential stores are external services that provide encryption and protection for sensitive data. Orchestrator can integrate with various credential stores, such as CyberArk, Azure Key Vault, and HashiCorp Vault, and use them to store and retrieve the credentials for the Robots and the Credential Assets. Credential Assets are global variables that can store passwords, usernames, API keys, and other confidential information. By using credential stores, the developer can ensure that the sensitive data is not exposed or compromised, and that the automation processes can access the data securely and efficiently. References: [Credential Stores], [Credential Assets]

A Business Rule Exception is a type of exception that indicates that the data or the input required for the automation process is incomplete or invalid1. For example, a Business Rule Exception can occur when a phone number is missing a digit, or when a mandatory field is left blank1. A Business Rule Exception is usually thrown by the developer using the Throw activity, and it is handled by the Set Transaction Status activity, which sets the status of the transaction item to Failed and adds the exception details to the queue item2. By default, Orchestrator does not retry transactions that are failed due to Business Rule Exceptions, regardless of the Max # of retries setting for the queue3. This is because retrying the transaction does not solve the issue, and there are other better courses of action, such as notifying the human user of the error1. Therefore, if the first transaction item throws a Business Rule Exception, the transaction is not retried, but the remaining transactions continue processing, as long as they do not encounter any other exceptions.

Starting with UiPath Studio version 2022.10, dependencies that lack Windows compatibility are marked as unresolved when they are converted in a project. This means that the project cannot be executed until the unresolved dependencies are manually resolved by the developer. This is done to ensure that the project can run on both Windows and Linux platforms without compatibility issues. References: [UiPath Studio Guide - Converting Projects to Linux Compatibility]

The Monitoring pages in UiPath Orchestrator are pages that provide information and statistics about the performance and health of your robots, processes, queues, and jobs. You can access the Monitoring pages from the left menu in Orchestrator, under the Monitoring section.

The Include Subfolders filter in the Monitoring pages is a filter that allows you to select whether the contents of the selected folder’s subfolders are displayed in the Monitoring pages. This filter is available when a modern folder is selected from the Folder drop-down list. A modern folder is a type of folder in Orchestrator that supports dynamic and fine-grained permission management, as well as folder-level isolation of data, processes, and execution.

When the Include Subfolders filter is checked, the Monitoring pages display the data for the selected folder and all its subfolders. For example, if you select a modern folder called Sales and check the Include Subfolders filter, the Monitoring pages will show the data for the Sales folder and all its subfolders, such as Sales-East, Sales-West, Sales-North, and Sales-South. This way, you can get a comprehensive view of the performance and health of your robots, processes, queues, and jobs across multiple subfolders.

When the Include Subfolders filter is unchecked, the Monitoring pages display the data only for the selected folder. For example, if you select a modern folder called Sales and uncheck the Include Subfolders filter, the Monitoring pages will show the data only for the Sales folder, excluding its subfolders. This way, you can get a focused view of the performance and health of your robots, processes, queues, and jobs within a specific folder.

The correct answer is B. It allows you to select whether the contents of the selected folder’s subfolders are displayed. This statement accurately describes the functionality of the Include Subfolders filter in the Monitoring pages when a modern folder is selected.

The other options are not correct statements. Option A is incorrect, because the Include Subfolders filter does not allow you to choose between background and foreground processes for the displayed data. Background and foreground processes are types of processes that run in the background or foreground of the robot machine, respectively. You can filter the displayed data by process type using the Process Type filter in the Monitoring pages. Option C is incorrect, because the Include Subfolders filter does not enable you to sort the displayed data based on job priorities. Job priorities are levels of importance that are assigned to jobs when they are created or triggered, such as High, Normal, or Low. You can sort the displayed data by job priority using the Sort By drop-down list in the Monitoring pages. Option D is incorrect, because the Include Subfolders filter does not allow you to allocate licenses per machine for the displayed data. Licenses are resources that are consumed by robots, processes, or users when they perform certain actions in Orchestrator. You can allocate licenses per machine using the License Allocation page in Orchestrator.

References: Orchestrator - Monitoring - UiPath Documentation Portal, Orchestrator - Modern Folders - UiPath Documentation Portal, Orchestrator - License Allocation - UiPath Documentation Portal

The CV Screen Scope activity is used to initialize the UiPath Computer Vision neural network and provide a scope for all subsequent Computer Vision activities. It allows you to select which OCR engine you want to use for scraping the text in the target application. The default OCR engine used for this activity is UiPath Screen OCR, which is an in-house, machine-learning based OCR targeted for screens and digital text. It can be used as an alternative to the other OCR engines, such as Google OCR, Microsoft OCR, or Tesseract OCR. The engine can be changed by manually replacing the default engine with one of your choice1.

The other options are incorrect because:

• Option B is incorrect because Microsoft OCR is not the default OCR engine used in CV Screen Scope. Microsoft OCR is an OCR engine that uses the MODI (Microsoft Office Document Imaging) Library to process images and extract text2.
• Option C is incorrect because Tesseract OCR is not the default OCR engine used in CV Screen Scope. Tesseract OCR is an OCR engine that uses the open-source Tesseract library to process images and extract text3.
• Option D is incorrect because Microsoft Azure Computer Vision OCR is not the default OCR engine used in CV Screen Scope. Microsoft Azure Computer Vision OCR is an OCR engine that uses the Microsoft Azure Computer Vision API to process images and extract text4.

References:

• Activities - CV Screen Scope - UiPath Documentation Portal
• Activities - Microsoft OCR - UiPath Documentation Portal
• Activities - Tesseract OCR - UiPath Documentation Portal
• Activities - Microsoft Azure Computer Vision OCR - UiPath Documentation Portal

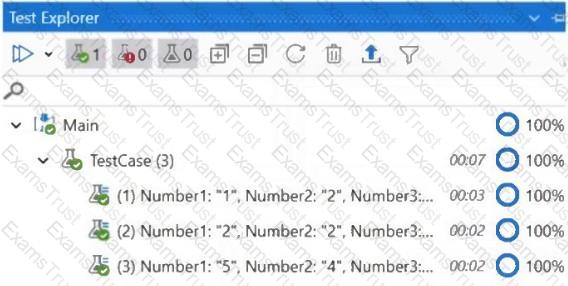

The Test Explorer panel in UiPath Studio shows information relevant to test automation, such as test cases, test results, and activity coverage1. You can use the Test Explorer toolbar to filter test results based on result state, and to run or debug test cases using various options1. According to the UiPath documentation12, the available actions in Test Explorer are:

• Refresh: Refresh the information shown in the Test Results panel.
• Clear execution results: Clear all execution results shown in the Test Explorer Panel.
• Run All in View: Run tests that are currently in view through all filters.
• Run All: Run all test cases and workflows.
• Run Selected: Run only selected test cases and workflows.
• Run Failed Test Cases: Run only failed test cases.
• Debug Selected: Debug only selected test cases and workflows.
• Debug Failed Test Cases: Debug only failed test cases.
• Repeat Last Test Run: Run the latest test.
• Passed Test Cases: Show only test cases that have passed.
• Failed Test Cases: Show only test cases that have failed.
• Not Executed Test Cases: Show only test cases that have not been executed.
• Filter by Covered/Uncovered Activities: Choose whether to show in the Designer panel the activities that have been covered during the execution.
• Filter by Test Cases/Workflows: Choose what to show in the Test Explorer panel.
• Search Tests: Use the search function to look for test case names.

As you can see, there is no action called Run Passed Test Cases in Test Explorer, so this is the correct answer to the question.

References:

• Studio - Test Explorer - UiPath Documentation Portal
• Studio - Test Activities - UiPath Documentation Portal
• Studio - Test Explorer - UiPath Documentation Portal

The Log Message option in the Breakpoint Settings allows the user to log custom information at each breakpoint while executing a process in Debug mode. This option can be accessed by right-clicking on a breakpoint and selecting Breakpoint Settings. The user can then enter a message that will be logged in the Output panel when the breakpoint is hit. The message can include variables, arguments, and pseudovariables, such as $PID, $TID, $FUNCTION, etc1

Option B is not recommended, because it requires the user to insert a Log Message activity before each activity with a breakpoint, which can be tedious and clutter the workflow. Option C is not relevant, because it enables or disables logging for all activities in the project, not just the breakpoints. Option D is not related, because it shows the execution flow of the process, not the custom information at each breakpoint.

References: 1: Studio - The Breakpoints Panel

The Verify Expression with Operator activity is used to verify an expression by asserting it in relation to a given expression with an operator1. The expressions tested with this activity must be inserted in their respective property fields. In this case, the activity is configured to verify if the expression “1” is equal to the expression “2”. The result of this verification is stored in the Result property, which reflects the state of the verification activity1. If the verification fails, the activity throws a TestingActivitiesException, which is a custom exception type defined by the UiPath.Testing.Activities package2.

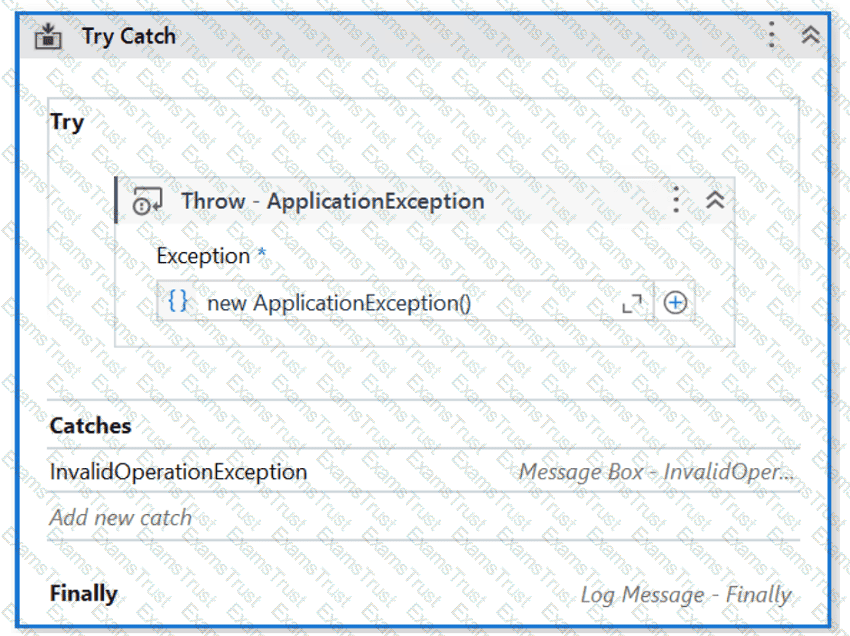

The Try-Catch activity is used to catch a specified exception type in a sequence or activity, and either displays an error notification or dismisses it and continues the execution3. The activity has three main sections: Try, Catches, and Finally. The Try section holds the activity or set of activities that could throw an exception. The Catches section indicates the exception type and holds the activity or set of activities to be performed when the specified exception is thrown. The Finally section holds the activity or set of activities to be performed after the Try and Catches blocks are executed, regardless of the result3.

In this scenario, the Verify Expression with Operator activity is placed in the Try section of the Try-Catch activity. The Catches section has two exceptions caught: System.Exception and TestingActivitiesException. The Finally section is empty. During the execution of the sequence, the Verify Expression with Operator activity will throw a TestingActivitiesException, because the expressions 1 and 2 are not equal. The Try-Catch activity will catch this exception and enter the TestingActivitiesException sequence from the Catches section, where the appropriate actions can be performed to handle the error. Therefore, the correct answer is C. The Exception sequence from the Catches block within the Try-Catch activity will be entered first, after the Verify Expression with Operator activity is executed.

The other options are incorrect because:

• Option A is incorrect because the Try-Catch activity will execute one of the blocks within the Catches section, depending on the type of exception thrown by the Verify Expression with Operator activity. In this case, the TestingActivitiesException sequence will be executed.
• Option B is incorrect because the Finally block within the Try-Catch activity will be executed only after the Try and Catches blocks are executed, not before. The Finally block is used to perform any cleanup or final actions that are needed regardless of the outcome of the Try and Catches blocks3.
• Option D is incorrect because the TestingActivitiesException sequence from the Catches block within the Try-Catch activity will be entered second, not first, after the Verify Expression with Operator activity is executed. The first block to be entered is the Try block, where the Verify Expression with Operator activity is placed.

References:

• Activities - Verify Expression With Operator - UiPath Documentation Portal
• UiPath.Testing.Activities Namespace
• Activities - Try Catch - UiPath Documentation Portal

The value of the qty variable will be 80 after executing the Assign activity. This is because the expression in the Assign activity is using the LINQ methods AsEnumerable, SkipWhile, and Item to access the data in the dt variable. The dt variable is a DataTable that contains the following data:

Item

Quantity

apple

5

banana

10

mango

20

orange

80

grape

40

The AsEnumerable method converts the DataTable into an Enumerable collection of DataRow objects. The SkipWhile method skips the elements of the collection until the condition is false. The condition is a lambda expression that checks if the value of the Item column is equal to “mango”. The (0) indexer returns the first element of the collection after skipping. The Item method accesses the value of the Quantity column of the DataRow. The ToString method converts the value into a string. Therefore, the expression will skip the first three rows of the DataTable and return the value of the Quantity column of the fourth row, which is 80. References: [DataTable.AsEnumerable Method], [Enumerable.SkipWhile Method], [DataRow.Item Property]

The screenshot shows an "Invoke Code" activity in UiPath with the following VB.NET code:

Users_List.Add("User1")

Users_List.Add("User2")

According to the given information, the "Users_List" variable is a List of Strings that has been initialized with an empty list before the Invoke Code activity is run. The code within the Invoke Code activity is adding two strings: "User1" and "User2" to the "Users_List".

The Log Message activity following the Invoke Code is attempting to log the count of items in "Users_List", which would be the number of elements contained in the list at that time.

Given the steps that have been described, after the Invoke Code activity has run, the "Users_List" will contain two elements ("User1" and "User2"). Therefore, the log message will print the count of items in the list, which is:

B. 2

So the correct answer is B, as the "Users_List" will have two elements and Users_List.Count will return the number 2.

The Invoke Code activity is used to execute VB.NET or C# code within a UiPath workflow1. The activity has the following properties:

• Code: The code that is to be executed. This field supports only strings and String variables1.
• Language: The language that the code is written in. The available options are VBNet and CSharp1.
• Arguments: The parameters that can be passed to and from the code1.

In this question, the developer has created a variable of type List of Strings named “Users_List”, and initialized it with an empty list: “Users_List = new List(Of String)”. Then, the developer has used the Invoke Code activity to execute the following code:

Users_List.Add(“User1”) Users_List.Add(“User2”)

This code adds two items (“User1” and “User2”) to the “Users_List” variable. After the Invoke Code activity, the developer has used the Log Message activity to print the count of items in the “Users_List” variable, using the expression “Users_List.Count.ToString”. This expression returns the number of items in the list as a string2. Therefore, the log message will print “2”, as there are two items in the list

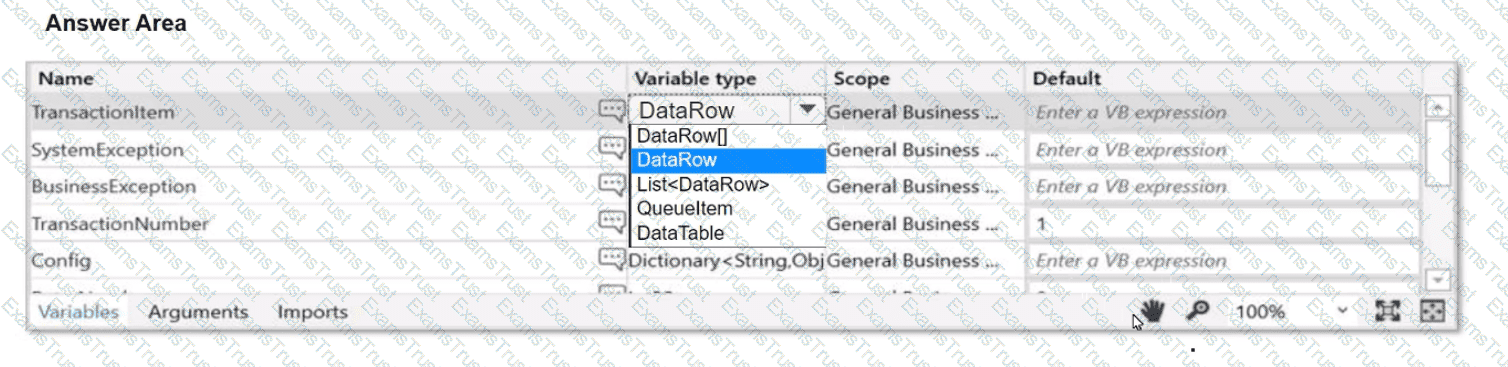

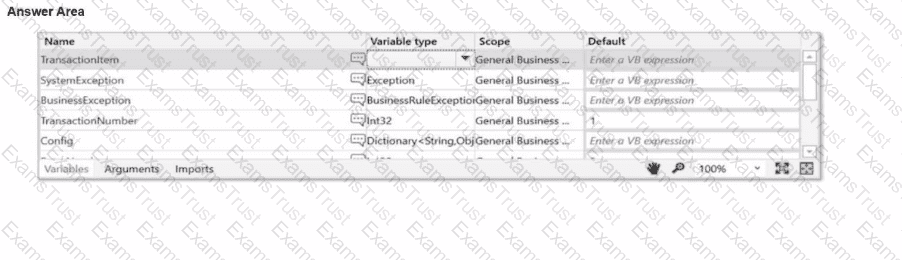

The REFramework (Robotic Enterprise Framework) is a template that provides a standard structure and best practices for developing UiPath automation projects. It uses the concept of transactions to process items from a data source, such as an Excel table, a queue, or a database. A transaction is a single unit of work that can be executed by the robot. The REFramework has a variable called TransactionItem, which stores the current transaction to be processed.

The variable type of TransactionItem depends on the type of data source that is used for the transactions. If the data source is an Orchestrator queue, then the TransactionItem should be of type UiPath.Core.QueueItem, which represents an item from the queue. If the data source is an Excel table, then the TransactionItem should be of type System.Data.DataRow, which represents a row from the table. A DataRow object contains the values of a single row in a DataTable object, which represents the entire table.

In this scenario, the developer needs to use the REFramework to automate a business process that involves processing transactions within an Excel table. Each transaction in the table should follow the same steps for processing and queues cannot be used as there is no Orchestrator in the environment. Therefore, the best variable type for TransactionItem in this scenario is System.Data.DataRow, as it can store a single row from the Excel table as a transaction.

The other options are not suitable variable types for TransactionItem in this scenario. Option A is incorrect, because UiPath.Core.QueueItem is used for queue items, not Excel rows. Option B is incorrect, because System.Data.DataRow[] is an array of DataRow objects, not a single DataRow object. Option C is incorrect, because System.Data.DataTable is a table of DataRow objects, not a single DataRow object.

References: REFramework documentation - UiPath Documentation Portal, Transaction Item variable type - Studio - UiPath Community Forum, ReFramework - TransactionItem type - Help - UiPath Community Forum, ReFramework for Tabular Data - RPA Component - UiPath Marketplace

When installing UiPath Studio, the action that requires administrator privileges is installing the robot in service mode. Service mode is a type of robot installation that allows the robot to run unattended automations in the background, without requiring a user to be logged in. Service mode requires administrator privileges because it involves installing the robot as a Windows service and registering it to the UiPathOrchestrator.msi file. Installing the robot in user mode does not require administrator privileges, because it involves installing the robot as a Windows application and registering it to the UiPathAssistant.msi file. User mode is a type of robot installation that allows the robot to run attended automations in the foreground, requiring a user to be logged in. Installing UiPath Studio itself does not require administrator privileges, because it involves installing the Studio as a Windows application and registering it to the UiPathStudio.msi file. References: [Robot Installation Modes], [Installing the Robot], [Installing Studio]

The REFramework (Robotic Enterprise Framework) in UiPath is designed to work with transactional data. For a process that involves iterating over a DataTable where each row represents a transaction item, the appropriate variable type for the TransactionItem would be a DataRow.

In the context of REFramework, a DataRow is typically used to represent a single transaction item when the transaction data is contained within a DataTable. This allows the framework to process each row (or transaction) one by one.

Therefore, the correct variable type for the TransactionItem from the drop-down list should be DataRow.

The Alerts panel in UiPath is a feature designed to notify users about different types of alerts or events that occur within the UiPath ecosystem, especially within the Orchestrator. These can range from job failures, trigger notifications, to queue item alerts.

The best description of the Alerts panel, considering typical functionality within such systems, would be:

B. A panel that displays summaries of the alerts you subscribed to, received as error reports every ten minutes, or as daily reports.

This option suggests that the Alerts panel provides a curated view of alerts based on subscriptions, which can be configured for error reports at specified intervals or for aggregate daily reports, making it a more proactive and user-specific feature.

The other options either describe a panel with too broad a scope (A), suggest real-time alerting without the context of user subscriptions (C), or limit the display to only the most severe alerts without mention of subscription or reporting features (D).

Orchestrator alerts are real-time notifications related to robots, queue items, triggers, and more. Alerts can have one of the following severity levels, which indicate the importance and impact of the events1:

• Info - notifies you about low importance events, that do not interrupt the process execution, such as robots becoming available, users being assigned as reviewers, etc.
• Success - notifies you about a successful status, such as a job being completed, a queue item being processed, etc.
• Warn - notifies you about possible risky events that may interrupt your process execution, but any interruption can be recovered, such as queue items failing with business exceptions, triggers not being able to create new jobs, etc.
• Error - notifies you about imminent risky events that prevent the process from executing successfully, such as jobs failing, robots not responding, queue items failing with application exceptions, etc.
• Fatal - notifies you about events that force-stop the process execution, such as robots going offline or being disconnected, etc.

Option A is the correct answer, as it lists the five severity levels of Orchestrator alerts as defined in the documentation1. Option B is incorrect, because there is no Critical severity level, but rather Fatal. Option C is incorrect, because there are no Information, Complete, or Failure severity levels, but rather Info, Success, and Fatal. Option D is incorrect, because there are no Completed or Fatal severity levels, but rather Success and Fatal.

References: 1: Alerts Overview

 The project structure that is best-suited for complex processes in UiPath Studio, following UiPath best practices, is State Machine. A State Machine is a type of workflow that consists of a set of states, transitions, and triggers. A state represents a stage of the process, a transition represents a change from one state to another, and a trigger represents a condition or an event that activates a transition. A State Machine is suitable for complex processes because it can handle multiple paths and branches, depending on the logic and the triggers of the workflow. A State Machine can also handle loops and retries, as well as parallel execution of states. A State Machine can be created by using the State Machine activity in UiPath Studio, or by using the REFramework template, which is based on a State Machine structure. References: [State Machines], [REFramework]

After running any REFramework test case, the possible statuses are "PASS" or "FAIL". These indicate whether the test case succeeded or encountered an issue, respectively.

The DataTable object in UiPath is a representation of a table with rows and columns that can store data of various types. It has a Columns property that returns a collection of DataColumn objects that describe the schema of the table1. To extract the column names from a DataTable and store them in a list, you can use the following query:

dt.Columns.Cast(Of Datacolumn).Select(function(x) x.ColumnName).ToList()

This query does the following:

• It casts the Columns collection to a generic IEnumerable(Of DataColumn) using the Cast(Of T) extension method2. This is necessary because the Columns collection is a non-generic IEnumerable that cannot be used with LINQ methods directly3.
• It selects the ColumnName property of each DataColumn object using the Select extension method and a lambda expression4. The ColumnName property returns the name of the column as a string5.
• It converts the resulting IEnumerable(Of String) to a List(Of String) using the ToList extension method6.

The other options are incorrect because:

• Option B does not cast the Columns collection to a generic IEnumerable(Of DataColumn), which will cause a runtime error.
• Option C uses the AsEnumerable extension method, which returns a collection of DataRow objects, not DataColumn objects7. Therefore, the ColumnName property will not be available.
• Option D selects the whole DataColumn object instead of its ColumnName property, which will result in a list of DataColumn objects, not strings.

References:

• DataTable Class (System.Data) | Microsoft Docs
• Enumerable.Cast(Of TResult) Method (System.Linq) | Microsoft Docs
• DataColumnCollection Class (System.Data) | Microsoft Docs
• Enumerable.Select(Of TSource, TResult) Method (System.Linq) | Microsoft Docs
• DataColumn.ColumnName Property (System.Data) | Microsoft Docs
• Enumerable.ToList(Of TSource) Method (System.Linq) | Microsoft Docs
• DataTableExtensions.AsEnumerable Method (System.Data) | Microsoft Docs

LINQ (Language-Integrated Query) is a feature of .NET that allows you to write queries to manipulate data from various sources, such as arrays, collections, databases, XML, etc. LINQ can be used in UiPath Studio to perform complex data operations on variables of different types, such as DataTable, List, Array, etc. LINQ has two syntax forms: query syntax and method syntax. Both forms can achieve the same results, but they have different styles and preferences.

Option B is the correct answer because it demonstrates using LINQ method syntax to filter DataTable rows based on a specific condition. The expression dataTable.AsEnumerable().Where(Function(row) row(“ColumnName”).ToString.Contains(“Value”)).CopyToDataTable() does the following:

• It converts the DataTable variable dataTable to an IEnumerable(Of DataRow) object using the AsEnumerable extension method1. This allows the use of LINQ methods on the DataTable.
• It filters the rows of the DataTable based on a lambda expression using the Where extension method2. The lambda expression Function(row) row(“ColumnName”).ToString.Contains(“Value”) returns true for the rows that have the value “Value” in the column named “ColumnName”.
• It converts the filtered IEnumerable(Of DataRow) object back to a DataTable using the CopyToDataTable extension method3. This returns a new DataTable that contains only the rows that match the condition.

The other options are incorrect because:

• Option A is incorrect because it uses an invalid LINQ method Concatenate. The correct method to concatenate two strings in a list is Concat4, which takes two IEnumerable(Of T) objects as arguments and returns a new IEnumerable(Of T) that contains the elements from both sources. For example, listOfStrings.Concat(new List(Of String) {“String_1”, “String_2”}).ToList().
• Option C is incorrect because it uses an invalid LINQ method ToJSON. There is no such method in the LINQ library that can convert a list of integers to a JSON format. To achieve this, you need to use a JSON serializer, such as Newtonsoft.Json5, which provides methods to convert .NET objects to JSON and vice versa. For example, JsonConvert.SerializeObject(listOfIntegers).
• Option D is incorrect because it uses an invalid LINQ method Split. There is no such method in the LINQ library that can split a DataTable into multiple smaller DataTables based on a specific condition. To achieve this, you need to use a group by clause in LINQ query syntax or a GroupBy extension method in LINQ method syntax6, which groups the rows of a DataTable by a key value and returns an IEnumerable(Of IGrouping(Of TKey, TElement)) object. Then, you can use a Select extension method to project each group into a new DataTable using the CopyToDataTable extension method. For example, dataTable.AsEnumerable().GroupBy(Function(row) row(“ColumnName”)).Select(Function(group) group.CopyToDataTable()).ToList().

References:

• DataTableExtensions.AsEnumerable Method (System.Data) | Microsoft Docs
• Enumerable.Where(Of TSource) Method (System.Linq) | Microsoft Docs
• DataTableExtensions.CopyToDataTable(Of T) Method (System.Data) | Microsoft Docs
• Enumerable.Concat(Of TSource) Method (System.Linq) | Microsoft Docs
• Json.NET - Newtonsoft
• Grouping Data - C# | Microsoft Docs

The states that will be executed without errors when a developer runs a process using the REFramework, with the process utilizing Orchestrator queues and a queue already created with the Name provided and the Auto Retry function disabled, are Initialization, Get Transaction Data, Process Transaction, and End Process. The REFramework is a template that provides a robust and scalable structure for building automation processes. The REFramework consists of four main states: Initialization, Get Transaction Data, Process Transaction, and End Process. The Initialization state is responsible for initializing the application, reading the configuration file, and logging in to the Orchestrator. The Get Transaction Data state is responsible for fetching the next transaction item from the Orchestrator queue and assigning it to the TransactionItem variable. The Process Transaction state is responsible for executing the main logic of the process for the current transaction item. The End Process state is responsible for closing the application, logging out of the Orchestrator, and performing any cleanup actions. If the process utilizes Orchestrator queues and a queue already exists with the Name provided and the Auto Retry function disabled, then the process will be able to execute these states without errors, assuming that there are no other issues or exceptions in the workflow. References: [Robotic Enterprise Framework], [REFramework States]

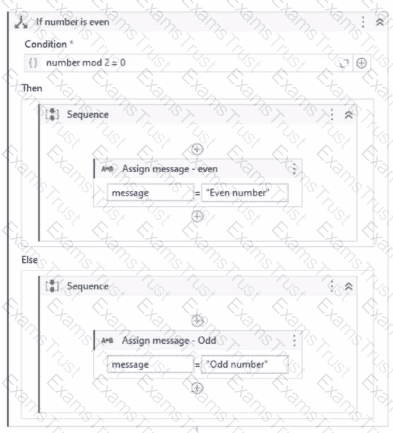

This expression evaluates if the number modulo 2 equals 0, which would mean it is even. If true, it assigns the string "Even number" to the variable message. If false (meaning the number is odd), it assigns "Odd number" to message

The Extract PDF Page Range activity is used to extract a specific set of pages from a PDF file and save them as a new PDF file1. The activity has the following properties:

•Common

oDisplayName: The display name of the activity1.

•File

oFileName: The path of the PDF file you want to extract a range of pages from. This field supports only strings and String variables1.

oOutputFileName: The name you want to use for the file that is generated from the extracted range of pages. This field supports only strings and String variables1.

oPassword: The password of the PDF file, if necessary. This field supports only strings and String variables1.

•Input

oRange: The range of pages that you want to retrieve. You can specify a single page (e.g. “7”), a range of pages (e.g. “7-12”), or a complex range, (e.g. “2-5, 7, 15-End” or “All”). Only string variables and strings are supported. By default, this field is cleared1.

•Misc

oPrivate: If selected, the values of variables and arguments are no longer logged at Verbose level1.

The statement that correctly describes this activity is B. Range argument accepts complex range values or “All”. This statement is true because the Range property allows you to specify the pages that you want to extract from the PDF file using different formats, such as single pages, ranges, or complex ranges1. You can also use the keyword “All” to extract all the pages from the PDF file1.

The other statements are incorrect because:

•A. Password-protected PDF files cannot be processed with this activity. This statement is false because the activity has a Password property that allows you to enter the password of the PDF file, if necessary1. This enables the activity to process password-protected PDF files1.

•C. OutputFileName argument is optional. This statement is false because the OutputFileName property is required for the activity to work1. This property specifies the name of the file that is generated from the extracted range of pages1. If this property is not provided, the activity will throw an exception1.

•D. PageCount argument outputs the number of extracted pages. This statement is false because the activity does not have a PageCount argument1. The activity does not output the number of extracted pages, but only the new PDF file that contains the extracted pages1.

In a Try Catch activity within UiPath, when an exception is thrown that does not match any of the exception types specified in the Catches section, the exception is unhandled by the Catches section. If the thrown exception is an ApplicationException and the Catches section is only configured to handle an InvalidOperationException, then the ApplicationException is not caught because it is a different type of exception.

However, regardless of whether the exception is caught, the Finally block always executes. The Finally block is designed to run after the Try block and after any Catch blocks are checked for matches (regardless of whether a match is found or not).

Therefore, the correct answer is:

A. The Finally block is executed and the Catches section catches the exception.

In this context, "the Catches section catches the exception" means that the Catches section is evaluated for a match. Since ApplicationException is not handled by the InvalidOperationException catch block, the exception is not actually caught, but the Finally block will still execute.

The service mode is recommended for running unattended automations in UiPath. This mode allows robots to run without needing a user to be logged in, making it ideal for unattended scenarios.

The Check App State activity is specifically designed for UI synchronization. It checks the state of a UI element, ensuring that subsequent actions are performed when the UI element is in the desired state.

UiPath Orchestrator provides integration capabilities with various credential stores to securely store and manage credentials such as usernames and passwords, API keys, and other secrets. The built-in support for credential stores in Orchestrator includes:

•Azure Key Vault: A cloud service provided by Microsoft that safeguards cryptographic keys and other secrets used by cloud applications and services.

•CyberArk Credential Provider (CCP): CyberArk's enterprise-grade solution designed to secure, manage, and monitor privileged accounts and credentials.

•HashiCorp Vault: A tool for secrets management, encrypting sensitive data, and access control across dynamic infrastructure.

•Thycotic Secret Server: An enterprise-level solution for privileged account management and protection of critical enterprise passwords and secrets.

•BeyondTrust: A privileged access management platform that secures and manages access to critical assets, passwords, and endpoints.

•CyberArk: In addition to the CCP, Orchestrator supports integration with other CyberArk solutions for secure credential management.

These integrations allow Orchestrator to retrieve credentials securely at runtime for use in automation workflows, enhancing the security posture by avoiding hard-coded or plaintext credentials in automation scripts.

References:

•UiPath Orchestrator Guide: Managing Credentials

•UiPath Orchestrator Guide: About Credential Stores

Logging a message with the "Info" level is appropriate every time data is read from external sources. This helps in tracking the flow of data and understanding the sequence of operations in the automation process.

The Object Repository is a feature of UiPath Studio that allows you to store and manage UI elements in a structured way, similar to a DOM (Document Object Model)1. The Object Repository can be created and used in both libraries and processes2. When you import a library as a dependency in a process, the Object Repository defined in the library will automatically be available in the process3. You can access the UI elements from the library by using the UI Activities tab in the Object Repository panel3. You can also drag and drop the UI elements from the library to the Designer panel3.

"Process A":

• The process is scheduled to run at 2:00 PM, but due to busy robots, it starts at 2:05 PM.
• The Schedule ending of Job execution feature is configured to stop the job after 20 minutes.
• Therefore, "Process A" will be stopped 20 minutes after it started, which is at 2:25 PM.

 The Global Exception Handler is a type of workflow that determines the project’s behavior when encountering an execution error. It has two arguments that are provided by default and should not be removed. They are:

• errorinfo: This argument has the “In” direction and it stores information about the error that was thrown and the workflow that failed. It can be used to log the error details, get the name of the activity that caused the error, or count the number of retries1.
• result: This argument has the “Out” direction and it is used to specify the next action of the process when it encounters an error. It can have one of the following values: Continue, Ignore, Retry, or Abort. These values determine whether the exception is re-thrown, ignored, retried, or stops the execution1.

The other options are not correct, because they either have the wrong direction for the arguments, or they use the “In/Out” direction, which is not valid for the Global Exception Handler arguments1.

References:

1: Studio - Global Exception Handler - UiPath Documentation Portal

The value that will be displayed in the Output Panel at the end of the sequence is 9. This is because the code in the Invoke Code activity is looping through the array in_numArray and setting the variable out_numVar to the highest value in the array. The array in_numArray has the values {1, 2, 7, 9, 4} as shown in the list of arguments. The variable out_numVar is initialized to 0. The For loop iterates from 0 to the upper bound of the array, which is 4. In each iteration, the If condition checks if the current element of the array is greater than the current value of out_numVar. If it is, then out_numVar is assigned to the current element of the array. Otherwise, out_numVar remains unchanged. Therefore, after the first iteration, out_numVar becomes 1. After the second iteration, out_numVar becomes 2. After the third iteration, out_numVar becomes 7. After the fourth iteration, out_numVar becomes 9. After the fifth iteration, out_numVar remains 9, since 4 is not greater than 9. The Write Line activity outputs the value of out_numVar to the console, which is 9. References: Invoke Code

In UiPath Testing Activities, the "Verify Expression" activity is designed to evaluate expressions and can include other activities within its body. This feature is particularly useful in test cases where you need to assert the outcome of a specific expression or condition. By embedding other activities within the "Verify Expression" activity, users can execute additional actions or checks as part of the verification process, enhancing the flexibility and depth of testing scenarios within UiPath projects.References:

• UiPath Documentation: Testing Activities Guide

The queue that will be consumed by the robot is QueueB from FolderA. This is because the arguments passed from Orchestrator have priority over the settings from the Config file. Therefore, the value of in_OrchestratorQueueName overrides the value of OrchestratorQueueName, and the value of in_OrchestratorQueueFolder overrides the value of OrchestratorQueueFolder. However, since the value of in_OrchestratorQueueFolder is empty, the default folder where the process is published is used, which is FolderA1.

The other options are not correct, because they do not reflect the values of the arguments passed from Orchestrator. For example:

• Option A is incorrect, because the queue name is QueueA, not QueueB.
• Option B is incorrect, because the queue folder is Shared, not FolderA.
• Option D is incorrect, because the queue folder is Shared, not FolderA.

References:

1: Studio - REFramework Configuration - UiPath Documentation Portal

AI Computer Vision is a feature of UiPath that enables the automation of remote applications or desktops, such as Citrix Virtual Apps, Windows Remote Desktop, or VMware Horizon, by using native selectors. Native selectors are expressions that identify UI elements reliably and accurately, without relying on OCR or image recognition activities1. AI Computer Vision uses a mix of AI, OCR, text fuzzy-matching, and an anchoring system to visually locate elements on the screen and interact with them via UiPath Robots, simulating human interaction2. AI Computer Vision is especially useful for scenarios where the UI elements have low quality or scaling issues, which make them difficult to recognize with traditional methods3.

Option A is an accurate example of using AI Computer Vision features in a UiPath project, because it involves identifying and interacting with UI elements in a remote desktop application, which is one of the main use cases of AI Computer Vision. By using the Computer Vision activities, such as CV Screen Scope, CV Click, CV Get Text, etc., you can automate tasks in a remote desktop application without using selectors, OCR, or image recognition activities4.

The other options are not accurate examples of using AI Computer Vision features in a UiPath project, because they involve tasks that are not related to the automation of remote applications or desktops, or that do not use the Computer Vision activities. For example:

• Option B involves training a custom machine learning model, which is not a feature of AI Computer Vision, but of the UiPath AI Fabric, a platform that enables you to deploy, consume, and improve machine learning models in UiPath.
• Option C involves extracting plain text from a scanned PDF document, which is not a feature of AI Computer Vision, but of the UiPath Document Understanding, a framework that enables you to classify, extract, and validate data from various types of documents.
• Option D involves performing sentiment analysis on a text string, which is not a feature of AI Computer Vision, but of the UiPath Text Analysis, a set of activities that enable you to analyze the sentiment, key phrases, and language of a text using pre-trained machine learning models.

References:

1: Studio - About Selectors - UiPath Documentation Portal 2: AI Computer Vision - Introduction - UiPath Documentation Portal 3: The New UiPath AI Computer Vision Is Now in Public Preview 4: Activities - Computer Vision activities - UiPath Documentation Portal : [AI Fabric - Overview - UiPath Documentation Portal] : [Document Understanding - Overview - UiPath Documentation Portal] : [Text Analysis - UiPath Activities]

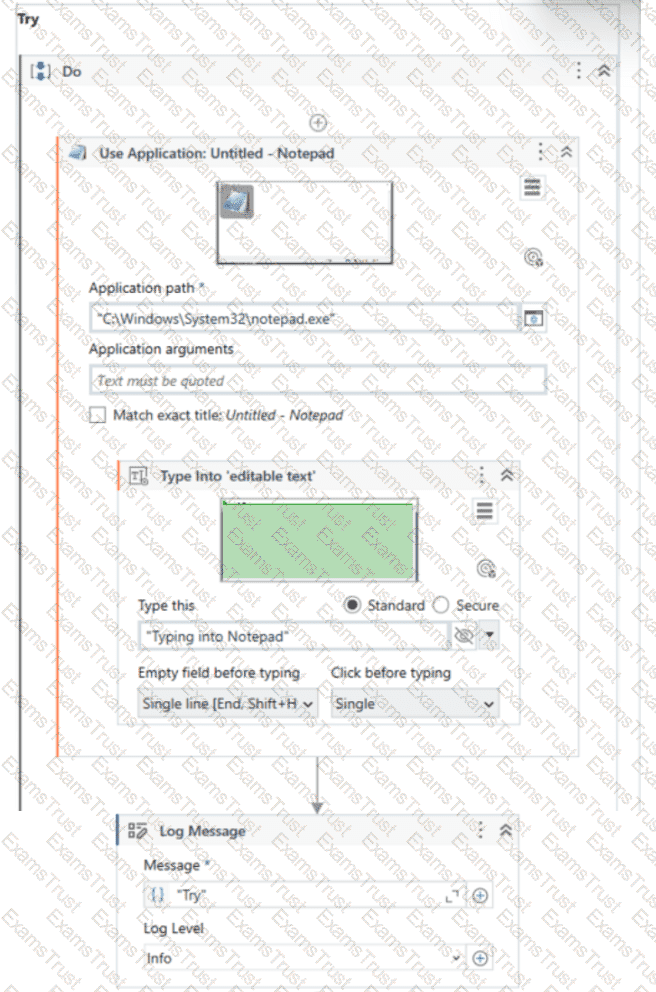

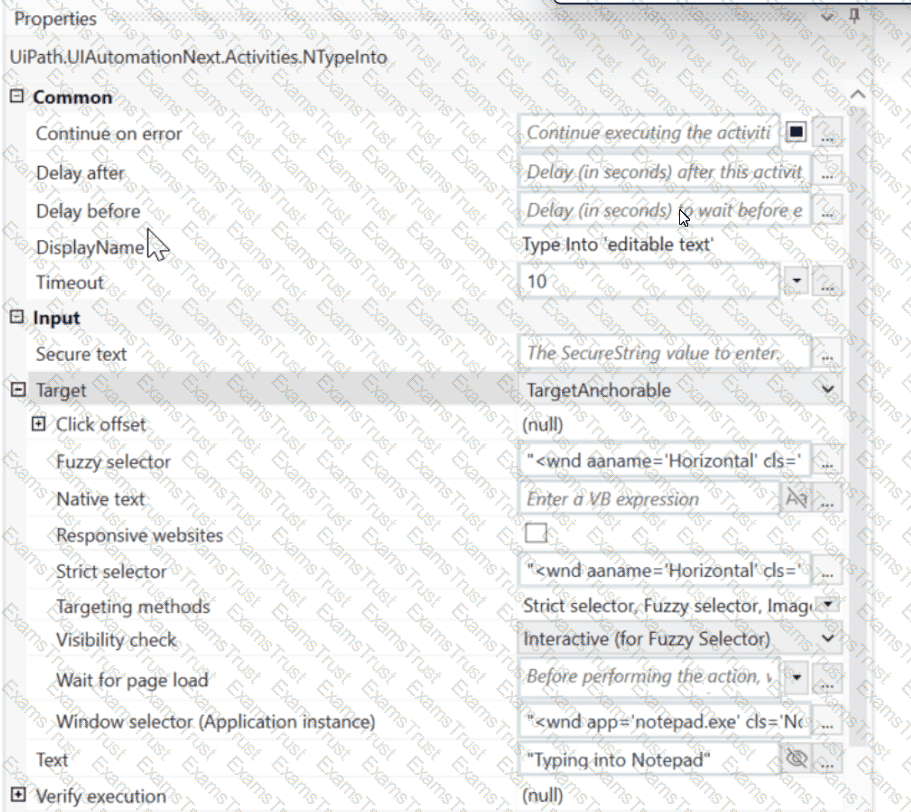

The Type Into activity is used to send keystrokes to a UI element, such as a text box1. The activity has several properties that can be adjusted to achieve different behaviors and results1. One of these properties is the Activate property, which determines whether the specified UI element is brought to the foreground and activated before the text is written1. By default, this property is not selected, which means that the activity will type into the current active window1. However, if the property is selected, the activity will first make sure that the target UI element is visible and focused, and then type the text1. Therefore, if the automation process requires each field to be brought to the foreground, the Activate property of the Type Into activity should be adjusted to achieve this

To replace the functionality of the MessageBox with a LogMessage during mock testing, the developer can perform the action of Surround activity with mock. This action inserts a mock activity around the selected activity, which allows the developer to change the behavior of the activity for testing purposes. For example, the developer can right-click on the MessageBox activity and select Surround activity with mock from the dropdown menu. This will create a mock activity that contains the MessageBox activity. The developer can then edit the mock activity and replace the MessageBox activity with a LogMessage activity, which will write the message to the output panel instead of displaying it in a dialog box. This way, the developer can test the functionality of the workflow without having to interact with the MessageBox dialog box. References: [Mock Testing], [Surround Activity with Mock]

In UiPath, the Flow Switch activity is commonly used within flowcharts. Its default TypeArgument property is set to Int32, which means it is primarily used to handle integer-based decision branching.

To ensure the Queue Items are processed in the correct order, the Postpone property of the Add Queue Item activity should be used. The Postpone property allows you to specify the date and time after which the queue item can be processed. This property can be used to prioritize the queue items based on the order of the emails received. For example, if the email was received at 10:00 AM, the Postpone property can be set to 10:00 AM or later, so that the queue item will not be processed before that time. The Postpone property can be set to a DateTime value, a variable, or an expression that returns a DateTime value. For example, the following expression sets the Postpone property to the current date and time plus one hour:

VB DateTime.Now.AddHours(1)
