Splunk SPLK-1003 Splunk Enterprise Certified Admin Exam Practice Test

Per the provided Splunk reference URL

"While HEC has precautions in place to prevent data loss, it's impossible to completely prevent such an occurrence, especially in the event of a network failure or hardware crash. This is where indexer acknolwedgment comes in."

Reference

"You can specify a SEDCMD configuration in props.conf to address data that contains characters that the third-party server cannot process. "

A bucket is the object that stores events inside of an index. According to the Splunk documentation1, “An index is a collection of directories, also called buckets, that contain index files. Each bucket represents a specific time range.” A bucket can be in one of several states, such as hot, warm, cold, frozen, or thawed1. Buckets are managed by indexers or clusters of indexers1.

The correct answer is B. in props.conf:

[identity]

SEDCMD-redact_pw = s/password=([^,|/s]+)/ ####REACTED####/g

According to the Splunk documentation1, to redact sensitive data from raw events, you need to use the SEDCMD attribute in the props.conf file. The SEDCMD attribute applies a sed expression to the raw data before indexing. The sed expression can use the s command to replace a pattern with a substitution string. For example, the following sed expression replaces any occurrence of password= followed by any characters until a comma, whitespace, or slash with ####REACTED####:

s/password=([^,|/s]+)/ ####REACTED####/g

The g flag at the end means that the replacement is applied globally, not just to the first match.

Option A is incorrect because it uses the REGEX attribute instead of the SEDCMD attribute. The REGEX attribute is used to extract fields from events, not to modify them.

Option C is incorrect because it uses the transforms.conf file instead of the props.conf file. The transforms.conf file is used to define transformations that can be applied to fields or events, such as lookups, evaluations, or replacements. However, these transformations are applied after indexing, not before.

Option D is incorrect because it uses both the wrong attribute and the wrong file. There is no REGEX-redact_pw attribute in the transforms.conf file.

- Section: About channels and sending data

Sending events to HEC with indexer acknowledgment active is similar to sending them with the setting off. There is one crucial difference: when you have indexer acknowledgment turned on, you must specify a channel when you send events. The concept of a channel was introduced in HEC primarily to prevent a fast client from impeding the performance of a slow client. When you assign one channel per client, because channels are treated equally on Splunk Enterprise, one client can't affect another. You must include a matching channel identifier both when sending data to HEC in an HTTP request and when requesting acknowledgment that events contained in the request have been indexed. If you don't, you will receive the error message, "Data channel is missing." Each request that includes a token for which indexer acknowledgment has been enabled must include a channel identifier, as shown in the following example cURL statement, where represents the event data portion of the request

"An Enterprise license stack with a license volume of 100 GB of data per day or more does not currently violate."

Adding further clarity and quoting same Splunk reference URL from @giubal"

"To keep configuration settings consistent across peer nodes, configuration files are managed from the cluster master, which pushes the files to the slave-app directories on the peer nodes. Files in the slave-app directories have the highest precedence in a cluster peer's configuration. Here is the expanded precedence order for cluster peers:

1.Slave-app local directories -- highest priority

2. System local directory

3. App local directories

4. Slave-app default directories

5. App default directories

6. System default directory --lowest priority

"The deployment server is the tool for distributing configurations, apps, and content updates to groups of Splunk Enterprise instances."

The correct answer is C. /var/log/host_460352847/bar/file/foo.txt.

The monitor stanza in inputs.conf is used to configure Splunk to monitor files and directories for new data. The monitor stanza has the following syntax1:

[monitor://]

The input path can be a file or a directory, and it can include wildcards (*) and regular expressions. The wildcards match any number of characters, including none, while the regular expressions match patterns of characters. The input path is case-sensitive and must be enclosed in double quotes if it contains spaces1.

In this case, the input path is /var/log//bar/.txt, which means Splunk will monitor any file with the .txt extension that is located in a subdirectory named bar under the /var/log directory. The subdirectory bar can be at any level under the /var/log directory, and the * wildcard will match any characters before or after the bar and .txt parts1.

Therefore, the file /var/log/host_460352847/bar/file/foo.txt will be matched by the monitor stanza, as it meets the criteria. The other files will not be matched, because:

A. /var/log/host_460352847/temp/bar/file/csv/foo.txt has a .csv extension, not a .txt extension.

B. /var/log/host_460352847/bar/foo.txt is not located in a subdirectory under the bar directory, but directly in the bar directory.

D. /var/log/host_460352847/temp/bar/file/foo.txt is located in a subdirectory named file under the bar directory, not directly in the bar directory.

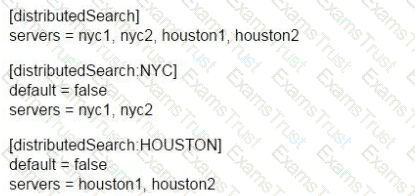

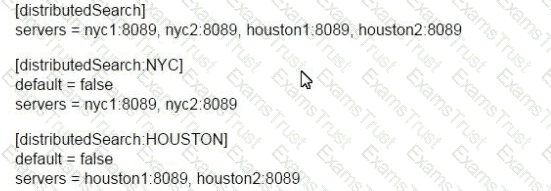

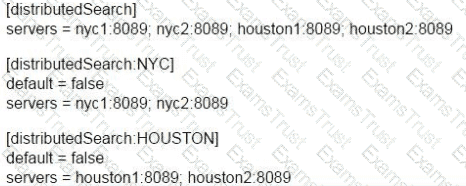

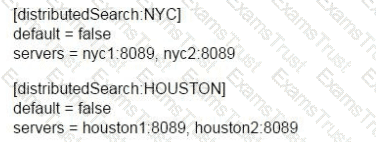

"You can group your search peers to facilitate searching on a subset of them. Groups of search peers are known as "distributed search groups." You specify distributed search groups in the distsearch.conf file"

In Splunk Enterprise, when you configure the server.conf file with strict pool quota=false, it means that license pools are allowed to share the total available license quota rather than being restricted to their individually allocated quotas. However, this does not prevent pools from issuing warnings if they exceed their allocated limits.

Given the environment with a 1000 GB/day license split into three pools:

Pool X: 500 GB/day license, 100 GB used

Pool Y: 350 GB/day license, 400 GB used

Pool Z: 150 GB/day license, 300 GB used

Let's analyze the usage:

Pool X is allocated 500 GB/day but has only used 100 GB, well within its limit.

Pool Y is allocated 350 GB/day but has used 400 GB, which exceeds its limit by 50 GB.

Pool Z is allocated 150 GB/day but has used 300 GB, which exceeds its limit by 150 GB.

Even with strict pool quota=false, pools Y and Z have exceeded their individual allocated quotas and will issue warnings. Pool X has not exceeded its quota and thus will not issue any warnings. Therefore, the pools that are issued warnings are Y and Z.

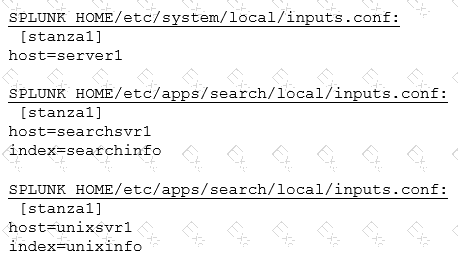

When there are conflicting settings within two or more configuration files, the setting with the highest precedence is used. The precedence of configuration files is determined by a combination of the file type, the directory location, and the alphabetical order of the file names.

The coldPath parameter defines the path for the cold buckets, which are the oldest and least frequently accessed data in an index1. By setting the coldPath to point to the NAS mount point, the Splunk administrator can achieve the retention strategy of having older data on slower NAS storage.

Splunk REST API is a valid method to create a Splunk user. The Splunk REST API allows administrators to create, edit, and delete users programmatically using HTTP requests. The other options are not valid methods to create a Splunk user. Creating a support ticket does not create a user, but requests assistance from Splunk support. Creating a user on the host operating system does not create a Splunk user, but a system user. Adding the username to users.conf does not create a user, but modifies the configuration file that stores user information. References = Configure users with the CLI, Configure users and roles

In Splunk Enterprise and Splunk Universal Forwarder, data inputs are configured using stanzas in inputs.conf. Each stanza defines a listener for a particular input type (for example, TCP or UDP) and a specific port.

Splunk documentation states that a single TCP input stanza can receive data from multiple remote hosts sending to the same TCP port, and similarly, a single UDP input stanza can receive data from multiple devices sending to the same UDP port. Therefore, the number of sending devices does not determine the number of stanzas required; rather, the input protocol and port type do.

In this case:

All three TCP devices can send data to one TCP port (one stanza).

All four UDP devices can send data to one UDP port (one stanza).

Thus, the minimum number of input stanzas required is two — one for TCP and one for UDP.

Example configuration (inputs.conf):

# TCP input for three switches sending via TCP

[tcp://9997]

sourcetype = switch_logs

# UDP input for four switches sending via UDP

[udp://514]

sourcetype = switch_logs

This configuration ensures all seven devices’ logs are collected without creating individual stanzas for each device.

Reference (Splunk Documentation):

Splunk® Enterprise Admin Manual → Configure Data Inputs → “Listen for network data”

inputs.conf.spec and example → “You can configure a single TCP or UDP input to receive data from multiple remote hosts.”

Splunk Universal Forwarder Manual → Configure Forwarding Inputs → “Universal Forwarders can listen on a single TCP or UDP port for multiple remote data sources.”

"Configure character set encoding. Splunk software attempts to apply UTF-8 encoding to your scources by default. If a source foesn't use UTF-8 encoding or is a non-ASCII file, Splunk software tries to convert data from the source to UTF-8 encoding unless you specify a character set to use by setting the CHARSET key in the props.conf file."

Using the provided DUO/Splunk reference

Scroll down to the Network Diagram section and note the following 6 similar steps

1 - SPlunk connection initiated

2 - Primary authentication

3 - Splunk connection established to Duo Security over TCP port 443

4 - Secondary authentication via Duo Security's service

5 - Splunk receives authentication response

6 - Splunk session logged in.

In Splunk Enterprise, license warnings occur when the daily indexing volume exceeds the licensed quota. These warnings are tracked from midnight to midnight based on the system clock of the license manager. If the number of warnings surpasses the allowed threshold within a specified period, a license violation ensues, potentially restricting search capabilities.

To prevent a license warning from escalating to a violation, administrators have until midnight to address the issue. The recommended action is toadd a new licenseto the license manager before midnight. This increases the daily indexing volume quota, ensuring that the current day's data ingestion falls within the permissible limits.

It's important to note that deleting data from indexers or the license manager does not retroactively reduce the recorded license usage for the day. Once data is indexed, it contributes to the day's license volume, and its removal does not negate that contribution.

 The parsing phase is the process of extracting fields and values from raw data. The parsing phase respects LINE_BREAKER, SHOULD_LINEMERGE, BREAK_ONLY_BEFORE_DATE, and all other line merging settings in props.conf. These settings determine how Splunk breaks the data into events based on certain criteria, such as timestamps or regular expressions. The event boundaries are defined by the props.conf file, which can be modified by the administrator. Therefore, the parsing phase is the last opportunity for defining event boundaries.

"In the input segment, Splunk software consumes data. It acquires the raw data stream from its source, breaks in into 64K blocks, and annotates each block with some metadata keys."

"A Splunk platform instance that responses to search requests from a search head. The term "Search peer" is usually synonymous with the indexer role in a distributed search topology..."

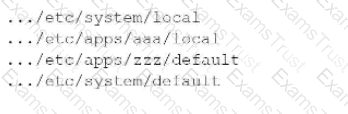

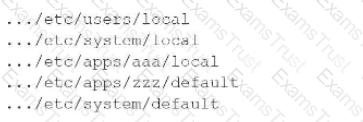

- etc/system/local/ has better precedence at index time - for identical settings in the same file, the last one overwrite others, see

The correct answer is C and D. A heavy forwarder and an indexer are the Splunk components that can break a stream of syslog inputs into individual events.

A universal forwarder is a lightweight agent that can forward data to a Splunk deployment, but it does not perform any parsing or indexing on the data. A search head is a Splunk component that handles search requests and distributes them to indexers, but it does not process incoming data.

A heavy forwarder is a Splunk component that can perform parsing, filtering, routing, and aggregation on the data before forwarding it to indexers or other destinations. A heavy forwarder can break a stream of syslog inputs into individual events based on the line breaker and should linemerge settings in the inputs.conf file1.

An indexer is a Splunk component that stores and indexes data, making it searchable. An indexer can also break a stream of syslog inputs into individual events based on the props.conf file settings, such as TIME_FORMAT, MAX_TIMESTAMP_LOOKAHEAD, and line_breaker2.

A Splunk component is a software process that performs a specific function in a Splunk deployment, such as data collection, data processing, data storage, data search, or data visualization.

Syslog is a standard protocol for logging messages from network devices, such as routers, switches, firewalls, or servers. Syslog messages are typically sent over UDP or TCP to a central syslog server or a Splunk instance.

Breaking a stream of syslog inputs into individual events means separating the data into discrete records that can be indexed and searched by Splunk. Each event should have a timestamp, a host, a source, and a sourcetype, which are the default fields that Splunk assigns to the data.

The following items in the phases below are listed in the order Splunk applies them (ie LINE_BREAKER occurs before TRUNCATE).

Input phase

inputs.conf

props.conf

CHARSET

NO_BINARY_CHECK

CHECK_METHOD

CHECK_FOR_HEADER (deprecated)

PREFIX_SOURCETYPE

sourcetype

wmi.conf

regmon-filters.conf

Structured parsing phase

props.conf

INDEXED_EXTRACTIONS, and all other structured data header extractions

Parsing phase

props.conf

LINE_BREAKER, TRUNCATE, SHOULD_LINEMERGE, BREAK_ONLY_BEFORE_DATE, and all other line merging settings

TIME_PREFIX, TIME_FORMAT, DATETIME_CONFIG (datetime.xml), TZ, and all other time extraction settings and rules

TRANSFORMS which includes per-event queue filtering, per-event index assignment, per-event routing

SEDCMD

MORE_THAN, LESS_THAN

transforms.conf

stanzas referenced by a TRANSFORMS clause in props.conf

LOOKAHEAD, DEST_KEY, WRITE_META, DEFAULT_VALUE, REPEAT_MATCH

Set the stanza to have a server value equal to a comma-separated list of IP addresses and indexer ports for each of the indexers in the environment. This is explained in the Splunk documentation1, which states:

To enable automatic load balancing, set the stanza to have a server value equal to a comma-separated list of IP addresses and indexer ports for each of the indexers in the environment. For example:

[tcpout] server=10.1.1.1:9997,10.1.1.2:9997,10.1.1.3:9997

The forwarder then distributes data across all of the indexers in the list.

A Splunk deployment server is a system that distributes apps, configurations, and other assets to groups of Splunk Enterprise instances. You can use it to distribute updates to most types of Splunk Enterprise components: forwarders, non-clustered indexers, and search heads2.

A Splunk deployment server is available on every full Splunk Enterprise instance. To use it, you must activate it by placing at least one app into %SPLUNK_HOME%\etc\deployment-apps on the host you want to act as deployment server3.

A Splunk deployment server maintains the list of server classes and uses those server classes to determine what content to distribute to each client. A server class is a group of deployment clients that share one or more defined characteristics1.

A Splunk deployment client is a Splunk instance remotely configured by a deployment server. Deployment clients can be universal forwarders, heavy forwarders, indexers, or search heads. Each deployment client belongs to one or more server classes1.

A Splunk deployment app is a set of content (including configuration files) maintained on the deployment server and deployed as a unit to clients of a server class. A deployment app can be an existing Splunk Enterprise app or one developed solely to group some content for deployment purposes1.

Therefore, option C is correct, and the other options are incorrect.

Splunk checks role-to-group mapping only during user login for external authentication (e.g., LDAP, SAML). Users already logged in will continue using their previously assigned roles until they log out and log back in.

The changes to role mapping do not disrupt ongoing sessions.

Incorrect Options:

B:Search is not disabled upon role updates.

C:This is incorrect since existing users are also updated upon the next login.

D:Role updates do not terminate ongoing sessions.

The HTTP Event Collector (HEC) supports indexer acknowledgment to confirm event delivery. Each acknowledgment is associated with a uniqueGUID(Globally Unique Identifier).

GUID ensures events are not re-indexed in the case of retries.

Incorrect Options:

B, C, D:These are not valid channel values in HEC acknowledgments.

A Splunk Enterprise trial license gives you access to all the features of Splunk Enterprise for a limited period of time, usually 60 days1. After the trial period expires, you can either purchase a Splunk Enterprise license or switch to a Free license1.

A Splunk Enterprise Free license allows you to index up to 500 MB of data per day, but some features are disabled, such as authentication, distributed search, and alerting2. You can switch to a Free license at any time during the trial period or after the trial period expires1.

A Splunk Enterprise Forwarder license is used with forwarders, which are Splunk instances that forward data to other Splunk instances. A Forwarder license does not allow indexing or searching of data3. You can install a Forwarder license on any Splunk instance that you want to use as a forwarder4.

A Splunk Enterprise commercial end-user license is a license that you purchase from Splunk based on either data volume or infrastructure. This license gives you access to all the features of Splunk Enterprise within a defined limit of indexed data per day (volume-based license) or vCPU count (infrastructure license). You can purchase and install this license after the trial period expires or at any time during the trial period1.

Parallel reduce search processing If you struggle with extremely large high-cardinality searches, you might be able to apply parallel reduce processing to them to help them complete faster. You must have a distributed search environment to use parallel reduce search processing.

"Specify how far (how many characters) into an event Splunk software should look for a timestamp." since TIME_PREFIX = ^ and timestamp is from 0-29 position, so D=30 will pick up the WHOLE timestamp correctly.

The CLI command "Splunk add forward-server indexer:" is used to define the indexer and the listening port on forwards. The command creates this kind of entry "[tcpout-server://:]" in the outputs.conf file.

SAML is an open standard for exchanging authentication and authorization data between parties, especially between an identity provider and a service provider1. SAML supports multi-factor authentication by allowing the identity provider to require the user to present two or more factors of evidence to prove their identity2. For example, the user may need to enter a password and a one-time code sent to their phone, or scan their fingerprint and face.

When using a directory monitor input, specific source types can be selectively overridden using the props.conf file. According to the Splunk documentation1, “You can specify a source type for data based on its input and source. Specify source type for an input. You can assign the source type for data coming from a specific input, such as /var/log/. If you use Splunk Cloud Platform, use Splunk Web to define source types. If you use Splunk Enterprise, define source types in Splunk Web or by editing the inputs.conf configuration file.” However, this method is not very granular and assigns the same source type to all data from an input. To override the source type on a per-event basis, you need to use the props.conf file and the transforms.conf file2. The props.conf file contains settings that determine how the Splunk platform processes incoming data, such as how to segment events, extract fields, and assign source types2. The transforms.conf file contains settings that modify or filter event dataduring indexing or search time2. You can use these files to create rules that match specific patterns in the event data and assign different source types accordingly2. For example, you can create a rule that assigns a source type of apache_error to any event that contains the word “error” in the first line2.

The correct methods to connect a deployment client to a deployment server are A and C. You can either run the command splunk set deploy-poll : from the command line of the deployment client1 or create and edit a deploymentclient.conf file in $SPLUNK_HOME/etc/system/local on the deployment client2. Both methods require you to specify the IP address, hostname, and management port of the deployment server that you want the client to connect to.

When Splunk is integrated with LDAP, most of the user attributes are managed by the LDAP server and cannot be changed in the Splunk UI. However, one exception is the default app attribute, which specifies which app a user sees when they log in to Splunk. This attribute can be changed in the Splunk UI by editing the user settings. Therefore, option A is the correct answer. References: Splunk Enterprise Certified Admin | Splunk, [Configure Splunk to use LDAP and map groups - Splunk Documentation]

The answer to your question is C. services/data/collector. This is the endpoint URI used to collect data in a customer managed Splunk Enterprise environment.According to the Splunk documentation1, “The HTTP Event Collector REST API endpoint is /services/data/collector.You can use this endpoint to send events to HTTP Event Collector on a Splunk Enterprise or Splunk Cloud Platform deployment.” You can also use this endpoint to send events to a specific token or index1. For example, you can use the following curl command to send an event with the token 578254cc-05f5-46b5-957b-910d1400341a and the index main:

curl -k -H 'Authorization: Splunk 578254cc-05f5-46b5-957b-910d1400341a'-d'{"index":"main","event":"Hello, world!"}'

Scroll down to section titled, How the cluster handles concurrent search quotas, "Overall search quota. This quota determines the maximum number of historical searches (combined scheduled and ad hoc) that the cluster can run concurrently. This quota is configured with max_Searches_per_cpu and related settings in limits.conf."

In Splunk Enterprise, when knowledge bundles (which include lookup files, configurations, and other knowledge objects) are replicated between search heads and indexers, administrators can control the maximum size of lookup files that are eligible for replication.

The correct parameter to use is excludeReplicatedLookupSize, defined in distsearch.conf. This parameter specifies a maximum file size (in megabytes) beyond which lookup files are excluded from bundle replication. By setting this to 500, any lookup file larger than 500 MB will not be replicated to search peers.

This is especially important for performance optimization and preventing unnecessary network load during search head to indexer communication.

Example configuration (distsearch.conf):

[replicationSettings]

excludeReplicatedLookupSize = 500

Reference (Splunk Documentation):

distsearch.conf.spec and example → excludeReplicatedLookupSize

Splunk® Enterprise Distributed Search Manual → “Control knowledge bundle replication between search heads and indexers”

Splunk Admin Manual → “Prevent large lookup files from being replicated”

"Where to place the scripts for scripted inputs. The script that you refer to in $SCRIPT can reside in only one of the following places on the host file system:

$SPLUNK_HOME/etc/system/bin

$SPLUNK_HOME/etc/apps//bin

$SPLUNK_HOME/bin/scripts

As a best practice, put your script in the bin/ directory that is nearest to the inputs.conf file that calls your script on the host file system."

The ellipsis wildcard searches recursively through directories and any number of levels of subdirectories to find matches.

If you specify a folder separator (for example, //var/log/.../file), it does not match the first folder level, only subfolders.

* The asterisk wildcard matches anything in that specific folder path segment.

Unlike ..., * does not recurse through subfolders.
