Salesforce MuleSoft-Integration-Architect-I Salesforce Certified MuleSoft Platform Integration Architect (Mule-Arch-202) Exam Practice Test

In the given scenario, a rate limiting policy has been applied to the SOAP API and a global error handler is configured to handle HTTP:RETRY_EXHAUSTED errors with a 429 status code. The rate limiting policy will trigger when the client exceeds the allowed quota of API calls. Since the HTTP:RETRY_EXHAUSTED error specifically catches quota exhaustion errors and the error handler is configured to return a 429 status code, the expected HTTP status returned to the client when the quota is exceeded will be 429. This error code indicates that the user has sent too many requests in a given amount of time ("rate limiting").

MuleSoft Documentation on Error Handling

HTTP Status Codes

Both Service Oriented Architecture (SOA) and API-led connectivity emphasize the principle of service reusability. This principle involves designing services and APIs in a way that they can be reused across different applications and use cases, reducing redundancy and improving efficiency. By creating reusable services, organizations can accelerate development, maintain consistency, and reduce costs associated with developing and maintaining multiple similar services.

To enable package-specific debugging for the org.apache.cxf package, you need to update the logging configuration in the Mule application's log4j2.xml file. The steps are as follows:

Open the log4j2.xml file in your Mule application.

Add an AsyncLogger element with the name property set to org.apache.cxf and the level set to DEBUG. This configuration specifies that only the logs from the org.apache.cxf package should be logged at the DEBUG level.

Save the changes to the log4j2.xml file.

Redeploy the updated Mule application to the CloudHub production environment to apply the new logging configuration.

This approach ensures that only the specified package's logging level is changed to DEBUG, minimizing the potential performance impact on the application.

References

MuleSoft Documentation on Configuring Logging

Log4j2 Configuration Guide

Explanation

* Anypoint Runtime Fabric is a container service that automates the deployment and orchestration of your Mule applications and gateways.

* Runtime Fabric runs on customer-managed infrastructure on AWS, Azure, virtual machines (VMs) or bare-metal servers.

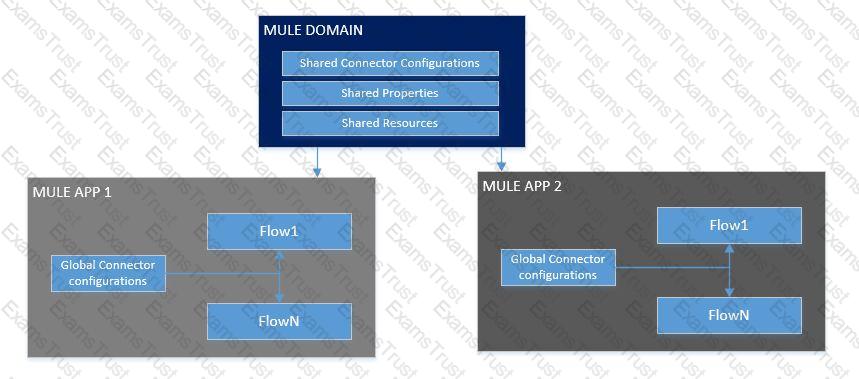

* As none of the Mule applications use Mule domain projects. applications are not required to be rewritten. Also when applications are deployed on RTF, by default ingress is allowed only on 8081.

* Hence port conflicts are not required to be managed by DevOps team

Explanation

Correct answer is When a Mule runtime on a given customer-hosted server is experiencing high memory consumption during certain periods Using Anypoint Monitoring, you can configure two different types of alerts: Basic alerts for servers and Mule apps Limit per organization: Up to 50 basic alerts for users who do not have a Titanium subscription to Anypoint Platform You can set up basic alerts to trigger email notifications when a metric you are measuring passes a specified threshold. You can create basic alerts for the following metrics for servers or Mule apps: For on-premises servers and CloudHub apps: * CPU utilization * Memory utilization * Thread count Advanced alerts for graphs in custom dashboards in Anypoint Monitoring. You must have a Titanium subscription to use this feature. Limit per organization: Up to 20 advanced alerts

A defining characteristic of an Integration-Platform-as-a-Service (iPaaS) is that it is cloud-based. iPaaS provides a cloud-based platform to enable integration of applications and data across various environments. This approach leverages the scalability, flexibility, and accessibility of the cloud to facilitate seamless integrations, reduce on-premises infrastructure requirements, and improve the speed of deployment and maintenance of integration solutions.

Explanation

Correct answer is EACH item VM message is processed AT LEAST ONCE by ONE ARBITRARY CloudHub worker. Each of the four CloudHub workers can be expected to process some item VM messages In Cloudhub, each persistent VM queue is listened on by every CloudHub worker - But each message is read and processed at least once by only one CloudHub worker and the duplicate processing is possible - If the CloudHub worker fails , the message can be read by another worker to prevent loss of messages and this can lead to duplicate processing - By default , every CloudHub worker's VM Listener receives different messages from VM Queue Referenece:

Explanation

Every Mule application deployed to CloudHub receives a DNS entry pointing to the CloudHub. The DNS entry is a CNAME for the CloudHub Shared Load Balancer in the region to which the Mule application is deployed. When we deploy the application on CloudHub, we get a generic url to access the endpoints. Generic URL looks as below:

.cloudhub.io redirects to

.cloudhub.io:8081

HTTPS traffic to .cloudhub.io redirects to

.cloudhub.io:8082

Explanation

* "The existence of a public Anypoint Exchange portal to which the asset has been published" - question does not mention anything about the public portal. Beside the public portal is open to the internet, to anyone. * If you cannot find an asset in the current business group scopes, search in other scopes. In the left navigation bar click All assets (assets provided by MuleSoft and your own master organization), Provided by MuleSoft, or a business group scope. User belonging to one Business Group can see assets related to his group only Reference: Correct answer is The business groups to which the user belongs

* Sharing Mule applications as templates is a great way to share your work with other people who are in your organization in Anypoint Platform. When they need to build a similar application they can create the mule application using the template project from Anypoint studio.

* Anypoint Templates are designed to make it easier and faster to go from a blank canvas to a production application. They’re bit for bit Mule applications requiring only Anypoint Studio to build and design, and are deployable both on-premises and in the cloud.

* Anypoint Templates are based on five common data Integration patterns and can be customized and extended to fit your integration needs. So even if your use case involves different endpoints or connectors than those included in the template, they still offer a great starting point.

Some of the best practices while creating the template project: - Define the common error handler as part of template project, either using pom dependency or mule config file - Define common logger/audit framework as part of the template project - Define the env specific properties and secure properties file as per the requirement - Define global.xml for global configuration - Define the config file for connector configuration like Http,Salesforce,File,FTP etc - Create separate folders to create DWL,Properties,SSL certificates etc - Add the dependency and configure the pom.xml as per the business need - Configure the mule-artifact.json as per the business need

Explanation

* "Relocation of the database systems to a DMZ in the on-premises network, with Mule applications deployed to the CloudHub Shared Worker Cloud connecting only to the DMZ" is not a feasible option

* "Static IP addresses for the Mule applications deployed to the CloudHub Shared Worker Cloud, plus matching firewall rules and IP whitelisting in the on-premises network" - It is risk for sensitive data. - Even if you whitelist the database IP on your app, your app wont be able to connect to the database so this is also not a feasible option

* "An Anypoint VPC with one Dedicated Load Balancer fronting each on-premises database system, plus matching IP whitelisting in the load balancer and firewall rules in the VPC and on-premises network" Adding one VPC with a DLB for each backend system also makes no sense, is way too much work. Why would you add a LB for one system.

* Correct answer: "An Anypoint VPC connected to the on-premises network using an IPsec tunnel or AWS DirectConnect, plus matching firewall rules in the VPC and on-premises network"

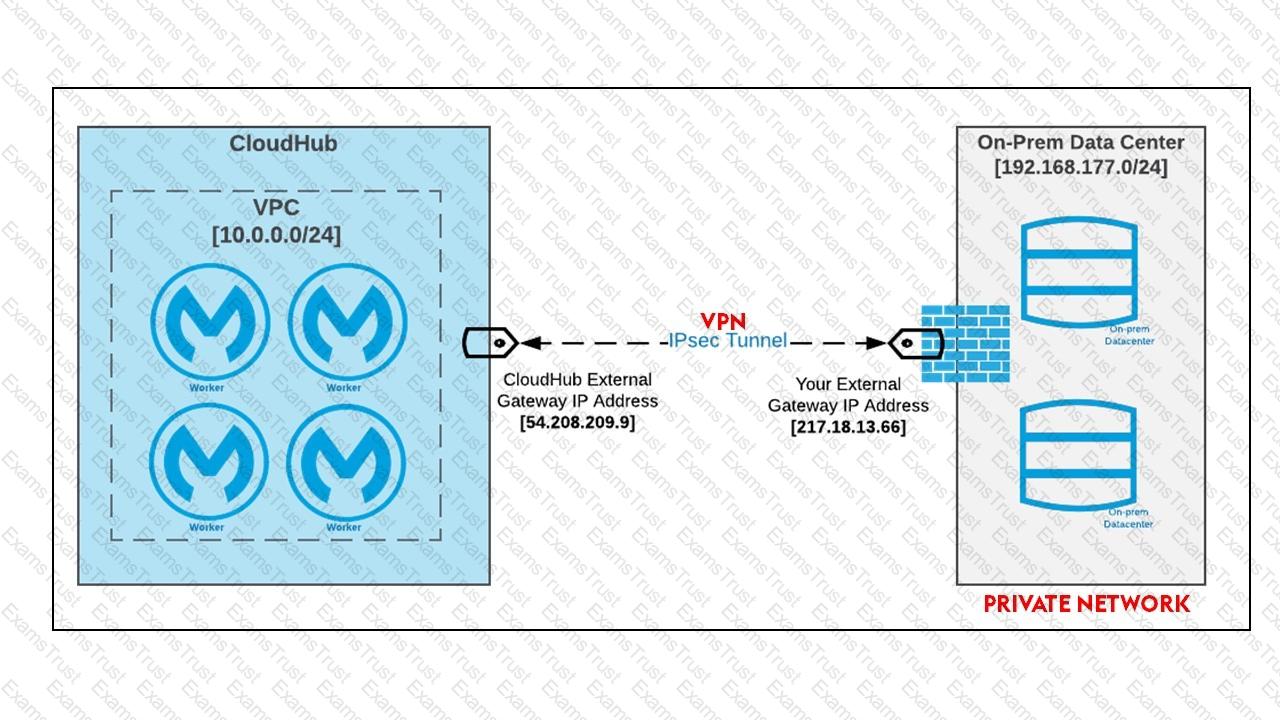

IPsec Tunnel You can use an IPsec tunnel with network-to-network configuration to connect your on-premises data centers to your Anypoint VPC. An IPsec VPN tunnel is generally the recommended solution for VPC to on-premises connectivity, as it provides a standardized, secure way to connect. This method also integrates well with existing IT infrastructure such as routers and appliances.

Diagram Description automatically generated

When deploying to Runtime Fabric, there are several tools available within the Anypoint Platform ecosystem that facilitate the deployment process. These include:

AnypointCLI: This command-line interface tool provides comprehensive capabilities for deploying applications to Runtime Fabric. Using AnypointCLI, you can script and automate deployments, which is useful for integrating into CI/CD pipelines.

Anypoint Platform REST APIs: These APIs allow for programmatic deployment and management of applications on Runtime Fabric. They provide flexibility for integrating deployment processes with other systems and tools.

Mule Maven Plugin: This plugin can be used within a Maven project to package and deploy Mule applications to Runtime Fabric as part of a build process.

However, directly uploading a JAR file from the Runtime Manager is not a supported method for deploying to Runtime Fabric.

Anypoint CLI Documentation

Mule Maven Plugin Documentation

In a typical REST request, the order of interaction is:

API Client: The client initiates the request to access data or functionality exposed by the API.

API Interface: This represents the contract or the definition of the API, often specified in OpenAPI or RAML. It defines the endpoints, request/response formats, and other API details.

API Implementation: This is the actual backend logic that processes the request and returns the response. It interacts with databases, other services, or performs business logic to fulfill the request.

SLAs and non-functional requirements to access the backend systems. Only this option actually speaks to design parameters and reqs. * Below two are technical implementations and not the part of design: - Snapshots of the Mule application’s flows, including their error handling - The credentials to access the backend systems and contact details for the administrator of each system * List of consumers is not relevant to the design

Explanation

* Shared load balancers don’t allow you to configure custom SSL certificates or proxy rules

* Dedicated Load Balancer are optional but you need to purchase them additionally if needed.

* TLS is a cryptographic protocol that provides communications security for your Mule app. TLS offers many different ways of exchanging keys for authentication, encrypting data, and guaranteeing message integrity.

* The CloudHub Shared Load Balancer terminates TLS connections and uses its own server-side certificate.

* Only a DLB allows the configuration of a custom TLS server certificate

* DLB enables you to define SSL configurations to provide custom certificates and optionally enforce two-way SSL client authentication.

* To use a DLB in your environment, you must first create an Anypoint VPC. Because you can associate multiple environments with the same Anypoint VPC, you can use the same dedicated load balancer for your different environments.

* MuleSoft Reference:

Additional Info on SLB Vs DLB:

Explanation

Correct answer is Batch-triggered ETL Within a Mule application, batch processing provides a construct for asynchronously processing larger-than-memory data sets that are split into individual records. Batch jobs allow for the description of a reliable process that automatically splits up source data and stores it into persistent queues, which makes it possible to process large data sets while providing reliability. In the event that the application is redeployed or Mule crashes, the job execution is able to resume at the point it stopped.

To automate the API lifecycle in a CI/CD pipeline efficiently, leveraging Anypoint Platform's capabilities is crucial. Anypoint CLI (Command Line Interface) and Anypoint Platform REST APIs provide robust tools for managing various aspects of the API lifecycle, such as publishing, sharing, discovering, registering, applying policies, and deploying APIs. By using these tools with a scripting language like Groovy, you can script and automate these tasks to reduce manual intervention, ensuring consistency and efficiency.

Anypoint CLI allows you to interact with the Anypoint Platform from the command line, enabling automated deployments, management of APIs, and configuration of policies. The Anypoint Platform REST APIs provide comprehensive programmatic access to the platform’s functionalities, allowing for seamless integration into CI/CD pipelines. By combining these with a scripting language, you can create scripts that automate repetitive tasks, streamline processes, and ensure that your API lifecycle management is both efficient and reliable.

MuleSoft Documentation on Anypoint CLI

MuleSoft Documentation on Anypoint Platform REST APIs

The Salesforce API used to deploy, retrieve, create, update, or delete customization information, such as custom object definitions, using Mule Salesforce Connectors in a Mule application, is the Metadata API. The Metadata API enables programmatic access to the metadata of Salesforce organizations, allowing developers to manage customizations and configurations programmatically.

Using the Metadata API, Mule applications can automate the deployment and management of Salesforce customizations, facilitating continuous integration and deployment processes within Salesforce environments.

References

MuleSoft Documentation on Salesforce Connectors

Salesforce Metadata API Developer Guide

To use a dedicated load balancer in your environment, you must first create an Anypoint VPC. Because you can associate multiple environments with the same Anypoint VPC, you can use the same dedicated load balancer for your different environments.

If the size of the stream exceeds the maximum, a STREAM_MAXIMUM_SIZE_EXCEEDED error is raised.

Explanation

Correct answer is Perform all communication involving service S synchronously from within the For Each scope, so objects in RESP are in the exact same order as request objects in REQU Explanation : Using Anypoint MQ, you can create two types of queues: Standard queue These queues don’t guarantee a specific message order. Standard queues are the best fit for applications in which messages must be delivered quickly. FIFO (first in, first out) queue These queues ensure that your messages arrive in order. FIFO queues are the best fit for applications requiring strict message ordering and exactly-once delivery, but in which message delivery speed is of less importance Use of FIFO queue is no where in the option and also it decreased throughput. Similarly persistent object store is not the preferred solution approach when you maximizing message throughput. This rules out one of the options. Scatter Gather does not support ObjectStore. This rules out one of the options. Standard Anypoint MQ queues don’t guarantee a specific message order hence using another for each block to collect response wont work as requirement here is to ensure the order. Hence considering all the above factors the feasible approach is Perform all communication involving service S synchronously from within the For Each scope, so objects in RESP are in the exact same order as request objects in REQU

To extend Mule APIs to the EU (Frankfurt) region and minimize latency for European users, follow these steps:

Set Region Property: In Runtime Manager, for each Mule application deployment, set the Region property to EU (Frankfurt). This deploys the application to the desired region, optimizing performance for European users.

Reuse Application Names: Keep the same Mule application names as used in the North American region. This approach maintains consistency and simplifies management.

Communicate New URLs: Inform the consuming API clients in Europe of the new URLs in the format {API-name}—{environment}.de-ci.cloudhub.io. These URLs will direct the clients to the applications deployed in the EU region, ensuring reduced latency and improved performance.

This strategy effectively deploys the same Mule APIs to the CloudHub EU region, leveraging the existing control plane in North America.

CloudHub, part of MuleSoft's Anypoint Platform, is an example of a Platform as a Service (PaaS) offering. PaaS provides a cloud-based platform that allows developers to build, deploy, and manage applications without dealing with the complexities of maintaining the underlying infrastructure. CloudHub provides the necessary tools and services to develop and deploy Mule applications and APIs in the cloud, offering features such as scalability, high availability, monitoring, and management. This allows developers to focus on writing code and developing applications rather than managing servers and infrastructure.

References

MuleSoft CloudHub Documentation

Overview of Cloud Computing Service Models

Explanation

* Clustering is a group of servers or mule runtime which acts as a single unit.

* Mulesoft Enterprise Edition supports scalable clustering to provide high availability for the Mulesoft application.

* In simple terms, virtual servers composed of multiple nodes and they communicate and share information through a distributed shared memory grid.

* By default, Mulesoft ensures the High availability of applications if clustering implemented.

* Let's consider the scenario one of the nodes in cluster crashed or goes down and under maintenance. In such cases, Mulesoft will ensure that requests are processed by other nodes in the cluster. Mulesoft clustering also ensures that the request is load balanced between all the nodes in a cluster.

* Clustering is only supported by on-premise Mule runtime and it is not supported in Cloudhub.

Correct answer is External monitoring tools or log aggregators must be configured to recognize the new nodes

* Rest of the options are automatically taken care of when a new node is added in cluster.

To determine when permissions were last changed for an Anypoint Platform user, the system administrator should use the Audit Logging component. Audit Logging in Anypoint Platform captures detailed logs of various activities, including changes to user permissions, login attempts, and other significant actions. These logs provide a historical record that administrators can review to track changes and ensure compliance with security policies.

Other components like Anypoint Monitoring, Anypoint Studio, and Mule Stack Traces are used for monitoring application performance, development, and debugging, respectively, but they do not provide specific information about user permission changes.

References

MuleSoft Documentation on Audit Logging

Anypoint Platform User Management

Explanation

* An object store is a facility for storing objects in or across Mule applications. Mule uses object stores to persist data for eventual retrieval.

* Mule provides two types of object stores:

1) In-memory store – stores objects in local Mule runtime memory. Objects are lost on shutdown of the Mule runtime.

2) Persistent store – Mule persists data when an object store is explicitly configured to be persistent.

In a standalone Mule runtime, Mule creates a default persistent store in the file system. If you do not specify an object store, the default persistent object store is used.

MuleSoft Reference:

Explanation

Object Store Connector is a Mule component that allows for simple key-value storage. Although it can serve a wide variety of use cases, it is mainly design for: - Storing synchronization information, such as watermarks. - Storing temporal information such as access tokens. - Storing user information. Additionally, Mule Runtime uses Object Stores to support some of its own components, for example: - The Cache module uses an Object Store to maintain all of the cached data. - The OAuth module (and every OAuth enabled connector) uses Object Stores to store the access and refresh tokens. Object Store data is in the same region as the worker where the app is initially deployed. For example, if you deploy to the Singapore region, the object store persists in the Singapore region. MuleSoft Reference : Data can be shared between different instances of the Mule application. This is not recommended for Inter Mule app communication. Coming to the question, object store cannot be used to share cached data if it is deployed as separate Mule applications or deployed under separate Business Groups. Hence correct answer is When there is one CloudHub deployment of the API implementation to three workers that must share the cache state.

Explanation

The API consumer creates an API client which sends API invocations to an API such that they are processed by an API implementation

This is based on below definitions API client • An application component • that accesses a service • by invoking an API of that service - by definition of the term API over HTTP API consumer • A business role, which is often assigned to an individual • that develops API clients, i.e., performs the activities necessary for enabling an API client to invoke APIs API implementation • An application component • that implements the functionality

According to the National Institute of Standards and Technology (NIST), a hybrid cloud is a cloud computing deployment model that describes a composition of two or more distinct cloud infrastructures (private, community, or public) that remain unique entities but are bound together by standardized or proprietary technology that enables data and application portability. Hybrid clouds allow organizations to leverage the advantages of multiple cloud environments, such as combining the scalability and cost-efficiency of public clouds with the security and control of private clouds. This model facilitates flexibility and dynamic scalability, supporting diverse workloads and business needs while ensuring that sensitive data and applications can remain in a controlled private environment.

References

NIST Definition of Cloud Computing

Hybrid Cloud Overview and Benefits

Leveraging existing Java-based capabilities for data transformations in a Mule application can enhance efficiency and reuse. Here’s how to integrate Java classes for transformations:

Create Java Classes:

Ensure the Java classes that contain the transformation logic are available in the Mule application project.

Compile the Java classes if they are not already compiled and place the .class files or JAR file in the Mule project’s classpath.

Configure DataWeave to Call Java Methods:

Use DataWeave’s capability to invoke Java methods within the transformation scripts.

Import the Java classes and methods in the DataWeave script.

%dw 2.0 import * from my.package.ClassName output application/json --- { transformedData: ClassName::methodName(payload) }

Perform Transformations:

Write DataWeave scripts that call the appropriate Java methods to perform the necessary transformations.

Ensure the input and output types match between DataWeave and the Java methods.

Test Transformations:

Thoroughly test the transformations to ensure the Java methods are correctly invoked and the expected transformations are applied.

This approach allows for seamless integration of existing Java logic into Mule applications, leveraging DataWeave’s power for comprehensive data transformations.

References

MuleSoft Documentation: DataWeave and Java Integration

MuleSoft Documentation: Using Java with Mule

In a microservices application architecture, each service is designed to be an independent deployment artifact. This means that services can be deployed, updated, and scaled independently of one another. This characteristic allows for greater flexibility and agility in managing applications, as individual services can be scaled up or down based on demand without impacting other services. It also enhances fault isolation, as issues in one service do not necessarily affect the entire application.

This is in contrast to monolithic architectures, where all components are packaged and deployed together, often resulting in a single point of failure and difficulties in scaling and updating specific parts of the application.

References

MuleSoft Documentation on Microservices Architecture

Principles of Microservices Design

Customer Relationship Management (CRM) systems are designed to manage a company’s interactions with current and potential customers. They provide capabilities for tracking prospect data, managing customer interactions, and analyzing customer information to improve cross-selling opportunities. By using a CRM system, organizations can consolidate customer information, enhance customer relationships, and leverage data analytics to drive sales and marketing efforts.

Before API developers implement the API specification, it is crucial for the API designer to publish the API specification to Anypoint Exchange and solicit feedback from the API's consumers. This step aligns with MuleSoft's recommended approach to full lifecycle API development, which emphasizes collaboration and feedback to ensure the API meets the needs and expectations of its consumers.

Generating test cases, creating an API portal, and versioning the API specification are important steps in the development lifecycle, but soliciting feedback ensures that any potential issues or improvements are identified early in the process. This collaborative approach helps in building a more effective and consumer-friendly API.

References

MuleSoft API Design Best Practices

Anypoint Platform Documentation on API Development Lifecycle

Explanation

Correct answer is Mule correlation ID By design, Correlation Ids cannot be changed within a flow in Mule 4 applications and can be set only at source. This ID is part of the Event Context and is generated as soon as the message is received by the application. When a HTTP Request is received, the request is inspected for "X-Correlation-Id" header. If "X-Correlation-Id" header is present, HTTP connector uses this as the Correlation Id. If "X-Correlation-Id" header is NOT present, a Correlation Id is randomly generated. For Incoming HTTP Requests: In order to set a custom Correlation Id, the client invoking the HTTP request must set "X-Correlation-Id" header. This will ensure that the Mule Flow uses this Correlation Id. For Outgoing HTTP Requests: You can also propagate the existing Correlation Id to downstream APIs. By default, all outgoing HTTP Requests send "X-Correlation-Id" header. However, you can choose to set a different value to "X-Correlation-Id" header or set "Send Correlation Id" to NEVER.

Explanation

1 way SSL : The server presents its certificate to the client and the client adds it to its list of trusted certificate. And so, the client can talk to the server.

2-way SSL:  The same principle but both ways. i.e. both the client and the server has to establish trust between themselves using a trusted certificate. In this way of a digital handshake, the server needs to present a certificate to authenticate itself to client and client has to present its certificate to server.

* TLS is a cryptographic protocol that provides communications security for your Mule app.

* TLS offers many different ways of exchanging keys for authentication, encrypting data, and guaranteeing message integrity Keystores and Truststores Truststore and keystore contents differ depending on whether they are used for clients or servers:

For servers: the truststore contains certificates of the trusted clients, the keystore contains the private and public key of the server. For clients: the truststore contains certificates of the trusted servers, the keystore contains the private and public key of the client.

Adding both a keystore and a truststore to the configuration implements two-way TLS authentication also known as mutual authentication.

* in this case, correct answer is Support for TLS mutual (two-way) authentication with HTTP clients.

Explanation

Correct answer is MuleSoft-hosted Anypoint Platform control plane Customer-hosted runtime plane in each datacenter There are two things to note about the question which can help us figure out correct answer.. * Business data must be exchanged over these private network connections which means we can not use MuleSoft provided Cloudhub option. So we are left with either customer hosted runtime in external cloud provider or customer hosted runtime in their own premises. As customer does not use AWS at the moment. Hence that don't have the immediate option of using Customer-hosted runtime plane in multiple AWS regions. hence the most suitable option for runtime plane is Customer-hosted runtime plane in each datacenter * Metadata has no limitation to reside in organization premises. Hence for control plane MuleSoft hosted Anypoint platform can be used as a strategic solution.

Hybrid is the best choice to start. Mule hosted Control plane and Customer hosted Runtime to start with.

Once they mature in cloud migration, everything can be in Mule hosted.

According to MuleSoft, the term "interface" describes the method, format, and protocol used for communication between two systems. An interface defines how systems interact, specifying the data formats (e.g., JSON, XML), protocols (e.g., HTTP, FTP), and methods (e.g., GET, POST) that are used to exchange information. Properly designed interfaces ensure compatibility and seamless communication between integrated systems.

The File Transfer Protocol (FTP) uses the Transmission Control Protocol (TCP) for reliable communication. TCP is one of the core protocols of the Internet Protocol Suite and provides reliable, ordered, and error-checked delivery of a stream of data between applications running on hosts communicating via an IP network. FTP relies on TCP to ensure that all data packets are delivered accurately and in the correct sequence, which is essential for the reliable transfer of files between a client and server.

References

IETF RFC 959 - File Transfer Protocol (FTP)

TCP/IP Protocol Suite Documentation

Explanation

* Roles are business group specific. Configure identity management in the Anypoint Platform master organization. As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO). * Roles and permissions can be set up at business group and organization level also. But Identity Management setup is only done at Organization level * Business groups are self-contained resource groups that contain Anypoint Platform resources such as applications and APIs. Business groups provide a way to separate and control access to Anypoint Platform resources because users have access only to the busine

When leveraging Anypoint MQ Audit Logs, it's important to note that they include logs for operations such as creating, deleting, modifying, and purging queues. These logs are crucial for auditing and monitoring the state and changes made to the message queues within Anypoint MQ. However, they do not include logs for individual message actions like sending, receiving, or browsing messages.

References

MuleSoft Documentation on Anypoint MQ Audit Logs

Anypoint Platform Audit Logging Overview

Explanation

* Resilience testing is a type of software testing that observes how applications act under stress. It's meant to ensure the product's ability to perform in chaotic conditions without a loss of core functions or data; it ensures a quick recovery after unforeseen, uncontrollable events.

* In case an API invocation fails — even after a certain number of retries — it might be adequate to invoke a different API as a fallback. A fallback API, by definition, will never be ideal for the purpose of the API client, otherwise it would be the primary API.

* Here are some examples for fallback APIs:

- An old, deprecated version of the same API.

- An alternative endpoint of the same API and version (e.g. API in another CloudHub region).

- An API doing more than required, and therefore not as performant as the primary API.

- An API doing less than required and therefore forcing the API Client to offer a degraded service, which is still better than no service at all.

* API clients implemented as Mule applications offer the ‘Until Successful Scope and Exception’ strategies at their disposal, which together allow configuring fallback actions such as a fallback API invocation.

* All HTTP response status codes within the 3xx category are considered redirection messages. These codes indicate to the user agent (i.e. your web browser) that an additional action is required in order to complete the request and access the desired resource

Hence correct answer is Redirect client requests through an HTTP 303 temporary redirect status code to the fallback API whenever the Order API is unavailable

The advantage of using OAuth 2.0 client credentials and access tokens over only API keys for API authentication is that if the access token is compromised, the client credentials do not have to be reissued.

OAuth 2.0 is a secure protocol for authenticating clients and authorizing them to access protected resources. It works by having the client authenticate with the authorization server and receive an access token, which is then used to authenticate requests to the API. If the access token is compromised, it can be revoked and replaced without needing to reissue the client credentials.

Explanation

* Setting a transaction timeout for the Bitronix transaction manager

● Set the transaction timeout either

– In wrapper.conf

– In CloudHub in the Properties tab of the Mule application deployment

● The default is 60 secs. It is defined as

mule.bitronix.transactiontimeout = 120

* This property defines the timeout for each transaction created for this manager.

If the transaction has not terminated before the timeout expires it will be automatically rolled back.

---------------------------------------------------------------------------------------------------------------------

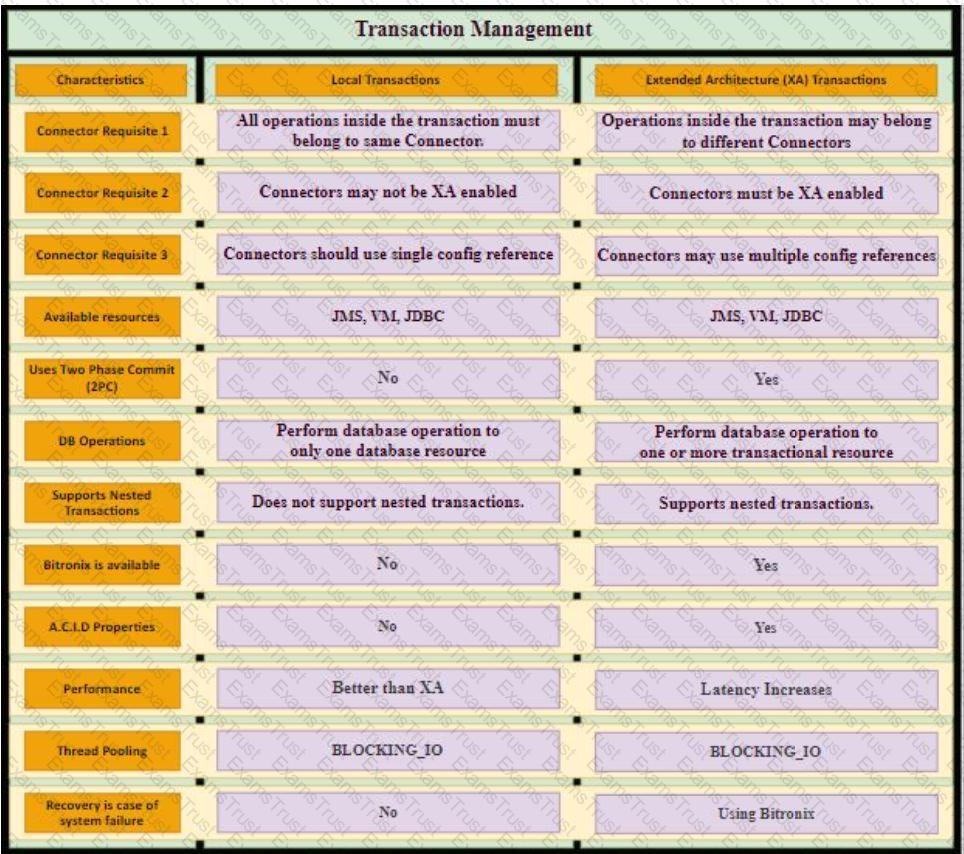

Additional Info around Transaction Management:

Bitronix is available as the XA transaction manager for Mule applications

● To use Bitronix, declare it as a global configuration element in the Mule application

● Each Mule runtime can have only one instance of a Bitronix transaction manager, which is shared by all Mule applications

● For customer-hosted deployments, define the XA transaction manager in a Mule domain

– Then share this global element among all Mule applications in the Mule runtime

Graphical user interface, table Description automatically generated with medium confidence

To extend Mule APIs to the Europe region and ensure minimal latency between APIs and target users and systems in Europe, it is important to set the region property correctly and update the naming convention. Here’s the detailed approach:

Setting the Region Property:

Runtime Manager Configuration: In MuleSoft’s Runtime Manager, you can deploy Mule applications to specific regions. For the European deployment, set the region property to Europe (eu-de) for all Mule applications. This ensures that the applications are physically hosted in the European data centers, reducing latency for European users.

Go to Runtime Manager in Anypoint Platform.

Select the application to deploy.

Choose the Region setting and select Europe (eu-de).

Updating Naming Convention:

Naming Convention Update: Change the naming convention to include the region in the application names. The new convention should be {API name}-{environment}-{region} (e.g., Orders-SAPI-dev-eu, Orders-SAPI-prod-eu). This helps in distinguishing applications deployed in different regions.

Update the naming convention during deployment.

Ensure the new naming convention is documented and communicated to all stakeholders.

Communicating the Change:

Stakeholder Communication: Inform all consuming applications and users about the updated naming convention. This ensures that they update their references and configurations accordingly to avoid any disruptions in service.

Documentation: Update any internal documentation to reflect the new naming convention and deployment regions.

Benefits:

Reduced Latency: By deploying the applications in the Europe region, the data proximity to European users will be improved, resulting in lower latency.

Clear Identification: The updated naming convention helps in easily identifying the environment and region of deployment, making management and troubleshooting easier.

MuleSoft Documentation on Deploying to CloudHub

MuleSoft Documentation on Managing Applications in Runtime Manager

Explanation

Mule applications are deployed in CloudHub workers and each worker is assigned with a dedicated IP • For zero downtime deployment, each worker in CloudHub needs additional IP addresses • A few IPs in a VPC are reserved for infrastructure (generally 2 IPs) • The IP addresses are usually in a private range with a subnet block specifier, such as 10.0.0.1/24 • The smallest CIDR network subnet block you can assign for your VPC is /24 (256 IP addresses) (60*3 env * 2 worker per application ) + 50% of (total) for zero downtime = 540 In this case correct answer is 10.0.0.0/22 as this provided 1024 IP's .

Other IP's are insufficient.

Explanation

An SLA for the upstream API CANNOT be provided.

Explanation

When an operation in a Mule application fails to connect to an external server, the default behavior is for the operation to fail immediately and return a connectivity error. You can modify this default behavior by configuring a reconnection strategy for the operation. You can configure a reconnection strategy for an operation either by modifying the operation properties or by modifying the configuration of the global element for the operation. The following are the available reconnection strategies and their behaviors: None Is the default behavior, which immediately returns a connectivity error if the attempt to connect is unsuccessful Standard (reconnect) Sets the number of reconnection attempts and the interval at which to execute them before returning a connectivity error Forever (reconnect-forever) Attempts to reconnect continually at a given interval

To convey the necessary non-functional requirement (NFR) related to protecting backend services from a high rate of requests according to SLAs, the following steps should be taken:

Create a Shared RAML Fragment: Develop a RAML fragment that defines the NFR, including the SLAs for different subscription levels ("Gold", "Silver", "Platinum"). This fragment should include the details on rate limiting and throttling based on the new parameter added to the Accounts object.

Update API Specifications: Integrate the shared RAML fragment into each API specification. This ensures that the NFR is consistently applied across all relevant APIs.

Publish to Exchange: Publish the updated API specifications and the shared RAML fragment to Anypoint Exchange. This makes the NFR visible and accessible to all stakeholders and developers, ensuring compliance and implementation consistency.

This approach ensures that the NFR is clearly communicated and applied uniformly across all API implementations.

References

MuleSoft Documentation on RAML and API Specifications

Best Practices for API Design and Documentation

The Kubernetes controller is implementing horizontal scalability by adding another pod replica in response to increased application load. Horizontal scaling involves adding more instances of a service or application to handle the increased load, as opposed to vertical scaling, which would involve adding more resources (CPU, RAM) to a single instance. Horizontal scaling is a key feature of cloud-native applications and is supported by Kubernetes to ensure high availability and performance.

Explanation

* Organization should continue to use SCM system of their choice, in addition to keeping source code for these asset types in Anypoint Exchange, thereby enabling parallel development, branching.

* Reason is that Anypoint exchange is not full fledged version repositories like GitHub.

* But at same time it is tightly coupled with Mule assets

Requirement Analysis: Jenkins files and folders used for CI/CD configurations are not part of the actual Mule package and should be excluded from the deployed archive.

Solution: MuleSoft provides the .muleignore file to specify files and directories that should be excluded from the packaged application.

Implementation Steps:

Create a .muleignore File: In the root directory of your Mule project, create a file named .muleignore.

Specify Exclusions: Add the paths of the Jenkins files and folders that you want to exclude from the deployment package into the .muleignore file.

# .muleignore example /path/to/jenkins/file1 /path/to/jenkins/folder/*

Build and Deploy: When you build your Mule application, the Mule runtime will read the .muleignore file and exclude the specified files and directories from the deployment archive.

Advantages:

Clean Deployment: Ensures that only necessary files are included in the deployment package, reducing the package size and preventing potential issues related to unwanted files.

Ease of Maintenance: Easy to update and manage which files are excluded from the deployment package.

References

MuleSoft Documentation on .muleignore

Explanation

Correct answer is Federated Identity Management As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO). Configure identity management using one of the following single sign-on standards: OpenID Connect: End user identity verification by an authorization server including SSO SAML 2.0: Web-based authorization including cross-domain SSO Where as Client Management is where Anypoint Platform acts as a client provider by default, but you can also configure external client providers to authorize client applications. As an API owner, you can apply an OAuth 2.0 policy to authorize client applications that try to access your API. You need an OAuth 2.0 provider to use an OAuth 2.0 policy

After completing the build and test activities for a Mule application that implements a System API, the team should use Runtime Manager to both deploy and monitor the System API implementation. Runtime Manager is a component of Anypoint Platform that provides capabilities for deploying, managing, and monitoring Mule applications and APIs. It allows teams to manage applications and APIs across various environments, ensuring they operate correctly and efficiently.

JMS (Java Message Service): JMS is a robust messaging standard that supports reliable and asynchronous communication. It allows message producers and consumers to exchange messages via a common message broker.

Transactions with Automatic Acknowledgements: Utilizing JMS transactions ensures that messages are processed reliably. The automatic acknowledgement mode means that once the consumer receives the message, it acknowledges the broker automatically, ensuring that no messages are lost.

Performance and Reliability: JMS transactions offer both high performance and reliability. By enabling transactions, each message processing step can be committed or rolled back, ensuring data integrity.

Cross-Cluster Messaging: For a stock trading company dealing with millions of trades, using JMS transactions allows for consistent and reliable message delivery across different clusters in their network. This approach is more suitable compared to non-transactional or VM queues due to the scale and reliability requirements.

Event-Driven APIs: The APIs can leverage the transactional nature of JMS to ensure that messages exchanged between different services are reliable and can recover gracefully from failures.

MuleSoft Documentation on JMS Connector: MuleSoft JMS Connector

JMS 2.0 Specification: Oracle JMS 2.0

An Enterprise Architect would use a single enterprise-wide canonical data model (CDM) when designing an integration solution to achieve the following benefits:

Reduced Dependencies: By standardizing on a single data model, it simplifies the integration process between multiple systems that may use different data formats. This eliminates the need for numerous point-to-point transformations.

Consistency and Reusability: A CDM ensures consistent data representation across the enterprise, which promotes data integrity and reusability of integration components.

Simplified Maintenance: Having a single data model reduces the complexity of maintaining and updating integration solutions, as changes need to be made in only one place.

The CDM acts as an abstraction layer that decouples systems, facilitating easier integration and reducing the potential for errors.

References

MuleSoft Documentation on Canonical Data Models

Best Practices for Data Integration with MuleSoft

Explanation

JMX Management Java Management Extensions (JMX) is a simple and standard way to manage applications, devices, services, and other resources. JMX is dynamic, so you can use it to monitor and manage resources as they are created, installed, and implemented. You can also use JMX to monitor and manage the Java Virtual Machine (JVM). Each resource is instrumented by one or more Managed Beans, or MBeans. All MBeans are registered in an MBean Server. The JMX server agent consists of an MBean Server and a set of services for handling Mbeans. There are several agents provided with Mule for JMX support. The easiest way to configure JMX is to use the default JMX support agent. Log4J Agent The log4j agent exposes the configuration of the Log4J instance used by Mule for JMX management. You enable the Log4J agent using the element. It does not take any additional properties MuleSoft Reference:

Explanation

Key to this question lies in the fact that Process API are not meant to be accessed directly by clients. Lets analyze options one by one. Client ID enforcement : This is applied at process API level generally to ensure that identity of API clients is always known and available for API-based analytics Rate Limiting : This policy is applied on Process Level API to secure API's against degradation of service that can happen in case load received is more than it can handle Custom circuit breaker : This is also quite useful feature on process level API's as it saves the API client the wasted time and effort of invoking a failing API. JSON threat protection : This policy is not required at Process API and rather implemented as Experience API's. This policy is used to safeguard application from malicious attacks by injecting malicious code in JSON object. As ideally Process API's are never called from external world , this policy is never used on Process API's Hence correct answer is JSON threat protection MuleSoft Documentation Reference :

SOAP API specifications are provided as WSDL. Design center doesn't provide the functionality to create WSDL file. Hence WSDL needs to be created using XML editor

Object Store v2 (OSv2) in MuleSoft allows multiple applications within the same Anypoint Virtual Private Cloud (VPC) to share data. To achieve this, the OSv2 connector must be configured in each application to access the common persistent object store instance. This configuration enables the applications to read from and write to the same object store, facilitating data sharing. Object Store v2 is designed to be persistent and reliable, making it suitable for scenarios where data needs to be retained and shared across multiple applications.

MuleSoft Documentation on Object Store v2

Explanation

Correct approach is to use Mixed configuration of asynchronous or synchronous loggers shoud be used to log exceptions via synchronous way Asynchronous logging poses a performance-reliability trade-off. You may lose some messages if Mule crashes before the logging buffers flush to the disk. In this case, consider that you can have a mixed configuration of asynchronous or synchronous loggers in your app. Best practice is to use asynchronous logging over synchronous with a minimum logging level of WARN for a production application. In some cases, enable INFO logging level when you need to confirm events such as successful policy installation or to perform troubleshooting. Configure your logging strategy by editing your application’s src/main/resources/log4j2.xml file

When using a non-persistent object store in MuleSoft, the state data is stored in memory rather than on disk. This means that if a server crashes, all data stored in the non-persistent object store will be lost because it does not survive a server restart or crash. Non-persistent object stores are typically used for temporary data that does not need to be retained across application restarts. Therefore, in an environment where an API is maintaining its state using a non-persistent object store, a server crash will result in the loss of that state data.

MuleSoft Documentation on Object Store

Requirement Analysis: The security team requires any external API call to be restricted by an IP include list. This ensures that only specified IP addresses can access the third-party API.

Design Plan: To fulfill this requirement, implementing a proxy for the third-party API is the best approach. This proxy can enforce the IP include list policy.

Implementation Steps:

Create a Proxy API: Set up a new API proxy in Anypoint Platform to act as an intermediary for the third-party API.

Configure IP Include List Policy: Within the Anypoint API Manager, apply the IP whitelist policy to the proxy API. This policy will ensure that only requests from specified IP addresses are allowed to reach the third-party API.

Modify Main API Flow: Update the flow of your main API to call the newly created proxy API instead of directly calling the third-party API.

Testing: Conduct thorough testing to ensure that the proxy API correctly forwards requests to the third-party API only if the requests originate from IPs in the include list.

Advantages:

Security: This method ensures that only approved IPs can access the third-party API, adhering to the security team's requirements.

Manageability: Centralizes the IP restriction management within the API Manager, simplifying maintenance and updates.

References

MuleSoft Documentation on API Proxies

MuleSoft Documentation on IP Whitelist Policy

To achieve efficient caching and reduce redundant database transactions, the following strategy can be implemented:

On Table Row Listener: Implement an "On Table Row" trigger on the employees' table. This trigger will monitor changes (inserts, updates, deletes) in the employee records.

Invalidate Cache: Upon detecting changes in the employees' table, the trigger will call a flow to invalidate the current cache.

Object Store for Caching: Utilize MuleSoft's object store to cache the employee data. This store can hold the data for quick retrieval.

Set Expiration Interval: Configure the expiration interval for the cached data to ensure it is cleared when necessary. For this scenario, since we are invalidating cache on actual data changes, setting the expiration interval to empty can be suitable.

Return Cached Data: If there are no updates, the cached response is returned, reducing database load.

MuleSoft Documentation on Object Store

Caching Strategies

Explanation

Correct answer is An HTTP Load Balancer.

Key thing to note here is that we are deploying application to customer hosted Mule runtime. This means we will need load balancer to route the requests to different instances of the cluster.

Rest all options are distractors and their requirement depends on project use case.

The Publish/Subscriber Messaging Bus (Pub/Sub) model is well-suited for high-volume, real-time communication and notification requirements. In this scenario, the retailer needs to notify its order management, warehouse, and billing systems within 15 minutes of order submission. Pub/Sub messaging systems enable asynchronous communication where messages (orders) are published to a topic and multiple subscribers (order management, warehouse, billing systems) receive notifications simultaneously. This decouples the systems and ensures that each subscriber receives the message promptly for subsequent processing.

Explanation

Correct answer is: Add a Mulesoft hosted Anypoint VPC configured and with VPC Peering to the AWS VPC * Connecting to your Anypoint VPC extends your corporate network and allows CloudHub workers to access resources behind your corporate firewall.

* You can connect on-premises data centers through a secured VPN tunnel, or a private AWS VPC through VPC peering, or by using AWS Direct Connect.

MuleSoft Doc Reference :

To ensure that non-functional requirements, such as rate limiting, are clearly communicated and enforced in the designed API definitions, the project team should use API fragments for the appropriate policy. Here's why option D is correct:

API Governance and Policies: Mulesoft's API governance framework allows the definition and enforcement of policies across APIs to ensure consistency and compliance with organizational standards. These policies can include security, rate limiting, logging, and more.

Policy Fragments: By updating API definitions with policy fragments, the team can encapsulate the non-functional requirements within the API specification itself. This approach ensures that these requirements are an integral part of the API design and are automatically applied whenever the API is deployed.

Publishing to Exchange: Publishing the updated API definitions with the policy fragments to Anypoint Exchange makes them available for reuse and ensures that all stakeholders have access to the latest, compliant API specifications.

Example of adding a rate limiting policy fragment to a RAML file:

#%RAML 1.0 title: Example API version: v1 baseUri: ... /* Include the rate limiting policy fragment */ uses: rateLimitPolicy: !include rate-limit-policy.raml

The rate-limit-policy.raml fragment might define the specific rate limiting rules as per the service level agreements.

References

MuleSoft API Manager

Defining and Using API Fragments

To design an integration Mule application that processes orders and ensures reliability even with an unreliable back-end system, the following components and ActiveMQ queues should be used:

Until Successful Scope: This scope ensures that the Mule application will continue trying to submit the order to the back-end system until it succeeds or reaches a specified retry limit. This helps in handling transient network issues or minor outages of the back-end system.

ActiveMQ Long-Retry Queues: By placing the orders in long-retry queues, the application can manage retries over an extended period. This is particularly useful when the back-end system experiences longer outages. The ActiveMQ broker, located within the organization’s firewall, can reliably handle these queues.

ActiveMQ Dead-Letter Queues: Orders that cannot be successfully submitted after all retry attempts should be moved to dead-letter queues. This allows for manual processing of these orders. The dead-letter queue ensures that no orders are lost and provides a clear mechanism for handling failed submissions.

Implementation Steps:

HTTP Listener: Set up an HTTP listener to receive incoming orders.

Immediate Acknowledgment: Immediately acknowledge the receipt of the order to the client.

Until Successful Scope: Use the Until Successful scope to attempt submitting the order to the back-end system. Configure retry intervals and limits.

Long-Retry Queues: Configure ActiveMQ long-retry queues to manage retries.

Dead-Letter Queues: Set up ActiveMQ dead-letter queues for orders that fail after maximum retry attempts, allowing for manual intervention.

This approach ensures that the system can handle temporary and prolonged back-end outages while minimizing manual processing.

MuleSoft Documentation on Until Successful Scope:

ActiveMQ Documentation:

Explanation

Correct answer is Consistency as XA transactions are implemented to achieve this. XA transactions are added in the implementation to achieve goal of ACID properties. In the context of transaction processing, the acronym ACID refers to the four key properties of a transaction: atomicity, consistency, isolation, and durability. Atomicity : All changes to data are performed as if they are a single operation. That is, all the changes are performed, or none of them are. For example, in an application that transfers funds from one account to another, the atomicity property ensures that, if a debit is made successfully from one account, the corresponding credit is made to the other account. Consistency : Data is in a consistent state when a transaction starts and when it ends.For example, in an application that transfers funds from one account to another, the consistency property ensures that the total value of funds in both the accounts is the same at the start and end of each transaction. Isolation : The intermediate state of a transaction is invisible to other transactions. As a result, transactions that run concurrently appear to be serialized. For example, in an application that transfers funds from one account to another, the isolation property ensures that another transaction sees the transferred funds in one account or the other, but not in both, nor in neither. Durability : After a transaction successfully completes, changes to data persist and are not undone, even in the event of a system failure. For example, in an application that transfers funds from one account to another, the durability property ensures that the changes made to each account will not be reversed. MuleSoft reference:

When processing files synchronously from an FTPS server to a back-end database using VM intermediary queues for load balancing VM events on CloudHub, reliability is critical. CloudHub persistent queues should be used for FTPS file processing to ensure that no data is lost in case of worker failure or restarts. These queues provide durability and reliability since they store messages persistently.

For the batch job scope, it is not necessary to configure additional VM queues. By default, batch jobs on CloudHub use the worker's disk for VM queueing, which is reliable for handling medium-rate records processing from a source to a target system. This approach ensures that both FTPS file processing and batch job processing meet reliability requirements without additional configuration for batch job scope.

References

MuleSoft Documentation on CloudHub and VM Queues

Anypoint Platform Best Practices

Explanation

* If we store Correlation id value in step 1 as Mule event variables/attributes, the values will be cleared after server restart and we want system to be fault tolerant.

* The Correlation ID value in Step 1 should be stored in a persistent object store.

* We don't need to store Correlation ID value in Step 3 to persistent object store. We can store it but as we also need to make application performant. We can avoid this step of accessing persistent object store.

*  Accessing persistent object stores slow down the performance as persistent object stores are by default stored in shared file systems.

*  As the SOAP service is idempotent in nature. In case of any failures , using this Correlation ID saved in first step we can make call to SOAP service and validate the Correlation ID.

Top of Form

Additional Information:

* Competing Consumers are multiple consumers that are all created to receive messages from a single Point-to-Point Channel. When the channel delivers a message, any of the consumers could potentially receive it. The messaging system's implementation determines which consumer actually receives the message, but in effect the consumers compete with each other to be the receiver. Once a consumer receives a message, it can delegate to the rest of its application to help process the message.

* In case you are unaware about term idempotent re is more info:

Idempotent operations means their result will always same no matter how many times these operations are invoked.

Bottom of Form
