In the Prisma SD-WAN architecture, security is built directly into the AppFabric using a centralized, controller-led approach to key management. Unlike traditional VPNs that rely on manual Internet Key Exchange (IKE) or static Pre-Shared Keys (PSKs) which can be administratively burdensome and security-vulnerable, Prisma SD-WAN automates the entire lifecycle of encrypted tunnels. The Prisma SD-WAN Controller acts as the central authority for identity and key distribution for all ION (Instant-On Network) devices within the tenant's fabric.

Specifically, the VPN shared secrets used to secure these tunnels are ephemeral and are valid for exactly 24 hours. This 24-hour validity period is a security best practice implemented by Palo Alto Networks to limit the "blast radius" or window of exposure in the unlikely event that a key is compromised. The controller automatically handles the generation, distribution, and rotation of these secrets. Before the 24-hour timer expires, the controller pushes new keys to the ION devices, which then perform a hitless rollover. This ensures that the data plane remains active and encrypted without requiring manual intervention from a network administrator. If an ION device loses its control plane connection to the controller, it will maintain its existing tunnels using the current keys until they expire, at which point it must re-authenticate with the controller to receive a new set of valid secrets. This automated rotation is a core component of the Prisma SD-WAN Zero-Trust security model.

In Prisma SD-WAN, path selection and traffic symmetry are governed by the Path Policy and the available physical/virtual circuits at a site. The scenario describes a situation where return traffic is dropped on the branch ION after arriving via an Internet overlay. To understand why, we must analyze the "Active" and "Backup" paths defined in the policy.

The policy specifies Active = MPLS Overlay and Backup = Prisma Access on internet. In a healthy environment, the ION device expects to send and receive traffic based on these defined paths. If the site actually has two internet circuits and no MPLS circuit (Option C), a critical mismatch occurs. Because there is no MPLS circuit available to satisfy the "Active" path, the device will fall back to the "Backup" path for initiated traffic.

However, the core issue here relates to how Prisma SD-WAN handles asymmetric routing and session state. If traffic arrives at the branch via an "Internet Overlay" path that is not explicitly defined or allowed as a valid path for that specific application in the Path Policy, the ION device's flow integrity checks may drop the packets. Specifically, if the ION is configured with only Internet circuits but the policy is looking for an MPLS overlay that doesn't exist, the device may fail to correctly associate the return packets with the session state if the paths are perceived as "unbound" or "invalid" per the policy. This behavior is a security feature designed to ensure that traffic only traverses paths that meet the administrator's defined performance and security criteria. Without an MPLS circuit present, the policy cannot be fully realized, leading to potential drops for traffic arriving on paths not intended for that specific application flow.

Comprehensive and Detailed Explanation

To diagnose specific VPN negotiation failures (Phase 1 or Phase 2 IPSec issues), the Event Logs (specifically filtered for System or VPN events) are the correct resource.

Event Logs: This section records the control plane signaling messages. If a VPN tunnel fails to establish, the Event Log will generate an entry containing the specific IKE failure reason sent by the peer or generated locally. Common errors found here include INVALID_COOKIE, NO_PROPOSAL_CHOSEN (mismatch in encryption algorithms), or PRE_SHARED_KEY_MISMATCH.

Flow Browser (A): This shows user traffic (TCP/UDP sessions). If the VPN is down, user traffic won't even enter the tunnel, so the Flow Browser will just show dropped flows or blackholes, but it won't explain why the tunnel itself is broken.

Link Quality (D): This shows latency/loss graphs for established tunnels. It cannot diagnose why a tunnel failed to form in the first place.

Comprehensive and Detailed Explanation

In the Prisma SD-WAN Flow Browser, the Flow State provides a real-time snapshot of the TCP/UDP session lifecycle.

INIT (Initialization): This state indicates that the ION device has seen the initial packet of a new session (typically a TCP SYN) originating from the client (Source), but it has not yet seen a return packet (such as a TCP SYN-ACK) from the destination server.

Diagnosis: A flow stuck in INIT is a classic indicator of a "Blackhole" or reachability issue downstream. It implies that the ION successfully routed the packet out toward the destination, but the destination did not reply. Common causes include:

The server is offline.

A firewall in the path (or on the server itself) is dropping the traffic.

Routing is broken on the return path (asymmetric routing where the return traffic bypasses the ION).

If the flow had been denied by the ION's own firewall (Option C), the state would typically show as DENY or REJECT. If the handshake completed (Option A), the state would be ESTABLISHED. Therefore, INIT points to a lack of response from the remote end.

In a Data Center (DC) deployment, the ION device typically peers with a core router via Border Gateway Protocol (BGP) to exchange reachability information between the SD-WAN fabric and the legacy corporate network.2 When the ION is configured to learn only a default route ($0.0.0.0/0$) from the core, the entire SD-WAN fabric relies on this single BGP-learned route to reach internal resources not directly connected to the ION.

The primary risk in this design is network isolation caused by a BGP misconfiguration or a "soft failure" on the core router. If the BGP session stays "Up" but the core router stops advertising the default route due to a configuration error, the ION device will remove the route from its routing table. Without a valid path to the core, the branch sites connected to the DC ION will lose connectivity to all data center resources.

To mitigate this, the recommended best practice is to add a static default route with a higher Administrative Distance (AD) pointing to the core peer IPs.3 This acts as a "floating static route." Under normal operations, the BGP-learned default route (typically with an AD of 20 for eBGP) remains active in the routing table. If the BGP advertisement fails, the static route with the higher AD (e.g., 250) becomes active. This ensures that the ION device maintains a persistent gateway toward the core infrastructure, preventing total fabric isolation and providing a fail-safe mechanism while the BGP peering issue is remediated. While BFD (Option A) helps with fast peer failure detection, it does not solve the issue of a missing prefix advertisement. Static route redundancy provides the necessary architectural "safety net" for the data center's reachability.

Comprehensive and Detailed Explanation

In the Prisma SD-WAN Data Center (DC) model, the terminology for BGP peers defines their role in the topology and how the system generates route maps.

Core Peer: This peer type is designated for the LAN-side connection (facing the DC Core Switch or internal Routers). Its primary purpose is to learn the subnets/prefixes hosted in the data center so the ION can advertise them to the remote branches. The system automatically creates route maps to facilitate this redistribution into the fabric.

Edge Peer: This peer type is designated for the WAN-side connection (facing the Edge Router or MPLS PE). Its primary purpose is to provide reachability to the underlay network.

Distinction: Selecting the correct type affects the default Route Maps and Prefix Lists generated by the controller. Configuring a Core Peer correctly ensures that the DC's internal subnets are properly learned and propagated to the overlay, whereas an Edge Peer configuration focuses on WAN next-hop reachability.

Prisma SD-WAN simplifies the integration with Prisma Access through a feature known as "CloudBlades," specifically the Prisma Access for Networks CloudBlade. The "easy onboarding" workflow is designed to automate the complex task of establishing secure tunnels between Branch ION devices and the SASE security processing nodes (SPNs).

When an administrator initiates this process, the system abstracts the manual configuration of IKE and IPSec parameters. Instead of manually defining an IPSec Crypto Profile or an IKE Profile (which are automatically handled by the CloudBlade orchestration), the user must specify where the traffic is going and which physical resources will handle the connection. The Prisma Access Primary Location (Option B) is a mandatory selection because it determines the geographical region and specific compute instance within the Prisma Access cloud that will serve as the primary security gateway for that branch.

Furthermore, the IPSec Termination Node (Option D) must be selected to define the specific endpoint within the Prisma Access infrastructure where the ION device's tunnels will terminate. This selection ensures that the Controller can properly orchestrate the site-to-site VPN tunnels, ensuring that the branch traffic is correctly routed to the SASE fabric for security inspection. By selecting these two options, the CloudBlade can automatically negotiate the rest of the tunnel parameters, significantly reducing the potential for human error and accelerating the deployment of a Secure Access Service Edge (SASE) architecture across multiple branch locations.

Comprehensive and Detailed Explanation

Prisma SD-WAN (formerly CloudGenix) defines three distinct Operational Modes for a branch site, which determine how the ION device processes traffic and interacts with the network.

Analytics Mode (Monitor): In this mode, the ION device is typically deployed inline or in a "promiscuous" monitor state to gain visibility into network traffic without actively enforcing path selection policies.1 It "learns" applications, bandwidth usage, and network characteristics (auditing) but does not steer traffic or block flows.2 This is often used during Proof of Concepts (POVs) or the initial "burn-in" phase of a deployment to generate reports without risking network disruption.

Control Mode: This is the full production state. In Control Mode, the ION device actively enforces Path Policies, QoS Policies, and Security Policies. It builds Secure Fabric VPN tunnels, steers traffic based on application SLAs (e.g., sending voice over MPLS and bulk data over Broadband), and handles failover events.3 This is the required mode for a fully functional SD-WAN site.

Disabled Mode: This mode effectively shuts down the site's SD-WAN functionality from the controller's perspective. It is an administrative state used when a site is being decommissioned, provisioned but not yet live, or isolated for troubleshooting. In this state, the device does not participate in the fabric.

Comprehensive and Detailed Explanation

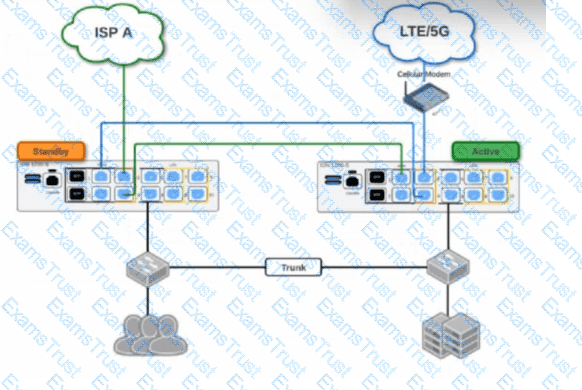

This scenario depicts a High Availability (HA) topology utilizing the ION 1200-S model's Fail-to-Wire (bypass) capabilities to share WAN links between two devices without needing external switches for every WAN connection.

1. WAN Link Availability (Statement A):

The diagram illustrates a "daisy-chain" cabling method supported by the ION 1200-S bypass pairs.

ISP A (Green): Connects directly to the "Standby" (Left) unit first. Since the Standby unit remains powered on, it maintains direct access to ISP A.

LTE/5G (Blue): Connects to the "Active" (Right) unit first. The connection then loops through a bypass pair on the Active unit to the Standby unit. When power is removed from the "Active" unit, the fail-to-wire relays on its Ethernet ports close physically. This creates a passive electrical bridge that connects the LTE modem directly to the Standby unit. The Standby unit (now becoming Active) will detect the link state change and successfully utilize the LTE connection. Therefore, both WAN links remain usable.

2. LAN Failover Mechanism (Statement C):

Prisma SD-WAN ION devices typically use a VRRP-like mechanism for LAN redundancy.

When the "Active" node fails (loses power), the "Standby" node stops receiving keepalives and promotes itself to the Active state.

To ensure downstream switches and clients immediately send traffic to the new Active unit, it must update their ARP tables. It does this by broadcasting a Gratuitous ARP (GARP) packet for the Virtual IP (VIP) address of the Switch Virtual Interfaces (SVIs). This action informs the network that the MAC address associated with the Gateway I1P is now reachable via the port connected to the new Active ION.234

Prisma SD-WAN Copilot is an AI-powered operational tool designed to simplify network management through Natural Language Processing (NLP). Traditionally, identifying a bandwidth "hog" required manual navigation through multiple dashboards, such as WAN Clarity and the Flow Browser, to correlate source IP addresses with specific application flows and timestamps. Copilot transforms this workflow by allowing administrators to interact with the system using conversational queries.

When an administrator inputs a query like “Show top bandwidth source IPs at SD-WAN Branch X over last 3 hours,” Copilot leverages its underlying machine learning models and integrated data lake to aggregate telemetry across the entire fabric. It instantly identifies the specific source IPs responsible for the highest throughput and correlates that data with application visibility. Instead of providing a static report or redirecting the user to other tools, Copilot presents an interactive, summarized view directly within the interface. This view highlights the top-consuming users and breaks down their consumption by application, such as YouTube, Netflix, or business-critical SaaS tools.

This capability significantly reduces the Mean Time to Resolution (MTTR) for performance issues. By bypassing the need for manual data correlation, Copilot provides immediate "Day 2" operational insights. It effectively acts as a virtual assistant that understands the context of the network topology, site names, and time ranges, allowing the administrator to quickly determine if a branch's slow performance is due to an individual user's behavior or a broader infrastructure issue.

In large-scale Prisma SD-WAN deployments, such as a retail network with 1,000 branches, architectural resilience is achieved through a strategy known as Hub Clustering. A Data Center Cluster is a logical grouping of ION devices at a hub site that provides termination for branch-to-DC VPN tunnels. To prevent the creation of a massive, single fault domain, Palo Alto Networks best practices recommend segmenting the branch population across multiple clusters.

By creating more than one data center cluster in each data center and strategically assigning sites to these clusters, an administrator can effectively isolate failure events. In a metropolitan area where stores are concentrated, spreading nearby retail locations across different clusters ensures that a localized resource failure or a cluster-specific misconfiguration only impacts a subset of the stores in that region rather than causing a complete regional outage.

This design directly addresses the requirement for maintaining application availability. Since Data Center 1 and Data Center 2 host different applications, each branch site must maintain active paths to both DCs. By using multiple clusters at each DC, the risk management group's goal of avoiding a large fault domain is met through "blast radius" containment. If Cluster A at Data Center 1 fails, the 1,000 sites are not all affected simultaneously; instead, only the specific sites bound to Cluster A lose connectivity to that hub, while their neighbors bound to Cluster B remain functional. This approach provides the highest level of regional resiliency and operational stability for high-density retail environments.

Comprehensive and Detailed Explanation

The Prisma SD-WAN (ION) QoS engine utilizes a hierarchical queuing structure designed to provide granular control over application performance. Each WAN interface on an ION device supports a total of 16 QoS queues.

This 16-queue structure is derived from a matrix of 4 Classes (often referred to as Priority Classes) multiplied by 4 Application Criteria (Traffic Types).2

4 Priority Classes: The system defines four high-level business priority categories:3

Platinum (Highest priority)4

Gold

Silver

Bronze (Lowest priority/Best Effort)5

4 Application Criteria (Sub-queues): Within each of the four priority classes, the system further categorizes traffic into four specific application types to ensure proper handling (e.g., ensuring voice doesn't get stuck behind bulk data even within the same priority level):6

Real-Time Video

Real-Time Audio

Transactional

Bulk7

Calculation: 4 Priority Classes × 4 Application Types = 16 Total Queues per interface. This structure allows the scheduler to ensure that a "Platinum" voice call is prioritized over "Platinum" bulk data, and both are prioritized over "Gold" traffic.

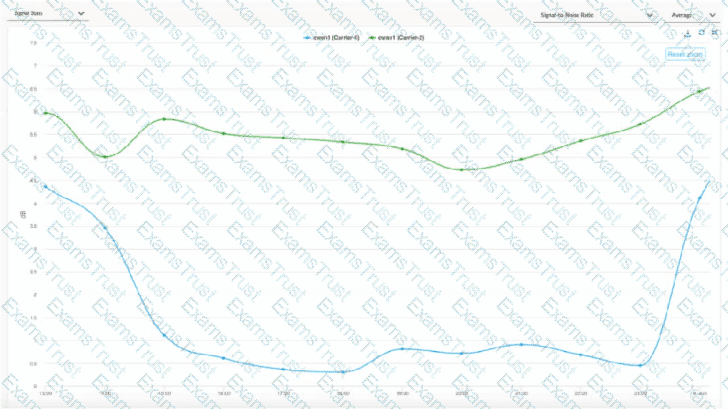

The provided graph displays the Signal-to-Noise Ratio (SNR) for two cellular carriers, Carrier-1 (blue line) and Carrier-2 (green line), over a specific period. In cellular communications, SNR is a critical metric used to determine the quality of a wireless signal. A higher SNR indicates a cleaner, stronger signal, while a lower SNR indicates that the signal is being "drowned out" by background noise or interference, which directly correlates to performance degradation, packet loss, and lower throughput.

Looking at the graph, Carrier-1 experiences a significant and sustained drop in SNR, falling from roughly 4.5 dB to nearly 0.5 dB for the majority of the time duration. This drastic reduction in signal quality strongly suggests that Carrier-1 may have experienced performance degradation (Option A). During this dip, the link quality would likely fall below the configured thresholds for business-critical application traffic.

Because Prisma SD-WAN is an application-defined fabric that continuously monitors path health, the ION device would detect this degradation on Carrier-1. If Carrier-2 maintains a significantly higher and more stable SNR (as shown by the green line remaining between 4.5 dB and 6.5 dB), the ION device's Path Selection engine would automatically steer traffic away from the degraded link. Consequently, it is highly probable that Carrier-1 traffic switched over to Carrier-2 (Option D) to maintain the application SLA. This automated failover is a core strength of the Prisma SD-WAN architecture, ensuring that the best available path is utilized based on real-time link statistics rather than simple "up/down" states.

Comprehensive and Detailed Explanation

The Flow Browser and App Response Time metrics in Prisma SD-WAN are critical tools for isolating the fault domain—determining whether a problem lies in the "Network" or the "Application."

Network Transfer Time (NTT) / Round Trip Time (RTT): These metrics measure the time it takes for packets to traverse the network (WAN/LAN) and for acknowledgments to return. A low NTT (e.g., <50ms) confirms that the network pipes (SD-WAN overlay, Underlay circuits) are healthy and transporting packets quickly.

Server Response Time (SRT): This metric specifically measures the time between the server receiving a request and the server sending the first byte of the response. It essentially measures the "processing time" of the backend server.

In the scenario described, the network metrics (NTT/RTT) are excellent, effectively ruling out WAN congestion, packet loss, or latency (Option A and C). However, the Server Response Time (SRT) is very high (500ms). This signature is a definitive indicator that the network delivered the request instantly, but the application server took a long time to process it. This points the troubleshooting effort toward the server infrastructure (e.g., a slow SQL query, an overloaded web server, or lack of compute resources) rather than the SD-WAN environment.

Comprehensive and Detailed Explanation

Site Templates (often referred to as Site Configuration Templates) are a critical tool for the Zero Touch Provisioning (ZTP) of large-scale deployments in Prisma SD-WAN.

1. Device Pre-staging (Statement C):

One of the primary capabilities of Site Templates is the creation of Device Shells. A device shell is a configuration container that exists in the controller before the physical hardware is installed or connected. By using a template, an administrator can pre-provision the entire configuration (interfaces, routing, subnets) for the "Site" and "Element" (Device). When the physical ION device is later connected to the internet and claimed (associated with the shell via its Serial Number), it immediately inherits this pre-staged configuration, enabling a true "plug-and-play" deployment.

2. Mandatory Variables (Statement B):

To successfully instantiate a functional site from a generic template, specific unique identifiers are required in the variable data set (typically a CSV file).

Site Name: Identifies the location in the portal.

ION Software Version: Ensures the device boots to the specific validated code version required for the deployment, preventing inconsistencies.

ION Serial Number / Device Name: Required to bind the logical configuration (Shell) to the physical hardware. Even if the serial is added later during the claim process, the structure of the template and the deployment workflow mandates these variables to ensure the device can be uniquely identified and managed within the fabric.

Note on Option D: While it is technically possible to re-deploy a template, the Best Practice for "Day 2" operations (updating or modifying configuration after deployment) is to use Prisma SD-WAN Stacks (Network Stacks, Security Stacks, etc.). Stacks allow for granular, policy-based updates across multiple sites without the destructive or rigid nature of re-applying a full site initialization template. Therefore, D is not the aligned best practice.

Comprehensive and Detailed Explanation

According to Palo Alto Networks Prisma SD-WAN administrator documentation regarding Path Policy configuration, specific rules apply when utilizing Standard VPNs (IPSec tunnels to non-ION devices, such as Prisma Access or third-party firewalls) as an L3 Failure Path.

When a Path Policy rule is configured, the administrator defines Active Paths, Backup Paths, and L3 Failure Paths. The L3 Failure Path is a "last resort" mechanism used when all Active and Backup paths are unavailable (Layer 3 down).

If Standard VPN is selected as the L3 Failure Path type, the system explicitly requires that the administrator also associates it with a specific Standard Services and DC Group within that same policy rule.

The ION device uses the Standard Services and DC Group to identify the specific remote endpoint (tunnel destination) where the traffic should be routed. Unlike a "Direct" (Internet) path which can simply route out to the WAN, a Standard VPN represents a logical tunnel. If the policy rule designates "Standard VPN" as the failure path but leaves the "Standard Services and DC Group" field empty or unselected, the ION effectively has a directive to "use a VPN" but lacks the instruction on which VPN group to use for this specific application context. Consequently, even if the IPSec tunnel to Prisma Access is physically up and stable, the policy engine cannot resolve the next hop for the "SuperSaaSApp" traffic, resulting in the packets being dropped. To resolve this, the administrator must edit the Path Policy rule to ensure the specific Standard Service/DC Group representing Prisma Access is checked/selected for the L3 Failure Path.

When a Prisma SD-WAN ION device triggers the DEVICESW_CONCURRENT_FLOWLIMIT_EXCEEDED incident, it indicates that the number of active sessions has reached the hardware or software-defined capacity limit of that specific appliance. In the provided graph, we can see a massive spike in concurrent TCP flows on May 13th, reaching nearly 500k, which is a clear indicator of anomalous behavior—likely a "top talker" host, a malware outbreak, or a misconfigured application generating excessive connections.

To identify the specific host responsible for this surge, administrators should navigate to Monitor → Activity → Flows. This interface, commonly known as the Flow Browser, provides the most granular visibility into real-time and historical session data within the Prisma SD-WAN fabric. Unlike "Transaction Stats," which provide high-level summaries, or "New Flows," which only show the rate of session initiation, the Flows view allows an engineer to filter and sort the active session table by metadata such as Source IP, Destination IP, Application, and Site.

By utilizing the Flow Browser, an administrator can quickly group flows by "Source IP" to pinpoint exactly which internal host is consuming the most flow table entries. This is the standard "Day 2" operational workflow for troubleshooting performance and capacity incidents. While running a tcpdump (Option A) is a valid diagnostic for packet-level analysis, it is inefficient for identifying a single host among hundreds of thousands of flows and can further tax the device's CPU during a high-load event. The Monitor → Activity → Flows tool is designed specifically for this type of scale, providing the necessary visibility to remediate the flow limit exhaustion and restore normal network operations.

In Palo Alto Networks PAN-OS SD-WAN environments, automation and orchestration are key components for service providers managing large-scale deployments. The PAN-OS REST API provides a modern, structured way to programmatically manage configuration objects, including those required for SD-WAN functionality.

When an application is designed to push changes directly to devices (individual firewalls) rather than through a centralized template in Panorama, it must interact with the firewall's local REST API. To successfully create a virtual SD-WAN interface, the application must target the correct resource URI. In the PAN-OS API schema, the logical SD-WAN interface—which groups physical links to enable application-based path selection—is managed via the sdwanInterfaces parameter within the REST API.

It is important to distinguish between the interface itself and the profiles that support it. Option A refers to sdwanInterfaceprofiles, which are the objects used to define the characteristics of a link (such as bandwidth, link type, and monitoring frequency), but not the interface itself. Furthermore, since the scenario specifies making changes "directly to devices," the target must be the firewall rather than Panorama. While Panorama can manage these objects via templates, a direct-to-device automation workflow necessitates using the firewall’s REST API endpoint. Utilizing the REST API over the legacy XML API is the recommended standard for modern integrations due to its ease of use with JSON payloads and alignment with contemporary DevSecOps practices. By using the sdwanInterfaces parameter on the firewall, the MSP application can programmatically bind physical Layer 3 interfaces to the SD-WAN fabric.

Comprehensive and Detailed Explanation

The transition from "Claimed" to "Online" depends entirely on the ION device's ability to establish a secure, persistent management tunnel to the Prisma SD-WAN Controller.

Connectivity Requirements: The ION device initiates an outbound connection to the controller on TCP Port 443 (HTTPS). It also requires accurate time synchronization to validate SSL certificates, necessitating access to NTP (UDP Port 123).

Scenario Analysis: Since the installer can browse the internet from the LAN, we know the physical link and basic routing/NAT are functional. The issue is specific to the management plane traffic.

Root Cause: If an upstream firewall (e.g., a corporate edge firewall or ISP filter) is inspecting SSL traffic or blocking specific FQDNs/Ports required by the ION, the device cannot complete the handshake. Consequently, it remains "Claimed" (registered in the database) but cannot go "Online" (active management session). Options A, C, and D prevent provisioning (configuration push) but generally do not prevent the device from initially checking in and going "Online" if the pipe is open.

Comprehensive and Detailed Explanation

Prisma SD-WAN utilizes STUN (Session Traversal Utilities for NAT) to facilitate NAT Traversal for its Secure Fabric overlay.

Discovery: When an ION device connects to the internet behind a NAT router, it reaches out to the Prisma SD-WAN Controller. The controller acts as a STUN server, identifying the public IP address and port that the ION's traffic is originating from.

Symmetric NAT Challenge: In Symmetric NAT, the mapping changes for every destination. However, the Prisma SD-WAN architecture is designed to handle this by having the controller coordinate the connection attempt.

Hole Punching: The controller shares the discovered public mapping information between two peer ION devices. They then simultaneously initiate traffic to each other's public IP/Port (a technique called "UDP Hole Punching"). This tricks the intermediate NAT devices into allowing the inbound traffic, establishing a direct P2P IPSec tunnel without requiring manual port forwarding or static IPs at the edge.

Comprehensive and Detailed Explanation

To achieve strict regional isolation where branch sites only form VPN tunnels with Data Centers in their specific region (e.g., EU branches to EU DCs only), the correct architectural feature to utilize is VPN Clusters.

In Prisma SD-WAN (CloudGenix), a Cluster defines a logical security and topology boundary for the overlay network. By default, devices may be placed in a "Default" cluster where they attempt to form a mesh or hub-and-spoke topology with all other reachable devices in that context.

To enforce the new policy:

Logical Partitioning: The administrator should create separate VPN Clusters for each region (e.g., "Cluster-NA", "Cluster-EU", "Cluster-Asia").

Assignment: The Regional Data Center IONs and their corresponding Branch IONs must be moved into their respective clusters.

Result: The Prisma SD-WAN controller dictates that devices can only establish Secure Fabric (VPN) tunnels with other devices within the same cluster. This effectively segments the global network, ensuring that an Asian branch never attempts to build a tunnel to a North American DC, satisfying the compliance requirement without complex access lists or manual tunnel configuration.

Option B (Manual Tunnels) is administratively unscalable and negates the benefits of SD-WAN automation.

Option C (Circuit Labels) is primarily for path selection and traffic steering, not for hard topology segmentation.

Option D (VRFs) is used for local Layer 3 segmentation (routing isolation) within a device, not for controlling WAN overlay tunnel formation scope.

Comprehensive and Detailed Explanation

When deploying Prisma Access for Remote Networks (connecting branch offices), the licensing and throughput model is based on aggregate bandwidth allocated to specific compute locations (regions).

Bandwidth Allocation (Option D): Administrators must purchase and allocate a specific amount of bandwidth (e.g., 500 Mbps, 1 Gbps) to a Prisma Access "Compute Location" (e.g., US West, Europe Central). This allocated bandwidth is then shared as a pool among all the branch sites (Remote Networks) that onboard and terminate their IPSec tunnels at that specific location. The system does not allocate bandwidth on a strict per-site basis but rather enforces the limit on the aggregate throughput of the compute node itself.

Policy Enforcement (Option A): Security policies for Prisma Access are enforced in the cloud (at the Prisma Access Service Processing Node), not pushed down to the branch ION devices for local enforcement. The ION device handles local segmentation (ZBFW) and traffic steering, but the "Remote Network" security stack resides in the cloud.

Path Usage (Option C): Prisma SD-WAN is designed to utilize Active/Active paths. When a branch has multiple internet circuits connected to Prisma Access, the CloudBlade and ION automatically build tunnels on all compatible paths and can load-balance traffic across them based on application performance (SLA), rather than defaulting to a strict Active/Standby model for internet traffic.

In Prisma SD-WAN, Performance Policies are the primary mechanism used to define the expected quality of experience for specific applications. Unlike traditional monitoring that relies solely on "up/down" interface states, Prisma SD-WAN focuses on the actual health of the application path. An incident is triggered when the system detects a violation of defined service-level agreement (SLA) thresholds, such as excessive latency, jitter, or packet loss, even if the physical link remains active.

When an administrator configures a performance policy, they set specific bounds for these metrics. For example, a VoIP application might have an SLA requiring latency below 150ms and packet loss below 1%. If the ION device detects that the current path (e.g., a broadband circuit) exceeds these limits, it generates a performance incident. This incident serves two purposes: first, it alerts the administrator to the degradation; second, it triggers the Path Selection engine to proactively steer the application traffic to a more suitable "Backup" or "Available" path that currently meets the SLA requirements.

Options B, C, and D represent system-level or network-level events that generate different types of alerts or incidents (System or Network incidents), but they are not the triggers defined within a Performance Policy. Performance policies are specifically concerned with the application's perceived performance across the fabric. By focusing on SLA violations rather than just physical link status, Prisma SD-WAN ensures that business-critical applications remain functional even during "brownout" conditions where a circuit is technically "up" but performing poorly.

Comprehensive and Detailed Explanation

To defend against volumetric attacks such as TCP SYN Floods, UDP Floods, or ICMP Floods, Prisma SD-WAN (like PAN-OS) utilizes Zone Protection Profiles.

Function: A Zone Protection Profile is a specific security object designed to screen traffic for protocol anomalies and flood behaviors before it is processed by the complex firewall policy engine. It sets thresholds (e.g., "Max 1000 SYNs/sec"). If the traffic rate exceeds this threshold, the system triggers an action (Alarm, Drop, or SYN Cookies) to protect the device's resources.

Application: Unlike a standard ZBFW Rule (A) which filters based on Source/Destination/App-ID (which might still allow the initial handshake packets that cause the flood), a Zone Protection Profile is applied to the Zone object itself (in this case, the LAN Zone). This ensures that the flood is mitigated at the ingress stage, preventing the ION's session table and CPU from being exhausted by the attack.

In the Prisma SD-WAN solution, multi-tenancy and network isolation are achieved through the use of Virtual Routing and Forwarding (VRF) instances. However, there are many operational scenarios—such as providing shared access to a common service (e.g., DNS, NTP) or a central Internet gateway—where traffic must transition between these isolated routing domains. This process is known as route leaking.

In the Prisma SD-WAN management interface, route leaking is specifically configured within the VRF Profile. Unlike traditional CLI-based routers where route leaking might be configured under a global routing table or individual VRF definitions via import/export targets, Prisma SD-WAN utilizes a profile-based approach to ensure scalability and consistency across multiple sites. A VRF Profile acts as a template that defines the routing behavior for specific VRFs across the fabric.

When an administrator navigates to the VRF Profile settings, they can define "Leaking Rules." These rules specify the "From VRF" (source) and "To VRF" (destination) parameters, along with the specific prefixes or default routes that should be shared. By placing this configuration within the VRF Profile rather than a site-specific configuration, Palo Alto Networks allows for a "configure once, apply many" workflow. Once the VRF Profile is updated with the leaking rules, any ION device associated with that profile will automatically update its local routing table to allow the specified inter-VRF communication. This centralized orchestration simplifies the management of complex segmentation requirements in large-scale SD-WAN deployments.
