Juniper JN0-452 Mist AI Wireless - Specialist (JNCIS-MistAI-Wireless) Exam Practice Test

According to Coverage SLE, Asymmetry Downlink classifier tracks a client that transmits at lower data rate than AP to which it is connected.So the correct answer is A.Asymmetry Downlink

According to the Marvis - Mist document, Correlation is a category in Marvis’ troubleshooting response that shows when the AP went offline. Correlation shows the correlation between events and SLEs for a given client or AP.

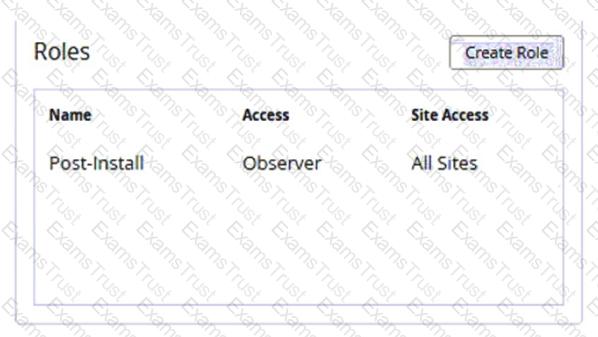

the Post-Install user role is also known as Installer role, which has a minimum level of access to the org, sites, and APs. It can do the initial installation such as claim AP to Org, assign/unassign AP, or place on map, etc., but cannot unclaim or remove the AP from the Org. Site and AP access is allowed based on timed grace period and/or explicit site access.

In Juniper Networks Mist AI Wireless, the behavior described in this scenario is explained by dynamic rate shifting. Dynamic rate shifting is the mechanism by which a wireless client and access point automatically adjust the modulation and coding scheme (MCS) based on current RF conditions to maintain a reliable connection.

When a client is close to an access point, RF conditions are optimal—high RSSI, high signal-to-noise ratio (SNR), and low error rates—allowing the client to use higher-order modulation schemes such as 1024-QAM (in 802.11ax). These modulation schemes deliver higher throughput but require very clean RF conditions. As the client moves farther away from the AP, signal strength decreases and noise becomes more impactful, increasing frame errors and retransmissions.

Dynamic rate shifting continuously evaluates transmission success, retry rates, and acknowledgments. When errors increase, the client steps down to lower modulation rates (for example, from 1024-QAM to 256-QAM or 64-QAM) that are more resilient to reduced signal quality. This trade-off sacrifices peak throughput in favor of connection stability and reliability.

The other options describe contributing factors, but not the mechanism itself:

RSSI indicates signal strength but does not control rate selection.

SNR influences modulation decisions but is not the adaptive process.

Free space path loss explains why signal weakens over distance but does not describe how rates are adjusted.

Mist AI Wireless monitors modulation rates, retries, and throughput via advanced telemetry and uses this data in Wireless Assurance SLEs to highlight RF and performance issues. However, the actual process of stepping up or down transmission rates in response to changing RF conditions is governed by dynamic rate shifting.

Therefore, the correct answer is C. Dynamic rate shifting.

In a Juniper Mist AI deployment, achieving high-fidelity location accuracy is entirely dependent on the digital twin (the floor plan in the Mist UI) accurately reflecting the physical environment. While scaling the map is the foundation, AP orientation is the most critical variable for the vBLE (virtual Bluetooth Low Energy) engine to correctly calculate a client's position.

Mist Access Points, such as the AP43 or AP45, feature a patented 16-element directional vBLE antenna array. This array does not broadcast in a simple omnidirectional circle; instead, it uses eight distinct directional beams to blanket an area. The Mist Cloud uses "probability surfaces" to determine a user's location by examining the RF fingerprints from these specific beams. If an AP is physically mounted with its LED pointing toward a specific hallway, but is oriented in the Mist UI facing a different direction, the location engine will receive signal data that does not match its internal map of the beams. This results in "flipped" locations or "teleporting," where a user appears on the opposite side of the AP from where they actually are.

To ensure accuracy, administrators must use the small green dot on the outer ring of the AP icon in the Mist Live View. This green dot represents the physical LED on the AP hardware. The orientation in the UI must be rotated so that the green dot points in the exact same direction as the physical LED relative to the floor plan's perspective. It is a common misconception that APs must face true north (A) or geographical north (D); the map and APs can be oriented in any way that is convenient for the facility layout, provided the relative alignment between the virtual icon and the physical device is identical.

In Juniper Networks Mist AI Wireless, Service Level Expectations (SLEs) are used to measure and assure real user experience across the wireless network. Each SLE is built on specific classifiers, which break down failures into root causes such as DHCP, DNS, authentication, RF conditions, or application issues. Understanding which SLEs rely on DHCP classification is essential for accurate troubleshooting.

The two Wireless Assurance SLEs that include a DHCP classifier are Successful Connects and Time to Connect.

The Successful Connects SLE measures whether client devices are able to complete the full connection process successfully. This process includes association, authentication, and critically, DHCP address assignment. If a client fails to obtain an IP address, the connection is considered unsuccessful, and the failure is explicitly classified as a DHCP issue within this SLE.

The Time to Connect SLE measures how long it takes for a client to connect from the moment it initiates association until it is fully usable on the network. One of the key components of this timeline is the DHCP transaction time. Slow DHCP responses, retransmissions, or server delays directly increase the overall connection time, and Mist classifies these delays under DHCP within the Time to Connect SLE.

The other options are incorrect for the following reasons:

Roaming SLE focuses on re-association, authentication, and mobility events, not DHCP, since IP addressing is typically retained during roaming.

Coverage SLE evaluates RF signal strength, SNR, and cell overlap, with no dependency on DHCP.

Throughput SLE measures data transfer performance after connectivity is established and does not analyze DHCP behavior.

Therefore, the correct answer is Successful Connects and Time to Connect, as both SLEs directly depend on and classify DHCP-related performance and failures within Mist Wireless Assurance.

According to the Mist documentation1, asset tracking is a service that allows you to find key assets and people with detailed analytics based on their location using Mist-supported third-party BLE beacons. To enable asset tracking, you need to configure both the BLE beacons and the Mist cloud settings.

The Show assets check box is a setting in Live View that allows you to display or hide the assets on the floor plan2. If this check box is not selected, you will not be able to see the third-party beacons on Live View.

The Locate this Client as an Asset check box is a setting at the BLE client level that allows you to treat a BLE client as an asset for location purposes3. If this check box is not selected, you will not be able to track the BLE client as an asset.

In the Juniper Mist AI ecosystem, Service Level Expectations (SLEs) provide a proactive way to monitor the health of a wireless network from the perspective of the end-user. When investigating potential interference—whether it is from neighboring Wi-Fi networks or non-Wi-Fi sources like microwaves or motion sensors—the Capacity SLE is the primary metric to analyze. While interference certainly impacts the overall Throughput SLE, Mist categorizes the specific environmental factors that limit airtime availability under the "Capacity" umbrella.

The Capacity SLE tracks "user minutes" during which a client experiences a drop in available RF channel capacity. It is specifically designed to identify why a client might be struggling to transmit data despite having a strong signal. Within the Capacity SLE block, Mist provides granular classifiers that pinpoint the root cause of the capacity degradation. These classifiers include:

Wi-Fi Interference: This identifies airtime contention caused by other 802.11 networks (Co-Channel Interference or Adjacent Channel Interference).

Non-Wi-Fi Interference: This identifies energy from non-802.11 sources detected by the AP's dedicated scanning radio.

Client Count: High density leading to contention.

Client Usage: A single "bandwidth hog" consuming the available airtime.

By checking the Capacity SLE in the Mist dashboard before heading to a site, an administrator can see a historical timeline of interference events. If the "Wi-Fi Interference" or "Non-Wi-Fi Interference" classifiers show a high percentage of "Bad User Minutes," the administrator can confirm that the client's complaint is indeed valid. This allows for remote troubleshooting and may even enable the admin to resolve the issue by adjusting Radio Resource Management (RRM) settings or identifying a specific rogue device, potentially saving an unnecessary truck roll.

The Compatible WLAN data rate setting is required for legacy 2.4 GHz scanners to connect to the WLAN.

According to the Data Rates - Mist document4, the WLAN data rate setting that is required for legacy 2.4 GHz scanners to connect to the WLAN is Compatible. This setting enables all data rates from 1 Mbps to 54 Mbps for both 2.4 GHz and 5 GHz bands. This setting is recommended for legacy devices that need low data rates to connect.

Text Description automatically generated with low confidence

According to the Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide2, a device profile is a configuration object that allows you to group similar devices together and apply consistent WxLAN policies across multiple sites. A device profile defines parameters such as device type, OS, and MAC address.

In the Juniper Mist dashboard, managing licenses is handled through the Subscriptions page at the Organization level. This page is critical for ensuring that all deployed hardware (Access Points, Switches, and Gateways) has the necessary cloud services—such as Wi-Fi Assurance, Wired Assurance, or Marvis VNA—to function correctly. The subscription page provides a real-time overview of the organization's licensing health using specific status indicators.

The status Active (D) indicates that the subscription is currently within its valid date range and is being utilized by the hardware in the organization. When a subscription is marked as Active, it means the features associated with that license are fully operational, and the Mist Cloud is actively processing telemetry from the associated devices. This is the primary state for all correctly provisioned licenses.

The status Exceed (B) (often displayed as "Exceeded") is a unique and important state in the Mist ecosystem. Unlike many legacy controllers that might shut down services if a license count is surpassed, Mist uses an "honor-based" system combined with clear visual alerting. The Exceed status appears when the number of physical devices claimed and assigned to a site exceeds the total number of available license seats for a specific service. For example, if an organization has 100 "Wi-Fi Assurance" subscription seats but has deployed 110 Access Points, the status will show as Exceeded.

Mist provides a grace period and persistent notifications to administrators to rectify this by either purchasing more subscriptions or removing excess devices. It is important to note that while terms like "Valid" or "Demo" might be used in general conversation, the specific operational statuses tracked in the subscription table to manage license compliance and expiration are Active, Exceeded, and Expired. These statuses allow IT teams to proactively manage their operational expenditures and ensure uninterrupted service for their wireless users.

Transmissions over Wi-Fi are shared medium and half-duplex.

According to the IEEE 802.11 - Wikipedia document2, two terms that correctly describe transmissions over Wi-Fi are:

Shared medium, which means that multiple devices use the same wireless channel and have to compete for access and avoid collisions.

Half-duplex, which means that devices can either transmit or receive data at a time, but not both simultaneously.

In Juniper Networks Mist AI Wireless, understanding modulation schemes is essential for designing and operating high-performance Wi-Fi 6 (802.11ax) networks. Modulation directly affects how much data can be transmitted per symbol, and therefore determines the maximum achievable data rates under optimal RF conditions.

802.11ax introduces 1024-QAM (Quadrature Amplitude Modulation) as its highest supported modulation scheme. With 1024-QAM, each symbol encodes 10 bits of data, which represents a significant increase compared to earlier standards. For reference:

64-QAM (used in earlier standards) carries 6 bits per symbol

256-QAM (introduced in 802.11ac) carries 8 bits per symbol

1024-QAM increases this to 10 bits per symbol

This higher bit density allows Wi-Fi 6 devices to achieve higher peak throughput, especially in environments with excellent signal quality. However, 1024-QAM requires very high Signal-to-Noise Ratio (SNR) and low interference to function reliably. As a result, it is typically achieved only when clients are close to the access point and RF conditions are clean.

Mist AI Wireless continuously monitors client RSSI, SNR, retransmissions, and modulation rates through advanced telemetry. Using this data, Mist can determine whether clients are successfully operating at higher modulation levels like 1024-QAM or are falling back to lower schemes due to RF impairments. This insight directly feeds into SLEs and AI-driven recommendations for RF tuning, AP placement, and channel planning.

The incorrect options are explained as follows:

64-QAM and 256-QAM are valid modulation schemes but do not provide the highest data rates in 802.11ax.

4096-QAM is not supported by the 802.11ax standard and is therefore invalid.

Thus, 1024-QAM is the modulation scheme that provides the highest data rate level for 802.11ax devices.

According to the Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide3, three types of devices that are counted by default for occupancy analytics are:

Mobile app clients, which are devices that have a mobile app installed with the Mist SDK or BLE beaconing enabled.

Cellular clients, which are devices that have cellular connectivity and can be detected by Mist APs using LTE sensing.

Wi-Fi clients, which are devices that have Wi-Fi connectivity and can be detected by Mist APs using Wi-Fi scanning.

Mist Radio Resource Management (RRM) performs several functions including transmit power control and channel assignment which help optimize wireless network performance by dynamically adjusting radio settings based on changing environmental conditions.So,the correct answers are A.transmit power control and C.channel assignment

According to the Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide1, two functions of Mist Radio Resource Management (RRM) are:

Transmit power control, which adjusts the transmit power of APs based on their coverage area and interference level.

Channel assignment, which assigns channels to APs based on their location and interference level.

In Juniper Networks Mist AI Wireless, access points must be claimed to an organization in the Mist cloud before they can be configured, monitored, and managed. When deploying APs at scale, Juniper provides an efficient mechanism to onboard multiple access points simultaneously using an activation code.

An activation code is a bulk-claim method generated within the Mist cloud portal. This code is typically associated with a purchase order or shipment and can represent dozens, hundreds, or even thousands of access points. When the activation code is applied to an organization, all APs tied to that code are automatically claimed at once. This approach is especially valuable for enterprise and campus deployments, where manual per-device onboarding would be impractical.

Once claimed using an activation code, APs can be assigned to sites, receive configurations, and leverage Zero-Touch Provisioning (ZTP). As soon as the APs obtain network connectivity and reach the Mist cloud, they automatically download their configuration and become operational without further manual intervention.

The other options are incorrect for the following reasons:

QR codes are used for claiming individual APs, typically during small deployments or troubleshooting scenarios.

Digital certificates are used for secure authentication and communication but are not a method for claiming APs to an organization.

The Juniper Mist Mobile Application can assist with onboarding and visibility but does not provide a bulk-claim mechanism for large numbers of APs.

Therefore, the correct and documented method for claiming multiple Juniper Access Points simultaneously is to use an activation code, making option A the correct answer.

Two correct statements about Juniper Mist Dynamic Packet Capture are that no configuration is necessary for Mist’s Dynamic Packet Capture and it is automatically attached to a client event displayed on the Insights page. So the correct answers are A. No configuration is necessary for Mist’s Dynamic Packet Capture and B. It is automatically attached to a client event displayed on the Insights page.

The Clone Site feature in the Juniper Mist dashboard is a powerful tool designed to streamline the deployment of new physical locations by duplicating the environmental and operational logic of an existing "gold standard" site. However, to avoid configuration conflicts (such as duplicate addresses) and to maintain the integrity of the hierarchy, Mist is selective about which objects are carried over during the cloning process.

According to Juniper Mist documentation, only the settings visible on the Site Configuration page are copied to the new site. This specifically includes:

Auto Firmware Upgrade settings (A): The specific versioning (Production vs. RC) and the weekly or daily maintenance windows defined for the site are preserved. This ensures that the new site follows the same lifecycle management policy as the primary site.

RF Templates (B): The radio resource management (RRM) profile assigned to the site is copied. This includes channel planning, bandwidth settings (20/40/80 MHz), and power level constraints tailored for that environment.

Other Site-Level Settings: This also includes Webhooks, Rogue/Honeypot AP detection rules, and Location Services settings.

Conversely, certain objects are explicitly not copied. The Site Location (C) and Site Name are excluded because each site must be geographically unique for accurate mapping and time zone calculation. WLANs (D) are also not copied through the Clone Site function; SSIDs are typically managed at the Organization level via WLAN Templates, which are then mapped to sites or site groups rather than being "hardcoded" into an individual site's local configuration. By cloning the site-specific parameters like RF templates and upgrade schedules, Mist allows administrators to rapidly scale their infrastructure while ensuring the core network access (WLANs) is maintained through the overarching organizational policy.

Two authentication methods that would be used with a guest portal are social login and external portal. So the correct answers are A. social login and B. external portal.

According to the Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide2, two authentication methods that can be used with a guest portal are:

Social login, which allows guests to log in using their social media accounts such as Facebook, Twitter, or Google.

External portal, which allows guests to log in using an external web server that hosts a custom portal page.

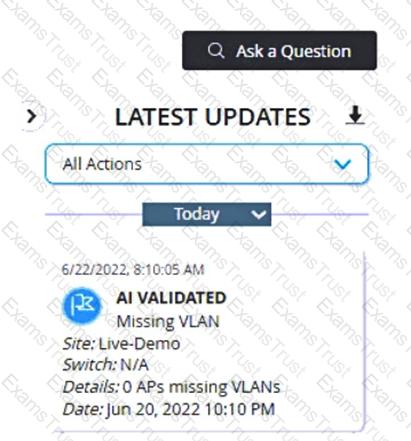

According to the JNCIS-MistAI Certification page3, a Marvis Actions Missing VLAN notification indicates that an access point is missing a VLAN that is configured on other access points in the same site.

In Juniper Networks Mist AI Wireless, Radio Resource Management (RRM) is designed to optimize RF performance automatically while minimizing client impact. With the introduction of Wi-Fi 6E and the 6 GHz band, Juniper Mist follows industry standards and client behavior to ensure efficient and reliable operation. By default, Mist RRM uses the Preferred Scanning Channels (PSCs) in the 6 GHz spectrum.

The 6 GHz band introduces a very large number of available channels, which creates challenges for client discovery, scanning efficiency, and roaming speed. To address this, the IEEE defined Preferred Scanning Channels (PSCs)—a specific subset of 6 GHz channels that access points advertise and clients prioritize during active and passive scanning. These PSCs allow clients to discover networks faster without having to scan the entire 6 GHz channel set.

Juniper Mist RRM automatically selects and operates on these PSCs by default to:

Improve client discovery and association times

Reduce unnecessary scanning overhead

Enhance roaming performance

Maintain compatibility across a wide range of Wi-Fi 6E client devices

Mist continuously evaluates RF conditions using telemetry and AI-driven analysis, but it intentionally limits default operation to PSCs to balance performance, efficiency, and client interoperability. Administrators can override defaults and customize channel plans if required, but PSCs remain the recommended baseline for most deployments.

The incorrect options are explained as follows:

Option B is incorrect because Mist RRM does not require manual primary channel selection by default.

Option C refers to 2.4 GHz non-overlapping channels, not 6 GHz.

Option D represents the full 6 GHz channel range, which is not practical for default scanning or operation due to client limitations.

Therefore, the correct answer is the preferred scanning channels (PSCs), which Juniper Mist RRM uses by default in the 6 GHz band to ensure optimal Wi-Fi 6E performance.

According to the Lecture 3 - Radio Frequency and Antenna Fundamentals - Part 2 document3, two layers that are different between Ethernet and Wi-Fi in the OSI networking model are:

Media access control (MAC) sub-layer, which is part of the data link layer and defines how devices access and share the wireless medium.

Physical layer, which defines how data is encoded and transmitted over the wireless medium.

The WLANs with SSIDs NETGEAR24 and Bob24WiFi will cause adjacent channel interference because they are using overlapping channels in the 2.4 GHz frequency band.

According to the Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide2, a non-compliant AP is an AP that has a different hardware model than what is expected by the cloud configuration. This can happen when an AP is replaced with an incorrect model or when an AP is moved to a different site group that has a different hardware model requirement. The solution is to replace the AP with the correct hardware model.

In Juniper Networks Mist AI Wireless, the strength and quality of a client’s wireless connection are primarily evaluated using RSSI (Received Signal Strength Indicator) and SNR (Signal-to-Noise Ratio). These two metrics are core inputs into multiple Wireless Assurance SLEs, including Coverage and Throughput, and are reliable indicators when determining which client has the weakest WLAN connection.

From the exhibit, the key metrics for each client are:

Client 1: RSSI –81 dBm, SNR 11 dB

Client 2: RSSI –71 dBm, SNR 21 dB

Client 3: RSSI –67 dBm, SNR 25 dB

Client 4: RSSI –70 dBm, SNR 22 dB

In wireless design, lower (more negative) RSSI values indicate weaker signal strength, and lower SNR values indicate poorer signal quality due to higher relative noise. Among all listed clients, Client 1 clearly has the weakest connection, as it has both:

The lowest RSSI (–81 dBm), indicating it is farthest from the AP or experiencing significant attenuation.

The lowest SNR (11 dB), which suggests the signal is only marginally stronger than the background noise.

Mist best practices typically consider RSSI values below –70 dBm and SNR values below ~20 dB as suboptimal for reliable performance, especially for higher modulation schemes. Client 1 falls well below these thresholds, making it the most likely to experience low data rates, retransmissions, and degraded user experience.

Mist AI would flag this client as having poor coverage and may recommend actions such as:

Improving AP placement or density

Adjusting RF power or channel plans

Enforcing minimum RSSI thresholds

Therefore, based on both RSSI and SNR, Client 1 has the weakest WLAN connection, making Option D the correct answer.

In Juniper Networks Mist AI Wireless, controlling client connection quality is a critical part of maintaining high Service Level Expectations (SLEs). One of the most effective ways to ensure good user experience is by enforcing a minimum acceptable RSSI (Received Signal Strength Indication) threshold for client devices. This functionality is implemented using wireless traffic filtering at the WLAN level.

Wireless traffic filtering allows administrators to define minimum and maximum RSSI thresholds that determine whether a client is permitted to associate or remain connected to an SSID. If a client’s RSSI falls below the configured minimum threshold, the AP can deny association requests or deauthenticate the client. This prevents low-signal or “sticky” clients from connecting at poor signal levels, which would otherwise result in excessive retries, low data rates, increased airtime consumption, and degraded performance for all users.

Mist applies these controls intelligently and surfaces their impact through AI-driven analytics. When low-RSSI clients are filtered, Mist can correlate improvements in throughput, latency, and roaming behavior directly to RF health and client quality metrics. This aligns with Mist best practices, which emphasize proactive client quality enforcement rather than reactive troubleshooting.

The incorrect options are explained as follows:

WLAN forwarding determines how traffic is bridged, tunneled, or NATed and has no impact on RSSI enforcement.

Geofencing is used for location-based services and RTLS use cases, not RF signal quality control.

WLAN rate limit restricts bandwidth usage per client or SSID but does not evaluate or enforce signal strength requirements.

Therefore, the correct feature required to set an acceptable minimum RSSI for client devices is wireless traffic filtering, which directly controls association behavior based on signal quality and helps maintain optimal wireless performance.

According to the Wi-Fi configuration with Mist Systems | HCD Consulting GmbH document, three available rate limiting options in the Mist UI are:

According to the Location - how it works - Mist document1, a Mist AP actually begins transmitting BLE when it is placed on a floor plan. This is because the Mist cloud uses the floor plan information to calculate the optimal BLE transmission pattern for each AP.

The exhibit shows a graph of the client’s roaming history over time. The x-axis represents the time and the y-axis represents the access point ID. Each dot on the graph indicates a roam event where the client switched from one access point to another.

The graph shows that the client roamed between different access points multiple times within a short period of time. This indicates that the client was experiencing frequent roams between different access points, which could affect its network performance and user experience.

The Wi-Fi Assurance SLE and classifier that would provide information about possible interference from a neighboring Wi-Fi network are Capacity and Wi-Fi Interference.

In the architecture of a Mist AI Real-Time Location System (RTLS), the process of moving from raw signal data to an actionable event involves several distinct layers. To understand why the location system is the correct answer, we must examine how Mist processes Location-Based Services (LBS).

The workflow begins with location sensors (typically Mist Access Points). these sensors collect raw Bluetooth Low Energy (BLE) or Wi-Fi signals (RSS measurements) from tracked assets or mobile devices. These raw data points are then transmitted to the cloud-based Mist AI engine. The location system (often referred to as the Location Engine within the Mist Cloud) is the specific functional component responsible for calculating the precise X/Y coordinates of the device using machine learning and trilateration algorithms.

However, its role does not end at mere coordinate calculation. The Mist location system is designed to be "context-aware." Once the coordinates are established, the system maps these coordinates against defined zones, virtual beacons (vBeacons), or geofences configured in the Mist dashboard. When a device’s coordinates intersect with a predefined boundary, the location system triggers a location-aware action. This could include sending a webhook to a third-party application, pushing a proximity notification to a mobile SDK client, or recording a "visit" in the analytics engine.

While Juniper Mist Edge handles data plane tunneling and Marvis Minis acts as a digital twin for network simulation, they do not manage the coordinate-to-action logic. The location system is the intelligence that bridges the gap between spatial data and business logic, ensuring that the right client receives the right trigger based on their physical presence within a venue.
