Colorless ports allow network devices to move or replace endpoints without changing port-level configurations, typically by automatically assigning network policies dynamically to any port.

HPE Aruba’s solution for colorless ports is the VNBT (Virtual Network Boundary Tagging) feature. VNBT allows dynamic segmentation of traffic, so ports can automatically take on the policies assigned to devices regardless of physical port location.

VRRP is a first-hop redundancy protocol and unrelated to port colorlessness.

VSF (Virtual Switching Framework) is for switch stacking.

VRF (Virtual Routing and Forwarding) is for traffic segmentation.

Thus, VNBT is the correct feature to meet colorless port requirements.

To upgrade an HPE Aruba Networking CX 8320 VSX cluster with minimal downtime from a remote server, the correct command is:

vsx update-software scp://172.25.101.10/image vrf mgmt

Using SCP (Secure Copy Protocol) ensures secure transfer.

Specifying vrf mgmt ensures the update uses the management VRF for connectivity.

Using TFTP is less secure and not recommended for production upgrades.

The primary keyword is not valid for the vsx update-software command.

This method allows an in-service software upgrade (ISSU) with least disruption.

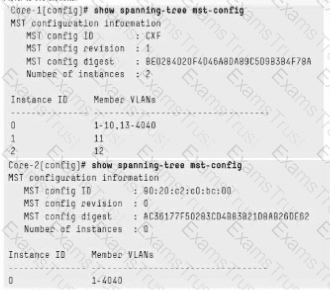

If both switches are configured with default spanning-tree priorities and both appear as primary root bridges, to have a single spanning tree domain, matching MST configuration (Multiple Spanning Tree) must be created on Core-2 to align with Core-1.

Setting priority to 1 on one switch can help but matching MST configurations is the recommended approach for multiple VLANs.

Creating MST instances on only one switch will not ensure consistency.

Matching MST configurations ensures consistent root bridge election and stable spanning tree.

When deploying HPE Aruba VSX switches parallel to existing HPE Comware switches, choosing a first-hop redundancy protocol compatible with both platforms is essential. VRRP (Virtual Router Redundancy Protocol) is widely supported across multiple vendors and is suitable for multi-vendor environments.

HSRP is Cisco proprietary and not supported on Aruba Comware or CX.

Active Forwarding and Active Gateway are Aruba VSX internal mechanisms, not standard first-hop redundancy protocols.

VRRP provides seamless failover and is supported in Comware and Aruba CX platforms.

Thus, VRRP is the suitable choice.

When a recent routing change causes an outage affecting all users, the recommended immediate action is to restore the last-known working configuration to quickly return the network to a stable state. This is critical to minimize downtime and impact.

Asking customers to send logs or explaining the issue takes time and delays remediation.

Collecting show tech and opening TAC cases can be done after restoring service.

Hence, the quickest way to mitigate the impact is to restore the last known good configuration.

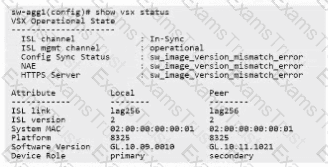

During a VSX firmware upgrade, the vsx-syned process stops synchronization while the switches have mismatched software versions. Synchronization resumes once both switches run the same software.

VSX synchronization cannot continue while versions mismatch (contrary to options B and D).

Compatibility mode is not required before rebooting secondary switch (Option D incorrect).

This behavior ensures consistency and avoids split-brain during upgrades.

To capture packets on an HPE Aruba CX switch and view the output remotely in real-time, the best practice is to use a mirror session that forwards traffic to a remote device running a packet analyzer such as Wireshark. ERSPAN (Encapsulated Remote Switched Port Analyzer) allows the mirror traffic to be encapsulated in GRE and sent over an IP network to a remote monitoring station. This method ensures full packet capture with no local resource constraints and provides full visibility to the analyst.

Option B (using tcpdump on the switch) only provides summarized or limited capture locally.

Option C (mirroring to another switch port) only allows local monitoring and does not provide remote real-time viewing.

Option D (mirror to CPU and then use tshark) is less efficient and may be resource-intensive on the switch.

Therefore, configuring ERSPAN to a remote Wireshark host is the recommended and best way.

The error message "Invalid input: interface" typically appears if the switch is managed by HPE Aruba Central, which restricts CLI interface configuration to prevent configuration drift. When managed externally, certain commands are disabled or locked.

Password recovery mode or authorization enabled would not cause this error.

Manager context is not a concept in Aruba CX CLI.

To receive a monthly report tracking available licenses and their expiration dates in Aruba Central, the Infra Inventory report should be scheduled. It provides detailed information about device inventories, including licenses and expiration.

Switch Capacity Planning focuses on resource utilization.

Resource Utilization monitors system performance.

Network report focuses on topology and health.

Using the command copy checkpoint 20240722 running-config exemplifies the Replace configuration troubleshooting methodology. This involves replacing the current running configuration with a known good checkpoint to restore proper operation.

Divide and conquer isolates faults by segment.

Top-down/Bottom-up analyzes layer by layer.

Spot the difference compares configurations.

Replacing the config is a straightforward rollback approach.

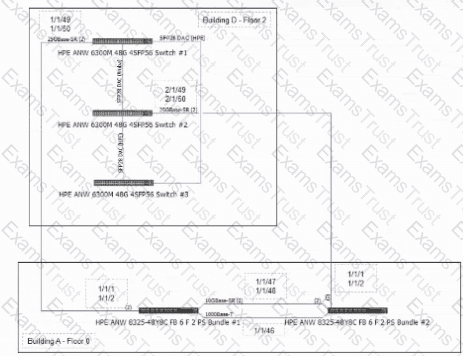

In the exhibit, the CX8325 switch ports 1/1/47 and 1/1/48 are connected in a VSX setup. According to Aruba VSX best practices, ports on the CX8325 switch that serve as ISL or VSX interconnects should use SFP28 optics for 25Gbps links. If SFP56 optics are used, it would be incorrect because CX8325 ports are designed to support SFP28 modules for these speeds.

CX6300 ports use SFP56 or QSFP28 depending on model and link speed.

CX8300 series ports designed for QSFP28 for higher speeds.

Hence, the best practice is to use SFP28 on CX8325 for the interconnect links.

When making changes remotely to critical configurations such as Control Plane ACLs on a CX switch, to protect against accidental lockout due to misconfiguration, you should enable checkpoint auto before committing the changes.

Checkpoint auto creates an automatic rollback timer. If the administrator loses connectivity (e.g., because of the ACL change), the system automatically rolls back the change after the timer expires, preventing lockout.

checkpoint commit is used after committing to save the checkpoint explicitly, but it does not provide automatic rollback.

Running checkpoint auto before committing is essential to have the rollback safety net.

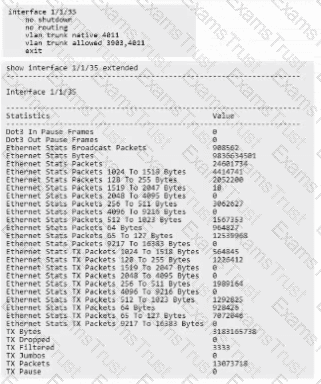

The issue is VMware vMotion traffic on VLAN 3903 failing, while other VLANs work normally. vMotion traffic requires support for larger frame sizes (jumbo frames) because vMotion packets are large and benefit from increased MTU to improve performance and reduce fragmentation.

Configuring jumbo frames on VLAN 3903 ensures that frames on this VLAN can use an MTU larger than the default 1500 bytes.

Configuring jumbo on the interface alone may not be sufficient if the VLAN itself is not set to support jumbo frames.

Setting MTU on VLAN or interface might not work unless jumbo frames are enabled.

The customer wants to tunnel traffic from APs through CX switches, similar to what they currently do with a gateway cluster. Aruba’s User-Based Tunneling (UBT) is designed specifically for this use case. UBT allows traffic from wireless and wired clients to be tunneled to a centralized gateway or controller for policy enforcement and traffic inspection.

IPSec and GRE are general tunneling protocols but not Aruba’s recommended solution for AP traffic.

VNBT relates to colorless ports and dynamic segmentation, not tunneling client traffic.

Thus, UBT is the correct tunneling solution for AP traffic through CX switches.

Comprehensive Detailed Explanation:

For live upgrading a VSX cluster, the correct procedure is to use the vsx update-software option, which allows in-service software upgrade (ISSU) with minimal disruption by upgrading switches one at a time while maintaining synchronization.

issu update-software is not a recognized command in Aruba CX.

Reloading the primary first risks service disruption.

Compatibility mode is not required prior to reboot.

For an interface connected to an untrusted device regarding DSCP markings, the recommended configurations are:

Apply a classifier-based policy to assign a Local Priority value (Option B). This overrides or marks traffic based on predefined criteria.

Configure qos trust none (Option E) to disable trusting DSCP or CoS markings from the device, preventing manipulation of QoS.

Trusting CoS (Option A) is incorrect because the device is untrusted.

DSCP maps and Weighted Fair Queuing (Options C and D) are additional QoS features but do not specifically address untrusted markings.

To isolate wired ports on the same VLAN on a large scale (such as hotel rooms) but allow communication within the same VLAN for common areas, Private VLANs (PVLANs) are recommended. PVLANs allow segmentation within a single VLAN by dividing it into primary and secondary VLANs, controlling communication between ports.

VPN and VXLAN are overlay technologies for different purposes.

UBT (User-Based Tunneling) is related to wireless user segmentation, not wired port isolation.

Therefore, PVLANs provide the simplest and most effective solution to isolate room ports within a single VLAN.

Comprehensive Detailed Explanation:

When troubleshooting intermittent connectivity issues with known source and destination IPs, the Follow the path methodology is most suitable. This involves tracing the packet flow from source to destination step-by-step, checking each device or segment for failures.

Spot the difference compares configurations, which is less targeted here.

Divide and conquer isolates sections but follow the path is more direct for connectivity.

Top-down/bottom-up is more general troubleshooting.

Comprehensive Detailed Explanation:

To prevent man-in-the-middle attacks based on Layer 2 (Ethernet) addressing, enabling ARP inspection in the VLAN context is recommended. ARP inspection validates ARP packets and ensures only legitimate ARP responses are forwarded.

Enabling ARP inspection at VLAN level allows granular control.

Interface-level or global context is less typical or supported for ARP inspection on Aruba CX switches.

A screenshot of a computer AI-generated content may be incorrect.

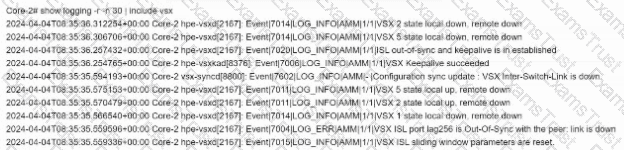

If the ISL between two VSX core switches is down and logs indicate that Core-2 has disabled its VSX LAG interfaces, it means Core-2 has disabled its VSX LAG interfaces, likely as a protective or failover mechanism.

Keepalive packets being dropped (Option B) may cause issues but logs specifically state interface disablement.

Both switches forwarding traffic (Option C) is unlikely if ISL is down.

Downstream switches inability to forward traffic (Option D) is a consequence, not the cause.

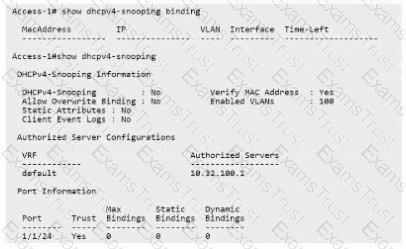

DHCP snooping requires to be enabled globally before it will function correctly. If it is not enabled globally, even if enabled on VLAN interfaces, DHCP snooping will not work.

Enabling authorized DHCP servers (A) or trusted interfaces (B) is necessary but only after global enabling.

Enabling DHCP snooping on VLAN (C) is not sufficient without global enablement.

Therefore, enabling DHCP snooping globally is the first step to activate the feature.
