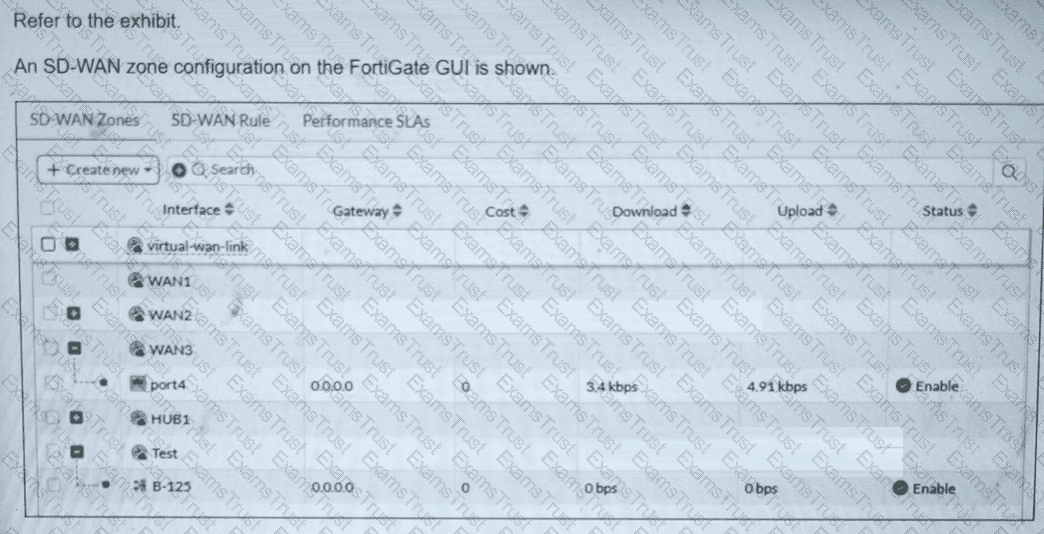

From the SD-WAN Zones view in the FortiGate GUI:

virtual-wan-link is the default SD-WAN zone. This zone is system-defined and cannot be deleted, which makes option A incorrect.

The WAN2 zone is displayed without any expandable members beneath it, indicating that no SD-WAN members are currently assigned to the WAN2 zone. This directly supports option B.

A zone can be deleted only if it has no members and is not system-defined, but the exhibit does not indicate that WAN1 is eligible for deletion. Therefore, option C cannot be concluded from the information shown.

In FortiOS SD-WAN, an SD-WAN member can belong to only one SD-WAN zone at a time. A member such as B-125 cannot be assigned to both the WAN3 zone and the Test zone simultaneously, which makes option D incorrect.

The log shows messages on HUB1-VPN1 where the device processes a SHORTCUT_QUERY and performs NAT hole punching (peer at 192.2.0.1:4500). This indicates that the device is acting as a hub, helping two spokes (192.2.0.1 and 10.0.3.101) establish a direct ADVPN shortcut tunnel between each other, instead of routing their traffic through the hub.

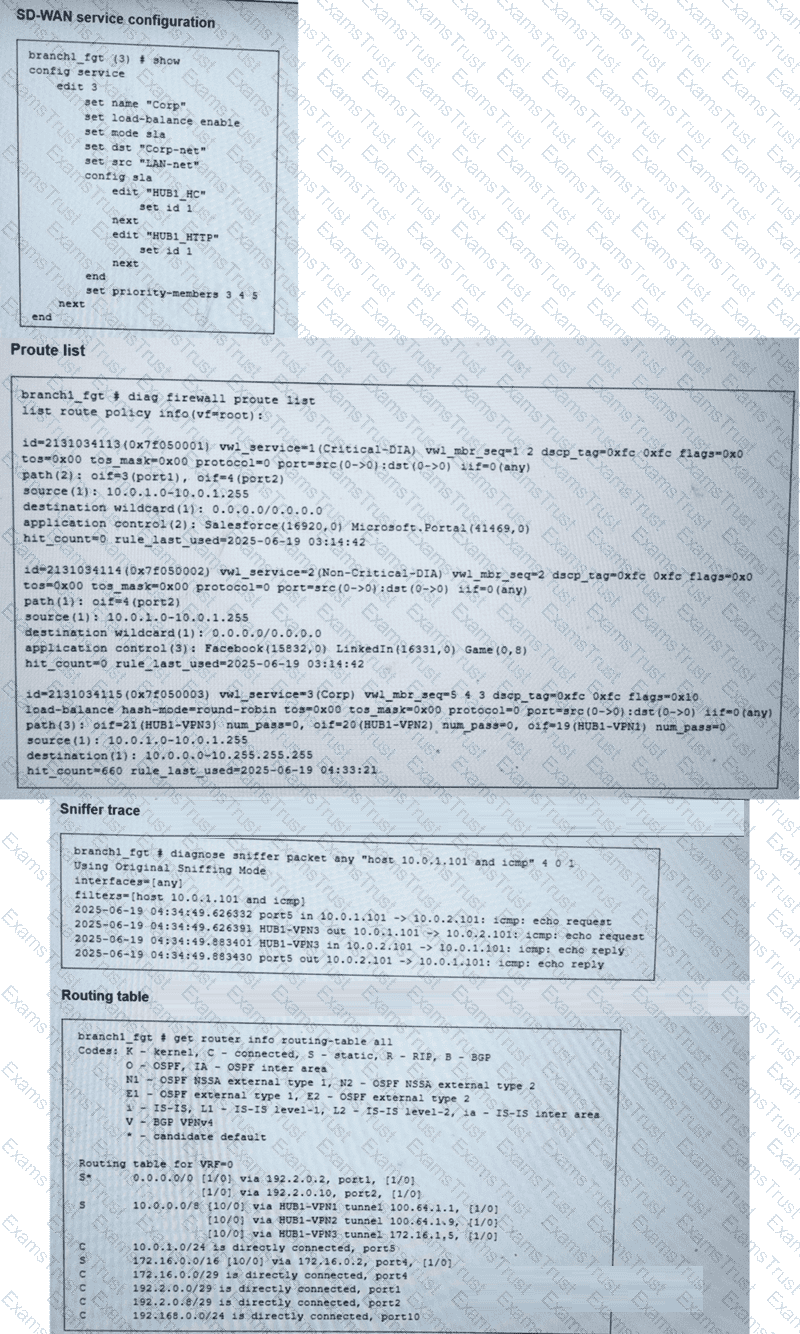

From the SD-WAN service configuration, rule edit 3 (name "Corp") is configured with:

set mode sla

set load-balance enable

set dst "Corp-net"

set src "LAN-net"

SLA checks referenced under config sla

Traffic from 10.0.1.101 to 10.0.0.126 matches this rule because the destination is within the corporate network range (shown in the policy-route/proute output as destination 10.0.0.0–10.255.255.255 for the Corp service).

In the diagnose firewall proute list output for vwl_service=3 (Corp), FortiGate shows which SD-WAN members are eligible based on SLA pass results:

oif=21 (HUB1-VPN3) num_pass=2

oif=20 (HUB1-VPN2) num_pass=0

oif=19 (HUB1-VPN1) num_pass=0

This indicates that, for the SLA-based rule, only HUB1-VPN3 is meeting the SLA requirements (it is the only member with num_pass=2). The other members have num_pass=0, so they are not eligible for forwarding under this SLA rule even though links are up.

The sniffer trace further corroborates the forwarding decision by showing the traffic egressing through HUB1-VPN3.

Therefore, FortiGate will steer the HTTP traffic through only HUB1-VPN3, which corresponds to Option A.

The provisioning templates in FortiManager are designed for flexible, scalable configuration of large SD-WAN deployments. The official documentation explains:

"Template groups can consist of both system and SD-WAN templates, providing a way to apply consistent settings across multiple devices. CLI templates are evaluated and executed in order from top to bottom within the template group, which is crucial for managing dependencies. Furthermore, CLI template groups can contain both regular CLI templates and advanced (Perl-script-based) templates, allowing complex or conditional configuration logic."

This modular design streamlines large deployments by separating system, SD-WAN, and CLI logic into reusable building blocks.

Hosting the hub at the MSSP centralizes installation, security, and ongoing management while each site (spoke) keeps local DIA. This can be done multi-tenant with a shared hub using a dedicated VDOM or with a fully dedicated hub per customer for stricter isolation and control, both meeting the requirement to delegate administration to the MSSP and support high inter-site traffic.

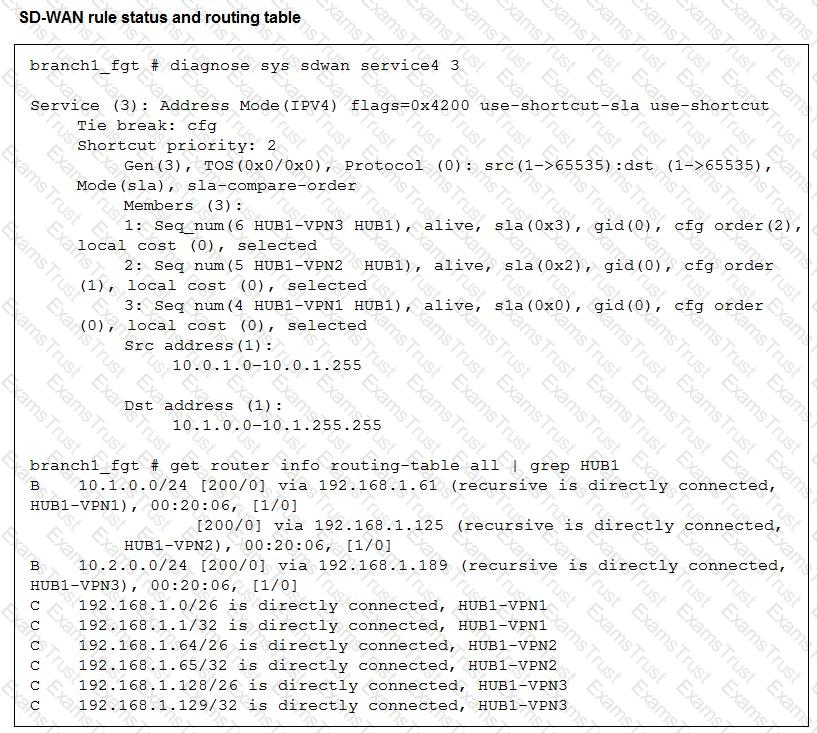

The rule is in SLA mode with two SLAs. From the status, HUB1-VPN2 and HUB1-VPN3 meet the SLA (sla(0x2) and sla(0x3)), while HUB1-VPN1 does not (sla(0x0)). Among members that meet SLA, FortiGate uses the configured order (priority-members 4 5 6) to pick the first eligible one—HUB1-VPN2—so traffic is routed over HUB1-VPN2.

For SD-WAN deployments that span multiple regions—where most traffic is intra-region and there is no requirement for inter-region ADVPN—the best practice is to use IBGP with BGP on loopback interfaces for routing within each region and EBGP between the regions. This approach ensures robust and scalable routing, isolates regional routing domains, and enables policy control at region boundaries. BGP on loopback is preferred for its reliability and flexibility, as it enables peering that is not tied to specific physical interfaces. EBGP between regions allows each region to maintain independent routing policies and summarization, optimizing performance and manageability. By separating IBGP (intra-region) and EBGP (inter-region), you create a modular architecture that scales easily and simplifies fault isolation and troubleshooting.

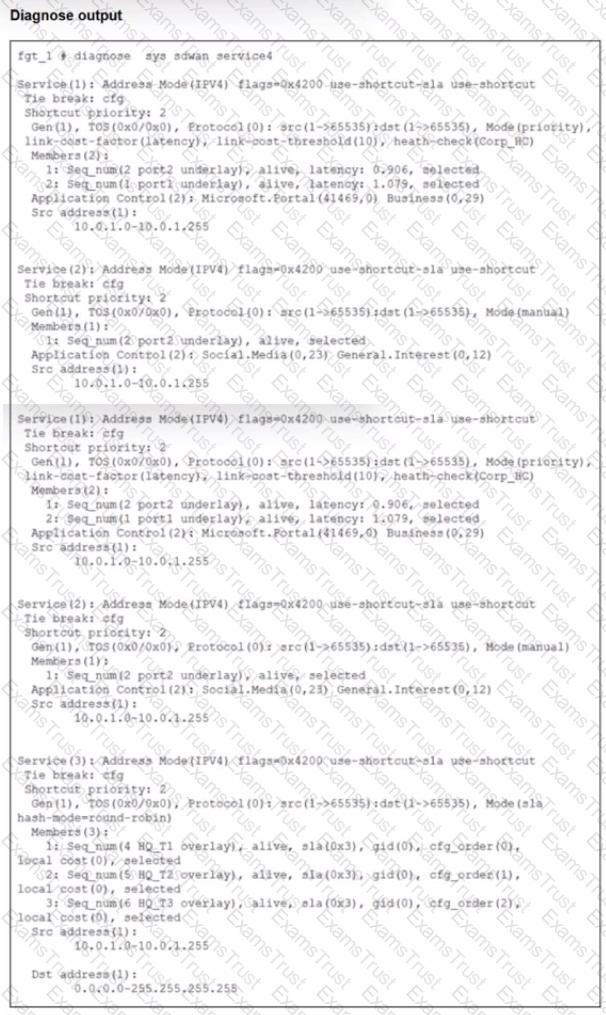

Application-based SD-WAN rules enable intelligent traffic steering. The guide specifies:

"If a flow is identified as belonging to a defined application category (such as social media), FortiGate will match it to the corresponding service rule (rule 2) and route it through the specified interface, such as port2. However, if the application is not recognized during the session setup, the system defaults to load balancing the traffic using the available tunnels according to the policy for unclassified traffic, ensuring continuous connectivity while waiting for application classification."

This guarantees both performance and resilience.

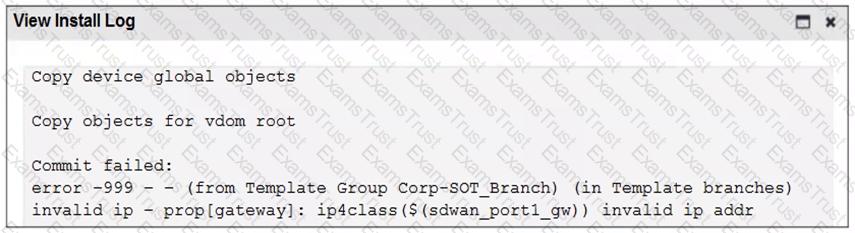

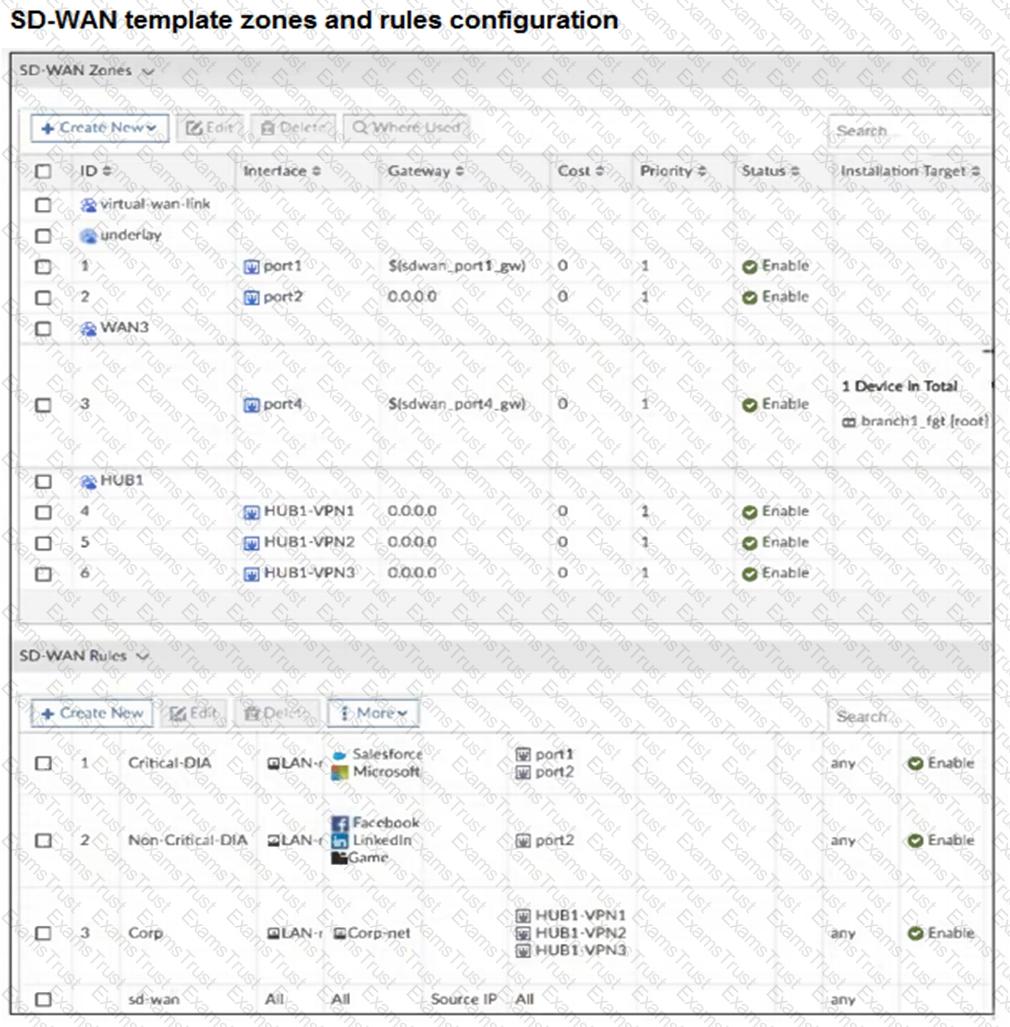

Specify the gateway of the SD-WAN member port1 with an IP address or use the default value → The error log shows invalid ip – prop[gateway]: ip4class(${sdwan_port1_gw}) invalid ip addr, meaning the variable ${sdwan_port1_gw} does not have a valid mapping. Assigning a valid IP address or default value for the gateway resolves this error.

Review the per-device mapping configuration for metadata variables → The issue is tied to how the metadata variable ${sdwan_port1_gw} is mapped for branch1_fgt. If this device does not have the variable properly defined in per-device mapping, the configuration will fail. Correcting the mapping ensures that the install works.

By default, local-out traffic does not use SD-WAN → FortiGate normally sends local-out traffic (e.g., DNS, NTP, FortiGuard updates) directly through its interfaces without applying SD-WAN rules.

You must configure each local-out feature individually to use SD-WAN → To steer local-out traffic via SD-WAN, you must explicitly configure the desired local-out features (e.g., DNS, FortiGuard, CAPWAP) to use SD-WAN rules.

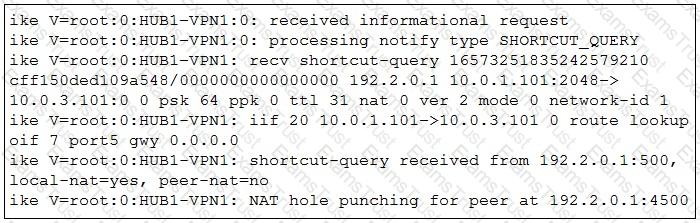

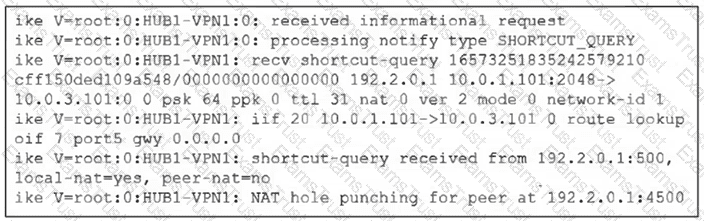

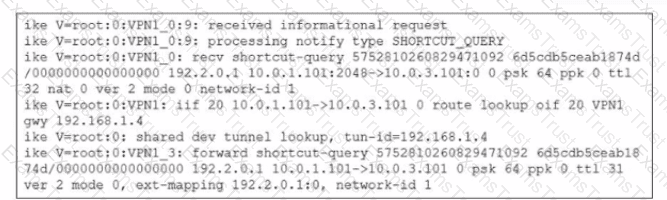

The log messages shown in the exhibit include the following key indicators:

processing notify type SHORTCUT_QUERY

shortcut-query received from 192.2.0.1

local-nat=yes, peer-nat=no

NAT hole punching for peer at 192.2.0.1:4500

In the FCSS SD-WAN 7.6 ADVPN workflow, shortcut queries are always initiated by spokes, not hubs. A spoke sends a shortcut query to its hub when it detects traffic destined for another spoke. The hub’s role is to receive this shortcut query and forward the discovery information toward the destination spoke, enabling the two spokes to build a direct shortcut tunnel.

The device name in the log (HUB1-VPN1) and the presence of NAT hole punching coordination clearly indicate that this device is acting as a hub, not a spoke. Hubs do not form shortcuts themselves; instead, they facilitate shortcut establishment between spokes by relaying discovery and negotiation information.

Option A is incorrect because a spoke does not receive shortcut queries from other spokes directly.

Option B is incorrect because the log does not indicate that the shortcut has already been established; it shows the query and coordination phase, not completion.

Option D is incorrect because hubs do not initiate shortcut queries toward spokes.

Therefore, the correct description is that this device is a hub that has received a shortcut query from a spoke and has forwarded it to another spoke, which corresponds to option C.

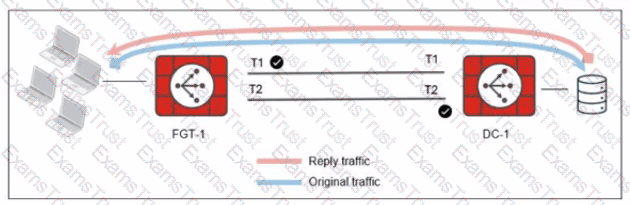

When asymmetric routing is observed (such as reply traffic not following the optimal path), the solution is:

"The auxiliary-session feature, enabled under config system settings, allows FortiGate to consider multiple egress interfaces for reply traffic, not just the original ingress interface. This is crucial for SD-WAN environments where the best path may differ between forward and return directions, especially when performance or policy rules are dynamically evaluated."

Activating this ensures reply traffic is always sent on the member with the best real-time metrics.

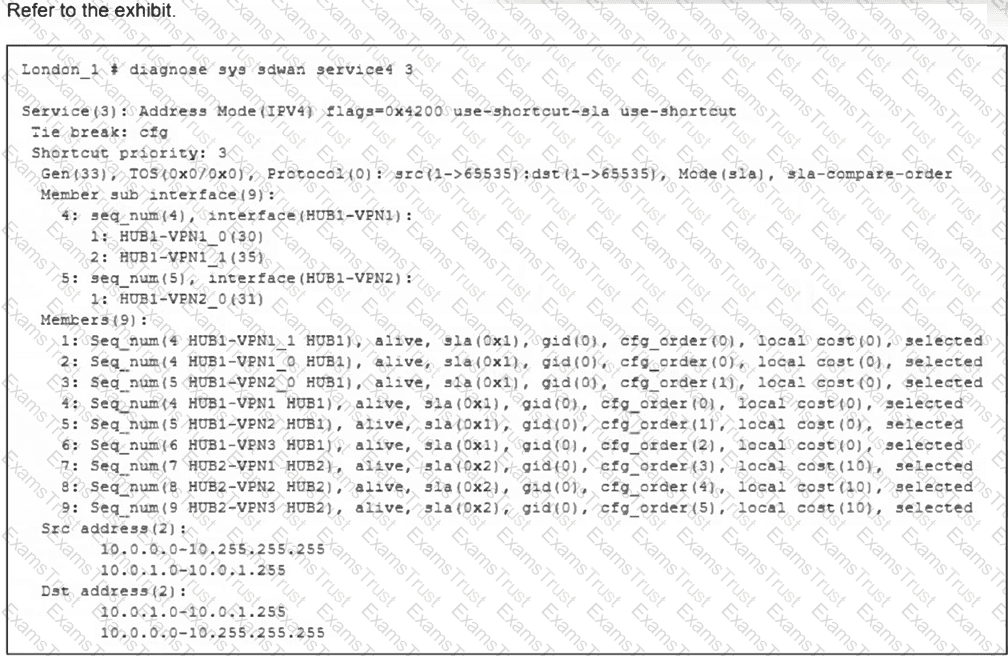

The command shown in the exhibit is:

diagnose sys sdwan service 4 3

This command displays the runtime state of SD-WAN rule ID 3 on the device. The output explicitly shows:

Service(3) which confirms the SD-WAN rule being evaluated is rule number 3

Members(9) which indicates that nine SD-WAN members are associated with this rule

The listed members include multiple IPsec tunnel interfaces such as HUB1-VPN1, HUB1-VPN2, HUB1-VPN3, HUB2-VPN1, HUB2-VPN2, and HUB2-VPN3, which is characteristic of a spoke device connecting to multiple hubs in a hub-and-spoke ADVPN topology, as defined in the FCSS SD-WAN 7.6 architecture.

Option B is incorrect because, although members are listed under different interfaces, the output does not indicate SD-WAN zones. Zones are shown only in configuration output, not in this diagnostic command.

Option C is incorrect because this is not a hub device. The presence of multiple hub tunnels as SD-WAN members indicates a spoke role. Additionally, the output does not confirm the number of established ADVPN shortcuts.

Option D is incorrect because the output clearly references SD-WAN rule 3, not rule 4, and it does not state that exactly three shortcut tunnels are allowed.

Therefore, the correct conclusion is that this is a spoke device and SD-WAN rule 3 is configured with nine members, which matches option A.

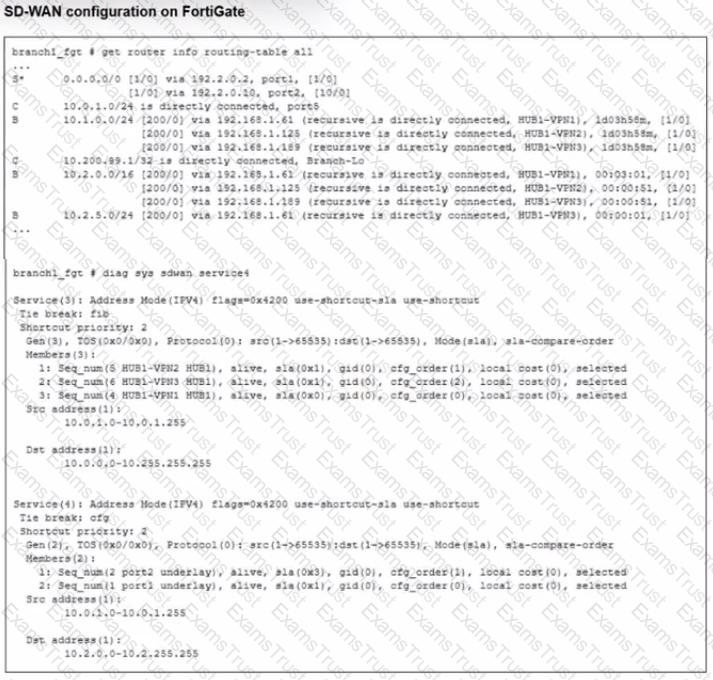

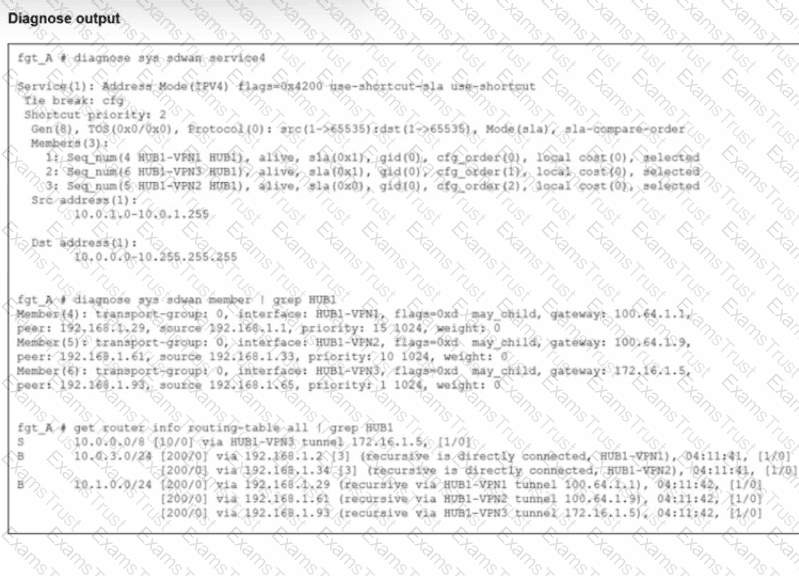

Traffic steering in Fortinet SD-WAN is based on defined rules and the corresponding outgoing interfaces. The exhibit (not shown here) would indicate that the traffic from the LAN subnet 10.0.1.0/24 to the server 10.2.5.254 is matched by SD-WAN rule 3 and sent out via the HUB1-VPN3 interface.

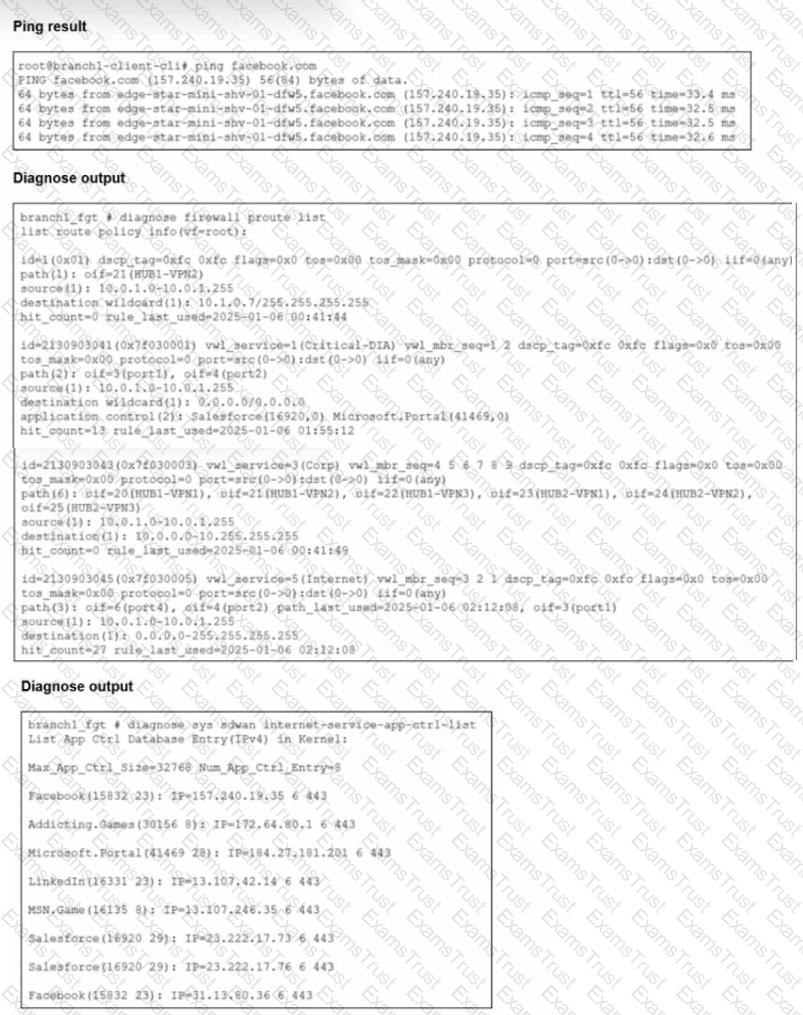

In FortiOS 7.6, SD-WAN rules can steer traffic based on Internet Services, which represent predefined application and service signatures maintained by FortiGuard. Common applications such as Facebook and LinkedIn are included in the Internet Service database.

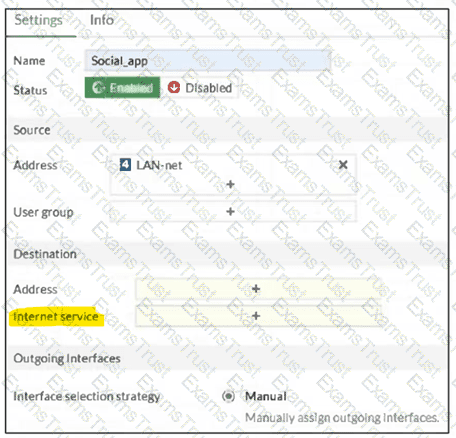

According to the FCSS SD-WAN 7.6 curriculum, when configuring an SD-WAN rule from the GUI on a standalone FortiGate device, applications are selected as destinations using the Internet service field, not by enabling a separate application destination field. The exhibit highlights the Internet service option under the Destination section, which is the correct method to match traffic for specific applications.

Option A is incorrect because there is no GUI option to enable application visibility as destinations for SD-WAN rules. Application matching is already abstracted through Internet Services.

Option C is incorrect because standalone FortiGate devices fully support application-based steering using Internet Services in SD-WAN rules.

Option D is incorrect because no additional license is required to use Internet Services in SD-WAN rules. This functionality is included in FortiOS and relies on the built-in FortiGuard Internet Service database.

Therefore, to steer Facebook and LinkedIn traffic through a specific WAN link, you must select Facebook and LinkedIn in the Internet service field, which corresponds to option B.

The router policy explicitly denies traffic with source 10.0.1.128/25 (which includes 10.0.1.130) and destination 128.66.0.0/24 (which includes 128.66.0.125). Even though SD-WAN service 4 shows members (port1 and port2) alive and available for this traffic, the router policy is evaluated first and blocks it. Therefore, FortiGate drops the traffic flow.

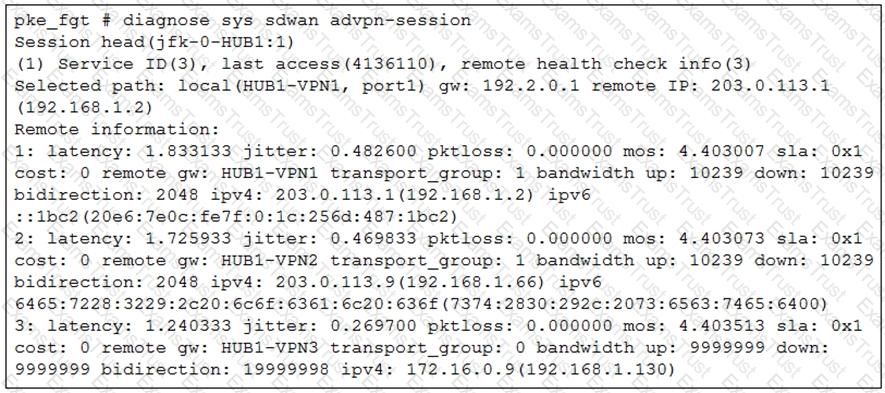

The diagnose output shows multiple ADVPN tunnels (HUB1-VPN1, HUB1-VPN2, HUB1-VPN3) with detailed latency, jitter, and packet loss values being reported for each. In ADVPN, the spoke performs embedded health checks and provides the hub with the performance metrics for each tunnel. Therefore, the device in the exhibit is a spoke, and it is sending health-check measurements for each tunnel to the hub.

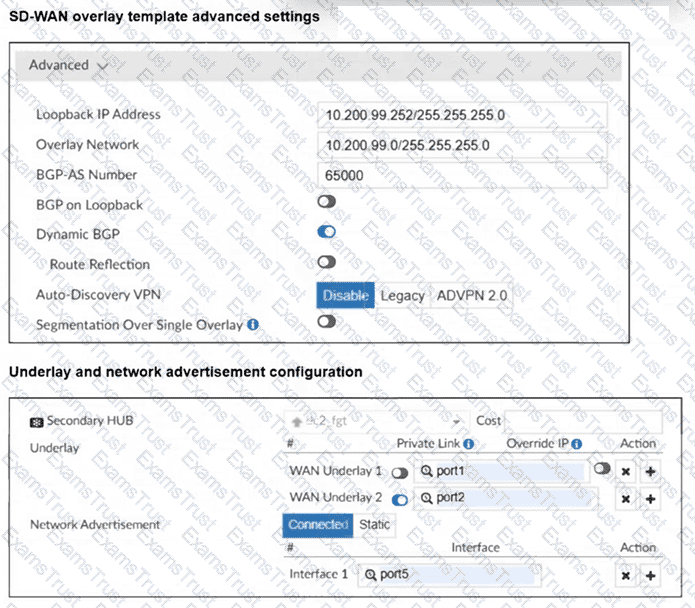

From the Underlay and network advertisement configuration exhibit for the Secondary HUB:

Under Underlay, the template explicitly lists:

WAN Underlay 1 = port1

WAN Underlay 2 = port2

In FortiManager SD-WAN Overlay Orchestrator, underlay interfaces selected for a hub are the transports used to build the overlay IPsec tunnels (one overlay per underlay, per peer as defined by the template). Because both port1 and port2 are configured as underlays, FortiManager will build overlay tunnels over both underlay links. That supports:

Option C (overlay tunnel on port1)

Option B (overlay tunnel on port2)

For the BGP neighbor options:

The Network Advertisement section shows Interface 1 = port5, which indicates a LAN/internal interface whose connected or static networks may be advertised into the overlay routing domain. This does not make port5 a BGP neighbor interface; it is the interface whose routes are being advertised.

The template indicates Dynamic BGP is enabled. In Overlay Orchestrator designs, BGP neighbor relationships are formed across the overlay tunnel interfaces / overlay endpoints, not directly on the raw underlay interfaces (port1/port2) and not on the advertised LAN interface (port5). Therefore, options A and D are not valid conclusions from what is shown.

So, the two correct conclusions are B and C.

Within ADVPN topologies, shortcut requests and responses traverse spokes and hubs. Fortinet documentation states:

"When a spoke receives a shortcut query from another spoke, it may forward the response to its hub for validation or to facilitate dynamic shortcut tunnel setup. This mechanism allows direct spoke-to-spoke communication for optimized routing and performance, reducing latency and offloading the hub after initial control-plane mediation."

This is a core benefit of ADVPN’s dynamic shortcut feature.

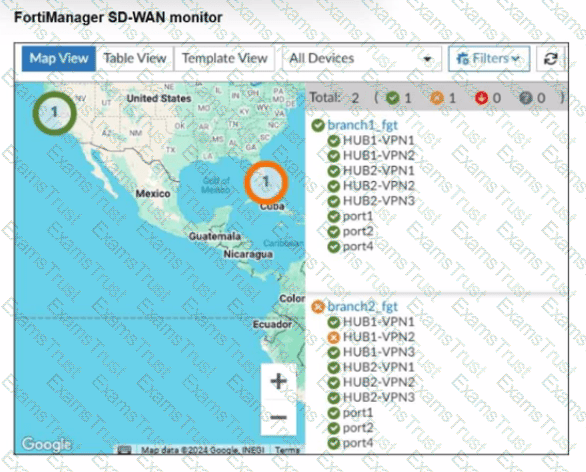

From the SD-WAN monitor in FortiManager:

"The SD-WAN monitor provides a summary view of the branch devices and their members. In the scenario shown, it is clear that branch2_fgt is missing SLA configuration for one member, as evidenced by the lack of performance metrics. The monitor also shows only two branches in the current topology, allowing quick assessment of branch health and configuration completeness."

This kind of visibility is vital for proactive monitoring and rapid troubleshooting in SD-WAN environments.
