Fortinet FCP_FAZ_AN-7.6 Fortinet NSE 5 - FortiAnalyzer 7.6 Analyst Exam Practice Test

The command diagnose sql statussqlreportd is used in FortiAnalyzer to obtain specific information about the SQL reporting process and caching status. Here’s what this command accomplishes and an analysis of each option:

Command Functionality:

sqlreportd is the FortiAnalyzer daemon responsible for managing SQL-based reporting processes.

The diagnose sql status sqlreportd command provides information on active SQL query connections and thehcache(historical cache) status, which helps in monitoring and troubleshooting SQL report generation.

Option Analysis:

Option A - To View a List of Scheduled Reports:

This option is incorrect because the command does not list scheduled reports. Instead, it focuses on SQL reporting processes and cache details.

Option B - To List the Current SQL Processes Running:

While the command may show active SQL connections, its primary focus is not a detailed list of all SQL processes but rather the connections and cache status for reporting.

Option C - To Display the SQL Query Connections and hcache Status:

This is correct. The command specifically provides information on SQL query connections related to the reporting process (sqlreportd) and displays thehcachestatus.

Option D - To Identify the Database Log Insertion Status:

This is incorrect. The command does not provide details on log insertion status. Log insertion status is typically monitored through different diagnostic commands focused on database processes and log handling.

Conclusion:

Correct Answer:C. To display the SQL query connections and hcache status

This command is used to monitor SQL reporting activities and cache status, aiding in the analysis of report generation performance and connection health.

Comprehensive and Detailed Explanation From Exact Extract of knowledge of FortiAnalyzer 7.6 Study guide documents:

The exhibit shows the eventEvent Status = MitigatedandEvent Type = Web Filter, with the event message indicating the web request wasblocked.

The study guide definesMitigatedevents as follows:“Mitigated: The security risk is mitigated by being blocked or dropped.”This means a mitigated status corresponds to enforcement that prevented the risk (block/drop), not a condition where the source is isolated.

It also distinguishesContainedevents from mitigated ones:“Contained: The risk source is isolated.”Since the exhibit clearly showsMitigated(not Contained), optionBis incorrect.

Additionally, the study guide notes:“Generally, you can acknowledge mitigated events because the related traffic was blocked by the firewall.”This aligns directly with the exhibit’s “blocked” wording and supports that the correct interpretation is that the security risk was blocked.

Finally, the event type displayed isWeb Filter, not application control, so optionDis incorrect.

Therefore, the correct statement isC. The security risk was blocked.

Comprehensive and Detailed Explanation From Exact Extract of knowledge of FortiAnalyzer 7.6 Study guide documents:

The FortiAnalyzer study guide explains that IOC identification is performed by comparing relevant log fields against the FortiGuard threat database. Specifically, it states:“Depending on the log type, FortiAnalyzer identifies possible compromised hosts by checking the threat database against the log's IP address, domain, and URL.”

From this extract, two of the explicit parameters FortiAnalyzer uses for IOC detection areIP addressandURL(both listed verbatim). Policy ID and application category are not part of the IOC matching parameters described for threat-database checks in this context.

This is further consistent with the study guide’s definition of indicator types, which states:“There are three types of indicators: IP addresses, URLs, and domains.”

When an incident in FortiAnalyzer is identified as a false positive and its status is updated to "Closed: False Positive," certain records and logs are updated to reflect this change.

Option A - The Audit History Log Will Be Updated:

FortiAnalyzer maintains an audit history log that records changes to incidents, including updates to their status. When an incident status is marked as "Closed: False Positive," this action is logged in the audit history to ensure traceability of changes. This log provides accountability and a record of how incidents have been handled over time.

Conclusion:Correct.

Option B - The Corresponding Event Will Be Marked as Mitigated:

Changing an incident to "Closed: False Positive" does not affect the status of the original event itself. Marking an incident as a false positive signifies that it does not represent a real threat, but it does not imply that the event has been mitigated.

Conclusion:Incorrect.

Option C - The Incident Will Be Deleted:

Marking an incident as "Closed: False Positive" does not delete the incident from FortiAnalyzer. Instead, it updates the status to reflect that it is not a real threat, allowing for historical analysis and preventing similar false positives in the future. Deletion would typically only occur manually or by a different administrative action.

Conclusion:Incorrect.

Option D - The Incident Number Will Be Changed:

The incident number is a unique identifier and does not change when thestatus of the incident is updated. This identifier remains constant throughout the incident's lifecycle for tracking and reference purposes.

Conclusion:Incorrect.

Conclusion:

Correct Answer:A. The audit history log will be updated.

This is the most accurate answer, as the update to "Closed: False Positive" is recorded in FortiAnalyzer’s audit history log for accountability and tracking purposes.

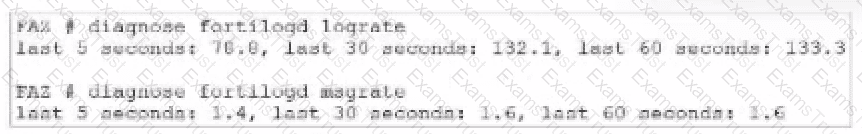

In this output, we see two diagnostic commands executed on a FortiAnalyzer device:

diagnose fortilogd lograte: This command shows the rate at which logs are being processed by the FortiAnalyzer in terms of log entries per second.

diagnose fortilogd msgrate: This command displays the message rate, or the rate at which individual messages are being processed.

The values provided in the exhibit output show:

Log rate (lograte): Consistently high, showing values such as 70.0, 132.1, and 133.3 logs per second over different time intervals.

Message rate (msgrate): Lower values, around 1.4 to 1.6 messages per second.

Explanation

Interpretation of log rate vs. message rate: In FortiAnalyzer, the log rate typically refers to the rate of logs being stored or indexed, while the message rate refers to individual messages within these logs. Given that a single log entry can contain multiple messages, it's common to see a lower message rate relative to the log rate.

Understanding normal operation: In this case, the message rate being lower than the log rate is expected and typical behavior. This discrepancy can arise because each log entry may bundle multiple related messages, reducing the message rate relative to the log rate.

Conclusion

Correct Answer:A. The message rate being lower than the log rate is normal.

This aligns with thenormal operational behavior of FortiAnalyzer in processing logs and messages.

There is no indication that both logs and messages are nearly finished indexing, as that would typically show diminishing rates toward zero, which is not the case here. Additionally, there’s no information in this output about specific ADOMs or a comparison between traffic logs and event logs. Thus, options B, C, and D are incorrect.

Option A - Purging Log Entries:

A SELECT query in SQL is used to retrieve data from a database and does not have the capability to delete or purge logentries. Purging logs typically requires a DELETE or TRUNCATE command.

Conclusion:Incorrect.

Option B - WHERE Clause Requirement:

In SQL, a SELECT query does not require a WHERE clause. The WHERE clause is optional and is used only when filtering results. A SELECT query can be executed without it, meaning this statement is false.

Conclusion:Incorrect.

Option C - Displaying Database Schema:

A SELECT query retrieves data from specified tables, but it is not used to display the structure or schema of the database. Commands like DESCRIBE, SHOW TABLES, or SHOW COLUMNS are typically used to view schema information.

Conclusion:Incorrect.

Option D - Usage in Macros:

FortiAnalyzer and similar systems often use macros for automated functions or specific query-based tasks. SELECT queries are typically not included in macros because macros focus on procedural or repetitive actions, rather than simple data retrieval.

Conclusion:Correct.

Conclusion:

Correct Answer:D. They are not used in macros.

This aligns with typical SQL usage and the specific functionalities of FortiAnalyzer.

Comprehensive and Detailed Explanation From Exact Extract of knowledge of FortiAnalyzer 7.6 Study guide documents:

FortiAnalyzer’s ingestion pipeline does not “drop” logs simply because a parser is unavailable. The study guide states that when devices send logs,“Logs received are decompressed and saved in a log file on the FortiAnalyzer disk”(with a .log extension). This establishes that the raw log is still accepted and stored on disk as part of the normal workflow.

Normalization, however, depends on having a suitable parser. The study guide explains that“FortiAnalyzer uses predefined parsers to extract key fields from ingested logs and maps them to a consistent, standardized set of field names.”It further emphasizes that“Log parsers … are central to log normalization”because they convert unstructured/native logs into a standardized schema.

Therefore, ifno matching parserexists for a given device log, FortiAnalyzer can stillstore the incoming log(it is received, decompressed, and written to disk), but it cannot perform the “extract key fields” and “map to standardized field names” steps required for normalization. In practical terms, the log remains in its native/unstructured form (not normalized), which aligns exactly with optionC.

In FortiAnalyzer,archive logsrefer to logs that have been compressed and stored to save space. This process involves compressing the raw log files into the .gz format, which is a common compression format used in Fortinet systems for archived data. Archiving is essential in FortiAnalyzer to optimize storage and manage long-term retention of logs without impacting performance.

Let’s examine each option for clarity:

Option A: Logs that are indexed and stored in the SQL database

This is incorrect. While some logs are indexed andstored in an SQL database for quick access and searchability, these are not classified asarchive logs. Archived logs are typically moved out of the database and compressed.

Option B: Logs a FortiAnalyzer administrator can access in FortiView

This is incorrect becauseFortiViewprimarily accesses logs that are active and indexed, not archived logs. Archived logs are stored for long-term retention but are not readily available for immediate analysis in FortiView.

Option C: Logs compressed and saved in files with the .gz extension

This is correct. Archive logs on FortiAnalyzer are stored in compressed .gz files to reduce space usage. This archived format is used for logs that are no longer immediately needed in the SQL database but are retained for historical or compliance purposes.

Option D: Logs previously collected from devices that are offline

This is incorrect. Although archived logs may include data from devices that are no longer online, this is not a defining characteristic of archive logs.

Comprehensive and Detailed Explanation From Exact Extract of knowledge of FortiAnalyzer 7.6 Study guide documents:

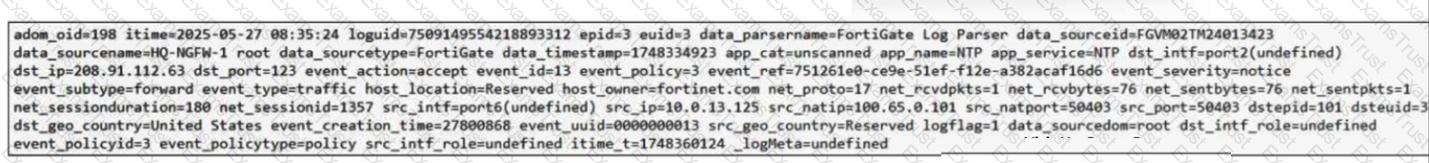

The exhibit shows the log as a single-line key/value entry (not a columnar/table display), which aligns with FortiAnalyzer’sraw log formatview option. The study guide states:“You can toggle between viewing formatted and raw logs.”This directly supports observationD.

At the same time, what you are viewing in FortiAnalyzer Log View isnormalizeddata (FortiAnalyzer parses and maps device logs into standardized fields for consistent searching and analysis). The study guide explicitly states:“The log view allows you to view all log types received by FortiAnalyzer in normalized log format.”It also explains that FortiAnalyzer “uses predefined parsers to extract key fields from ingested logs and maps them to a consistent, standardized set of field names,” then stores them as normalized logs in the SIEM database. This supports observationA.

Finally, the study guide clarifies that even when you switch to raw log format in FortiAnalyzer, you are still observing the normalized-field representation produced by FortiAnalyzer’s parser/normalization process (rather than the untouched original device message). It notes that a FortiGate event log “has been normalized by FortiAnalyzer,” and when you switch “to raw log format,” you can observe the effect of normalization on common fields. This is whyCis not the best description for the exhibit.

The exhibit shows a graph that tracks two metrics over time:Receive RateandInsert Rate. These two rates are crucial for understanding the log processing behavior in FortiAnalyzer.

Understanding Receive Rate and Insert Rate:

Receive Rate: This is the rate at which FortiAnalyzer is receiving logs from connected devices.

Insert Rate: This is the rate at which FortiAnalyzer is indexing (inserting) logs into its database for storage and analysis.

Data Point at 21:20:

At 21:20, theInsert Rateline is above theReceive Rateline, indicating that FortiAnalyzer is inserting logs into its database at a faster rate than it is receiving them. This situation suggests that FortiAnalyzer is able to keep up with the incoming logs and is possibly processing a backlog or temporarily received logs faster than new logs are coming in.

Option Analysis:

Option A - FortiAnalyzer is Indexing Logs Faster Than Logs are Being Received: This accurately describes the scenario at 21:20, where the Insert Rate exceeds the Receive Rate. This indicates that FortiAnalyzer is handling logs efficiently at that moment, with no backlog in processing.

Option B - The fortilogd Daemon is Ahead in Indexing by One Log: The data does not provide specific information about the fortilogd daemon’s log count, only the rates. This option is incorrect.

Option C - SQL Database Requires a Rebuild: High receive lag would imply a backlog in receiving and indexing logs, typically visible if the Receive Rate were significantly above the Insert Rate, which is not the case here.

Option D - FortiAnalyzer is Temporarily Buffering Logs to Index Older Logs First: There is no indication of buffering in this scenario. Buffering would usually occur if the Receive Rate were higher than the Insert Rate, indicating that FortiAnalyzer is storing logs temporarily due to indexing lag.

Conclusion:

Correct Answer:A. FortiAnalyzer is indexing logs faster than logs are being received.

The graph at 21:20 shows a higher Insert Rate than Receive Rate, indicating efficient log processing by FortiAnalyzer.

Comprehensive and Detailed Explanation From Exact Extract of knowledge of FortiAnalyzer 7.6 Study guide documents:

B is true (members operate in analyzer mode, not collector mode):The study guide defines Fabric members as FortiAnalyzer devices that “retain access to the features described in the FortiAnalyzer Administration Guide” and that “each member can create or raise incidents and events.” In contrast, it states that a FortiAnalyzer operating incollector mode“does not provide capabilities for event management or reporting,” and also notes that “in collector mode, the GUI doesn’t include FortiView, Reports, or Incidents & Events.” Since Fabric members must be able to generate/manage incidents and events, they must be operating with analyzer capabilities rather than collector-only functionality.

C is true (members do not forward their logs to the supervisor):The supervisor provides centralized visibility, but the study guide describes the supervisor’s log access asviewing logs collected on members, not receiving/storing forwarded log files. It states: “In the FortiAnalyzer Fabric supervisor, Log View displays logs collected on all FortiAnalyzer Fabric members,” and clarifies “the logs contain the same information as displayed in the host FortiAnalyzer device they were collected on.” This indicates the logs remain on the member (host) and are made visible to the supervisor for centralized monitoring rather than being forwarded and stored on the supervisor.

For completeness, the study guide also explicitly states“HA is not available on the supervisor”(so A is false) andmembers do not need the same time zone as the supervisor(so D is false).

When a generated report does not contain the expected information even though the logs are confirmed to be present, it typically indicates anissue with the report's configuration. There are a few common reasons this might happen:

Option A - Check the Time Frame Covered by the Report:

Reports are generated based on a specific time frame. If the report’s time frame does not cover the period when the relevant logs were collected, those logs won’t appear in the report output. Verifying and adjusting the time frame is essential to ensure the report includes all relevant data.

Conclusion:Correct.

Option B - Disable Auto-Cache:

Auto-cache is designed to improve report generation speed by using cached data. Disabling auto-cache would typically only be relevant if the report is pulling outdated data from cache, but it doesn’t directly affect whether specific logs are included in a report.

Conclusion:Incorrect.

Option C - Increase the Report Utilization Quota:

The report utilization quota is related to the resource limits for generating reports. It does not directly influence whether certain data appears in a report. Increasing this quota would help only if there are resource issues preventing the report from completing, not if specific logs are missing from the report.

Conclusion:Incorrect.

Option D - Test the Dataset:

Datasets determine which logs and data fields are pulled into the report. If a dataset is configured incorrectly or does not include the required log fields, it could lead to missing information. Testing the dataset allows you to verify that it’s correctly configured and pulling the expected data.

Conclusion:Correct.

Conclusion:

Correct Answer:A. Check the time frame covered by the reportandD. Test the dataset.

These steps directly address the issues that could lead to missing information in a report when logs are available but not displayed.
