CompTIA 220-1201 CompTIA A+ Core 1 Exam (2025) Exam Practice Test

The digitizer is the component responsible for detecting touch input on a screen. If touch is not registering and there's no physical damage, the digitizer may be faulty.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.1 – Mobile device hardware:

“If a touchscreen device does not respond to input and the screen is intact, the digitizer (touch sensor) may be defective.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Mobile Hardware

CompTIA Exam Objectives 220-1101, Domain 3.1

============

The symptoms slow response and failed app launches indicate that thedevice's memory or processing resources are overutilized. Closing unnecessary apps can free up RAM and CPU resources, improving performance.

Option A:Overheating may cause sluggishness, but that’s not indicated here.

Option C:Factory reset is a last resort, not the next logical step.

Option D:Battery health would affect uptime, not system speed.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.6: Given a scenario, configure basic mobile device network connectivity and application support.

DHCP normally assigns IP addresses dynamically using timed leases, meaning the address may change after expiration. However, many devices—such as servers, printers, or specialized workstations—require permanent, predictable IP addresses. CompTIA A+ identifies a DHCP reservation as the correct method for assigning a consistent IP while still using DHCP.

A reservation binds a device’s MAC address to a specific IP address in the DHCP server. Each time the device requests an address, the DHCP server recognizes the MAC address and issues the same IP. This provides reliability while still allowing centralized management of network addressing.

A lease is temporary and not permanent. An exclusion simply removes certain IP addresses from the assignable pool—it does not assign any device a fixed address. A scope option configures additional network parameters such as DNS, gateway, or WINS settings but does not assign static IPs.

Therefore, a reservation is the correct method to permanently assign an IP address using DHCP without requiring static configuration on the device itself.

Paper jams and smudging in high-volume printers are often caused bydirty or worn rollers. Rollers are responsible for feeding the paper through the printer. Over time, they accumulate dust, toner residue, or wear out, resulting in misfeeds or jams. Cleaning or replacing them typically resolves this issue.

Option A (Factory reset):A full reset does not directly address mechanical issues like dirty rollers or smudging. It’s a last resort and more relevant to configuration or software-related issues.

Option C (Change toner cartridges):While toner quality can affect print quality, it won’t usually cause jams or widespread smudging unless the cartridge is leaking which is less likely across multiple users.

Option D (Replace the fuser):A damaged fuser could cause smudging, but this is typically after extensive use and is not the first thing to check. Fuser issues also usually present more persistent, uniform smudges.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.7: Given a scenario, troubleshoot common printer problems.

Channel configuration(e.g.,dual-channel,quad-channel) determines how memory modules communicate with the memory controller. Usingmatched pairs in dual- or quad-channel setupscan significantlyincrease memory bandwidth, improving performance especially for gaming and video-intensive tasks.

Option A (Error correction):ECC RAM is used in servers for reliability, not performance or gaming.

Option B (RAM voltage):Affects compatibility and overclocking but not bandwidth.

Option D (Physical size):Refers to module form factor (e.g., DIMM, SO-DIMM) and does not impact bandwidth.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.2: Given a scenario, install RAM types.

Client virtualization involves installing an application on a server and enabling multiple users to run the application simultaneously via virtualized sessions. This eliminates the need for individual installations on local machines.

Why Not B (Software as a Service): SaaS delivers software over the internet and does not require local installations but is managed by a third party, not the organization itself.

Why Not C (Sandboxing): Sandboxing is for isolating applications for security testing, not for concurrent user access.

Why Not D (Embedded software): Embedded software is installed on hardware devices, not shared across multiple users.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 4.2, virtualization concepts​.

If a desktopfails to power on entirely, the most probable cause is afaulty Power Supply Unit (PSU). If there are no lights, fans, or POST beeps, the PSU may have failed, cutting off all power to the motherboard and components.

Option B (GPU):Could prevent video output, but the system would still power on and beep.

Option C (RAM):Missing or faulty RAM would cause POST errors but not prevent startup entirely.

Option D (CPU):A bad CPU may cause POST failure, but the system would usually at least power on.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to motherboards, RAM, CPU, and power.

===========

Comprehensive and Detailed Explanation

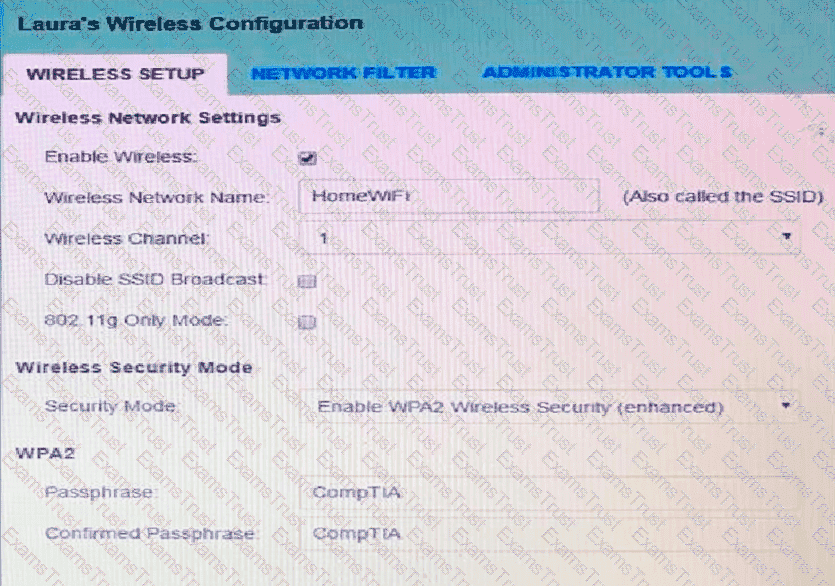

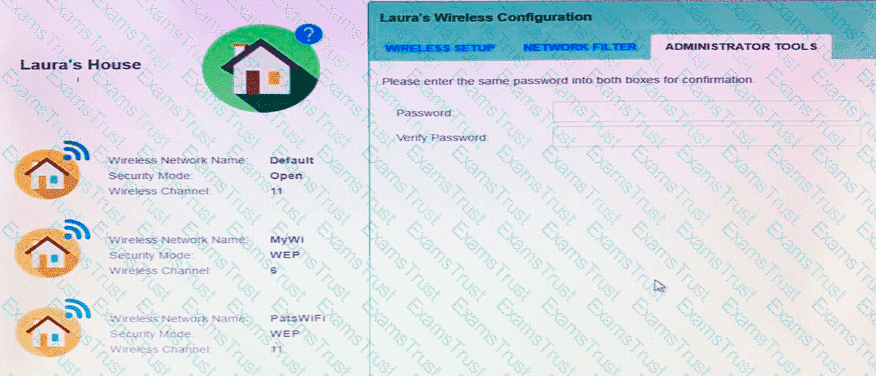

The wireless environment is crowded, and the office is using:

WEP encryption → obsolete, insecure, and supported only by outdated hardware

Default channel → likely causes interference in a busy area

CompTIA A+ emphasizes:

WEP should be replaced with WPA2 or WPA3

Older APs that only support WEP cannot simply be updated

Newer APs also allow dual-band / multiple channels to avoid interference

Therefore, the best solution is:

✔ Replace the access point with a modern WPA2/WPA3-capable AP that supports improved channel selection.

Why the other options are incorrect

B. Disabling SSID broadcast – Does nothing for performance or security.

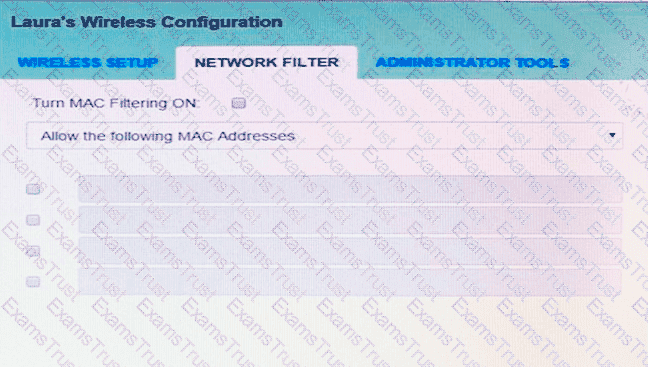

C. MAC filtering – Ineffective for performance and easily bypassed.

D. Updating firmware – Cannot upgrade WEP hardware to WPA2/3 if hardware limitations exist.

Final Answer: A

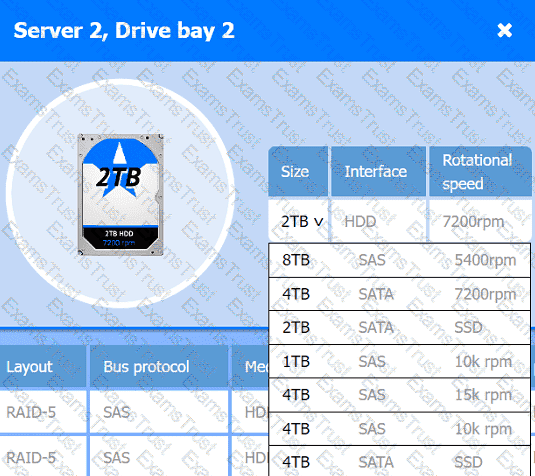

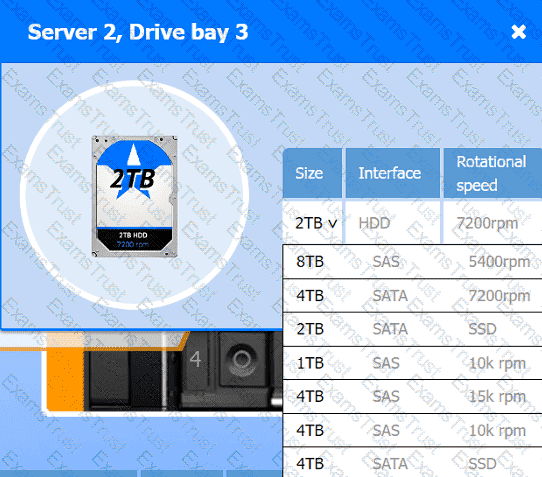

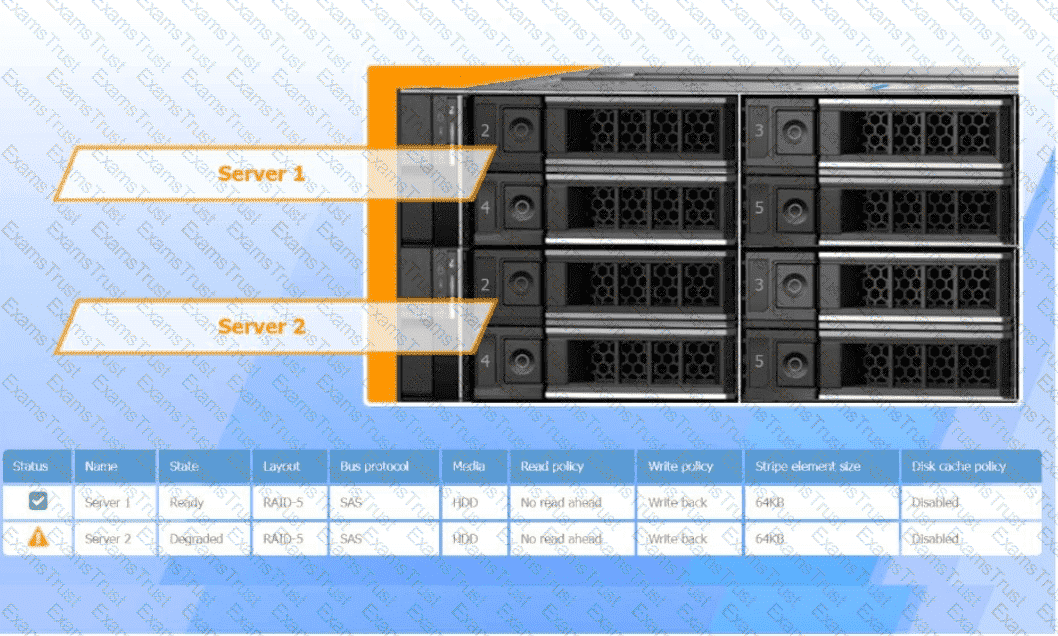

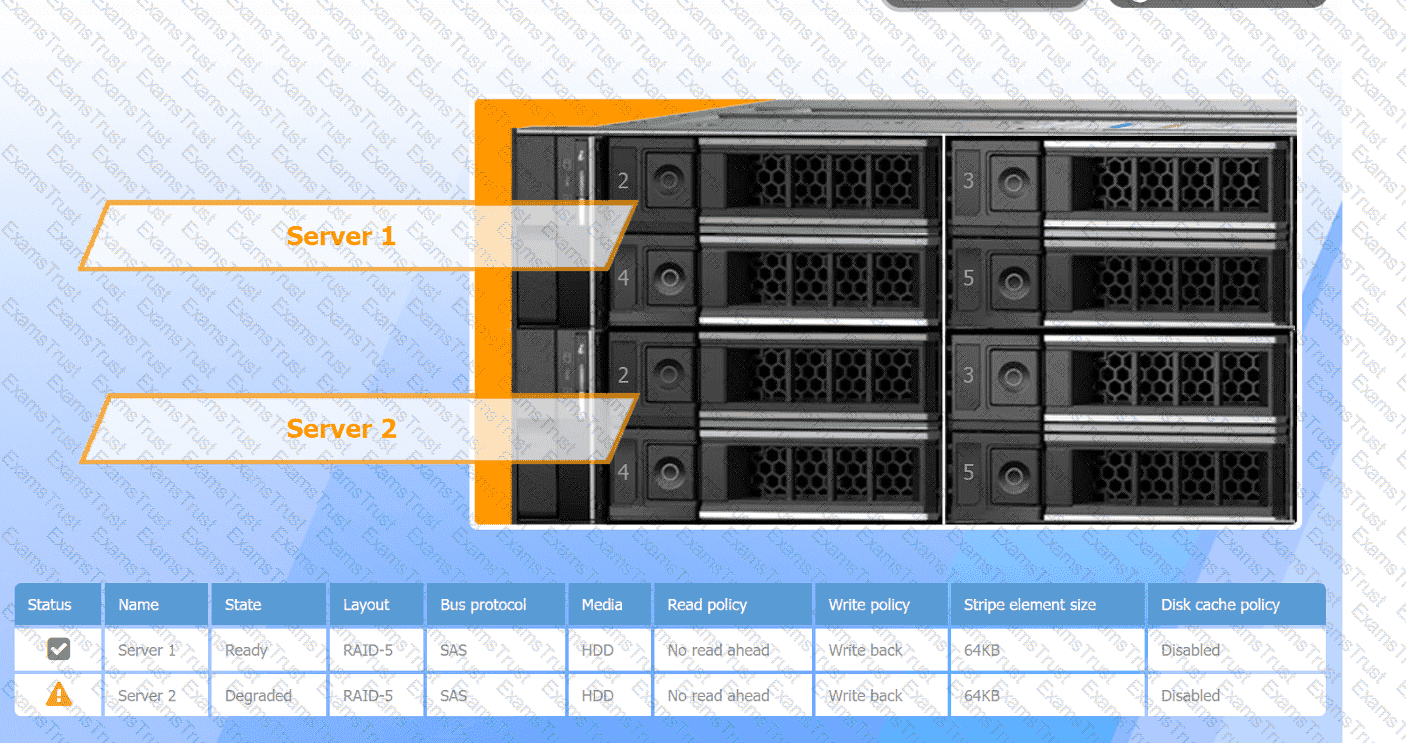

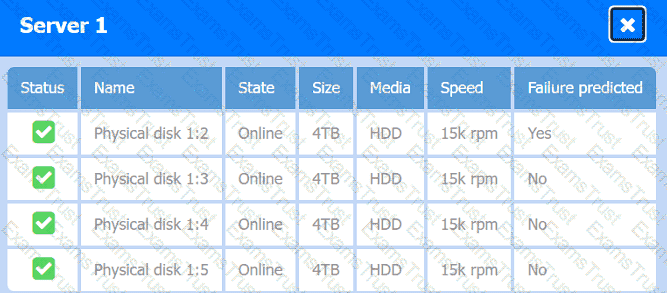

A blinking orange light typically indicates a failed hard drive in the RAID array. In RAID 1 (mirroring), you can replace the failed drive and rebuild the array without data loss.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.4 – RAID configuration and troubleshooting:

"In the event of a hard drive failure in RAID 1, replace the failed disk and allow the array to rebuild using the remaining mirrored disk."

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: RAID and Storage

CompTIA Exam Objectives 220-1101, Domain 3.4

============

A Storage Area Network (SAN) is primarily used for data archiving and large-scale storage. SANs provide high-speed, block-level storage for enterprise environments.

Why Not A (PAN): Personal Area Networks are for connecting personal devices like phones and smartwatches.

Why Not B (MAN): Metropolitan Area Networks are for city-wide data communication, not storage.

Why Not D (LAN): Local Area Networks are for general connectivity, not dedicated storage.

Why Not WAN: Wide Area Networks are for connecting geographically dispersed networks, not storage.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 2.7, network types and purposes​.

Inkjet printers are the best choice for a small company seeking full-color printing with a minimal initial cost. While they have higher operating costs (due to ink), they are affordable and capable of high-quality color output.

Why Not A (Thermal printer): Thermal printers are not designed for color printing and are typically used for labels or receipts.

Why Not C (Dot matrix printer): Dot matrix printers are outdated, noisy, and do not support full-color printing.

Why Not D (Laser printer): Laser printers have lower running costs but a higher initial purchase price, especially for color models.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 4.6, printer types​.

A hybrid cloud combines private infrastructure (on-premises, self-operated data centers) with public cloud services, providing flexibility and scalability.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.7 – Cloud concepts:

“A hybrid cloud model integrates private and public cloud infrastructure to allow applications and data to be shared between them.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Cloud Computing

CompTIA Exam Objectives 220-1101, Domain 3.7

============

Infrastructure as a Service (IaaS) provides the foundational computing components: virtualized hardware, storage, networking, and hypervisor resources. CompTIA A+ explains that customers using IaaS are responsible for installing and maintaining:

The operating system

Applications

Patches, updates, and configurations

This model gives organizations maximum flexibility because they can build custom server environments without purchasing physical hardware.

In contrast:

SaaS (A) provides fully managed applications—users do not manage OS or software.

PaaS (B) provides a development platform and tools but does not allow OS management.

XaaS (D) is a broad term meaning “anything as a service,” not a specific model.

Thus, IaaS is the only model where OS-level control remains with the customer.

A sandbox is an isolated virtual environment, often used for testing code or software safely without affecting the host system.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.7 – Virtualization:

“A sandbox provides an isolated environment, often implemented as a virtual machine, to safely test applications or code.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Virtualization

CompTIA Exam Objectives 220-1101, Domain 3.7

============

PoE (Power over Ethernet) allows both data and electrical power to be delivered over the same Ethernet cable. A PoE injector adds power to Ethernet cables for devices that need it.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.2 – Networking hardware:

“Power over Ethernet (PoE) technology and PoE injectors enable both power and data transmission to compatible network devices like access points and IP cameras.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Network Hardware

CompTIA Exam Objectives 220-1101, Domain 2.2

============

If print quality remains poor after replacing the ink cartridge, the next step is to clean the printheads. Printheads can become clogged with dried ink, especially in inkjet printers, causing streaks or faded output.

From the CompTIA A+ 220-1101 Official Study Guide, Objective 4.3 – Troubleshoot printing problems:

“Poor print quality after replacing cartridges is commonly caused by clogged or dirty printheads. Use the printer's cleaning cycle or manually clean the printheads as needed.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 4: Printer Troubleshooting

CompTIA Exam Objectives 220-1101, Domain 4.3

============

Thermal printerscreate images using aheated print headon specially coated thermal paper. Vertical white lines indicate thatpart of the heating element is dirty or blocked, preventing heat transfer to the paper. Cleaning the print head (heating element) will restore full functionality.

Option A:Thermal printers donot use ink or toner, so this is not applicable.

Option B:Wrong paper could cause blank output, but consistent vertical lines point to the print head.

Option C:Maintenance kits are typically for laser printers, not thermal printers.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.7: Given a scenario, troubleshoot common printer problems.

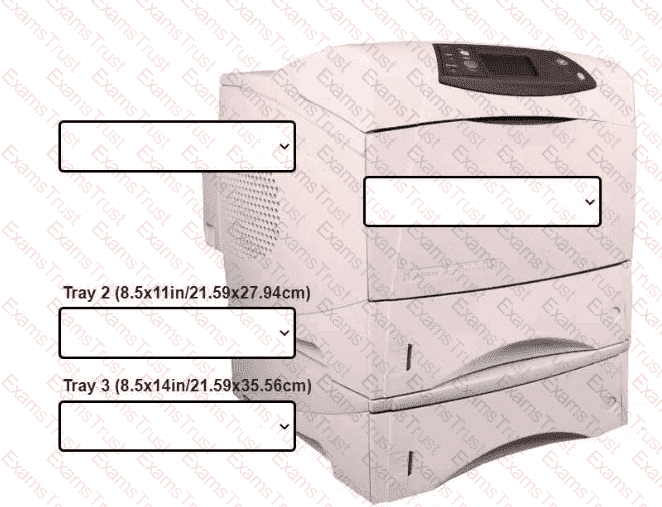

If a printer is set to use a special tray (for cards/invitations) but a different type of print job is attempted (like a letter), a paper tray setting mismatch can cause errors. Changing the tray setting to match the print media resolves the issue.

From CompTIA A+ 220-1101 Official Study Guide, Objective 4.3 – Troubleshooting printers:

“If print jobs fail when media type changes, verify and adjust the paper tray settings to match the required output.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 4: Printer Troubleshooting

CompTIA Exam Objectives 220-1101, Domain 4.3

============

CompTIA A+ teaches that vertical lines on scanned or copied documents but not printed documents indicate a dirty or smudged scanner glass or ADF glass strip. Dust, ink smears, or debris create a line because the scanning sensor repeatedly passes over the same contaminated area.

If printing works normally, internal printer components such as the transfer roller or pickup rollers are not at fault. Maintenance kits apply to internal wear components like rollers, belts, or fusers not scanning artifacts.

Cleaning the scanner glass or ADF strip directly addresses this common problem. The A+ exam frequently includes troubleshooting questions about print vs. scan artifacts, and this scenario is a classic example.

Therefore, the correct solution is to clean the glass bed (or ADF strip).

Comprehensive and Detailed Step-by-Step Explanation:

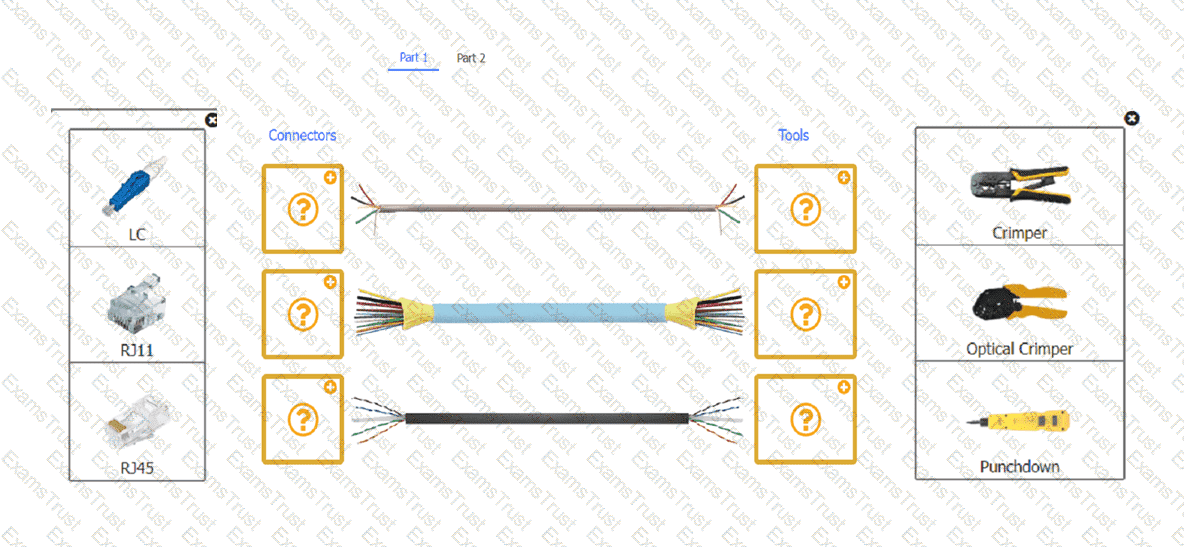

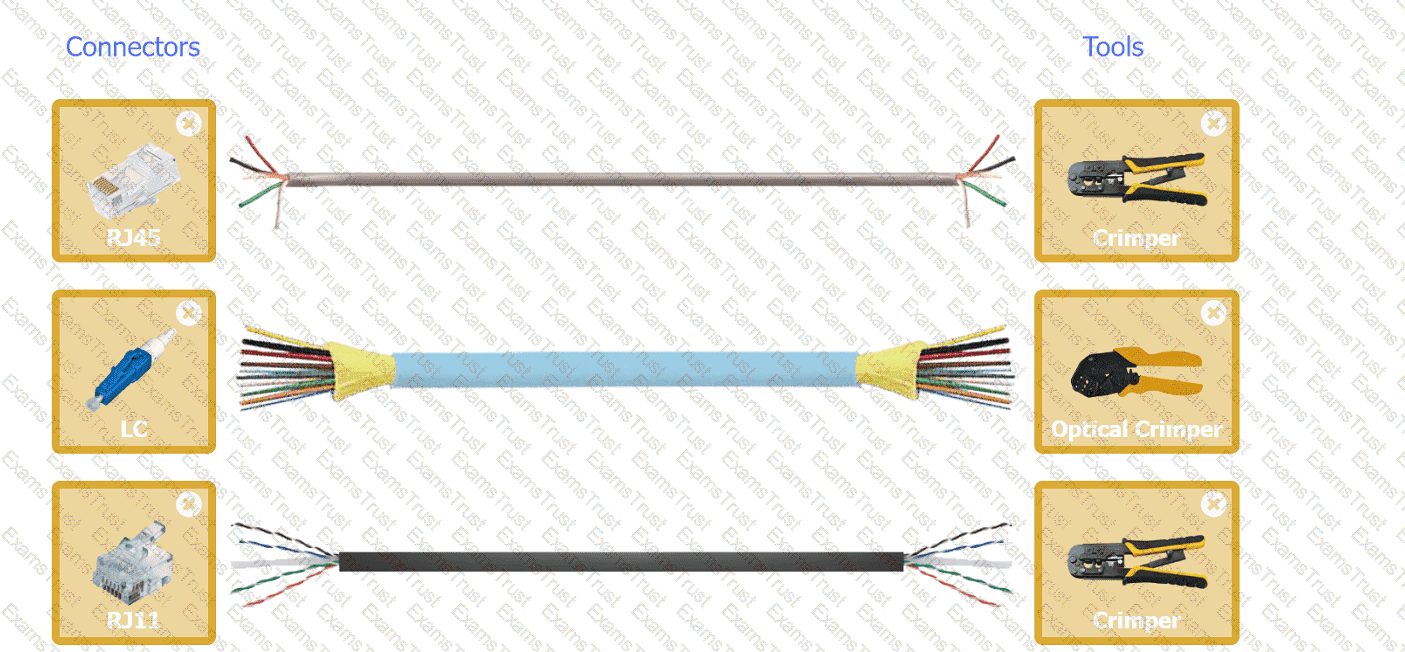

LC Connector (Lucent Connector):

LC is a type of fiber optic connector commonly used in optical networking cables. It is small, compact, and widely used for high-speed data transfer over fiber optic networks.

LC connectors are specifically designed for fiber optic cables, making them the correct answer.

Incorrect Options:

A. RJ45: RJ45 connectors are used for Ethernet cables (twisted-pair copper cabling) and are not compatible with optical networking cables.

C. USB-C: USB-C is a connector type used for general-purpose data transfer, charging, and video output, not for optical networking.

D. Lightning: Lightning connectors are proprietary to Apple devices and are not used in optical networking.

Key Takeaway:

The LC connector is specifically designed for fiber optic cables, making it the correct answer for optical networking.

Comprehensive and Detailed Explanation

CompTIA A+ describes satellite internet as:

A wireless broadband solution used where wired infrastructure is unavailable.

Most common in rural and remote areas.

Provides high-speed access where DSL, cable, or fiber cannot be deployed.

Thus, satellite internet is the primary option for rural high-speed access.

Why the other answers are incorrect

A. Fiber – Not available in rural regions due to high installation costs.

C. DSL – Requires phone lines and is distance-limited; rarely available in remote areas.

D. Cable – Requires existing cable TV infrastructure; usually not available rurally.

Final Answer: B

RAID 1, also known as disk mirroring, duplicates data identically to two drives, ensuring full redundancy if one drive fails. Because the workstation only has two drives, RAID 1 is the only RAID level that provides fault tolerance under this constraint, exactly as described in the CompTIA A+ study guide.

RAID 0 offers no redundancy, RAID 5 requires at least three drives, and RAID 10 requires at least four drives.

RAID 1 is the recommended configuration for small environments or workstations that rely on data integrity and quick recovery, matching CompTIA’s guidance for redundancy in systems with limited drive availability.

Bluetooth audio issues are typically related to distance and signal strength, not internet connectivity or Wi-Fi access points. Bluetooth devices—especially headsets—generally have a limited effective range of around 10 meters (33 feet) for Class 2 Bluetooth, which is common in consumer laptops and headsets. When the user leaves the room and walks into adjacent offices, they are likely moving beyond the optimal Bluetooth range or passing through walls that weaken the signal.

CompTIA A+ highlights that Bluetooth uses low-power radio frequencies easily disrupted by physical obstructions, distance, and interference. Since the laptop remains stationary and the user moves, the headset becomes progressively further from the laptop, causing intermittent audio dropouts, stuttering, or loss of connection.

The number of APs (A) is irrelevant because the headset is not using Wi-Fi. Mesh mode (C) applies only to wireless AP-to-AP communication. The internet connection (D) is high-quality fiber and conference calls work fine when stationary, so the issue is not bandwidth or WAN throughput.

Thus, the most likely cause is that the user is moving in and out of Bluetooth range.

Plenum cabling is designed for use in commercial spaces where cables run through air ducts or plenum spaces, as it has fire-resistant properties and emits less toxic smoke.

Why Not A (USB 3.1 Gen 2): USB is for peripheral connections, not large-scale commercial installations.

Why Not B (Straight tip fiber connector): Fiber connectors are for high-speed connections but are not specifically for commercial spaces.

Why Not D (Cat 8): While Cat 8 is high-speed, it is not uniquely suited for commercial spaces like plenum cabling.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 3.1, cabling standards​.

CompTIA A+ identifies satellite internet as the connection type most susceptible to weather-related interference, particularly rain, snow, and heavy cloud cover. This phenomenon is known as rain fade. Satellite connections rely on high-frequency microwave signals transmitted between a dish antenna at the customer site and an orbiting satellite. Moisture in the atmosphere absorbs and scatters these signals, causing latency spikes, reduced bandwidth, or complete signal loss during storms.

Fiber (A) uses light signals through glass fiber and is immune to electromagnetic and weather interference. Cable internet (B) uses shielded coaxial lines buried or run overhead, but rain does not affect signal quality in normal conditions. DSL (D) uses telephone lines, which may degrade with physical line issues, but not directly due to rain in the same way satellite is affected.

Thus, satellite internet is most likely to experience signal degradation during rain conditions.

A managed switch allows an administrator to enable or disable individual ports as part of network security and management. If a port on a managed switch has been disabled, the device connected to that port will lose connectivity, which matches the scenario described.

Assigning a static IP to network printers ensures the printer's address does not change after outages or DHCP lease expirations, preventing connectivity issues.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.4 – Printer network configuration:

“Printers should use static IPs to ensure they remain reachable and do not change addresses after network events.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Printer Networking

CompTIA Exam Objectives 220-1101, Domain 3.4

Reasoning: Many docking stations provide power and functionality only when the laptop is properly powered on. If the laptop was powered off (e.g., during the vacation), docking it will not automatically turn it on. The technician should first ensure the laptop is powered on by pressing the power button.

This is a common troubleshooting step when laptops in docking stations appear non-functional.

Relevance to CompTIA A+ Core 1: This falls under Objective 5.2, which covers diagnosing and resolving common laptop and mobile device issues.

Why the Other Options Are Incorrect:

A. Ensure the docking station is plugged in:

While ensuring power to the docking station is important, the scenario specifies that the issue occurred after a vacation. The likelihood of the docking station losing power coincidentally during the vacation is low. Verifying the laptop's power state should be the first step.

C. Plug the laptop in and let it charge overnight:

There is no indication the laptop’s battery is drained. While charging could resolve a dead battery, the user is more likely experiencing an issue where the laptop is powered off but docked, so charging overnight is not the best first step.

D. Connect the laptop directly to the network:

A network connection will not resolve the primary issue of the keyboard and display not working. Addressing the laptop’s power state is a higher priority.

Practical Example:

If a user returns from a vacation and places a powered-off laptop into a docking station, it may not automatically power on. Pressing the power button ensures the laptop is operational and communicating with the docking station.

CompTIA A+ Exam Objective Alignment:

Objective 5.2: Troubleshooting common laptop issues, including power, display, and peripheral connectivity.

A VLAN (Virtual Local Area Network) is a network technology used to logically segment a physical network into multiple distinct broadcast domains, even if they share the same hardware.

From the CompTIA A+ 220-1101 Official Study Guide, Objective 2.2 – Compare and contrast common networking hardware:

“VLANs allow network administrators to segment a network logically, isolating broadcast traffic and improving security and management, regardless of the physical network layout.”

Other options explained:

MAC (Media Access Control) is a hardware address, not a segmentation method.

NIC (Network Interface Card) is network hardware, not for logical segmentation.

DSL (Digital Subscriber Line) is an internet connection type.

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Networking Concepts

CompTIA Exam Objectives 220-1101, Domain 2.2

Elasticity in cloud computing refers to the ability to automatically scale resources up or down based on demand, making it ideal for businesses with fluctuating workloads.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.7 – Cloud characteristics:

“Elasticity allows cloud customers to quickly and automatically scale computing resources in response to changing demand.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Cloud Concepts

CompTIA Exam Objectives 220-1101, Domain 3.7

B. USB-C:

USB-C is a versatile connector that supports charging, high-speed data transfer, and the ability to send audio and video signals (e.g., DisplayPort over USB-C).

It is used by most modern mobile devices and laptops because of its fast transfer speeds and power delivery capabilities.

Incorrect Options:

A. Lightning: Lightning is proprietary to Apple devices and does not natively support video output.

C. MicroUSB: MicroUSB is outdated and does not support video output.

D. MiniUSB: MiniUSB is an older standard and does not support modern features like video output or fast charging.

Key Takeaway: USB-C is the most versatile connector for charging and transferring data, audio, and video.

Comprehensive and Detailed Explanation From Exact Extract:

MDM (Mobile Device Management) enforces security policies, such as encryption, remote wipe, and access control. It could have remotely wiped the device or locked it down to prevent data theft.

C. Installing redundant PSUs (Power Supply Units):

Redundant PSUs provide fault tolerance by ensuring that if one power supply fails, another will take over seamlessly.

This is a cost-effective way to increase uptime while waiting for the UPSs to arrive.

Incorrect Options:

A. Purchasing backup generators: Generators are costly and are typically used for long-term outages, not as an immediate or cost-effective solution.

B. Increasing input voltage: This is not a practical solution to hardware failures or power issues.

D. Activating a hot site: A hot site is an expensive, fully operational backup facility that would not be a cost-effective solution for this scenario.

Key Takeaway: Installing redundant PSUs is a cost-effective way to balance uptime requirements in case of power or hardware failure.

A smart card provides an additional factor of authentication by storing secure credentials, such as certificates, that cannot be guessed or replicated. It complements user accounts and is "something you have".

Why Not A (Fingerprint reader): This is "something you are", but the scenario specifically requires a physical token.

Why Not C (Secure token): Secure tokens are also valid but may not integrate as seamlessly into multi-factor authentication for physical and system access.

Why Not D (NFC scanner): An NFC scanner is a device and not a token itself; it reads cards or other credentials.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.5, access controls​.

The key detail in the ipconfig output is that the system is receiving an IP address, subnet mask, default gateway, and DHCP server information via DHCP, but the DNS servers shown are 8.8.8.8 and 8.8.4.4, which are Google’s public DNS servers. In most corporate networks, DNS is provided internally by the DHCP server—usually the same device assigning the IP address. When DNS values are different from DHCP-provided defaults, it indicates manual DNS configuration.

CompTIA A+ emphasizes that mismatched DNS settings can cause browsing issues, name-resolution delays, or an inability to access internal resources. DNS is critical because it translates domain names into IP addresses; if manually configured, the device bypasses the organization’s DNS server and may not resolve internal hostnames.

The subnet mask is correct for a Class B private network subdivided using /24 (255.255.255.0). NetBIOS being enabled is common and not a cause of connectivity issues here. DHCP being enabled is normal and functioning correctly, as shown by the proper IP lease obtained.

Thus, the anomalous and most likely problematic configuration is manually configured DNS, making Option D correct.

Containers provide lightweight virtualization, ideal for deploying microservices because they are isolated, portable, and require fewer resources than traditional VMs.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.7 – Virtualization and cloud computing:

“Containers package applications and their dependencies, making them ideal for running microservices efficiently and independently.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Cloud and Virtualization

CompTIA Exam Objectives 220-1101, Domain 3.7

============

The most likely cause isthird-party or ill-fitting casesobstructing the contact between the stylus and the tablet charging mechanism. Some cases may not be designed with stylus charging in mind, particularly if users are purchasing their own accessories.

Option B:A software update might fix OS-related issues, but would not typically affect physical charging.

Option C:If some devices had defects, the issue would likely be consistent, not isolated to some users.

Option D:Firmware issues could be a factor but are less likely than physical obstructions when users are using different accessories.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.4: Given a scenario, configure settings and use cases for laptops and mobile devices.

A workstation running three high-end GPUs requires a power supply capable of both high wattage and stable, reliable output. In CompTIA A+ power supply fundamentals, modularity and redundancy are emphasized for high-performance and mission-critical systems.

Modularity (B) allows the technician to connect only the necessary cables, reducing clutter, improving airflow, and enabling proper cable routing to multiple GPUs. High-end graphics cards require multiple PCIe connectors, and modular PSUs provide the flexibility to attach the exact number of required GPU power cables. This is important for systems where space management and cooling efficiency directly affect performance and component longevity.

Redundancy (D) is critical for mission-critical workstations used for 3-D modeling and rendering. A redundant power supply ensures that if one PSU module fails, the system continues running without interruption. CompTIA A+ highlights redundancy as a key feature in professional environments where uptime is essential. These systems typically use dual hot-swappable power modules to guarantee continuous power delivery.

The other options do not meaningfully address the requirements. A 12V output is standard on all PSUs. A 20-pin connector is outdated; modern motherboards use 24-pin. The 3.3V rail is not relevant to GPU loads, and 240 VAC input only refers to wall power compatibility, not PSU capability. Therefore, modularity and redundancy best meet the workstation’s needs.

RAID 0 (striping) provides the fastest read (and write) speeds at the lowest cost, as all disk capacity is used for storage and performance. However, it offers no redundancy.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.4 – RAID types:

"RAID 0 stripes data across multiple disks, offering the best performance and lowest cost but no fault tolerance."

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: RAID Levels

CompTIA Exam Objectives 220-1101, Domain 3.4

Quality of Service (QoS) prioritizes VoIP traffic on the network, reducing jitter, latency, and packet loss to improve call quality.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.4 – Network troubleshooting:

“Enabling QoS in the router ensures time-sensitive traffic, like VoIP, receives network priority, reducing dropped or lagging calls.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Network Troubleshooting

CompTIA Exam Objectives 220-1101, Domain 2.4

============

Badging refers to the use of NFC-enabled ID badges or cards that authenticate users when tapped against a reader for secure print or access control.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.4 – Secure printing and authentication:

“NFC authentication is commonly implemented using employee badges, allowing secure and convenient access to devices and functions.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Secure Print Solutions

CompTIA Exam Objectives 220-1101, Domain 3.4

============

Comprehensive and Detailed Explanation

To enable file sharing across different operating systems, CompTIA A+ emphasizes the use of:

✔ SMB (Server Message Block)

The primary file-sharing protocol used by Windows.

Also supported on macOS and Linux (via Samba).

Allows shared folders, printers, and network browsing.

✔ FTP (File Transfer Protocol)

A cross-platform file transfer service supported by all major OSs.

Commonly used to upload/download files between systems of different types.

These two protocols are explicitly listed in CompTIA objectives under network protocols and file services.

Why the other options are incorrect

A. NTP – Time synchronization, not file sharing.

C. IMAP – Email protocol, not related to file sharing.

E. ROP – Not a file-sharing protocol (Return-Oriented Programming = security exploit).

F. LDAP – Directory service for authentication, not file sharing.

Final Answer: B, D

Firewalls are specifically designed to monitor, filter, and control network traffic using Access Control Lists (ACLs). ACLs define which traffic is allowed or denied based on parameters like IP address, protocol, or port.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.2 – Networking hardware and security:

“Firewalls use access control lists (ACLs) to allow or deny traffic based on rules. Unmanaged switches and PoE injectors do not support ACLs.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Networking Security Devices

CompTIA Exam Objectives 220-1101, Domain 2.2

============

If two devices have thesame static IP address, anIP conflictoccurs. This results in both devices being intermittently disconnected or unable to communicate on the network. It’s a common mistake when copying configurations manually.

Option B:DNS conflicts wouldn’t cause total disconnection and wouldn't occur just from copying IP settings.

Option C:A cable issue would only affect one workstation.

Option D:Switchport security issues wouldn't affect both machines simultaneously unless port security was configured very specifically.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 2.6: Given a scenario, configure and troubleshoot network connectivity.

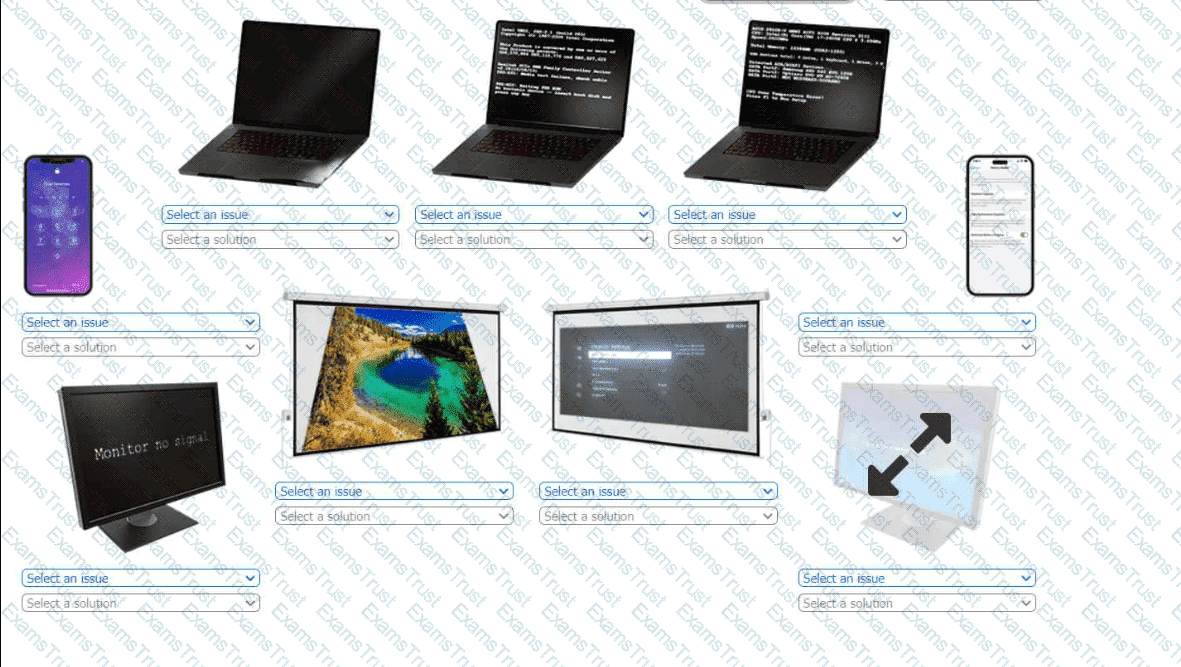

A distorted image where the screen is not symmetrical (wider at the top or bottom) is typically due to keystone distortion. Adjusting the projector's keystone settings corrects this trapezoidal effect caused by an angled projection.

Assigning astatic IP addressto a network printer ensures it always retains the same address, allowing users and print servers to consistently reach it even after a reboot or network refresh.

Option B (Private address):Refers to address ranges (e.g., 192.168.x.x) doesn't guarantee address persistence.

Option C (Wi-Fi):Is a connection method, not a method of IP assignment.

Option D (Dynamic addressing):Via DHCP, which can change over time unless reservations are made (less reliable).

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.4: Given a scenario, install and configure printers.

Secure badging—often used with “pull printing” or “secure print release”—requires users to authenticate at the printer before documents are printed. CompTIA A+ highlights this feature as critical for protecting sensitive data in corporate environments. With badge-based printing, jobs stay in a secure print queue until the authorized user physically scans their badge.

This prevents confidential documents, like HR termination notices, from sitting unattended in the output tray. It also reduces print waste and ensures accountability for printed materials.

Duplex printing (B) simply prints double-sided pages. Printer sharing (C) allows multiple users to use a printer but does not provide security. Wireless encryption (D) protects network traffic but does not address abandoned print jobs.

Therefore, badging / secure print release is the correct protective measure.

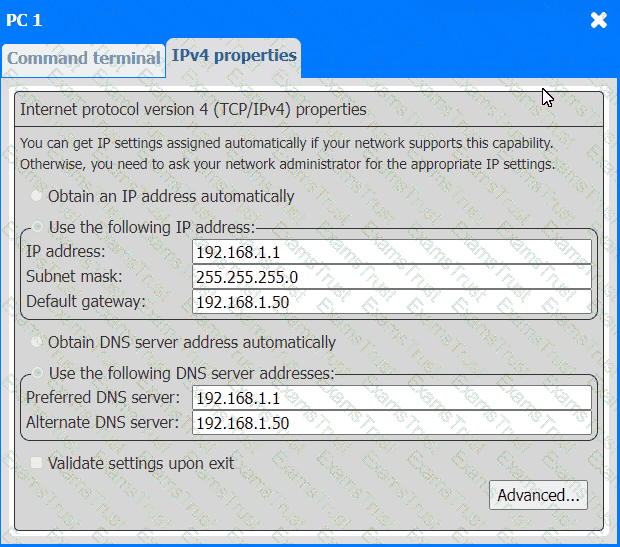

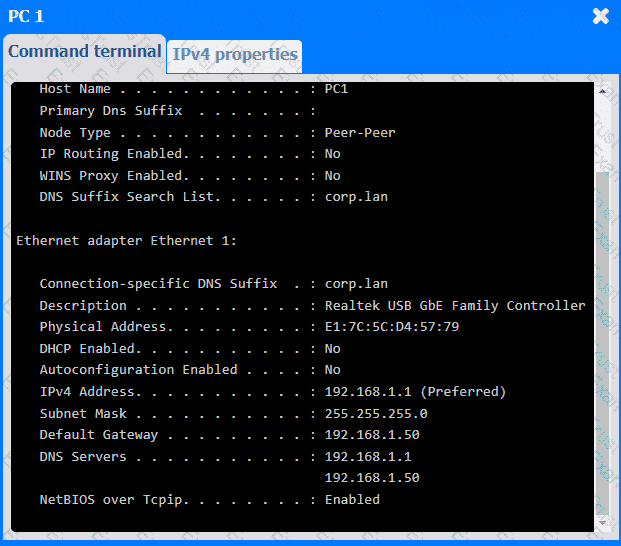

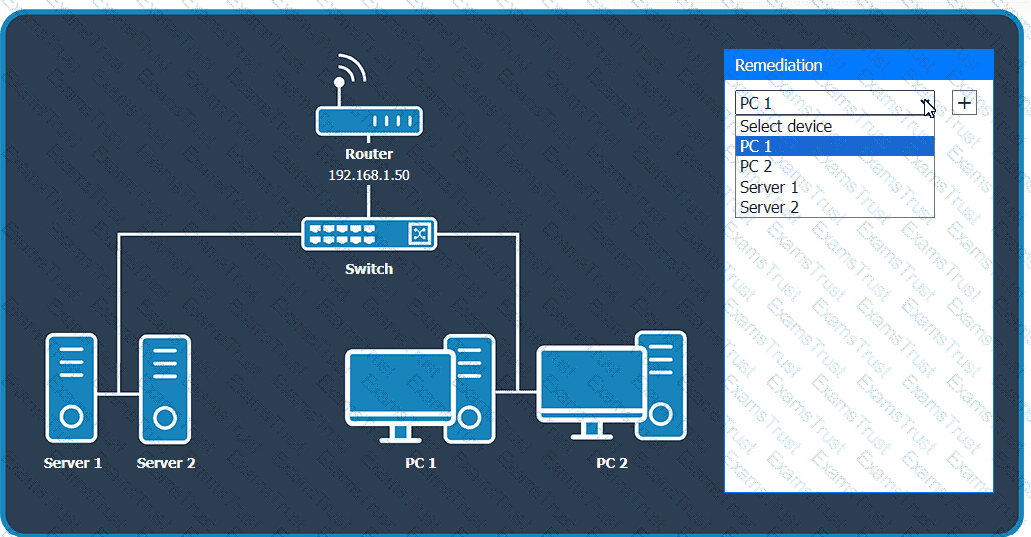

Looking at the network configurations and outputs from both PCs and servers, here are the possible issues and solutions:

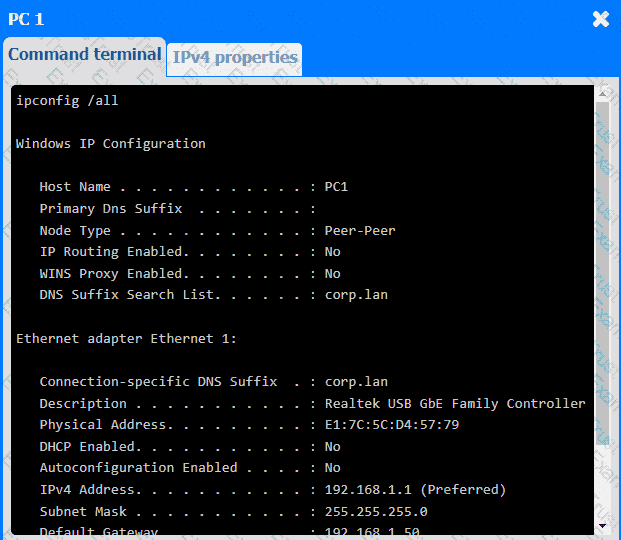

1. PC 1

Issue: The IP address for PC1 is 192.168.1.1, which conflicts with Server 1 (which also uses 192.168.1.1).

Solution: Change the IP address on PC1 to a unique one within the range, like 192.168.1.3.

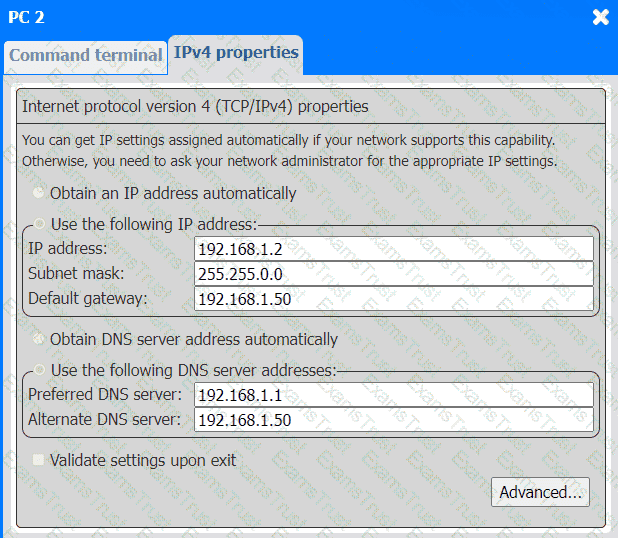

2. PC 2

Issue: PC 2 is configured with 192.168.1.2, which conflicts with Server 2 that has the same IP address.

Solution: Update the IP address on PC 2 to something unique, like 192.168.1.4.

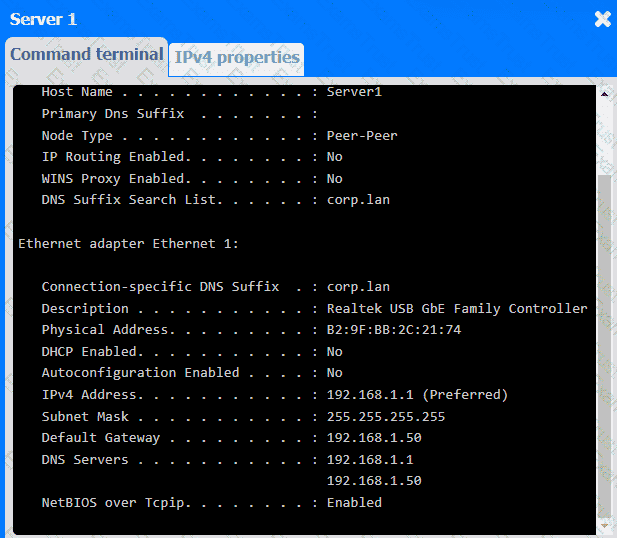

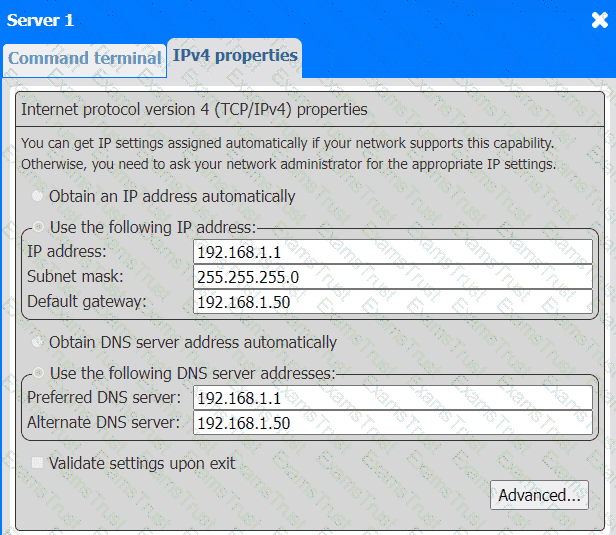

3. Server 1

Issue: The IP address for Server 1 is 192.168.1.1, which conflicts with PC1.

Solution: Since Server 1 and PC1 are using the same IP address, change one of them. For Server 1, you could change the IP address to 192.168.1.5.

4. Server 2

Issue: Server 2 is using the IP address 192.168.1.2, which conflicts with PC2.

Solution: Update Server 2 to use a different IP address, such as 192.168.1.6.

General Remediation:

The primary problem here is overlapping IP addresses, leading to connectivity issues. Each device on the network must have a unique IP address. After making these changes, ensure that all devices can communicate properly by testing the connection between devices and verifying they can access shared resources.

solution as

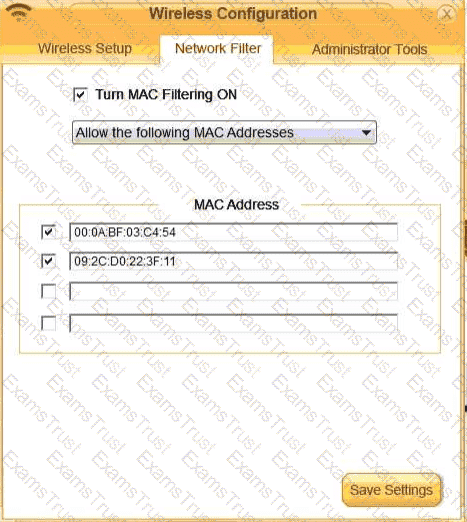

A screenshot of a network settings AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

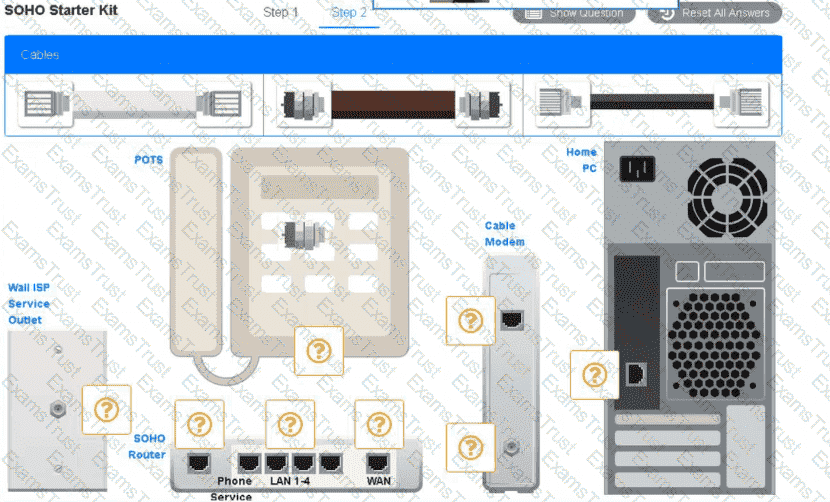

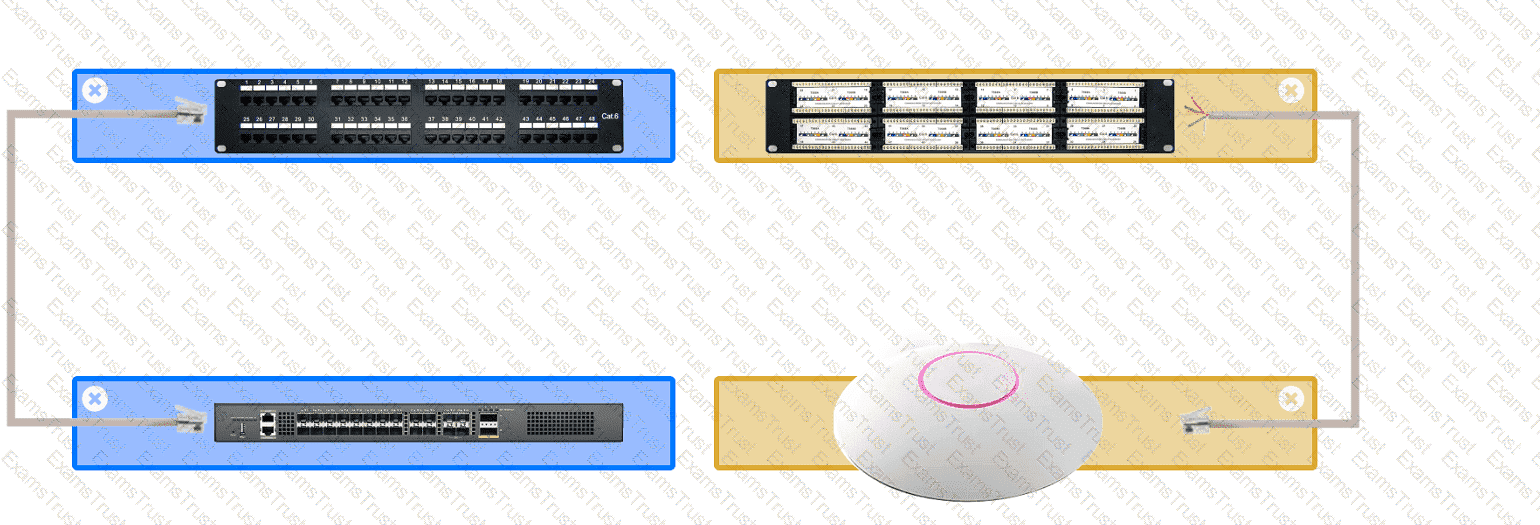

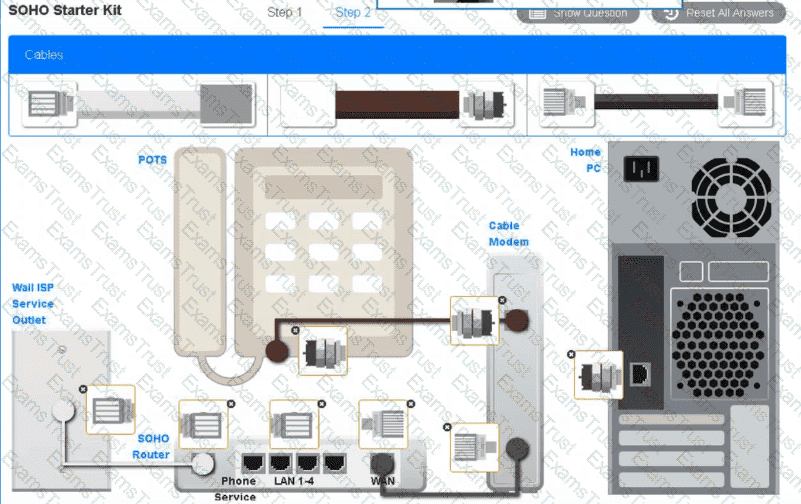

Check the exhibit diagram for both parts.

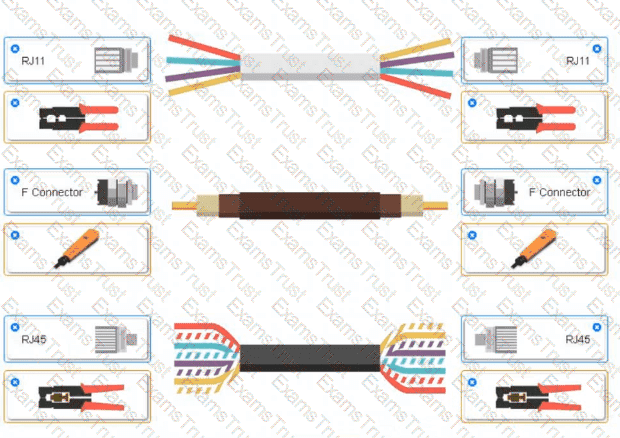

A close-up of several cables AI-generated content may be incorrect.

Part 2

A group of different colored rectangular objects AI-generated content may be incorrect.

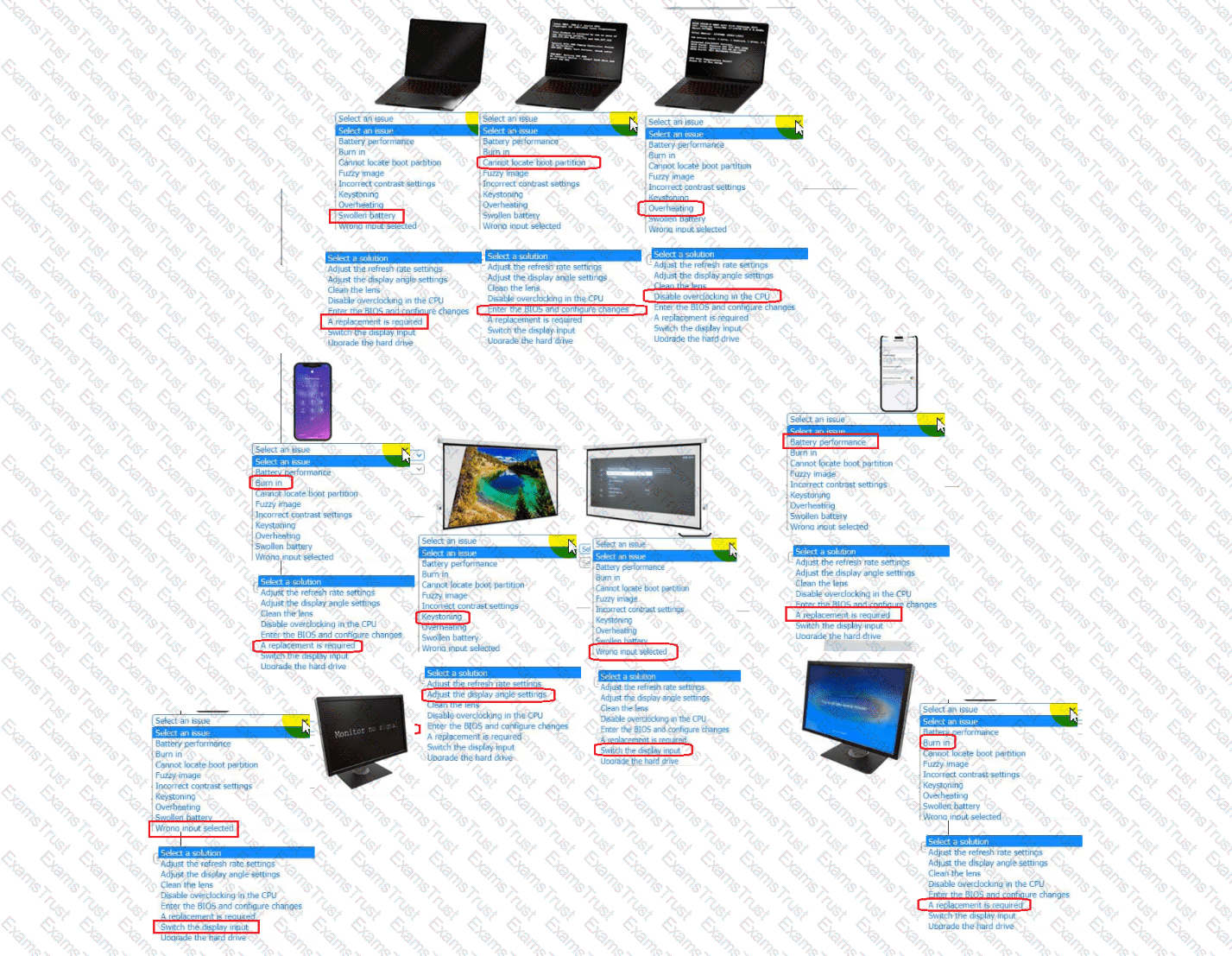

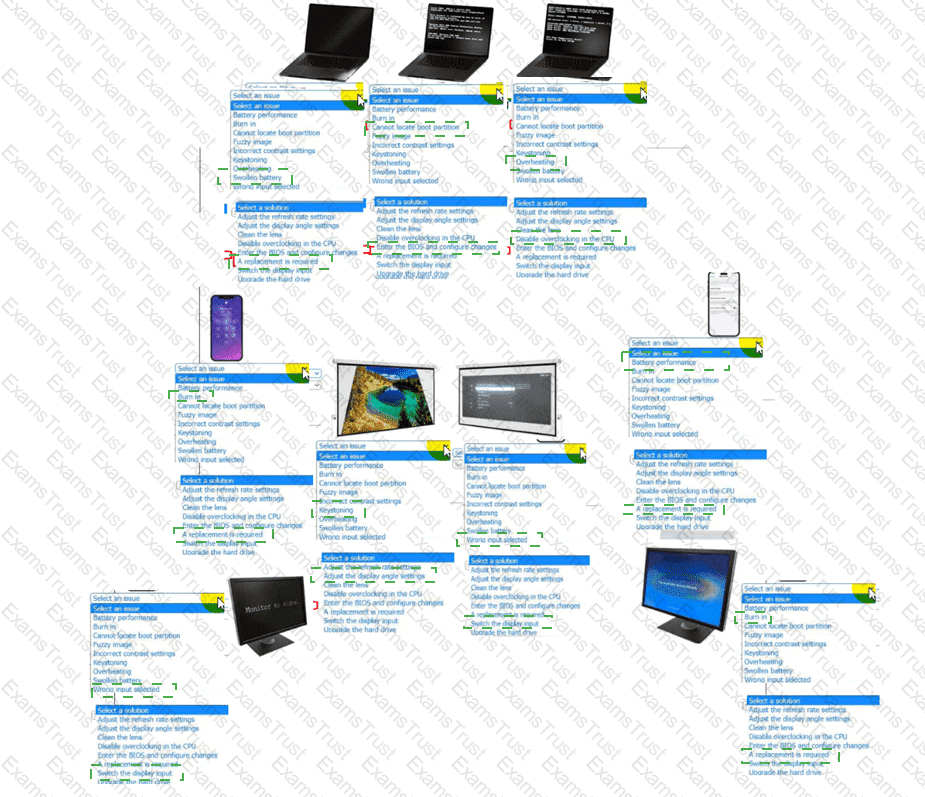

Answer of both steps below.

A group of wires with different colors AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A printer with text boxes AI-generated content may be incorrect.

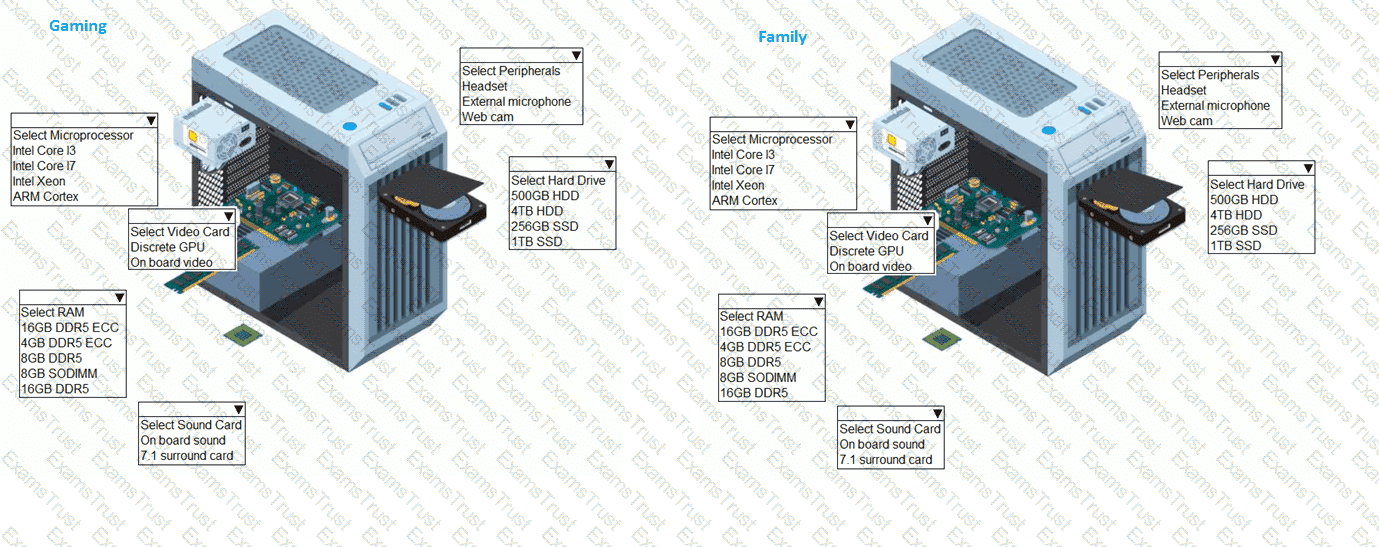

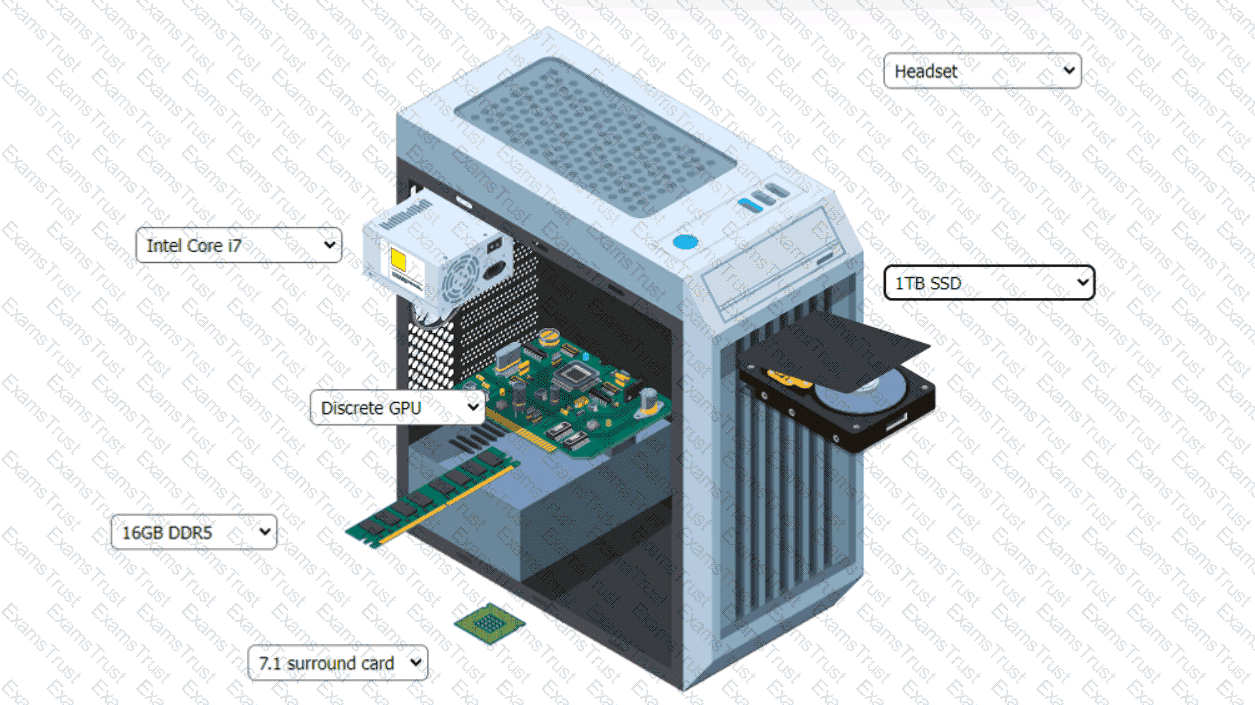

A computer tower with a hard drive and a hard drive AI-generated content may be incorrect.

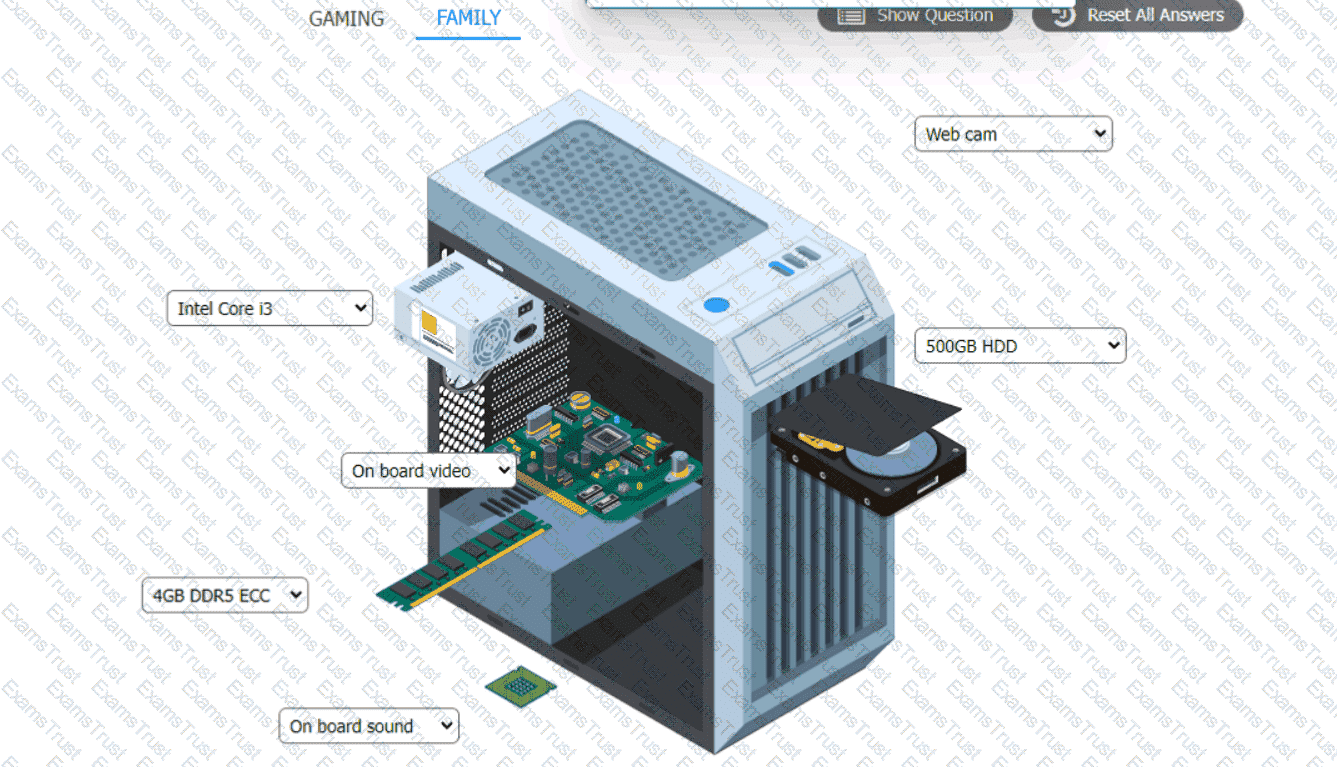

A computer tower with a computer and a hard drive AI-generated content may be incorrect.

Wall Outlet

(empty — nothing goes directly to the wall)

Surge Protector (Power Source: Wall Outlet)

Printer

Scanner

UPS (Power Source: Surge Protector)

Computer

Monitor

Cable Modem

Wi-Fi Router

correct answer is "Overclocking" and "Reduce CPU Clock speed" CPU is at 4.5 Ghz when normal is 3.2 Ghz. Overclocking too much can cause freezes, and this is a gaming computer sothe user probably took it too far.

Packet loss

Plug an Ethernet cable into the workstation

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

The degraded status on Server 2 indicates a RAID-5 issue, typically due to a failed or failing drive. In RAID-5 configurations, when one drive fails, the system can still operate but with reduced performance as parity data is used to rebuild missing data on-the-fly.

Recommended Replacement Drive:

To minimize performance degradation, the replacement drive should be:

SAS HDD with the same specifications (64KB stripe size, no read-ahead, and write-back policy).

Matching the configuration exactly ensures seamless integration and optimizes recovery speed in the RAID-5 array.

In RAID-5, degraded performance is expected when one drive fails, as parity data needs to rebuild missing information during each read/write process. Replacing the failed drive restores the RAID array to optimal status, reducing the load on existing drives and returning the system to normal read/write performance. The write-back policy and disabled disk cache settings are designed to reduce latency and increase efficiency, essential for handling real-time applications.

A user reports poor performance on the

application server.

INSTRUCTIONS

Click on Server 1 and Server 2 and review

the information presented in each chart to

determine which drives need to be replaced.

Select the appropriate replacement drive

that should be used, for the least

performance degradation to the server.

A computer server with many black and silver parts AI-generated content may be incorrect.A computer server with many black boxes Description automatically generated with medium confidence

A screen shot of a computer AI-generated content may be incorrect.A screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated
