CompTIA 220-1101 CompTIA A+ Certification Exam: Core 1 Exam Practice Test

A PSU (power supply unit) is a component that converts the AC power from the wall outlet into DC power that the PC components can use. A faulty or failing PSU can cause random system crashes, as well as other problems such as noise, overheating, or no power at all. A PSU can fail due to various reasons, such as age, dust, power surges, or poor quality.

To troubleshoot a PSU, the technician can use a multimeter to measure the voltage output of the PSU connectors. The voltage should be within the acceptable range of the specifications. For example, the 12V rail should be between 11.4V and 12.6V. If the voltage is too low or too high, the PSU is likely defective and needs to be replaced.

Alternatively, the technician can try swapping the PSU with a known good one and see if the system crashes persist. If the system works fine with a different PSU, then the original PSU is the problem and should be replaced.

The other options are not likely to fix the random system crashes. Testing the fan speed may help to diagnose overheating issues, but it is not related to the PSU. Disabling the USB ports may help to eliminate potential conflicts with USB devices, but it is not related to the PSU. Decreasing the RAM timings may help to improve performance and stability, but it is not related to the PSU.

The technician should check the wattage and the form factor of the power supply to ensure it will support the upgraded workstation. These are the two most important criteria for choosing a compatible and adequate power supply.

Wattage: The wattage of a power supply is the maximum amount of power it can deliver to the components of the workstation. The wattage of the power supply should match or exceed the total power consumption of the components, especially the new graphics card, which is usually the most power-hungry part. If the power supply does not have enough wattage, it may cause instability, crashes, or damage to the workstation. To estimate the power consumption of the components, the technician can use a power supply calculator tool, such as the ones found in the web search results123. The technician should also add some headroom to the wattage, such as 20% to 50%, to account for peak power consumption, future upgrades, or power supply degradation.

Form factor: The form factor of a power supply is the physical size and shape of the unit. The form factor of the power supply should fit in the case of the workstation and match the mounting holes and screws. The most common form factor for desktop power supplies is ATX, which measures 150 x 86 x 140 mm. However, some older or smaller workstations may use different form factors, such as SFX, TFX, or FlexATX. The technician should check the specifications of the workstation case and the power supply to ensure they have the same form factor.

Other criteria, such as efficiency rating, heat dissipation, fan type, and modular cabling, are not essential for supporting the upgraded workstation, but they may affect the performance, noise, or aesthetics of the power supply. The efficiency rating is the percentage of input power that is converted to output power, and it indicates how much power is wasted as heat. The heat dissipation is the ability of the power supply to cool itself and prevent overheating. The fan type is the design and size of the fan that cools the power supply, and it affects the noise level and airflow of the unit. The modular cabling is the feature that allows the user to detach unused cables from the power supply, and it helps to reduce clutter and improve airflow inside the case.

The correct answer is A. Number of DIMM slots.

The number of DIMM slots on a motherboard determines how much RAM can be installed on the system. RAM is a crucial component for running multiple large applications at the same time, as it allows the CPU to access data faster and avoid swapping to the hard drive. Having more DIMM slots means that more RAM can be added, which can improve the performance and responsiveness of the system.

B. Number of HDMI ports. This is not a correct answer. The number of HDMI ports on a motherboard determines how many monitors can be connected to the system. HDMI ports are used for video and audio output, but they do not affect the performance of the system when running multiple large applications.

C. Number of PCI slots. This is not a correct answer. The number of PCI slots on a motherboard determines how many expansion cards can be installed on the system. PCI slots are used for adding devices such as sound cards, network cards, or graphics cards, but they do not affect the performance of the system when running multiple large applications.

D. Number of USB ports. This is not a correct answer. The number of USB ports on a motherboard determines how many peripherals can be connected to the system. USB ports are used for connecting devices such as keyboards, mice, printers, or external drives, but they do not affect the performance of the system when running multiple large applications.

The projector is overheating and needs to be cleaned. A common cause of projector shutdown is overheating, which can be triggered by dust accumulation, blocked vents, or faulty fans. The projector has a thermal protection circuit that turns it off when the temperature reaches a certain level, and it will not turn back on until it cools down. To prevent this issue, the projector needs to be cleaned regularly and placed in a well-ventilated area. The video cable, the bulb, and the outlet are not likely to cause the projector to turn off intermittently.

A crimper is a tool that is used to attach connectors to network cables, such as RJ-45 or RJ-11. A technician might need a crimper to create a longer cable for the router access point or to replace a damaged connector.

A Wi-Fi analyzer is a software or hardware tool that can scan and measure the wireless signal strength, interference, channel usage, and security of a Wi-Fi network. A technician might need a Wi-Fi analyzer to find the optimal location and configuration for the router access point to improve the signal coverage for the SOHO client.

Relocating a router access point (AP) farther from the modem to optimize signal coverage involves two key aspects: physically extending the network connection (likely via Ethernet cabling) and ensuring the wireless signal is optimally placed. The CompTIA A+ Core 1 Study Guide emphasizes tools for cabling and wireless network configuration in such scenarios, aligning with Objective 2.6 ("Given a scenario, install and configure basic wired/wireless networks") and Objective 5.4 ("Given a scenario, troubleshoot wired and wireless network problems").

B. Crimper: A crimper is essential for creating or modifying Ethernet cables, such as attaching RJ45 connectors to twisted pair cabling (e.g., Cat 5e or Cat 6) to extend the connection from the modem to the new AP location. Since the AP is moving farther away, a longer Ethernet cable may be needed, and the technician might need to terminate a new cable or repair an existing one. This is a common task in SOHO network setups.

E. Wi-Fi analyzer: After relocating the AP, a Wi-Fi analyzer is used to assess signal strength, identify interference, and optimize placement for maximum coverage. This tool ensures the relocation achieves the goal of improving wireless performance, a critical step in the process.

Evaluation of Other Options:

A. Punchdown tool: Used to terminate wires into a patch panel or keystone jack, not typically for connecting a router AP directly to a modem via Ethernet. It’s less likely unless the relocation involves structured wiring termination, which isn’t implied here.

C. Clamp-style wire stripper: Useful for stripping insulation from wires during cable preparation, but it’s a secondary tool to a crimper, which both strips and attaches connectors. The crimper is more directly tied to completing the cable.

D. Network tap: A diagnostic tool for monitoring network traffic, not relevant to relocating or optimizing an AP’s signal coverage.

F. Loopback plug: Used to test network ports for functionality, not for cabling or wireless optimization in this scenario.

The combination of crimper (for physical connection) and Wi-Fi analyzer (for signal optimization) directly supports the relocation and coverage goals, making them the most likely tools.

Exact Extracts from the Study Guide:

From The Official CompTIA A+ Core 1 Study Guide (220-1101):

Section 2.2, Tools for Networking:

"Crimper: A crimper is used to attach connectors (such as RJ45) to the ends of twisted pair cabling. It presses the metal contacts in the connector into the wires to make a solid electrical connection. Many crimpers also include a stripper function to remove insulation from the cable."

Implication: The crimper is key for preparing Ethernet cables to extend the AP’s connection.

Section 2.6, Wireless Networking:

"Wi-Fi analyzer: A Wi-Fi analyzer is a software tool or handheld device that scans the wireless spectrum to identify signal strength, channel usage, and interference. It’s invaluable when setting up or troubleshooting wireless networks to ensure optimal access point placement and channel selection."

Implication: Essential for verifying and optimizing signal coverage after relocation.

Section 5.4, Troubleshooting Wired and Wireless Network Problems:

"Poor wireless signal—Use a Wi-Fi analyzer to check signal strength and interference… Relocate the access point to a more central location or away from obstructions… Ensure the wired connection to the access point is secure and within cable length specifications."

These excerpts confirm the crimper’s role in cabling and the Wi-Fi analyzer’s role in optimizing wireless performance, aligning with the task’s requirements.

Additional Reasoning:

Physical Relocation: Moving the AP farther from the modem likely requires extending the Ethernet cable connecting them. A crimper is the primary tool for creating a custom-length cable with RJ45 connectors, a common SOHO task.

Signal Optimization: The goal is to "optimize signal coverage," which involves more than just moving the AP—it requires verifying the new location improves Wi-Fi performance. A Wi-Fi analyzer provides data on signal strength and channel conflicts, ensuring the relocation succeeds.

SOHO Context: In a small office/home office, technicians often use basic tools like crimpers for cabling and software/apps (Wi-Fi analyzers) for wireless setup, rather than specialized tools like punchdown tools unless structured wiring is involved.

The first step that a technician should do is A. Reseat the webcam.

Reseating the webcam means unplugging and plugging back the webcam into the laptop’s USB port. This can help to ensure that the webcam is properly connected and recognized by the laptop. Reseating the webcam is a simple and quick troubleshooting technique that can solve many common issues, such as loose or faulty connections, power or bandwidth problems, or driver or software conflicts.

Reseating the webcam is the first step that a technician should do, because it follows the principle of starting with the easiest and most obvious solution before moving on to more complex and time-consuming ones. Reseating the webcam can also help to isolate the problem and eliminate other possible causes.

The other options are not the first steps that a technician should do, because they are more disruptive or less effective. Restarting the computer and running system diagnostics (option B) may be helpful if the problem is caused by a software or hardware error, but it may also cause data loss or interruption of other tasks. Reinstalling the webcam software and drivers (option C) may be necessary if the problem is caused by a corrupted or outdated software or driver, but it may also introduce compatibility or configuration issues. Researching new webcam firmware (option D) may be useful if the problem is caused by a firmware bug or vulnerability, but it may also pose security or stability risks.

For more information about troubleshooting external webcams, you can refer to the following web search results: [How to Fix Webcam Problems on Your Laptop], [How to Troubleshoot Webcam Issues on Windows 10], [How to Fix Common Webcam Problems].

Virtualization is a technology that allows creating multiple virtual machines (VMs) on a single physical server. Each VM can run its own operating system and applications, and share the resources of the physical server, such as CPU, memory, disk, and network1. Virtualization can help improve server utilization and management in several ways, such as:

•Reducing the number of physical servers needed to run the same workload, which can lower the costs of hardware, power, cooling, and maintenance1.

•Increasing the flexibility and scalability of the server infrastructure, as VMs can be created, deleted, moved, or resized on demand without affecting the other VMs or the physical server1.

•Enhancing the availability and reliability of the server applications, as VMs can be backed up, restored, or migrated to another physical server in case of failure or maintenance1.

•Improving the security and isolation of the server data, as VMs can be configured with different levels of access and protection, and separated from each other and the physical server1.

The correct answer is A. Bluetooth.

Bluetooth is a wireless technology that allows devices to communicate with each other over short distances. It is commonly used for connecting wireless headsets, speakers, keyboards, mice, and other peripherals to mobile phones, laptops, and other devices.

To use a Bluetooth device with a mobile phone, the user needs to enable Bluetooth on both devices and pair them together. Pairing is a process of exchanging security codes and creating a trusted connection between the devices. Once paired, the devices can automatically connect when they are in range and turned on.

If the user is experiencing an issue when trying to use a wireless headset with a mobile phone, the first thing to check is whether Bluetooth is enabled on both devices. If Bluetooth is turned off, the devices will not be able to connect or communicate with each other.

To enable Bluetooth on a mobile phone, the user can follow these steps:

•Check in quick settings: Select the Network, Sound, or Battery icons ( ) on the right side of the taskbar, look for the Bluetooth quick setting, then select Bluetooth to turn it on. You’ll see “Not connected” if your Windows 11 device isn’t connected to any Bluetooth accessories.

•Check in Settings: Select Start > Settings > Bluetooth & devices . Make sure Bluetooth is turned on.

These steps are based on Windows 11 operating system1. The exact steps may vary depending on the type and model of the mobile phone and its operating system.

If Bluetooth is enabled on both devices but they still cannot connect, the user can try some other troubleshooting steps, such as:

•Turn off your Bluetooth device, wait a few seconds, then turn it back on.

•Make sure your Bluetooth device is in range of your mobile phone.

•Remove the Bluetooth device from your mobile phone’s list of paired devices, then add it again.

•Update the Bluetooth driver on your mobile phone or the firmware on your Bluetooth device.

•Restart your mobile phone or reset your Bluetooth device.

For more details and tips on how to fix Bluetooth problems in Windows 112 or other operating systems1, you can visit the links provided.

The best component for a technician to upgrade to fix the issue of slow performance writing data is B. HDD. HDD stands for hard disk drive, which is a type of storage device that uses physical disks to store data. HDDs have moving parts that can slow down the read and write operations, especially when the data is fragmented or the disk is full12.

A better alternative to HDDs is SSDs, which stands for solid state drives. SSDs use flash memory and do not have any moving parts. SSDs can read and write data faster and use less power, which can improve the performance and battery life of the laptop13. Upgrading to an SSD can provide a significant improvement in performance2.

The other components are not as relevant or effective as upgrading the HDD. RAM stands for random access memory, which is a type of memory that stores temporary data for the CPU to process. RAM can affect the overall speed of the laptop, but it does not directly affect the writing performance of the storage device1. TPM stands for trusted platform module, which is a security chip that encrypts and protects data on the laptop. TPM does not affect the performance of the laptop, but rather its security1. CPU stands for central processing unit, which is the main processor of the laptop that executes instructions and calculations. CPU can affect the performance of the laptop, but it is not as easy or cost-effective to upgrade as the HDD1.

A cellular card is a device that allows a laptop to connect to the internet using a cellular network, such as 4G or 5G. A cellular card can provide internet access when the user travels and does not have access to a Wi-Fi network. A cellular card may require a subscription plan from a cellular service provider. A Wi-Fi extender is a device that boosts the signal of an existing Wi-Fi network, but it does not provide internet access by itself. Bluetooth is a wireless technology that allows devices to communicate over short distances, but it does not provide internet access either. GPS is a satellite-based system that provides location and navigation information, but it does not provide internet access as well. References:

802.11 ax is a wireless networking protocol that utilizes the 5.0GHz frequency and has the best speed and reception among the options given. 802.11 ax offers higher data rates, lower latency, increased capacity, and improved power efficiency than previous protocols. It is also known as Wi-Fi 6 or High Efficiency Wireless (HEW). 802.11a also uses the 5.0GHz frequency, but it is an older protocol that has lower speed and reception than 802.11 ax. 802.11b/g/n use the 2.4GHz frequency, which is more crowded and prone to interference than the 5.0GHz frequency. 802.11n can use both frequencies, but it is also slower and less efficient than 802.11 ax. Reference: (page 82)

OLED (Organic Light Emitting Diode) displays have lower power consumption than LCD (Liquid Crystal Display) displays because they do not require a backlight to produce light. Each pixel in an OLED display can emit its own light, which also allows for higher contrast and finer grayscale levels. However, OLED displays are more prone to color degradation over time than LCD displays, which use filters to create colors. Verified References: OLED vs LCD: How to choose the right display for your phone.

A virtual Trusted Platform Module (vTPM) is a technology that can be used to harden guest virtual machines by providing them with a secure cryptographic device. A vTPM can store encryption keys, certificates, and passwords, and can perform integrity checks on the guest operating system and applications. A vTPM can also enable features such as BitLocker and Credential Guard in Windows 10 virtual machines.

A. Containerization is a technology that can be used to isolate applications from the underlying operating system and hardware resources. Containerization does not directly harden guest virtual machines, but rather provides a lightweight alternative to virtualization.

B. Network isolation is a technology that can be used to separate network traffic between different virtual machines or groups of virtual machines. Network isolation can help prevent unauthorized access or attacks on guest virtual machines, but it does not harden them internally.

C. Resource reservation is a technology that can be used to guarantee a minimum amount of CPU, memory, disk, or network resources for a virtual machine or a group of virtual machines. Resource reservation can help improve the performance and availability of guest virtual machines, but it does not harden them against security threats.

D. vTPM is a technology that can be used to harden guest virtual machines by providing them with a secure cryptographic device. A vTPM can store encryption keys, certificates, and passwords, and can perform integrity checks on the guest operating system and applications.

The technician should replace the patch cable that connects the desktop to the network switch or outlet. The patch cable may be damaged or incompatible with the upgraded network infrastructure, which can cause slow network speeds. According to the CompTIA Core1 objectives, one of the common symptoms of a bad cable is slow transfer speeds. A research paper on network performance also states that cable quality and length can affect network speed.

GPS (Global Positioning System) is a feature that allows a phone to determine its location by receiving signals from satellites. A maps application relies on GPS to provide accurate directions and navigation. If GPS is turned off or not working properly, the maps application may not function as expected.

The other options are not relevant to the issue. Airplane mode is a setting that disables all wireless communication on a phone, including cellular, Wi-Fi, Bluetooth, and GPS. However, since the representative runs a speed test and gets ~10Mbps in both directions, it means that airplane mode is not enabled. PRL (Preferred Roaming List) is a database that contains information about the cellular towers and networks that a phone can connect to. Updating the PRL can improve the phone’s signal strength and coverage, but it does not affect the maps application. LTE (Long Term Evolution) is a standard for high-speed wireless communication on mobile devices. It is related to the cellular data speed and quality, but not to the maps application.

To troubleshoot the issue, the technician should check the GPS settings on the phone and make sure that it is turned on and has a clear view of the sky. The technician should also verify that the maps application has permission to access the GPS location. If the problem persists, the technician may suggest resetting the network settings, updating the phone’s software, or contacting the maps application’s support team.

The most likely cause of the failure is A. Thermal paste was not used.

Thermal paste, also known as thermal grease or thermal compound, is a substance that is applied between the CPU and the heat sink to improve the heat transfer and cooling of the CPU. Thermal paste fills the gaps and irregularities between the CPU and the heat sink, creating a better contact and reducing the thermal resistance .

According to some web search results , some signs and symptoms of not using thermal paste or using it incorrectly are:

•The CPU overheats and slows down or shuts down to prevent damage

•The CPU fan spins faster and louder to try to cool down the CPU

•The PC performance drops or becomes unstable

•The PC crashes or displays errors or blue screens

To fix this issue, the technician should apply thermal paste properly between the CPU and the heat sink, following these steps :

•Turn off the PC and unplug it from the power source

•Open the PC case and locate the CPU fan and heat sink

•Remove the CPU fan and heat sink from the motherboard

•Clean the surfaces of the CPU and heat sink with a lint-free cloth and alcohol

•Apply a small amount of thermal paste (about the size of a grain of rice) in the center of the CPU

•Reattach the heat sink and CPU fan to the motherboard, making sure they are aligned and secured

•Close the PC case and plug it back to the power source

The GPU needs additional power, the memory is insufficient, or the motherboard is incompatible are not likely causes of the failure, since they would not cause the PC to overheat and shut down after a few minutes. The GPU needs additional power if it has a high power consumption that exceeds the capacity of the power supply or the PCIe slot. The memory is insufficient if it cannot handle the applications or tasks that are running on the PC. The motherboard is incompatible if it does not support the CPU, RAM, or other components that are installed on it. These issues may cause poor performance, errors, or crashes, but not overheating and shutting down.

The correct answer is C. Hybrid.

A hybrid cloud model is a combination of two or more different cloud models, such as public, private, community, or on-premises. A hybrid cloud model allows an organization to retain data on site as well as in the cloud, depending on the security and performance requirements of the data. A hybrid cloud model can also provide flexibility, scalability, and cost-efficiency for the organization12.

A public cloud model is a cloud service that is available to anyone over the internet. A public cloud model does not allow an organization to retain data on site, as the data is stored and managed by a third-party provider. A public cloud model can offer lower costs, higher availability, and easier access, but it may have less security and control over the data12.

A community cloud model is a cloud service that is shared by a group of organizations that have similar needs or goals. A community cloud model does not allow an organization to retain data on site, as the data is stored and managed by a third-party provider or one of the participating organizations. A community cloud model can offer higher security, privacy, and compliance, but it may have higher costs and lower availability than a public cloud model12.

A private cloud model is a cloud service that is exclusively used by a single organization. A private cloud model can allow an organization to retain data on site or in the cloud, depending on the configuration of the private cloud. A private cloud model can offer higher security, control, and customization, but it may have higher costs and lower scalability than a public cloud model12.

The first thing that the technician should do to diagnose the issue is A. Check the keyboard layout.

The keyboard layout is the arrangement of the keys and symbols on the keyboard, which can vary depending on the language, region, or standard. If the keyboard layout is not set correctly, it can cause the keys to produce different characters than expected. For example, if the keyboard layout is set to French, pressing the key for @ will produce à instead.

To check and change the keyboard layout, the technician can follow these steps:

•On Windows 10, click on the Start menu and select Settings.

•Click on Time & Language and then on Language.

•Under Preferred languages, click on the current language and then on Options.

•Under Keyboards, check if the keyboard layout matches the physical keyboard. If not, click on Add a keyboard and select the correct layout. Alternatively, click on Remove to delete any unwanted layouts.

•To switch between keyboard layouts, use the shortcut Windows key + Space bar.

Checking the keyboard layout can help identify and fix the issue quickly and easily, without requiring any hardware or software changes. Therefore, it is the best first step to diagnose the issue.

A laptop’s battery is the component that provides power to the laptop when it is not connected to an external power source, such as a wall outlet or a docking station. A laptop’s battery can wear out over time, losing its capacity and ability to hold a charge. This can cause the laptop to not turn on or shut down unexpectedly when it is not plugged in .

According to some web search results , some signs and symptoms of a failing laptop battery are:

•The laptop does not turn on or turns off suddenly when it is not connected to an external power source

•The laptop shows a low battery warning or a red X over the battery icon even when it is fully charged

•The laptop takes longer to charge or does not charge at all

•The laptop feels hot or the battery bulges or leaks

To fix this issue, the technician should replace the laptop’s battery with a new one that is compatible with the laptop model and specifications. The technician should also dispose of the old battery properly, following the environmental and safety guidelines .

Reinstalling the laptop’s operating system, enabling a remote desktop account, or issuing a peripheral set for use in the conference room are not effective solutions for this issue, since they do not address the root cause of the problem, which is the faulty battery. Reinstalling the operating system may erase the user’s data and settings, and it may not improve the laptop’s performance or power management. Enabling a remote desktop account may allow the user to access their files and applications from another device, but it does not solve the problem of the laptop not turning on. Issuing a peripheral set for use in the conference room may provide the user with an external monitor, mouse, and keyboard, but it does not guarantee that the laptop will work without an external power source.

The correct answer is D. PAN.

A PAN, or Personal Area Network, is a type of network that connects devices within a short range, usually less than 10 meters, and is used by an individual. A PAN can be wireless or wired, and it can enable data transmission between devices without requiring an internet connection. A PAN can also be connected to a LAN or a higher level network, where one device acts as a gateway.

A Bluetooth hotspot is an example of a wireless PAN, where a device such as a smartphone or a laptop can create a network with other Bluetooth-enabled devices nearby. A Bluetooth hotspot can allow devices to share files, access the internet, or use peripherals such as printers or speakers.

A SAN, or Storage Area Network, is a type of network that connects storage devices such as hard disks, tape drives, or optical drives to servers. A SAN provides high-speed data transfer and access to large amounts of data. A SAN is usually used in data centers or enterprises that need to store and manage huge volumes of data.

A WAN, or Wide Area Network, is a type of network that connects devices over a large geographical area, such as across cities, countries, or continents. A WAN can use different technologies and media to transmit data, such as fiber-optic cables, satellite links, or radio waves. A WAN can also consist of multiple LANs or other types of networks. The internet is the largest example of a WAN.

A LAN, or Local Area Network, is a type of network that connects devices within a limited area, such as within a building or a campus. A LAN can use wired or wireless technologies to transmit data, such as Ethernet cables, Wi-Fi routers, or switches. A LAN can enable devices to share resources, such as printers, scanners, or files.

For more information about the types of networks and their differences, you can refer to the following web search results: 11 Types of Networks: Understanding the Differences, Types of Computer Networks, Types of network - Introduction to networks.

The most likely cause of the issue is a defective inverter. An inverter is a device that converts the direct current (DC) power from the laptop battery or adapter to the alternating current (AC) power that the LCD backlight bulb needs. The backlight bulb is a fluorescent lamp that illuminates the LCD screen and makes the image visible. If the inverter is defective, it may not provide enough power to the backlight bulb, or it may stop working intermittently. This can result in a dim, dark, or blank screen, even though the LCD panel is still functioning and displaying a faint image.

To troubleshoot a defective inverter, the technician can follow these steps:

Connect an external monitor to the laptop and check if the image is displayed normally. If the external monitor works fine, it means that the laptop video card and driver are not the cause of the issue.

Shine a flashlight into the LCD screen and look for a faint image. If the image is visible, it means that the LCD panel is not the cause of the issue.

Check the inverter cable and connector for any damage, loose connection, or corrosion. The inverter cable is a thin wire that runs from the laptop motherboard to the inverter board, which is usually located at the bottom of the LCD screen. The inverter connector is a small plug that connects the inverter cable to the inverter board. The technician can try to reseat the inverter cable and connector, or replace them if they are faulty.

Check the inverter board for any damage, burn marks, or blown fuses. The inverter board is a small circuit board that contains the inverter and other components. The technician can try to test the inverter board with a multimeter, or replace it if it is defective.

Optical media, such as CDs, DVDs, or Blu-ray discs, are a suitable choice for backing up a large collection of DVDs and photos in the most economical way. Optical media are inexpensive, widely available, and have a long shelf life. They can store large amounts of data, up to 50GB on a dual-layer Blu-ray disc, and can be easily labeled and organized. Optical media are also less prone to mechanical failure, data corruption, or accidental deletion than hard disk drives (HDDs) or solid state drives (SSDs).

The other options are not as economical or suitable for this purpose. A 5,400rpm HDD is a slow and noisy type of HDD that has moving parts that can wear out or break. A HDD also consumes more power and generates more heat than an SSD. A M.2 NVMe SSD is a fast and compact type of SSD that uses a PCIe interface to transfer data. However, an SSD is more expensive than an HDD or optical media, and has a limited number of write cycles before it degrades. A SAS RAID array is a complex and costly system that uses multiple HDDs or SSDs connected by a Serial Attached SCSI (SAS) interface to provide redundancy, performance, or both. A RAID array requires a RAID controller, a compatible motherboard, and a dedicated power supply.

The answer is D. Replace the toner cartridge.

Vertical lines on a laser printer output are usually caused by a faulty or empty toner cartridge, a dirty or damaged drum unit, or a clogged or obstructed laser glass. According to the web search results, some possible steps to troubleshoot and resolve this issue are:

Check the toner level and replace the toner cartridge if it is low or empty1.

Remove the toner cartridge and inspect the drum unit for any signs of damage, such as scratches, cracks, or toner buildup. Clean the drum unit with a soft cloth or replace it if it is damaged23.

Locate the laser glass, which is a narrow strip of glass under the scanner lid or inside the printer. Clean the laser glass with a lint-free cloth moistened with water and remove any dust, dirt, or debris that might block the laser beam24.

The first thing that the technician should check when troubleshooting a wireless network issue with slow throughput and frequent connection drops is the channel interference. Channel interference is a common cause of poor Wi-Fi performance, as it occurs when multiple wireless networks or devices use the same or overlapping frequency bands, resulting in signal degradation, congestion, or collision. Channel interference can affect both 2.4 GHz and 5 GHz networks, but it is more likely to happen on the 2.4 GHz band, as it has fewer and narrower channels than the 5 GHz band.

To check for channel interference, the technician can use a Wi-Fi analyzer tool, such as the ones found in the web search results123, to scan the wireless environment and identify the best channel to use for the network. A Wi-Fi analyzer tool can display various information, such as the network name (SSID), signal strength (RSSI), channel number, frequency, bandwidth, and security type. The technician can look for the following indicators of channel interference:

High network density: If there are many wireless networks or devices in the vicinity, they may compete for the same or adjacent channels, causing interference and congestion. The technician can look for the number of networks or devices on each channel and avoid the crowded ones.

Channel overlap: If there are wireless networks or devices that use the same or partially overlapping channels, they may interfere with each other and degrade the signal quality. The technician can look for the channel width and frequency of each network and avoid the overlapping ones. For example, on the 2.4 GHz band, the technician should use only the non-overlapping channels 1, 6, and 11, and avoid the channels in between.

Signal interference: If there are other sources of electromagnetic radiation or noise that operate on the same or similar frequency bands as the wireless network, they may interfere with the wireless signals and cause distortion or loss. The technician can look for the signal strength and quality of each network and avoid the ones that are weak or noisy. For example, some common sources of signal interference are microwave ovens, cordless phones, Bluetooth devices, or baby monitors.

To fix the channel interference issue, the technician can try the following solutions:

Change the channel of the wireless network: The technician can use the Wi-Fi analyzer tool to find the least congested and most optimal channel for the network, and then change the channel settings on the router or the access point. The technician should also consider using the 5 GHz band instead of the 2.4 GHz band, as it offers more and wider channels and less interference.

Relocate the router or the access point: The technician can move the router or the access point to a different location, away from potential sources of interference or obstacles that may block or weaken the wireless signals, such as walls, furniture, or metal objects. The technician should also place the router or the access point in a central and elevated position, to provide better coverage and signal quality for the network.

Upgrade the router or the access point: The technician can replace the router or the access point with a newer and more advanced model, that supports the latest Wi-Fi standards, such as Wi-Fi 6 (802.11ax) or Wi-Fi 5 (802.11ac). These standards offer higher data rates, lower latency, and better performance in dense and noisy environments, compared to the older standards, such as Wi-Fi 4 (802.11n) or Wi-Fi 3 (802.11g).

RFD stands for Radio Frequency Identification, which is a technology that uses radio waves to identify and track objects that have RFID tags attached to them. RFID tags are small devices that store information and can be read by RFID readers without direct contact or line of sight. RFID can be used for inventory management, as it can provide real-time visibility and accuracy of the location, quantity, and status of the items in a warehouse, store, or supply chain .

Rapid elasticity is the ability of a cloud service to scale up or down the resources (such as virtual servers, storage, bandwidth, etc.) according to the demand of the users. This is an efficient way to handle unusually high web traffic usage, as it allows the company to provision more virtual servers when needed and release them when not needed, without wasting resources or paying for unused capacity. Rapid elasticity also improves the performance and availability of the web service, as it can adjust to the fluctuations in traffic and avoid overloading or downtime.

References

Rapid Elasticity in Cloud Computing: On-Demand Scaling for Business

Chapter 4: Virtualization and Cloud Computing

Memory modules are physical components that store data and instructions for the computer to access and process. Memory modules have different specifications and features, such as type, speed, capacity, voltage, and form factor. These specifications and features must be compatible with the motherboard and the processor of the computer, otherwise the memory modules may not work properly or cause errors.

In this scenario, the technician is working to replace a single DDR3 RAM module on a laptop that has two occupied slots. DDR3 stands for Double Data Rate 3, and it is a type of memory technology that offers faster performance and lower power consumption than its predecessors. DDR3 RAM modules have different variants, such as DDR3L, DDR3U, or DDR3R, which have different voltage requirements. For example, DDR3L operates at 1.35V, DDR3U operates at 1.25V, and DDR3R operates at 1.5V.

When the technician tries to turn on the laptop, the computer starts beeping and does not pass POST. POST stands for Power-On Self-Test, and it is a process that checks the hardware components and functionality of the computer before loading the operating system. If POST detects an error or a failure, it may produce a series of beeps or codes to indicate the problem. The number and pattern of beeps or codes may vary depending on the manufacturer or model of the computer.

The technician double-checks the newly installed RAM and notices a motherboard message indicating low voltage. This means that the motherboard is not receiving enough power from the memory module to operate normally. This could indicate that the memory module is not compatible with the motherboard or the processor, or that it is defective or damaged. The most likely cause of this issue is that the technician installed an unsupported memory module that has a lower voltage than what the motherboard or the processor requires.

To resolve this issue, the technician should remove the newly installed RAM module and replace it with a compatible one that has the same voltage as the existing ones. The technician should also check the specifications and features of the motherboard and the processor to ensure that they support the type, speed, capacity, and form factor of the memory modules. The technician should also follow proper safety precautions when handling memory modules, such as wearing an anti-static wrist strap, avoiding physical damage or static discharge, and aligning the notches correctly.

The correct answer is A. DHCP scope.

A DHCP scope is a consecutive range of IP addresses that a DHCP server can select from to fulfill requests from network clients. A DHCP server is a device that automatically assigns IP addresses and other network configuration parameters to devices that request them. A DHCP scope defines the pool of available IP addresses, as well as the subnet mask, default gateway, DNS servers, and lease duration for each IP address. A DHCP scope can also include exclusions, reservations, and policies to customize the IP address allocation process12.

A static IP list is a list of IP addresses that are manually assigned to devices and do not change over time. A static IP list does not require a DHCP server, but it requires more administrative effort and coordination to avoid conflicts or errors. A static IP list is not a consecutive range of IP addresses that a server can select from3.

DNS A records are DNS records that map a domain name to an IPv4 address. DNS is a system that translates human-readable domain names into machine-readable IP addresses. DNS A records are not a range of IP addresses that a server can select from, but a way of resolving domain names to IP addresses.

Automatic private IP addressing (APIPA) is a feature of Windows that allows devices to self-assign an IP address in the absence of a DHCP server or a static IP configuration. APIPA uses the 169.254.0.0/16 address range, which is reserved for link-local communication. APIPA does not create a range of IP addresses that a server can select from, but a fallback mechanism for devices that cannot obtain an IP address from another source.

For more information about DHCP scopes and other related topics, you can refer to the following web search results: DHCP Scope - NETWORK ENCYCLOPEDIA, Managing Microsoft DHCP Scope and other Components - ATA Learning, Dynamic Host Configuration Protocol (DHCP) | Microsoft Learn.

An SSD (solid state drive) is a removable storage device that uses flash memory to store data. It is secure, portable, and does not contain moving parts, which makes it more reliable and durable than other types of storage devices. An HDD (hard disk drive) is not suitable, as it contains spinning platters and read/write heads that are prone to damage and data loss. A NAS (network attached storage) and a SAN (storage area network) are not removable devices, as they are connected to a network and provide shared storage for multiple users.

The most likely cause of the wireless network connectivity issues is A. External interference.

External interference is any signal or noise that disrupts or degrades the quality of a wireless network. External interference can come from various sources, such as other wireless networks, cordless phones, microwaves, Bluetooth devices, or electrical appliances. External interference can affect the wireless network performance, reliability, and security, by causing issues such as signal loss, packet drops, latency, or interference.

In this scenario, a company in a large building uses a wireless network for its workstations. After a new company moves into the building on the floor below, the old company’s wireless network begins experiencing connectivity issues. This could indicate that the new company’s wireless network is using the same or overlapping frequency channel as the old company’s wireless network, and creating external interference. Wireless networks use radio frequency channels to transmit and receive data, and each channel has a certain bandwidth and range. If two or more wireless networks use the same or overlapping channel, they may interfere with each other and cause congestion or collision.

To resolve this issue, the old company’s network technician should change the wireless network channel to a different one that is less crowded or more compatible with the wireless network standard. The technician should also check the wireless network settings and features, such as SSID (Service Set Identifier), encryption, authentication, or power level, and adjust them if necessary. The technician should also scan the wireless environment and identify the sources and levels of external interference, and try to avoid or minimize them if possible.

For more information about external interference and how to prevent or reduce it, you can refer to the following web search results: [What Is Wireless Interference?], [How to Find the Best WiFi Channel for Your Router], [How to Reduce Wireless Interference].

A USB adapter is a device that can plug into a USB port on a laptop and provide wireless connectivity to a network. A USB adapter can support different wireless standards, such as 802.11a, 802.11b, 802.11g, 802.11n, or 802.11ac. A USB adapter can also support different wireless frequencies, such as 2.4 GHz or 5 GHz.

In this case, the user with an older laptop may not be able to connect to the office network after new access points were installed because the laptop’s built-in wireless card does not support the same wireless standard or frequency as the new access points. For example, if the new access points use 802.11ac and 5 GHz, and the laptop’s wireless card only supports 802.11g and 2.4 GHz, the laptop will not be able to communicate with the access points.

To quickly resolve this issue, the user should connect a new USB adapter that supports the same wireless standard and frequency as the new access points. This way, the user can bypass the laptop’s wireless card and use the USB adapter to connect to the office network wirelessly.

The most likely reason for the issue is that the webcam is not on a level surface, which causes the camera angle to be distorted. The user should adjust the position of the webcam so that it is aligned with the laptop screen and captures the user’s face fully. The other options are not relevant to this issue, as they would not affect the camera angle or visibility of the user’s face. Verified References: How to Position Your Webcam Correctly.

The best way to connect the devices is A. Enable pairing.

Pairing is a process that allows two Bluetooth devices, such as a smartphone and a headset, to communicate with each other wirelessly. Pairing creates a secure connection between the devices and allows them to exchange data and audio signals. To pair the devices, the user needs to enable Bluetooth on both devices, make them discoverable, and select the desired device from the list of available devices. The user may also need to enter a PIN code or confirm a passkey to complete the pairing process .

The other options are not the best ways to connect the devices. A hotspot is a feature that allows a smartphone to share its cellular data connection with other devices via Wi-Fi, Bluetooth, or USB. A hotspot can provide internet access to other devices, but it does not allow them to communicate with each other directly. NFC stands for Near Field Communication, which is a technology that allows two devices to exchange data by bringing them close together (usually within 4 cm). NFC can be used to initiate pairing between two Bluetooth devices, but it cannot establish a connection by itself. Synchronization is a process that allows two devices to update and match their data, such as contacts, calendars, photos, or music. Synchronization can be done via Wi-Fi, Bluetooth, USB, or cloud services, but it requires an existing connection between the devices.

A redundant power supply is a type of power supply that consists of two or more independent units that can provide power to the same device or system. A redundant power supply can increase the reliability and availability of the device or system, because if one unit fails, the other unit can take over and continue to provide power without interruption. A redundant power supply is often used in servers that require continuous availability, such as web servers, database servers, or file servers.

The best option to help the administrator secure the corporate resources is B. Biometric scanner.

A biometric scanner is a device that can authenticate a user’s identity based on their physical or behavioral characteristics, such as fingerprint, iris, face, voice, or signature. A biometric scanner can provide a high level of security and convenience for accessing corporate laptops, as it can prevent unauthorized users from accessing the devices and eliminate the need to remember passwords .

The other options are not the best options for this scenario. A Trusted Platform Module (TPM) is a chip that can store encryption keys and other sensitive data on a laptop. A TPM can enhance the security of data and devices, but it does not limit access to authorized users by itself. A TPM can work with a password or a biometric scanner to provide multifactor authentication . A laptop lock is a device that can physically secure a laptop to a desk or other object using a cable and a lock. A laptop lock can deter theft or tampering, but it does not prevent unauthorized users from accessing the laptop if they have the password or the key. Encryption is a process that can protect data on a laptop by transforming it into an unreadable format using a key. Encryption can prevent unauthorized users from accessing or modifying the data, but it does not prevent them from accessing the laptop itself.

The transmit power settings of the access point determine how strong the Wi-Fi signal is. If the transmit power is too low, the Wi-Fi network will have slow connection speeds and poor coverage. If the transmit power is too high, the Wi-Fi network will interfere with other nearby networks and devices, causing congestion and performance issues. Therefore, the technician should check the transmit power settings first and adjust them to an optimal level for the office environment.

The best solution for the developer is D. Sandbox environment.

Client-side virtualization is a technology that allows users to run multiple operating systems and applications on the same device, without affecting the host system or the network1. A sandbox environment is a type of client-side virtualization that creates a secure and isolated space for testing, debugging, or experimenting with code, without risking any damage or interference to the rest of the system2.

A sandbox environment can provide several benefits for the developer, such as23:

•It can simulate different scenarios and conditions for the code, such as different operating systems, browsers, devices, network settings, etc.

•It can protect the code from external threats, such as malware, hackers, or unauthorized access.

•It can prevent the code from affecting other applications or processes on the device or the network, such as consuming resources, causing errors, or leaking data.

•It can allow the developer to easily revert any changes or restore the original state of the system, if something goes wrong.

Therefore, a sandbox environment can provide the best solution for the developer who wants to write code in a setting isolated from other infrastructure to avoid negative impacts of experimental code.

The first step to troubleshoot this issue is to check if the website that hosts the random number generator is HTTPS enabled. This means that the website supports secure communication using SSL certificates and encryption. If the website is not HTTPS enabled, it may not be compatible with the SSL redirection implemented by the IT department. SSL redirection is a technique that automatically redirects HTTP requests to HTTPS, ensuring that the data exchanged between the web browser and the website is protected. However, some websites may not have SSL certificates or may have expired or invalid ones, which can cause errors or warnings when trying to access them via HTTPS. Therefore, the technician should check the website’s URL and see if it starts with or If it is the latter, the technician should try to manually change it to and see if the website loads correctly. If it does not, the technician should contact the website owner or administrator and ask them to enable HTTPS or update their SSL certificates.

The most likely cause of the issue is that the laptop has a swollen battery, which is a condition where the battery expands due to gas buildup inside the cells. A swollen battery can cause physical damage to the laptop, such as pushing against the track pad or keyboard and preventing them from functioning properly. The technician should inspect the battery and replace it if it is swollen. A damaged digitizer is not the cause of the issue, as the digitizer is a component that converts touch input into digital signals, and it does not affect the track pad or keyboard. Distended capacitors are not the cause either, as capacitors are electronic components that store electric charge, and they do not affect the track pad or keyboard. A failed accelerometer is not the cause as well, as an accelerometer is a sensor that measures acceleration, and it does not affect the track pad or keyboard. References:

The most likely answer is A. Change the resolution settings.

The error “Out of Range” normally means that the resolution being output by the computer is not compatible with the projector. The resolution is the number of pixels that are displayed on the screen. If the resolution is too high for the projector, it may not be able to display the image correctly or at all12.

To resolve this issue, you should try lowering the resolution settings on your laptop to match the native resolution of the projector or a lower one. You can do this by following these steps1:

•Right-click on an empty area of your desktop and select Display settings.

•Under Scale and layout, click on Display resolution and choose a lower option from the drop-down menu.

•Click Apply and then Keep changes.

•Reconnect your laptop to the projector and check if the image is displayed properly.

If changing the resolution settings does not help, you may need to check other factors, such as the video cable, the display settings, or the video card driver. However, these are less likely to cause the “Out of Range” error than the resolution settings.

The first steps that the technician should perform are A. Check the version of the HDMI cable and B. Check the input source.

A possible cause of the problem is that the HDMI cable is not compatible with the 4K resolution of the monitor. HDMI cables have different versions that support different features and bandwidths. For example, HDMI 1.4 supports up to 4K at 30 Hz, while HDMI 2.0 supports up to 4K at 60 Hz1. The technician should check the version of the HDMI cable and make sure it matches the specifications of the monitor and the desktop.

Another possible cause of the problem is that the monitor is not set to the correct input source. The input source is the option that allows the monitor to switch between different video signals from different ports, such as HDMI, DVI, VGA, or DisplayPort2. The technician should check the input source and make sure it is set to HDMI, since that is how the desktop is connected to the monitor. The input source can usually be changed using the buttons or menu on the monitor itself2.

The correct answer is C. DSL.

DSL stands for Digital Subscriber Line, which is a technology that delivers internet over a copper medium, such as a telephone line. DSL uses different frequencies than voice calls, so it can provide both internet and phone service simultaneously. DSL can offer faster speeds than dial-up, but it depends on the distance from the service provider and the quality of the copper line .

The other options are not technologies that deliver internet over a copper medium. ONT stands for Optical Network Terminal, which is a device that converts optical signals from a fiber optic cable to electrical signals for a copper cable or a wireless router. ONT is used for fiber-to-the-home (FTTH) internet service, which delivers internet over a fiber optic medium. SDN stands for Software Defined Networking, which is a technology that allows network administrators to manage and control network resources and traffic using software applications. SDN is not related to the physical medium of internet delivery, but rather to the logical layer of network configuration and optimization. WISP stands for Wireless Internet Service Provider, which is a company that delivers internet over a wireless medium, such as radio waves or microwaves. WISP can provide internet access to rural or remote areas where wired connections are not available or feasible.

An 8-pin PCIe (Peripheral Component Interconnect Express) power cable is required to provide adequate power to each GPU in an SLI (Scalable Link Interface) configuration. High-performance GPUs often require more power than the PCIe slot on the motherboard can supply, necessitating additional power directly from the power supply. The 8-pin PCIe connector can deliver more power than the standard 6-pin connector, making it suitable for high-end graphics cards commonly used in SLI configurations. This requirement is consistent with the hardware installation and configuration principles covered in the CompTIA A+ Core 1 (220-1101) Exam Objectives, particularly in sections dealing with hardware components and their installation .

The correct answer is D. UDP.

UDP (User Datagram Protocol) is a connectionless protocol that does not establish a connection before sending or receiving data. UDP simply sends datagrams to the destination without checking if the receiver is ready or not. UDP does not guarantee reliable delivery, error correction, or in-order arrival of the data. UDP is faster and more efficient than connection-oriented protocols for applications that do not require reliability, such as streaming audio or video1

A. SSH (Secure Shell) is not a correct answer. SSH is a connection-oriented protocol that uses TCP (Transmission Control Protocol) as its transport layer. SSH establishes a secure and encrypted connection between two network endpoints before exchanging data. SSH provides authentication, confidentiality, and integrity for remote login and command execution2

B. TCP (Transmission Control Protocol) is not a correct answer. TCP is a connection-oriented protocol that establishes a connection before sending or receiving data. TCP ensures reliable delivery, error correction, and in-order arrival of the data. TCP is slower and more complex than connectionless protocols, but it provides more reliability and quality of service for applications that require it, such as web browsing or email1

C. HTTPS (Hypertext Transfer Protocol Secure) is not a correct answer. HTTPS is a connection-oriented protocol that uses TCP as its transport layer and SSL/TLS as its security layer. HTTPS establishes a secure and encrypted connection between a web browser and a web server before exchanging data. HTTPS provides authentication, confidentiality, and integrity for web transactions, such as online banking or shopping1

The digitizer is the component that converts the touch input into electrical signals that are processed by the tablet. If the digitizer is damaged or malfunctioning, it may not register the touch input correctly or at all. The technician can test the digitizer using a diagnostic tool or by replacing it with a known good one. Updating the device drivers, replacing the damaged screen protector, or performing a factory reset are unlikely to fix the issue, as they do not address the hardware problem.

M.2 SSD and NVMe interface are the best options for storage devices and interfaces that provide the best performance. M.2 SSD is a form factor that allows for faster data transfer and lower power consumption than traditional SATA SSDs. NVMe is a protocol that enables direct communication between the SSD and the PCIe bus, bypassing the SATA controller and reducing latency and overhead. Together, they offer the highest speed and efficiency for storage devices.

The correct answers are D. The overall IT cost goes down and F. Upgrading applications is easier.

Application virtualization is a technology that allows users to run applications without installing them on their devices. The applications are stored and executed on a remote server, and the users can access them through a network connection. Application virtualization has several benefits, such as12:

•The overall IT cost goes down: Application virtualization reduces the need for hardware, software, and maintenance costs, as the applications are centralized and managed on the server side. This also saves energy and space, as fewer physical machines are required to run the applications. Additionally, application virtualization can reduce licensing costs, as the applications can be delivered on-demand and based on usage.

•Upgrading applications is easier: Application virtualization simplifies the process of updating and patching applications, as the changes can be made on the server side and pushed to the users instantly. This eliminates the need for manual installation and configuration on each device, and ensures that all users have the latest version of the applications.

Other benefits of application virtualization include123:

•Allows the running of legacy apps: Application virtualization can enable users to run applications that are developed for older or incompatible operating systems, such as Windows 7 or XP. This can extend the lifespan of legacy applications and avoid compatibility issues.

•Enables cross-platform operations: Application virtualization can allow users to run applications that are designed for different platforms, such as Windows apps on iOS, Android, macOS, or Chrome OS. This can increase the accessibility and mobility of the applications and enhance the user experience.

•Improves security and compliance: Application virtualization can isolate the applications from the underlying operating system and hardware, preventing malware or unauthorized access from affecting them. This can also protect the data and settings of the applications from being tampered with or lost. Furthermore, application virtualization can help enforce compliance policies and regulations, as the applications can be controlled and monitored by the server.

The correct answer is C. Cat 6.

An RJ45 connector is a standard type of physical connector for network cables. RJ45 connectors are used almost exclusively with Ethernet cables and networking1. Ethernet cables are twisted pair cables that carry data signals between devices on a network, such as computers, routers, switches, and servers2.

There are different categories of Ethernet cables, such as Cat 5, Cat 5e, Cat 6, and Cat 7, that have different specifications and performance levels. Cat 6 is one of the most common types of Ethernet cables, which supports data transfer speeds up to 10 Gbps and bandwidth up to 250 MHz3. Cat 6 cables have four pairs of copper wires, each with a plastic insulation and a foil or braided shield. The wires are twisted together to reduce crosstalk and interference4.

To terminate a Cat 6 cable, an administrator needs to use an RJ45 connector that matches the wiring scheme of the cable. There are two common wiring schemes for Ethernet cables: T568A and T568B. The administrator needs to strip the cable jacket, untwist the wires, arrange them in the correct order according to the chosen scheme, trim the excess wire, and insert them into the RJ45 connector. Then, the administrator needs to use a crimping tool to secure the wires and the connector4.

Optical cables are not terminated with RJ45 connectors, but with different types of connectors that can transmit light signals, such as SC, ST, LC, or MTRJ connectors. Optical cables are used for fiber-optic networks that can carry data over long distances at high speeds.

Serial cables are not terminated with RJ45 connectors, but with different types of connectors that can transmit serial data signals, such as DB9, DB25, or DE9 connectors. Serial cables are used for connecting devices that use serial communication protocols, such as modems, printers, scanners, or keyboards.

USB cables are not terminated with RJ45 connectors, but with different types of connectors that can transmit universal serial bus data signals, such as USB-A, USB-B, USB-C, or Micro-USB connectors. USB cables are used for connecting devices that use USB communication protocols, such as flash drives, cameras, mice, or chargers.

High availability is a characteristic of cloud computing that prioritizes reliability. High availability means that cloud services can be accessed without interruption or failure, even in the event of a disaster or a hardware malfunction. This is achieved by using redundant components, backup systems, load balancing, and failover mechanisms. According to the CompTIA Core1 objectives, one of the benefits of cloud computing is high availability. A research paper on cloud reliability also defines high availability as the ability to provide continuous service despite faults or failures.

The issue is related to interference from the microwave, which operates at 2.4GHz, the same frequency as some Wi-Fi channels. To avoid this interference, the technician should configure the Wi-Fi access point (AP) to use a 5GHz band, which has more channels and less interference from other devices. Changing the Wi-Fi operation channel may not solve the problem if the microwave interferes with multiple channels. Increasing the power output of the AP may not overcome the interference and may cause more interference to other devices. Changing the SSID to hidden does not affect the interference at all, and may make it harder for users to connect to the network. References:

A load balancer is a device or software that distributes network traffic across multiple servers or resources, such as web server farms, to optimize performance, reliability, and scalability. A load balancer controls the flow of users connecting to web server farms and prevents overutilization on any individual server by using various algorithms, such as round robin, least connections, or weighted distribution. A load balancer can also provide health checks, failover, caching, compression, encryption, and other features to enhance the user experience and security.

NFC (Near Field Communication) is a wireless communication technology that is commonly used for contactless payments, mobile payments, and other mobile transactions. It allows two devices to communicate with each other when they are placed in close proximity.

Contactless payments commonly use NFC (Near Field Communication). NFC is a wireless communication technology that allows two devices to communicate with each other when they are in close proximity. Contactless payments use NFC to enable customers to make payments by simply tapping their contactless card or mobile device on a payment terminal.

A technician is working on a help desk ticket for a user who wants the filament replaced in a 3-D printer. To remove the old filament and load the new one, the technician should preheat the nozzle to melting temperature. After the nozzle is heated, the technician should withdraw the filament and remove the spool. Then, cut a sharp angle on the end of the new strand, and push it along until resistance is felt.

The most common reasons you may be seeing the "No Signal" message: The projector and the source device are not connected correctly.

The first action should be to check the video cable and replace it if necessary, as the error message suggests that the projector is not receiving a signal from the laptop. Verifying that the projector is turned on and checking the bulb would come after verifying the video cable.

A USB to 9-pin serial adapter can be used to connect the new computer to the point-of-sale system using a USB port. USB is a common and versatile port type found on most computers.

If a technician is replacing a computer with a connected point-of-sale system using a 9-pin serial adapter and the new computer does not have a 9-pin serial port, an adapter can be installed on the USB port in order to connect to the point-of-sale system. A USB-to-serial adapter can be used to connect a serial device to a USB port on a computer.

The concept described in the question is related to virtualization and resource management in a virtual environment. The approach that allows all virtual machines (VMs) to have memory (RAM) allocated for use is known as resource pooling. Therefore, the correct answer is D: "Resource pooling." This approach allows resources to be allocated dynamically to VMs based on their current needs, and ensures that resources are used efficiently in the virtual environment.

Resource pooling is a technique used in virtualization to share resources among multiple virtual machines (VMs). With resource pooling, RAM can be allocated dynamically to VMs as needed, allowing all VMs in a virtual environment to have RAM allocated for use.

A private cloud deployment model provides the company with complete control over how the data is managed. This is because a private cloud is managed solely by the organization and resides on-premises or in a data center. Therefore, a private cloud deployment model is the best option for this scenario.

If the touch-screen features on a Windows device have stopped working, a technician should check the Tablet/PC settings. The Tablet/PC settings contain options for configuring the touch-screen features on a Windows device. By checking the Tablet/PC settings, the technician can ensure that the touch-screen features are enabled and configured correctly.

If the touch-screen features on a Windows device have stopped working, a technician should check the Tablet/PC settings. The touch-screen settings may have been disabled or there may be a driver issue that needs to be resolved. References: CompTIA A+ Certification Exam Guide, pg. 536

it appears that option A, restoring function to the air conditioner, would most likely solve the thermal printer issue in the described scenario. The failure of the air conditioner during the summer could likely have caused high humidity or heat in the factory, which can affect the printing quality of thermal printers by causing blank spots or missing text. By restoring function to the air conditioner, the temperature and humidity in the factory can be controlled, which can help eliminate these printing issues. However, it is still possible that any of the other options listed could also potentially solve the issue, so it is best to assess the situation further and try different solutions if necessary.

An impact printer is a type of printer that uses a ribbon to produce text and images on paper. If an impact printer is producing faded text and images when printing, it could be due to a worn-out ribbon that needs to be replaced. The technician would need to replace the ribbon on the impact printer to resolve the issue.

A ribbon is a consumable component used in impact printers that uses a cloth or plastic strip coated with ink to produce text and images on paper. Examples of impact printers include dot matrix printers and line printers. References: Study Guide Section 4.6 - Printer technologies

The technician should install the appropriate printer drivers for the OS to enable the computer to communicate with the printer. The generic printer name suggests that the drivers are missing or not installed correctly.

The Domain Name System (DNS) is responsible for translating domain names into IP addresses. By blocking malicious sites from resolving correctly, the DNS server is able to prevent the user from accessing those sites. Therefore, the DNS server setting on the user’s router needs to be changed to enable this functionality123.

When installing a printer on a network, the technician needs to configure the network settings, which include the IP address, subnet mask, and gateway. These settings are used to ensure that the printer can communicate with other devices on the network.

When installing a printer on a network, the technician must configure the network settings of the printer to ensure that it can communicate with other devices on the network. This includes configuring the gateway, subnet mask and IP address of the printer.

The gateway is the device that connects the local network to other networks or the Internet. The subnet mask is used to determine which part of an IP address represents the network and which part represents individual hosts on that network. The IP address is a unique identifier for each device on a network.

The technician should ask the user additional clarifying questions regarding the issue. This will help to identify any other potential causes of the issue, such as software configuration or compatibility issues, before attempting any further troubleshooting steps.

If a workstation shuts down unexpectedly during a burn-in test, overheating is the most likely cause. This is because a burn-in test is designed to stress the components of the workstation, which can generate a lot of heat. Therefore, overheating is the correct answer. References: CompTIA A+ Certification Exam Guide, Ninth Edition, page 120

Enabling secure boot will verify the digital signature of the bootloader and operating system, ensuring that the system only boots from trusted and authorised sources. This can prevent booting from an unauthorised live CD or other external media.

The best way to prevent booting from a live Linux CD on a computer in a shared space on campus is to enable secure boot. Secure boot is a feature that ensures that the system only runs software that is signed by an authorized party. This means that the system will not boot from any unauthorized media, including live Linux CDs.

Secure Boot is a feature that ensures that the system only runs software that is signed by an authorized party. This means that the system will not boot from any unauthorized media, including live Linux CDs. Secure Boot is an important security feature designed to prevent malicious software from loading when your PC starts up (boots)1.

Booting from a live Linux CD is a process that allows you to run a Linux operating system from a CD or DVD without installing it on your hard drive. This can be useful for testing or troubleshooting purposes. To boot from a live Linux CD, you need to insert the CD or DVD into your computer’s CD/DVD drive and restart your computer. Most systems are set up to automatically boot from the CD/DVD drive, but if your system is not set up this way, you may need to change a system setting to boot from a Linux CD/DVD23.

The company should buy Coaxial cables to be used with F-type connectors.

The IT department should implement VDI. Virtual Desktop Infrastructure (VDI) is a technology that allows users to access a desktop operating system from a remote location. VDI provides complete control over users’ operating systems, which is important for safeguarding data. VDI also provides a secure way to access data from remote locations, which is important for compliance with government-enforced requirements1.

Since the hard drive appears to be functioning normally, the technician should investigate other potential causes of the issue. This could include checking the BIOS settings, verifying the connections to the hard drive, and testing the RAM. Once these steps have been completed, the technician can then take the necessary steps to resolve the issue.

If a technician is tasked with upgrading a laptop’s RAM, the technician should verify the memory requirements of the motherboard first. The motherboard of the laptop will have specific requirements for the type and amount of RAM that can be installed. By verifying the memory requirements of the motherboard, the technician can ensure that the new RAM is compatible with the laptop.

Before upgrading a laptop's RAM, a technician should verify the memory requirements of the motherboard to ensure the new RAM is compatible. The type, speed, and maximum capacity of the RAM should be checked to ensure it meets the requirements of the motherboard. References: CompTIA A+ Certification Exam Guide, pg. 347-348

The technician will need to connect the DVI port on the computer to the new display's HDMI port. To do this, a DVI to HDMI cable will be needed. This type of cable will allow the computer's DVI video signal to be transmitted to the new display's HDMI port.

A digital-to-analog converter (DAC) is used to convert a digital signal to an analog signal. An A/V switcher is used to switch between multiple audio and video sources and display them on a single monitor or display. A DisplayPort to HDMI adapter is used to convert a DisplayPort signal to an HDMI signal, but it is not necessary in this scenario as the computer has a DVI port and not a DisplayPort.

The pink hue is most likely caused by physical cabling issues

the output on a monitor is clear but has a pink hue, it could be due to an issue with the physical cabling connecting the monitor to the computer. The video signal may be degraded or distorted due to a damaged or loose cable. The technician should check and replace the cable if necessary to resolve the issue.

Vertical or horizontal lines—Marks that appear in the same place (referred to as repetitive defects) are often due to dirty feed rollers (note that there are rollers in the toner cartridge and fuser unit too) or a damaged or dirty photosensitive drum.

Vertical streaks on a laser printer output are usually caused by a damaged or worn-out drum, which is responsible for transferring toner to the paper. If the drum is damaged, toner may accumulate on certain parts of the drum, leading to streaks on the printed output. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition, Chapter 15

The Official CompTIA® A+® Core 1 and Core 2 Student Guide (Exams 220-1001 and 220-1002) | 193 Protected content. If you encounter an error that indicates unauthorized content or an HDCP error: • DVI, HDMI, DisplayPort, and Thunderbolt all provide support for the Digital Rights Management (DRM) mechanism High-bandwidth Digital Content Protection (HDCP). HDCP allows a content source (such as a Blu-ray disc) to disable itself if the display adapter and monitor and/or speaker system do not support HDCP and fail to authenticate themselves with the playback source. There have been various iterations of HDCP (at time of writing the current version is 2.2) and backward-compatibility can be problematic as authentication may fail between devices that support different versions of the standard.

BSoDs can be caused by poorly written device drivers or malfunctioning hardware, such as faulty memory, power supply issues, overheating of components, or hardware running beyond its specification limits. In the Windows 9x era, incompatible DLLs or bugs in the operating system kernel could also cause BSoDs.

The technician should boot into the BIOS and enable the TPM on the new motherboard to enable the system to boot again and get access to the stored data1.

Boot into the BIOS and enable the TPM on the new motherboard. Explanation: After upgrading the motherboard, the TPM may need to be enabled in the BIOS in order to access the encrypted key and boot the system. Enabling the TPM on the new motherboard should allow the system to boot and provide access to the encrypted data. References: CompTIA A+ Certification Exam Guide, 220-1001, Chapter 13

Utilizing a grounding strap is the safest way to replace RAM on a server that has a redundant power supply. This ensures that no static electricity is transferred to any of the server components, which could cause permanent damage. The other options are not the correct methods for replacing RAM. Unplugging one power cable is not recommended, as it could cause the server to go offline and disrupt any services that are running. Verifying the RAM temperature is not necessary and does not provide any additional safety measures, and replacing the RAM while the server is running is not recommended, as it could cause system instability.

A blot on the screen of a smartphone is most likely caused by damage to the digitizer, which is the part of the device responsible for interpreting touch input. Improper charging is unlikely to cause a blot on the screen, as is damage to the ambient light sensor. Liquid damage is a possibility, but it is more likely to cause discoloration or other physical damage to the screen.

Adjusting the lens is the best solution to improve image quality in a projector. The lens can become misaligned over time or during transportation, causing the image to appear fuzzy.

RAID 10 combines the benefits of RAID 0 and RAID 1. It uses a striped configuration across multiple disks (similar to RAID 0) to provide high-speed read and write access. Additionally, it also mirrors the striped array onto a second set of drives (similar to RAID 1), providing redundancy in case of a drive failure.

M.2 NVMe SSD provides the fastest data access possible for a laptop. It is a high-performance solid-state drive that connects directly to the motherboard through an M.2 slot.

Verify that the OS supports hot swapping the RAM. Before replacing the RAM on an entry-level server with hot-swappable components, the technician should verify that the operating system supports hot swapping of RAM.

The cause of the issue is likely due to a DNS resolution issue. While the technician can ping the servers by IP address, they cannot ping the UNC path, indicating an issue with the name resolution. This can be resolved by configuring the correct DNS server settings.

To configure the laptop to show both screens, the technician should adjust the monitor display settings. On Windows 10 or 11, the technician can select the Start menu, then open Settings, then select Display. The PC should automatically detect the monitors and show the desktop. If the monitors are not detected, the technician can select Multiple displays, then Detect. The technician can then use the dropdown list next to the image of the desktop to choose how the screen will project across the displays12345.

USB 3.0 ports are slightly smaller than other USB connections, so if the port appears to be the wrong size, it is likely that the port belongs to a different form factor. This can be caused by a number of factors, such as the device being too old to support USB 3.0, or the device not having a USB 3.0 port in the first place.

A load balancer is a network device that distributes network or application traffic across multiple servers to ensure that no single server bears too much of the load. Load balancing helps to improve application availability, increase scalability, and optimize resource utilization.

A bridge is used to connect two different networks, often to divide a larger network into smaller segments. A proxy server is used to forward client requests to other servers, and can also be used to cache frequently requested data. A switch is used to connect multiple devices within a network and to control the flow of network traffic. A firewall is used to secure a network by controlling incoming and outgoing traffic based on defined security rules.

Upgrading all workstations and providing a virtual environment for the legacy software is the best option, as it allows the engineering department to continue using the vital software while also upgrading to the latest version of Windows. This also ensures that the rest of the organization can take advantage of the latest software and security features.

If a user’s PC is very sluggish, the HDD light on the PC is constantly on without blinking, the PC itself is slow receiving input, and it takes a very long time to load the OS, the HDD has no free space is most likely the cause of these issues. When the hard disk drive (HDD) has no free space, the computer may become slow and unresponsive. The technician should check the amount of free space on the HDD and delete any unnecessary files to free up space.

If a user is unable to connect a laptop to a projector or videoconferencing system and sees the error message "No source found," the next step should be to check the display settings on the computer and set them to extend/duplicate. This will ensure that the laptop's display is being output to the external device. References: CompTIA A+ Certification Exam Guide, pg. 514

Using the device as a Wi-Fi hotspot, a failing battery, and too many open applications are the most likely causes of the cell phone getting hot. These actions require the phone to use more power and processing, causing it to heat up.

Punchdown tools are used to make connections between wires in a 66/110 block at the demarcation point. The tool is used to insert the wire into the appropriate holes in the block, and it can be used to add additional lines to the demarcation point. The other options are not the correct tools for adding lines to the demarcation point. A toner is used to identify cable pairs, a network tap is used to monitor network traffic, and a crimper is used to terminate cables.

The MOST efficient next step the technician should do is to test the output resolution1. The issue of a projector that will not display any images could be related to the output resolution1. If the output resolution is not compatible with the projector, the projector will not display any images1. Calibrating the image, replacing the bulb, or cleaning the fans may not be effective1.

If a projector is not displaying any images despite verifying that the computer output and cable are providing a good video signal, the technician should test the output resolution. The output resolution of the computer may not be compatible with the projector, which can cause the projector to not display any images.

A 1000W 24-pin modular power supply provides enough power to support a dual graphics card configuration, which requires a significant amount of power. A modular power supply allows the technician to connect only the cables that are necessary for the current configuration, reducing cable clutter and improving airflow inside the case. This makes it easier to install and maintain the power supply.

802.11ax, also known as Wi-Fi 6, has the longest range and the highest wireless throughput of all the wireless technologies listed. References: CompTIA A+ Certification Exam Guide, 220-1001, Chapter 3

Lightning Connector: Apple introduced this brand-new connector back in 2012. It is over 80% smaller than the 30-pin connector and is reversible.

If a computer is not booting and the onboard speaker emits beeps, it can indicate a hardware issue. One of the most common causes of beep codes is overheating, which can occur if the processor's fan is not properly installed and running. The processor's fan is responsible for cooling the processor and preventing damage to the internal components.

The appropriate connection types for connecting an external keyboard to an Android tablet are USB-C and Bluetooth123.

A router is a device that connects one or more networks, such as a home or small office network, to the internet. It allows multiple devices to share a single internet connection and provides network address translation (NAT) to enable communication between the devices on the local network and the internet. A hub, Ethernet gateway, or wireless access point does not provide this functionality.

A router is the most likely device to be used to connect one or more devices to the internet in a SOHO. A router can provide network address translation (NAT), firewall protection, and other features that are important for securing and managing a network. References: CompTIA A+ Certification Exam Guide, pg. 355

The error message "Reboot and Select Proper Boot Device" indicates that the computer cannot find the boot device that contains the operating system12. This can happen if the hard drive that stores the operating system is damaged or failed, and the BIOS cannot detect it or read from it23. A failed hard drive can also cause other symptoms such as clicking noises, corrupted files, or slow performance4.

A network tap is a physical device that allows promiscuous monitoring of network traffic by creating a copy of the data packets for analysis. A toner probe is used to trace and identify cables. A Wi-Fi analyzer is used to measure wireless signal strength and interference. A loopback plug is used to test network ports or cables by sending and receiving signals from the same device.

Updating the preferred roaming list (PRL) is what a user should do to resolve the issue of being unable to get personal cell phone service after traveling to another country. The PRL is a database that contains information about cell towers and frequencies that a phone can use in different areas. Updating the PRL can improve the phone’s ability to connect to local networks and avoid roaming charges. CDMA is a type of cellular technology that uses code division multiple access to transmit data over radio frequencies. MDM is an acronym for mobile device management, which is a type of software solution that allows remote management and security of mobile devices. GPS is an acronym for global positioning system, which is a satellite-based navigation system that provides location and time information

According to the Official CompTIA A+ Core 1 Study Guide (220-1101) 1, the correct answer is A. Document the findings, actions, and solution in the company knowledge base.

The explanation is that after resolving an issue, a technician should always document what was done and how it was fixed. This helps to create a record of the problem and its solution for future reference and also to share knowledge with other technicians.

By documenting the findings, actions, and solution in the company knowledge base, it will help to ensure that if the Issue happens again, the technician or a different technician will be able to quickly and easily find the solution and resolve the Issue. Additionally, it is important to document the solution so that the same Issue does not need to be troubleshot multiple times in the future.

Near field communication (NFC) is a function that enables contactless payments with a phone by allowing it to communicate with compatible devices within close proximity. If NFC is not working properly, the user will not be able to perform contactless payments with the phone. Hotspot is a feature that allows a device to share its internet connection with other devices via Wi-Fi, Bluetooth, or USB. Bluetooth is a wireless technology that allows devices to connect and exchange data over short distances. USB is a standard interface that connects devices such as keyboards, mice, flash drives, etc

A multipage misfeed is when more than one sheet of paper feeds into the printer at once, causing paper jams or misprints. A multipage misfeed can be caused by low paper supply or wrinkled paper in the tray, as reported by the user in this case. High latency is not related to paper jams, but to network delays or slow performance. Page orientation refers to whether the page is printed in portrait or landscape mode, which does not affect paper jams either. Driver mismatch could cause printing errors or compatibility issues, but not paper jams.

The technician should check that the audio inputs are configured correctly for the videoconference software and that they are not muted or disabled.The technician should also make sure that the microphone is plugged in properly and that it is not faulty or damaged.If possible, the technician should test the microphone on another device or use another microphone on the same device to isolate the problem. Reference: (page 11)

A USB-C cable is the best option for installing an RS-232 serial signature pad to an ultralightweight laptop. USB-C is a universal connector that supports various protocols and devices, including serial devices. A port replicator is a device that expands the connectivity options of a laptop by providing additional ports. Wi-Fi Direct is a wireless technology that allows devices to connect directly without a router or access point. Hotspot is a feature that allows a device to share its internet connection with other devices via Wi-Fi, Bluetooth, or USB.

The message prompting to press "OK" indicates that the printer is waiting for a user input. This suggests that there is some issue with the printer settings, and the most probable cause is that the default paper type has been changed, and the printer needs the user to confirm the paper type before proceeding with the print job. This is a common issue that can occur when the default paper type is not set correctly or has been changed without the user's knowledge.

The best choice for the user's laptop is a 1TB NVMe SSD. NVMe (Non-Volatile Memory Express) is a high-performance storage protocol designed specifically for solid-state drives (SSDs). It is significantly faster than SATA SSDs and SAS hard drives, making it ideal for users who need fast storage for their laptop. NVMe SSDs also have lower latency and higher bandwidth than traditional hard drives, making them well-suited for data-intensive tasks such as video editing, gaming, and running multiple applications simultaneously. Additionally, NVMe offers more reliable data reliability than traditional hard drives, and is less susceptible to performance degradation over time.

The shared-tenant model for a cloud deployment, also known as a multi-tenant model, allows multiple customers to use the same resources and infrastructure of the cloud service provider, with each customer's data and applications isolated from one another. This model is often chosen for cost savings, as resources are shared and users only pay for what they use. Therefore, the MOST likely reason that an administrator chose this model is A. Cost savings.

The domain name system (DNS) is the component that houses the MX record. The MX record is a type of DNS record that specifies which mail server is responsible for receiving email messages for a domain name. VLAN is an acronym for virtual local area network, which is a logical subdivision of a network that allows devices to communicate as if they were on the same physical segment. DHCP is an acronym for dynamic host configuration protocol, which is a network protocol that assigns IP addresses and other configuration parameters to devices on a network automatically. SMTP is an acronym for simple mail transfer protocol, which is a network protocol that allows sending and receiving email messages over TCP/IP networks

The default gateway is the IP address of the router or device that connects a network to another network or the internet. In the output below, the default gateway is 172.25.1.252, as shown in the line “Default Gateway . . . . . . . . . : 172.25.1.252”. The other IP addresses are not default gateways, but either local IP addresses (172.25.1.39 and 172.25.1.4) or subnet masks (255.255.255.0).

A faulty battery could cause a tablet to restart on its own and have intermittent issues with charging. Water damage could also cause these symptoms, but it is not the most likely cause unless there is evidence of liquid exposure. Incorrect OS version could cause compatibility or performance issues, but not charging problems. Damaged charging port could prevent the tablet from charging, but not cause it to restart randomly.

This is because a docking station can connect multiple monitors to a laptop without using USB ports, which are disabled in this scenario. A splitter cable would only allow two monitors to be connected, not three. A discrete graphics card would require opening the laptop and installing hardware, which may not be feasible or allowed in a high-security environment. An HDMI switch would only allow one monitor to be active at a time, not all three simultaneously.

A sandbox is a virtualization solution that allows a legacy application to run in an isolated environment without affecting other applications or systems. A sandbox can emulate an older operating system or hardware configuration that is compatible with the legacy software. A hybrid cloud is a combination of public and private cloud services that share data and resources. Infrastructure as a service is a cloud computing model that provides servers, storage, networking, and software over the internet. Public cloud is a cloud computing model that provides services and resources to anyone over the internet. Private cloud is a cloud computing model that provides services and resources to a specific organization or group over a private network.

The most likely reason for a computer showing an APIPA address after being plugged into a network port is that the PC is unable to contact a DHCP server1. Automatic Private IP Addressing (APIPA) is a DHCP fail-safe that protects a computer system from failure. It invokes a standby mechanism for local Internet Protocol version 4 (IPv4) networks supported by Microsoft Windows. With APIPA, DHCP clients can obtain IP addresses even when DHCP servers are not functional1. The other options are less likely to be the cause of the issue1.

Automatic document feeder (ADF) is a feature that allows a multifunction printer to photocopy documents with hundreds of pages automatically without requiring manual intervention. ADF scans multiple pages from a stack of documents and feeds them into the printer one by one. SMB is a network protocol that allows file sharing and printer access among different devices on a network. PCL is a printer language that controls how data is formatted for printing. SSH is a network protocol that allows secure remote access to another device over an encrypted connection.

The screen rotation is locked. If a user’s touch-screen tablet is having an issue with screen orientation, it could be due to screen rotation being locked in device settings.

If the screen rotation is locked, the touch-screen tablet will not rotate the screen when the device is turned. This can usually be unlocked in the settings or by pressing a specific key combination. References:

To resolve the issue of new memory modules not being recognized, the systems administrator should configure appropriate settings within the BIOS. This can include enabling memory mapping or setting memory speed and timings. References: CompTIA A+ Certification Exam Objectives, 220-1001 Section 1.8

Configure appropriate settings within the BIOS. If new memory modules were installed in several Windows desktops but some users are still reporting performance issues and the desktop has not recognized the new memory modules, the systems administrator should configure appropriate settings within the BIOS to help resolve this issue.

A hypervisor is a software layer that manages and allocates resources for virtual machines (VMs) on a physical host machine. A technician can use a hypervisor to adjust the resource allocation for a virtual workstation, such as increasing the amount of RAM assigned to it from the available pool of memory on the host machine. This can improve the performance and functionality of the virtual workstation without requiring any hardware changes or modifications. Reference: (page 59)

The most appropriate way for the technician to receive the latest official drivers for a USB Wi-Fi card is to download them from the vendor’s website. This ensures that the drivers are compatible, updated, and secure. Allowing the OS to install the drivers automatically may not provide the latest or best drivers for the device. Utilizing a third-party, non-OEM driver could cause compatibility or security issues. Running the autoinstall CD could install outdated or unnecessary software along with the drivers

The cloud model that BEST addresses the company’s need is the Community cloud model. A community cloud is a cloud infrastructure in which multiple organizations share resources and services based on common operational and regulatory requirements. The concept of a community cloud is akin to a community garden, where different individuals grow produce on a single piece of shared land1.

If lines appear down copied pages but printed pages sent directly to copier render as intended, it could be due to scratched scanner glass which can cause lines or streaks on copied pages.

If there are lines appearing on copied pages, but not on printed pages sent directly to the copier, the issue is most likely caused by a scratch on the scanner glass. References:

Thunderbolt 3 is a USB-C port, so any device with a USB-C connector can be plugged into it. MiniUSB, microUSB and USB-A are not compatible with Thunderbolt 3.

To configure a printer for network communications, the technician must configure its network settings, such as gateway, subnet mask, and IP address. The gateway is the IP address of the router or device that connects the printer to other networks or the internet. The subnet mask is a value that defines which part of the IP address identifies the network and which part identifies the host or device on that network. The IP address is a unique identifier that allows the printer to communicate with other devices.

A DHCP reservation is a feature that allows a DHCP server to assign a specific IP address to a specific device on a network, based on its MAC address. This ensures that the device always receives the same IP address, even if it is disconnected or rebooted. A DHCP reservation is most likely applied to a printer, as it can make it easier for users to find and connect to the printer on the network, without having to change the printer settings or deal with IP address conflicts. Reference: (page 84)

High latency is what best describes what is occurring on a VoIP call when one user is unable to understand the other because the audio is breaking up. Latency is the delay between sending and receiving data over a network, and high latency can cause poor quality or interruptions in VoIP calls. External interference, no connectivity, or port flapping are not likely to cause audio breaking up, but rather complete loss of signal or connection.

DNS stands for Domain Name System and is a service that translates domain names (such as into IP addresses (such as 192.168.1.100) that computers can use to communicate over a network. If the DNS server is offline, users may not be able to access websites or other network resources by using their domain names, even if they are online and reachable by their IP addresses. The technician should check if the DNS server is running and configured correctly, or use an alternative DNS server if possible. Reference: (page 81)

Enabling the audio device is the correct action to correct an audio issue where a laptop does not have any audio output from the built-in speakers and Windows Device Manager shows a down arrow for the audio device. A down arrow indicates that the audio device is disabled and needs to be enabled by right-clicking on it and selecting Enable device. Replacing the speakers, increasing the volume, or updating the driver are unlikely to solve the issue if the audio device is disabled.

 The USB 2.0 port has insufficient bandwidth to support a high-definition webcam that can update 30 frames per second. USB 2.0 has a maximum theoretical bandwidth of 480 Mbps, which may not be enough for HD video streaming. The user should try using a USB 3.0 port or a Thunderbolt connector, which have higher bandwidths and can support HD webcams. The Thunderbolt connector is compatible with USB devices, so it is not the cause of the issue. The VGA cable and the STP cable are not related to the webcam, as they are used for video output and network connection respectively.

Server message block (SMB) is the setting on the multifunction printer (MFP) that the technician should edit to best address the user’s request of making the scans viewable on the network for the entire department. SMB is a network protocol that allows file sharing and printer access among different devices on a network. The technician can configure the MFP to scan to a shared folder on the network using SMB. Scan to email is a feature that allows the MFP to send scanned documents as email attachments, which may not be viewable by everyone in the department. Secured prints is a feature that allows the MFP to print documents only after entering a PIN or password, which does not address the user’s request. Web services is a feature that allows the MFP to access online services such as cloud storage or email, which may not be viewable by everyone in the department either. Printer share is not a setting on the MFP, but a feature that allows a device to share its printer with other devices on a network

 The message “The amount of system memory has changed” indicates that there is a problem with the random access memory (RAM) modules in the computer. The RAM may be loose, faulty, or incompatible with the motherboard or other components. The GPU, HDD, and CPU are not directly related to system memory and would not cause this message to appear.

Calibrating the touch screen is the best action to resolve the issue of inaccurate touch input. Calibration adjusts the touch screen’s sensitivity and alignment to match the user’s touch. Resetting the mobile device could erase user data and settings and may not fix the touch screen issue. Replacing the LED screen or updating the mobile device are unnecessary and costly actions that may not solve the problem.

A damaged battery can cause a laptop to overheat and swell, making it unable to sit level on the workspace. A swollen battery can also pose a fire hazard and damage other components of the laptop, such as the motherboard or keyboard. The technician should replace the battery as soon as possible and dispose of it properly according to local regulations. Reference: (page 25)

RAID stands for Redundant Array of Independent Disks, which is a technology that combines multiple disks into a logical unit to improve performance, reliability, or both. There are different types of RAID levels that use different methods of data distribution and redundancy.

RAID 0 is a level that stripes data across multiple disks without any redundancy. It offers the highest performance but no fault tolerance. If any disk fails, the entire array is lost.

RAID 1 is a level that mirrors data across two disks. It offers the lowest performance but the highest fault tolerance. It can survive the failure of one disk.

RAID 5 is a level that stripes data across multiple disks with parity information. It offers a balance between performance and fault tolerance. It can survive the failure of one disk, but not two or more disks.

RAID 10 is a level that combines RAID 1 and RAID 0. It creates a striped array of mirrored pairs. It offers high performance and high fault tolerance. It can survive the failure of one disk in each pair, or multiple disks in different pairs.

Therefore, if the server administrator wants to rebuild the array to withstand a potential multidrive failure in the future, RAID 10 is the most likely choice.

NFC stands for near-field communication, which is a wireless technology that allows two devices to exchange data when they are in close proximity (usually within a few centimeters). NFC is commonly used by mobile devices to process payments at kiosks, such as Apple Pay or Google Pay. Wi-Fi 6 is a wireless standard that provides faster speed and lower latency than previous versions of Wi-Fi. Bluetooth is a wireless technology that allows devices to communicate over short distances (usually within 10 meters). RFID stands for radio-frequency identification, which is a wireless technology that uses radio waves to identify and track objects that have RFID tags attached to them

A CPU fan is a component that cools down the CPU, which is the main processor of the computer. If the CPU fan is failing, it can cause the computer to slow down and the fans to alternate between silent and very loud12. This is because the CPU fan cannot maintain a consistent speed and airflow to keep the CPU at a safe temperature. When the CPU gets too hot, it throttles its performance to avoid overheating, which results in a slower computer. The other fans in the computer also try to compensate for the lack of cooling from the CPU fan by spinning faster and louder2.

To connect a mobile phone to a car, you need to pair them using Bluetooth, which is a wireless technology that allows secure local networks between devices1. If one phone can connect to the car but another cannot, it means that the first phone has Bluetooth enabled and paired with the car, while the second phone does not. Therefore, the user should check the Bluetooth settings on the second phone and make sure it is turned on and discoverable21.

A media converter is a network device that operates as a bridge function, which means it connects two different types of network media, such as copper and fiber optic cables, and converts signals between them. This allows network devices that use different media types to communicate with each other over long distances or in different environments, without requiring major changes or upgrades to the existing network infrastructure. Reference: (page 73)

By documenting the findings, action, and outcomes of issues, the technicians can create a knowledge base that can be used to resolve similar issues in the future more quickly and efficiently. The documentation can also help identify patterns or trends that can lead to preventive measures or root cause analysis. Documenting the issues can also improve communication and collaboration among technicians and users, as well as provide evidence of service quality and performance. Reference: (page 4)

One of the possible causes of extreme slowness and application crashes on a phone is low or insufficient storage space. This can affect the performance and functionality of the phone, as well as prevent new applications from being installed or updated. The technician should check the storage space on the phone and see if there is enough free space available for the diagnostic application and other operations. The technician should also advise the customer to delete or move any unnecessary or unused files, apps, or data from the phone to free up some space. Reference: (page 10)

To increase the volume on a laptop using only a keyboard, a user can press and hold down the Fn key while pressing one of the function keys (usually F1-F12) that has an icon representing volume up.

 If a technician is on site troubleshooting a customer’s laptop and needs to download a software update but the company’s proxy is blocking updates, the most appropriate action for the technician to take would be to request a traffic exemption from the company’s IT department.

Client-side virtualization is used to run an application or process on a separate virtual machine, isolated from the main operating system. To allow other users on the LAN to access the application, the software developer should configure a bridge networking connection between the virtual machine and the LAN. This will allow the virtual machine to communicate with other computers on the network. Application virtualization, virtual desktop, and site-to-site VPN are not necessary steps for allowing other users to access the application.

This is because the fuser is the part of the printer that heats and melts the toner onto the paper. If the fuser is defective or dirty, it can cause streaks or smudges on printed pages. The system board and the memory are not related to the quality of the print output. The paper tray may cause paper jams or misfeeds, but not streaks on the paper.

A storage area network (SAN) is the type of network that the technician will be working with when adding more space to resolve the issue of all VMs being down due to the network being out of space. A SAN is a network that provides access to consolidated and block-level data storage, which can be used for virtualization and backup purposes. SCSI is a type of interface that connects devices such as hard drives and optical drives to a computer. NAC is a type of security solution that controls access to a network based on policies and device compliance. WISP is a type of internet service provider that delivers wireless broadband access over long distances.

A toner probe is a tool that can be used to trace and identify cables in a wiring closet. The technician can use a toner probe to find the cable that connects the new computer to the internet. A cable tester is a tool that can be used to check the continuity and quality of a cable. A loopback plug is a tool that can be used to test network ports or cables by sending and receiving signals from the same device. A punchdown tool is a tool that can be used to terminate wires into a patch panel or jack.

Cleaning the air filter is the best action to resolve the issue of a projector that shuts down after fifteen minutes of use. A dirty air filter can cause overheating and trigger the projector’s thermal protection mechanism. Replacing the video input cable, changing the bulb, or swapping the power cord are unlikely to solve the overheating issue

RAID 0 is a configuration that stripes data across multiple disks without parity or redundancy. It provides the fastest speed and maximum storage capacity among the RAID types listed, but it also has no fault tolerance. RAID 1 mirrors data across two disks, providing redundancy but halving the storage capacity. RAID 5 stripes data across three or more disks with parity, providing fault tolerance but reducing the storage capacity by one disk. RAID 10 combines mirroring and striping across four or more disks, providing both speed and redundancy but reducing the storage capacity by half.

If a user is unable to log in using the fingerprint reader on a company laptop after the motherboard was replaced, it could be due to an issue with the fingerprint software. The first step to fix the issue would be for the technician to reinstall the fingerprint software.

A loopback plug allows a technician to verify that the cable functions as expected by looping the signal back for testing. While a punchdown tool installs cables in a panel, it does not test functionality, and Wi-Fi analyzers and toner probes serve other network diagnostics. This is in line with CompTIA A+ Core 1 objectives for validating cable installation and connectivity.

Clicking and grinding noises indicate mechanical drive failure.

SMART data provides insights into the health and status of drives, helping identify failing components in the RAID array.

Why Not A (Run a magnet): This would damage drives.

Why Not B (Check if one drive is not level): Physical leveling is irrelevant.

Why Not D (Check OS logs): OS logs may provide limited information for RAID arrays.

Why Not E (Update RAID controller firmware): While important, it does not diagnose drive failure.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 3.3, storage troubleshooting​.

Reasoning: Projectors have air filters that prevent dust from entering the internal components. A clogged filter can cause the projector to overheat, resulting in shutdowns and even strange smells due to overheating components. Cleaning the filter is a standard troubleshooting step when projectors exhibit overheating symptoms.

Why the Other Options Are Incorrect:

A. Replace the bulb:

While a failing bulb may eventually cause issues, it would not typically result in a strange smell or repeated shutdowns after a fixed period. Bulb issues usually manifest as dim or flickering images.

B. Check the projector configuration:

Configuration settings, such as resolution or input options, would not cause overheating or shutdowns. This option does not address the described symptoms.

D. Adjust the gamma settings:

Gamma settings affect display brightness and contrast but have no impact on overheating or strange smells.

Practical Example:

Dust accumulation in projectors is a common issue, especially in environments with poor air circulation. A clogged filter causes restricted airflow, leading to overheating and automatic shutdowns to protect internal components. Cleaning the filter typically resolves this issue.

CompTIA A+ Exam Objective Alignment:

Objective 5.5: Troubleshoot common video, projector, and display issues.

D. POST Code Beeps:

During the Power-On Self-Test (POST), the BIOS performs checks on system hardware, including RAM. If the RAM is faulty, POST may produce a series of beep codes indicating memory issues.

These beep codes are often the first sign of RAM-related problems, especially if the BSOD occurs randomly.

Incorrect Options:

A. Wrong BIOS configurations: Incorrect BIOS settings may cause boot errors, but they are less likely to cause random BSODs.

B. Continuous reboots: Continuous reboots could result from multiple hardware or software issues but do not specifically point to RAM.

C. Distended capacitors: Faulty capacitors typically affect the motherboard, not the RAM.

Key Takeaway: POST beep codes are a common diagnostic tool for identifying RAM-related issues.

Comprehensive and Detailed In-Depth Explanation:

A sandbox is an isolated virtual environment used to test or run applications securely without risk to the host or network. It prevents the VM from communicating with external systems, making it ideal for testing malware or suspicious software.

Option A (VDI): Virtual Desktop Infrastructure allows network communication; it does not restrict it.

Option B (Private cloud): Refers to a cloud deployment model, not a communication barrier.

Option D (Type 1 hypervisor): Runs VMs directly on hardware and does not inherently block communication.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 4.1: Compare and contrast cloud computing concepts.

===========

B. USB-C:

USB-C is a versatile connector that supports charging, high-speed data transfer, and the ability to send audio and video signals (e.g., DisplayPort over USB-C).

It is used by most modern mobile devices and laptops because of its fast transfer speeds and power delivery capabilities.

Incorrect Options:

A. Lightning: Lightning is proprietary to Apple devices and does not natively support video output.

C. MicroUSB: MicroUSB is outdated and does not support video output.

D. MiniUSB: MiniUSB is an older standard and does not support modern features like video output or fast charging.

Key Takeaway: USB-C is the most versatile connector for charging and transferring data, audio, and video.

Mobile Device Management (MDM) enables administrators to enforce controls on enterprise devices, such as restricting apps, ensuring compliance, and remotely managing security policies.

Why Not B (MFA): Multi-Factor Authentication secures user access but does not control device configurations.

Why Not C (VPN): VPN secures communication but does not enforce device controls.

Why Not D (SSL): SSL secures data in transit but does not provide device management.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.7, device management concepts​.

RAID 10 (also known as RAID 1+0) combines the features of RAID 1 (mirroring) and RAID 0 (striping) to provide both redundancy and performance enhancements. This configuration requires a minimum of four drives and offers fast data access through striping while ensuring data redundancy through mirroring. RAID 10 is ideal for environments where both data integrity and performance are critical, such as financial databases.

A Storage Area Network (SAN) is primarily used for data archiving and large-scale storage. SANs provide high-speed, block-level storage for enterprise environments.

Why Not A (PAN): Personal Area Networks are for connecting personal devices like phones and smartwatches.

Why Not B (MAN): Metropolitan Area Networks are for city-wide data communication, not storage.

Why Not D (LAN): Local Area Networks are for general connectivity, not dedicated storage.

Why Not WAN: Wide Area Networks are for connecting geographically dispersed networks, not storage.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.7, network types and purposes​.

Turning off the laptop and disconnecting power immediately prevents further damage and potential safety hazards. Checking for foreign objects or damage is essential for identifying the root cause. Other options, such as contacting the vendor or using a different adapter, are not immediate troubleshooting steps for an active burning smell. CompTIA A+ Core 1 objectives emphasize safety and hardware troubleshooting.

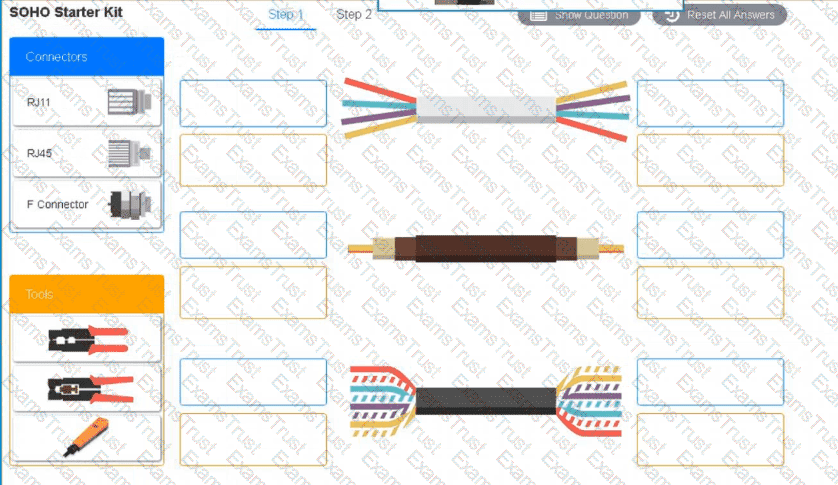

A punchdown tool is essential for connecting telephone wires to patch panels, keystone modules, and punchdown blocks, making it a critical tool for installing plain old telephone service (POTS) lines. A toner probe, on the other hand, is used for tracing and identifying specific wires within a bundle, facilitating the correct attachment of telephone lines to their respective terminals. These tools are fundamental for ensuring proper and efficient installation of POTS lines in a client's environment.

Comprehensive and Detailed In-Depth Explanation:

If performance is not a primary concern and the user requires large, cost-effective storage, a 2TB 5400rpm SATA HDD is ideal. It offers high capacity at a lower price point than SSDs and faster HDDs.

Option A: NVMe drives offer exceptional speed but are significantly more expensive per GB and not necessary when read/write speed is not a concern.

Option B: RAID 1 improves redundancy but cuts usable capacity in half and uses expensive SSDs.

Option D: SAS drives are fast and reliable but are enterprise-grade and expensive — overkill for desktop use.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.3: Given a scenario, install and configure storage devices.

The Trusted Platform Module (TPM) is a hardware-based security feature used to store cryptographic keys, such as those used for encryption, authentication, or device identification. It plays a critical role in ensuring secure operations for encrypted drives, BitLocker, and secure boot processes. Clearing TPM keys involves wiping all stored cryptographic data, which can lead to several consequences depending on what the TPM was being used for. Let’s break it down:

Correct Answer: A. Encrypted hard drives would probably not be accessible.

Encrypted hard drives, such as those secured with BitLocker encryption, rely on the cryptographic keys stored in the TPM to unlock data.

Clearing the TPM will erase these keys, making it impossible for the encrypted drive to decrypt its contents unless a recovery key (separate from the TPM) is available. Without this recovery key, the data will likely become inaccessible.

CompTIA A+ Core 1 Exam Objective Reference: This falls under Objective 3.5, which covers understanding BIOS/UEFI configurations, TPM functions, and securing devices.

Why the Other Options Are Incorrect:

B. All security certificates would need to be reinstalled from trusted roots.

Clearing the TPM does not erase security certificates stored in the operating system or other areas. Certificates are generally managed by the OS or specific applications, not the TPM. Clearing the TPM only affects cryptographic keys and data stored in the TPM chip, so this is incorrect.

C. The device would need to be reenrolled in the MDM platform.

Mobile Device Management (MDM) enrollment typically does not rely on the TPM. While certain enterprise security configurations may involve the TPM, clearing it does not inherently trigger MDM reenrollment unless specifically tied to the MDM configuration.

D. The laptop would need to be registered to the domain as a new client.

While domain registrations may sometimes use TPM for authentication or secure operations, clearing the TPM alone does not require re-registering the device to the domain. The domain registration and authentication process rely more on system-level credentials than the TPM itself.

Practical Example:

A user enables BitLocker on their laptop, which relies on the TPM to store the encryption key. Later, if they clear the TPM via BIOS/UEFI without saving the BitLocker recovery key separately, they will not be able to unlock the hard drive, leading to data loss unless the recovery key is available. This is a common issue when technicians or users inadvertently clear the TPM without understanding its role in encryption.

CompTIA A+ Exam Objective Alignment:

Objective 3.5: Given a scenario, install and configure laptop hardware and components, including UEFI/BIOS security settings (TPM, secure boot, etc.).

This question tests understanding of TPM functionality, encryption technologies, and secure device configurations.

The technician has identified the symptoms (slow performance and random pop-ups) and must now establish a theory of probable cause, such as malware or spyware infection. This step aligns with the CompTIA troubleshooting methodology.

Why Not A (Establish a knowledge base): This is irrelevant at this stage; knowledge bases are used for reference and documentation.

Why Not C (Establish a new theory and consider escalating): The technician has not yet created or tested a theory, making escalation premature.

Why Not D (Establish a plan of action): Planning an action occurs after determining the cause of the problem.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 3.1, troubleshooting methodology​​.

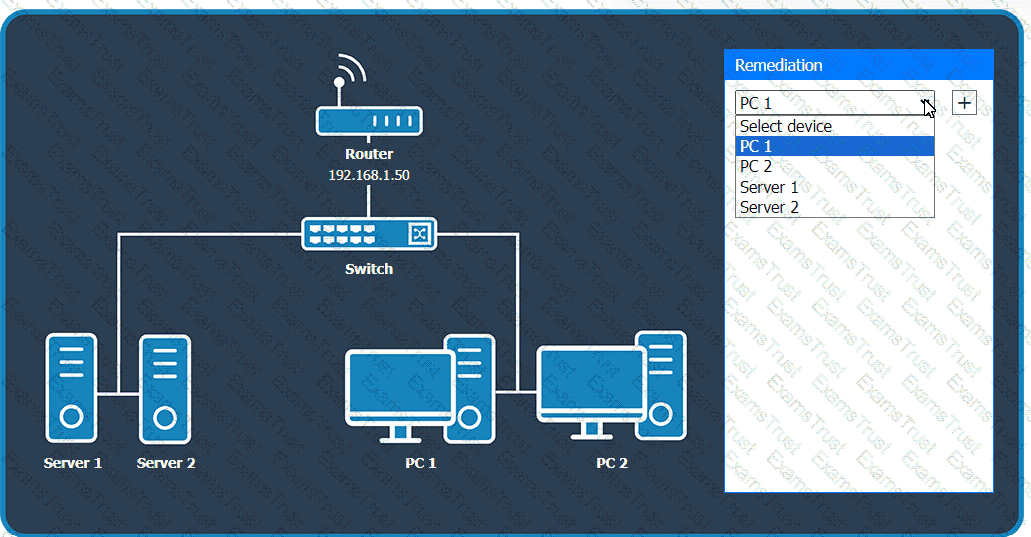

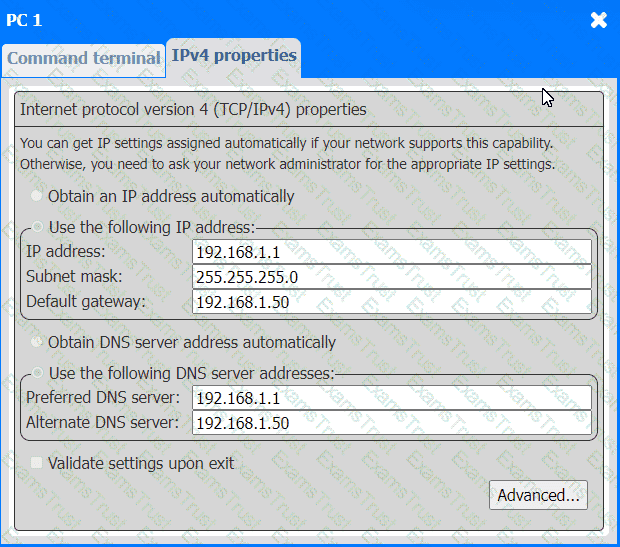

Looking at the network configurations and outputs from both PCs and servers, here are the possible issues and solutions:

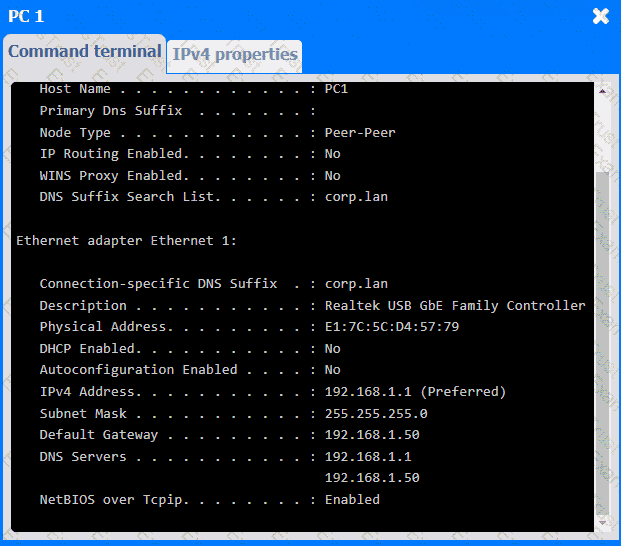

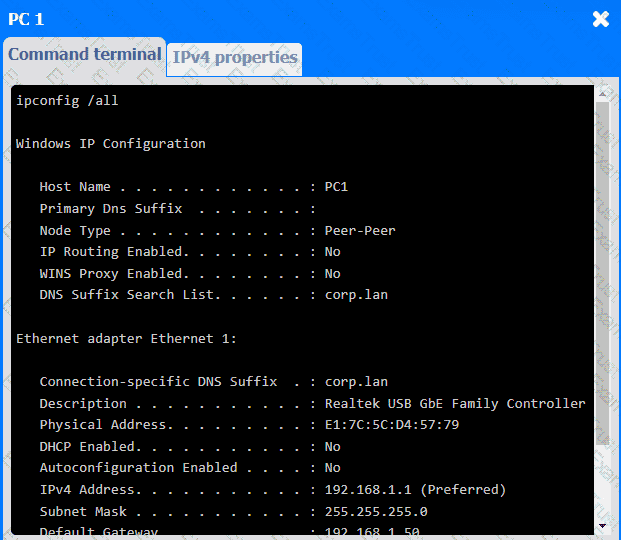

1. PC 1

Issue: The IP address for PC1 is 192.168.1.1, which conflicts with Server 1 (which also uses 192.168.1.1).

Solution: Change the IP address on PC1 to a unique one within the range, like 192.168.1.3.

2. PC 2

Issue: PC 2 is configured with 192.168.1.2, which conflicts with Server 2 that has the same IP address.

Solution: Update the IP address on PC 2 to something unique, like 192.168.1.4.

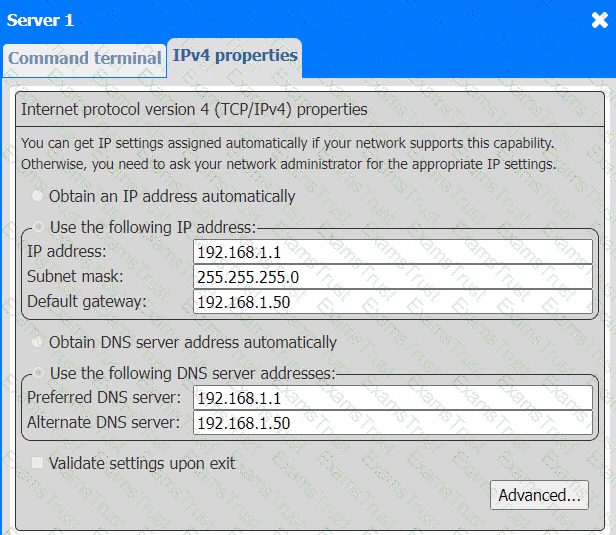

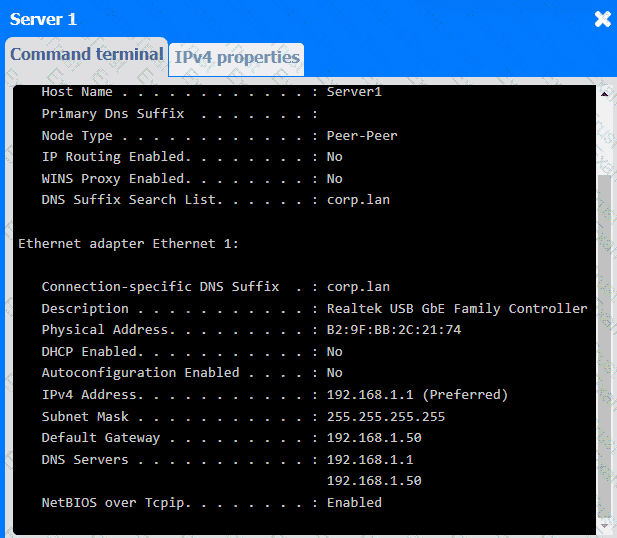

3. Server 1

Issue: The IP address for Server 1 is 192.168.1.1, which conflicts with PC1.

Solution: Since Server 1 and PC1 are using the same IP address, change one of them. For Server 1, you could change the IP address to 192.168.1.5.

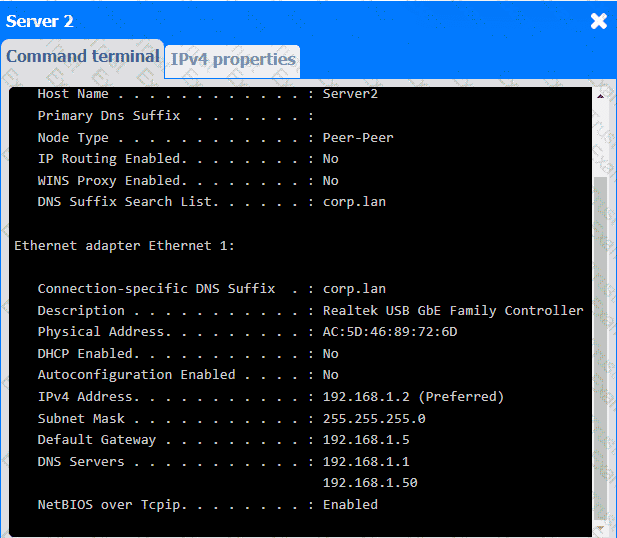

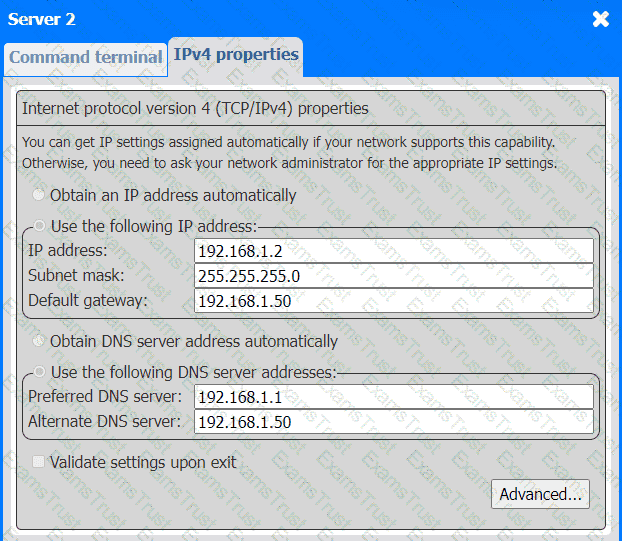

4. Server 2

Issue: Server 2 is using the IP address 192.168.1.2, which conflicts with PC2.

Solution: Update Server 2 to use a different IP address, such as 192.168.1.6.

General Remediation:

The primary problem here is overlapping IP addresses, leading to connectivity issues. Each device on the network must have a unique IP address. After making these changes, ensure that all devices can communicate properly by testing the connection between devices and verifying they can access shared resources.

USB devices rely on 5V output from the power supply, so the amperage rating at 5V is critical to ensure enough power is available for multiple USB devices. A modular connector count affects cable management, while a 20+4 power connector is standard for motherboard connections. Energy efficiency impacts overall power usage but is not specific to the needs of USB devices. This matches CompTIA A+ Core 1 objectives regarding power supply selection based on device requirements.

Two-factor authentication (2FA) significantly enhances security by requiring two forms of verification before granting access to company resources, making it harder for unauthorized users to gain access even if they have one of the credentials. PIN code enforcement adds an additional layer of security by ensuring that devices are protected by a PIN, making physical access to the device more challenging for unauthorized users. While the other options provide various benefits, 2FA and PIN code enforcement directly enhance the security of remote users accessing company resources.

A Storage Area Network (SAN) is a network specifically designed to pool storage resources and make them accessible to servers as if they were locally attached drives. SANs are used in data centers for high-performance storage and retrieval of large volumes of data. This setup allows multiple networked devices to access shared storage as if it were local, which matches the scenario described. PAN (Personal Area Network), WLAN (Wireless LAN), and MAN (Metropolitan Area Network) serve different purposes and do not primarily focus on shared storage access.

When a user consistently receives an error requesting A4 paper for print jobs, and no other users are experiencing similar issues, it indicates a possible misconfiguration in the user's printer settings. By setting the printer defaults in the Control Panel to use letter-sized paper, which is more common in some regions, this ensures that the user's print jobs are aligned with the available paper size in the office printer. This approach addresses the root cause of the issue by ensuring that the default settings match the paper size used in the office, eliminating the need for the user to adjust settings for each print job.

If a hard drive is heavily fragmented, file read/write operations can take significantly longer, causing slow backup speeds. Defragmenting the drive organizes the data for more efficient access.

Why Not A (Replace the hard drive's USB cable): A faulty cable would typically cause disconnections or errors, not just slower speeds.

Why Not C (Update the storage drivers): This might help if the issue is with system drivers, but the described symptoms point to a fragmentation issue.

Why Not D (Compress the files): Compression reduces file size but does not address the root cause of the slow backups.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 3.1, storage troubleshooting​.

The first step a technician should take before upgrading the Wi-Fi card on a laptop, or performing any internal hardware modifications, is to remove the power cable to ensure the device is not powered on. This is a crucial safety measure to prevent any electrical damage to the laptop or the technician. It also helps in avoiding any unintended changes or data loss that might occur if the device is powered on during the upgrade process.

When a computer frequently freezes and requires hard restarts, the first step a technician should take, especially when hardware components have not been recently changed, is to read the event logs. Event logs can provide critical insights into what is causing the system to freeze, including errors and warnings that precede the freeze. This information is essential for diagnosing software or operating system issues that might be causing instability. Checking the temperature or updating drivers might be subsequent steps based on findings from the event logs.

For network printing, the required ports are typically those used by printing protocols. Port 515 is used by the Line Printer Daemon (LPD) protocol, and port 631 is used by the Internet Printing Protocol (IPP). These ports need to be opened in the firewall to allow print jobs to be sent to and from network printers.

NVMe (Non-Volatile Memory Express) is an interface protocol built especially for Solid State Drives (SSDs) to utilize the high-speed PCIe bus in computers. M.2 is a form factor that is commonly used for NVMe SSDs due to its compact size and direct connection to the PCIe interface, which is ideal for laptops. The 2.5" and 3.5" form factors are more commonly associated with SATA drives, and SD is a form factor used for removable flash memory cards, not for internal storage solutions like NVMe SSDs.

An MX (Mail Exchange) record specifies the mail server responsible for receiving email for a domain.

Why Not A (CNAME): CNAME is used for domain aliasing, not for email delivery.

Why Not B (SRV): SRV records are used to locate specific services, not mail servers.

Why Not D (SOA): SOA records provide domain information but do not handle email.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.6, DNS record types​.

TPM 2.0 (Trusted Platform Module) is often disabled by default in the UEFI BIOS. Enabling it is necessary to meet the requirements for certain Windows installations, including Windows 11.

Why Not B (Install an HSM): A Hardware Security Module (HSM) is a separate device used for cryptographic functions and is not related to TPM on the motherboard.

Why Not C (Perform a clean install): A clean installation will not bypass the TPM 2.0 requirement.

Why Not D (Implement BitLocker): BitLocker requires TPM but does not resolve its absence or lack of activation.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 3.4, BIOS/UEFI configuration​.

To clean sticking keys on a laptop keyboard, using compressed air is the most effective and safest method. Compressed air can dislodge and remove crumbs, dust, and other debris from under the keys without risking damage to the keyboard's electronic components or the keys themselves. This approach is non-invasive and widely recommended for keyboard maintenance.

A VLAN (Virtual Local Area Network) segments a physical network into separate logical networks, enhancing security by isolating traffic.

Why Not A (Minimizes collision domains): VLANs manage broadcast domains, not collision domains.

Why Not B (Provides private access to cloud resources): VLANs operate within a local network, not cloud-specific.

Why Not C (Increases network address space): VLANs do not affect address space.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.6, VLAN concepts​.

Color gamut refers to the range of colors a display can accurately reproduce. For tasks like graphic design or photo editing, ensuring the screen's colors match the printed output is critical. Monitors with wide and accurate color gamuts (e.g., Adobe RGB) are preferred for these applications.

Option B (Pixel density): Incorrect. Pixel density affects image sharpness, not color accuracy.

Option C (Refresh rate): Incorrect. Refresh rate impacts motion smoothness but is unrelated to color matching.

Option D (Resolution): Incorrect. Resolution determines clarity and detail but does not influence color accuracy.

Badging is a form of authentication that requires employees to use a badge or ID card to release print jobs. This solution reduces unnecessary printing by ensuring only authorized users print.

Why Not A (Access control list): While ACLs manage permissions, they are not used for physical authentication at printers.

Why Not B (Audit logging): Audit logs track actions but do not restrict printer access.

Why Not D (Print server): A print server manages print jobs but doesn’t enforce authentication.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.5, authentication mechanisms​.

C. Installing redundant PSUs (Power Supply Units):

Redundant PSUs provide fault tolerance by ensuring that if one power supply fails, another will take over seamlessly.

This is a cost-effective way to increase uptime while waiting for the UPSs to arrive.

Incorrect Options:

A. Purchasing backup generators: Generators are costly and are typically used for long-term outages, not as an immediate or cost-effective solution.

B. Increasing input voltage: This is not a practical solution to hardware failures or power issues.

D. Activating a hot site: A hot site is an expensive, fully operational backup facility that would not be a cost-effective solution for this scenario.

Key Takeaway: Installing redundant PSUs is a cost-effective way to balance uptime requirements in case of power or hardware failure.

If users are only able to save a small number of pictures on the microSD cards before running out of space, it suggests a formatting issue. Improper or incomplete formatting can lead to the card not utilizing its full storage capacity, resulting in significantly less available space for storing pictures. Formatting the microSD cards correctly would ensure the file system on the cards is set up properly, allowing the devices to use the full capacity of the cards for storage. Compatibility, UHD storage capability, and camera storage settings are less likely to be the issue in this scenario.

A firewall monitors and filters incoming and outgoing network traffic based on security rules, protecting the network from unauthorized access and threats.

Why Not A (Switch): A switch connects devices within a network but does not monitor or filter traffic.

Why Not B (Access point): An access point provides Wi-Fi connectivity but does not filter traffic.

Why Not D (Hub): A hub simply broadcasts data to all connected devices without filtering traffic.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.2, network security concepts​.

A. Run the maintenance application:

Most modern printers include a built-in maintenance application that can calibrate the print heads and correct alignment issues. Running this tool is the first step to address misalignment.

Incorrect Options:

B. Clean the rollers: Cleaning rollers is typically done to resolve paper feed or jamming issues, not alignment problems.

C. Upgrade the firmware: While updating firmware is beneficial for performance improvements, it is not the first step for fixing alignment.

D. Reinstall the drivers: Misaligned printing is usually hardware-related, not a driver issue.

Key Takeaway: The maintenance application should be run first to resolve alignment issues in a newly installed printer.

When print jobs remain stuck in the printer queue despite successful network communication (indicated by successful ping replies) and no issues with paper supply or toner levels, a common reason can be that the first job in the queue requires manual intervention, such as paper to be fed into a manual feed tray. Printers often pause the entire print queue if the first job requires a specific type of paper or manual insertion that hasn't been addressed, preventing subsequent jobs from processing.

To make sure that the new operating system on the USB drive loads automatically, the user must configure the boot options in the BIOS/UEFI. Boot options determine the sequence of devices the computer will attempt to boot from when powered on. Setting the USB drive as the first boot option ensures that the system will load from the USB before trying other devices.

D. Boot options: The user should configure the boot sequence to prioritize the USB drive, so the system boots from it automatically.

Why the other options are incorrect:

A. BIOS password: A BIOS password is used to restrict access to the BIOS settings, not to control boot order.

B. Trusted Platform Module (TPM): TPM is a security feature used for cryptographic operations and securing hardware, not for controlling boot options.

C. USB permissions: This refers to access permissions for USB devices but does not affect booting from a USB drive.

This concept is part of the Hardware domain in the CompTIA A+ Core 1 exam, specifically regarding BIOS configuration​.

When a user is unable to save pictures to a new SD card after replacing a damaged one, the first thing to check is whether the card is locked. Many SD cards have a physical switch on the side that can be toggled to a "locked" position, which prevents data from being written to the card. Ensuring the switch is in the "unlocked" position allows the device to save data to the SD card.

When multiple RAM modules with different speeds are installed in a system, the system will default to the speed of the slowest module to maintain reliability and stability. In this case:

The system contains two DDR3-1066 (PC3-8500) modules and one DDR3-1333 (PC3-10600) module.

The slowest RAM speed is DDR3-1066 (PC3-8500), and the system will run all memory modules at this speed to prevent timing mismatches and data corruption.

Key Concepts:

Backward Compatibility: RAM modules with higher speeds can operate at lower speeds when mixed with slower modules.

Reliability vs. Performance: Operating all modules at the slowest speed ensures stability, especially when modules have different specifications.

CompTIA A+ Exam Objectives References:

220-1101, Section 3.2: Covers selecting and installing appropriate RAM, understanding different speeds (DDR3-1066, DDR3-1333), and how system compatibility is ensured​.

When configuring a network device like a printer, assigning it a static IP address ensures that it always uses the same IP address. If a static IP cannot be set due to security restrictions, the next best solution is to configure a reservation in the DHCP (Dynamic Host Configuration Protocol) server. This reservation ensures that the device (in this case, the printer) always receives the same IP address based on its MAC address, even if the router restarts.

A. Reservation: A DHCP reservation ties a specific IP address to the MAC address of a device, ensuring it always receives the same IP address from the DHCP server.

Why the other options are incorrect:

B. Scope: A DHCP scope defines the range of IP addresses that can be assigned to devices. It doesn’t ensure that a specific device always gets the same IP.

C. Lease: A lease refers to the length of time a device is assigned an IP address from the DHCP server. It doesn’t guarantee that the same IP will be re-assigned after the lease expires.

D. Exclusion: An exclusion in DHCP configuration excludes specific IP addresses from being assigned dynamically. This is used to prevent certain addresses from being given out but doesn’t ensure a device will always get the same IP.

This topic is covered under the Networking domain of the CompTIA A+ Core 1 exam​.

After resolving the immediate issue (reactivating server credentials), verifying system functionality ensures the solution works as intended and the user can now access the shared drive. This step is a part of the CompTIA troubleshooting methodology:

Identify the problem.

Establish a theory of probable cause.

Test the theory to determine the cause.

Establish a plan of action.

Implement the solution.

Verify full system functionality.

Document findings, actions, and outcomes.

Why Not B (Document the findings): Documentation comes after verifying the system works.

Why Not A (Escalate the issue): Escalation is unnecessary since the problem was resolved.

Why Not C (Perform backups): Performing backups is unrelated to verifying credential functionality.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 3.1, troubleshooting methodology​​.

In this scenario, running a network cable over a long distance (279ft or 85m) and sharing conduit with a large power cable requires careful consideration of electromagnetic interference (EMI) and the physical distance limitations of the cable type. Fiber optic cables are immune to electromagnetic interference and can support much longer distances than copper-based cables like Cat 5e or Cat 6 without signal degradation. This makes fiber optic the most appropriate choice for this project.

Reasoning: A docking station is designed to provide a central connection point for multiple peripherals, such as monitors, keyboards, mice, and network cables. It allows users to quickly connect or disconnect all devices by simply docking or undocking their laptop, improving mobility and reducing wear and tear on individual ports.

Why the Other Options Are Incorrect:

A. Serial interfaces:

Serial interfaces are outdated and rarely used in modern laptops or peripherals. They are not practical for facilitating the connection of multiple devices.

C. Network switch:

A network switch is used to connect multiple devices to a network, but it does not simplify the connection of peripherals to a laptop.

D. USB hub:

A USB hub can extend the number of available USB ports but lacks the full functionality of a docking station, such as video output or Ethernet connectivity.

Practical Example:

A user with a laptop, external monitors, keyboard, and mouse can use a docking station to connect all devices with a single action, instead of plugging in each device manually.

CompTIA A+ Exam Objective Alignment:

Objective 5.2: Explain device interfaces, connection types, and usage of docking stations.

Mobile Device Management (MDM) allows IT departments to enforce compliance controls, such as restricting the installation of unapproved software, on laptops and mobile devices.

Why Not A (EDR): Endpoint Detection and Response focuses on detecting and mitigating security threats, not compliance controls.

Why Not B (VPN): Virtual Private Networks provide secure connections but do not enforce software installation policies.

Why Not D (SaaS): Software as a Service refers to software delivery models and does not enforce compliance controls.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.7, device management and security​.

When a new GPU is installed and results in lower screen resolution and picture quality, it's often because the appropriate OEM (Original Equipment Manufacturer) drivers for the GPU have not been installed. Without these drivers, the operating system may revert to generic drivers that do not fully support the GPU's capabilities, leading to suboptimal performance. Installing the correct OEM drivers should resolve the issue and allow the GPU to function at its intended performance level.

Comprehensive and Detailed In-Depth Explanation:

A degraded RAID 1 array usually means one of the drives has failed or is failing. The correct next step is to run diagnostics on each drive to identify the faulty one. RAID 1 uses mirroring, so one good drive should still contain all the data.

Option B: chkdsk checks file system integrity, not hardware drive health.

Option C: Rebuilding should only occur after identifying and replacing a faulty drive.

Option D: RAID 0 offers no redundancy and would destroy data in this context.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to storage devices.

Single-mode fiber uses a beam of light to transmit data over long distances through a very thin, flexible cable. It is commonly used for high-speed data transmission across wide areas, such as between buildings or over long distances within a network. Single-mode fiber offers a higher bandwidth and longer distance capabilities compared to other types of fiber optics.

D. Single-mode fiber: Transmits data using light through a fiber optic cable, making it ideal for long-distance communication.

Why the other options are incorrect:

A. Coaxial: Coaxial cables use electrical signals, not light, to transmit data.

B. HDMI: HDMI (High-Definition Multimedia Interface) is used for transmitting audio and video signals but does not use light for data transmission.

C. Thunderbolt: Thunderbolt cables transmit data using electrical signals and are typically used for high-speed data transfer and display connections.

This falls under the Networking and Hardware domain in the CompTIA A+ Core 1 exam​.

SMTP (Simple Mail Transfer Protocol) uses port 25 to send email messages between servers12.

SMTP uses port 25 to send email messages between mail servers. Therefore, the system administrator should enable port 25 to allow SMTP traffic through the host-based firewall. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 282

The 802.11n wireless networking standard supports Multiple Input Multiple Output (MIMO) technology. MIMO technology uses multiple antennas on both the transmitting and receiving devices to improve wireless performance by increasing the amount of data that can be transmitted simultaneously. 802.11a, 802.11b, and 802.11g do not support MIMO technology. References: CompTIA A+ Certification Exam: Core 1 - Objective 3.3

If users are experiencing decreased bandwidth and connectivity issues in a Wi-Fi mesh network, the technician should use a Wi-Fi analyzer to determine whether the channel in use is overcrowded and to identify which channel the mesh network should use for best performance. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 308

The MOST efficient next step the technician should complete is to install an updated printer driver on the print server12. The issue of information being garbled and looking like code could be related to a compatibility issue with the new firmware and the existing printer driver1. The printer driver is responsible for converting the print job data into a format that the printer can understand and print2.

The unexpected reboots on a graphics workstation when rendering complex 3-D models may be caused by insufficient power supply. The workstation is configured with a 115V power supply that is rated at 200W, which may not be enough when the GPU is heavily tasked. The technician should begin troubleshooting by checking the power supply.

When a user hears one beep on rebooting a machine, and then an error message is displayed, it could indicate that there is a problem with the RAM module or the boot order. The beep sound indicates that the POST process was successful, and the error message indicates that the boot process was unsuccessful. The boot order determines the sequence in which the computer looks for bootable devices. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 693)

Two-factor authentication (2FA) is a security process that requires users to provide two different authentication factors to verify their identity. This means that in addition to providing something they know (such as a password or PIN), they must also provide something they have (such as a smart card or token) or something they are (such as a fingerprint or retinal scan).

In this case, the correct answer would be C. Password/thumbprint. This option meets the requirement for two-factor authentication because it combines two different types of authentication factors: something the user knows (the password) and something the user is (the thumbprint). The other options do not meet the requirement for 2FA because they either use only one type of authentication factor (A and D) or use two instances of the same type of factor (B).

By requiring a code or badge before releasing a print job, it ensures that only authorized personnel can collect the printouts. This method is effective in preventing waste and in keeping sensitive documents confidential. Sending reminders, enabling duplex printing, and billing departments are useful strategies for reducing paper utilization but may not necessarily prevent waste caused by uncollected printouts.

Requiring a code or badge before releasing a print job is the best solution to prevent the waste of printed materials, as it ensures that only the user who initiated the print job is able to pick up the printed materials. This can be achieved by implementing print release software or requiring users to enter a PIN code at the printer. References: CompTIA A+ Certification Exam Objectives 1001, 2.10

Using a USB 3.1 flash drive with BitLocker to Go installed is the best option for complying with corporate policy for data protection when copying files to portable media. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 12

The flashing green and orange LEDs on the NIC indicate connection issues. The technician should first check for loose connections, pinched bends, and physical damage, which are the most common causes of connection problems. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 14

The symptoms—flashing green and orange LEDs on the workstation’s NIC—suggest a connectivity issue. In networking troubleshooting, flashing LEDs typically indicate activity (green for link/activity, orange for speed or errors, depending on the NIC), but the combination and context imply an unstable or degraded connection. The cable length of 275ft (84m) is within the maximum distance for Cat 5 UTP (100 meters or 328 feet), so length alone isn’t the immediate problem. However, physical issues like loose connections, pinched bends, or damage could degrade signal quality, causing intermittent or erroneous data transmission.

The CompTIA A+ Core 1 Study Guide emphasizes a systematic troubleshooting approach, starting with the simplest and most common causes before escalating to more complex solutions. Checking the cable’s physical integrity—ensuring proper termination, no sharp bends, and no cuts or interference—is a fundamental first step in network troubleshooting. This aligns with Objective 5.5 ("Given a scenario, troubleshoot problems related to motherboards, RAM, CPU, and power") and Objective 5.2 ("Given a scenario, troubleshoot and diagnose problems with storage drives and RAID arrays"), which extend to networking in practice.

Option A (Check for loose connections, pinched bends, and physical damage): This is the least invasive, most immediate step to rule out common cabling issues, as recommended by CompTIA’s methodology.

Option B (Install a powered hub halfway): Adding a hub or repeater could extend signal strength, but the length is within spec, and this assumes a distance issue without evidence. It’s not the first step.

Option C (Replace with Cat 5 STP): Shielded twisted pair reduces interference, but there’s no indication of EMI yet, and replacing the cable is premature without basic checks.

Option D (Upgrade to multimode fiber): Fiber eliminates distance and interference issues but is a costly, last-resort solution, not a first step.

The study guide prioritizes physical inspection and basic diagnostics before hardware replacements or upgrades, making Option A the correct initial action.

Exact Extracts from the Study Guide:

From The Official CompTIA A+ Core 1 Study Guide (220-1101):

Section 2.6, Networking Hardware:

"Twisted Pair Cabling: The maximum length of a twisted pair cable run (such as Cat 5, Cat 5e, or Cat 6) is 100 meters (328 feet). This includes both patch cables and the main run. Beyond this length, signal degradation (attenuation) becomes significant, and a repeater or switch is needed to boost the signal."

Implication: At 275ft (84m), the cable is within spec, so length isn’t the primary concern.

Section 5.4, Troubleshooting Wired and Wireless Network Problems:

"No connectivity or intermittent connectivity—Check the following: Ensure that all cables are securely connected at both ends (NIC and switch or wall jack). Inspect the cable for damage, such as cuts, crimps, or excessive bending, which can disrupt signal integrity… Verify that the cable length does not exceed the maximum specification for the cable type (e.g., 100 meters for twisted pair)."

"LED indicators—Most NICs and switches have LED indicators to show link status and activity. A solid green light typically indicates a good connection, while flashing may indicate activity. Amber or orange lights can indicate speed (e.g., 10/100 Mbps vs. 1 Gbps) or errors, depending on the device."

Section 5.4, Troubleshooting Methodology:

"Identify the problem… Gather information… Establish a theory of probable cause… Test the theory to determine cause (e.g., check physical connections before replacing components)."

These excerpts highlight that checking physical connections and cable condition is the first step when LEDs indicate potential issues, especially before assuming hardware failure or specification limits are exceeded.

Additional Reasoning:

LED Behavior: Flashing green and orange LEDs vary by NIC manufacturer, but per the study guide, green flashing often means activity, and orange flashing could signal errors or a speed mismatch. This suggests a link is established but unstable, pointing to cabling issues.

Cable Length: At 275ft, the run is well under 328ft, ruling out immediate need for a hub or fiber upgrade.

Common Issues: Loose RJ45 connectors, pinched cables (exceeding bend radius), or physical damage are frequent causes of intermittent connectivity, easily checked first.

Alternatives: Installing a hub (B) or replacing the cable (C, D) assumes a specific failure without evidence, violating CompTIA’s step-by-step approach.

The most likely cause of the issue is that the page orientation is incorrect. The printer may be set to print labels in a different orientation than the orientation of the label sheet1.

An uninterruptible power supply (UPS) can help ensure maximum uptime for customers' virtual machines by providing a backup power source in case of a power outage or other power-related issues. A line conditioner and AC voltage regulator are designed to stabilize the power supply, but do not provide backup power. Cloud storage backup is a way to backup data, but does not directly impact uptime. References: CompTIA A+ Certification Exam: Core 1 - Page 159

Cross-platform virtualization would be the best solution for running Windows software on a computer running macOS. This involves running a virtual machine (VM) on the macOS computer, which emulates a Windows environment and allows the Windows software to be installed and run within the VM.

Cross-platform virtualization allows a computer running macOS to run Windows software. It involves creating a virtual machine on the macOS computer and installing a Windows operating system on it. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 1

Based on the information provided in the question, the MOST likely component that needs to be replaced is A. power adapter. If a laptop has been working as expected for several years but suddenly stops working when it is plugged into a wall outlet, it is possible that the power adapter has failed and is no longer able to provide power to the laptop. In this case, replacing the power adapter would likely resolve the issue.

The other components listed in the options (battery, system fan, and hard drive) could also potentially fail and cause issues with a laptop’s performance. However, based on the specific scenario described in the question (the laptop suddenly stops working when plugged into a wall outlet), it seems most likely that the issue is related to the power adapter.

If the laptop has been working as expected for several years and suddenly stops working, the power adapter is the most likely component that needs to be replaced. Over time, the power adapter can become worn or damaged, resulting in a loss of power to the laptop. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 3

Private cloud environments are designed for use by a single organization and offer the greatest control over security and access to data. They are typically used for sensitive or confidential data, such as health and criminal justice records. Public cloud environments are shared by multiple organizations and offer less control over security and access to data. Hybrid cloud environments combine public and private clouds, while community clouds are shared by multiple organizations with similar needs. References: CompTIA A+ Certification Exam: Core 1 - Page 234

The message stating that one or more disks are in a degraded state is a clear indication of a RAID failure. RAID stands for Redundant Array of Independent Disks, and it is a technology used to provide fault tolerance and improve performance by combining multiple hard drives into a single logical unit.

The message indicating that the OS is missing is most likely caused by a bootable device not found. This means that the server is unable to boot from the designated boot device, which could be the hard drive, a CD/DVD drive, or a USB flash drive. This could be caused by a faulty boot device, a loose cable, or a misconfiguration in the BIOS or UEFI settings.

RAID 1 is a mirrored configuration that utilizes two drives and provides redundancy by allowing one drive to fail without data loss. This configuration meets the requirement of mirrored storage with two 4TB drives that support one failure. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 8

In this situation, the MOST cost-effective cable medium that would not sacrifice system performance would be B. Shielded Cat 6. Electromagnetic interference (EMI) can disrupt network connectivity by interfering with the signals transmitted over network cables. Shielded Cat 6 cables are designed to provide protection against EMI by incorporating a layer of shielding material around the cable’s conductors. This shielding helps to prevent EMI from interfering with the signals transmitted over the cable.

Thin, vertical lines on every printed page are usually caused by a dirty drum or toner cartridge. Performing the drum-cleaning procedure will likely resolve the issue. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 18

The most likely reason that the technician is unable to select the channel with almost no RF pollution is that it is reserved for licensed band use. Some channels are reserved for specific purposes and require a license to use. These licensed bands are typically used for critical infrastructure, public safety, or military operations, and unlicensed devices are not allowed to use them. References: CompTIA A+ Certification Exam Objectives - 220-1001: 3.3 Compare and contrast common networking hardware devices.

When a user connects a smartphone to a laptop, they create a Personal Area Network (PAN). A PAN is a type of network used for communication between devices in close proximity to each other, typically within a range of a few meters or less. This type of network is commonly used for wireless communication between personal devices, such as connecting a smartphone to a laptop for file sharing or internet access. References: CompTIA A+ Certification Exam Objectives - 220-1001: 1.1 Explain common connectors and their uses.

he main difference between T568A and T568B cabling standards is that the green and orange cables are interchanged12. T568A is designed for backward compatibility with older telephone wires, while T568B is designed for better signal isolation and noise protection for newer networking systems and products3. T568A is used in blue cables, and T568B is used in green cables1. The standards use the same cable connectors3.

The technician should check the level of network utilization to determine if there is an excessive amount of traffic that may be causing the slow access to the network fileshare. This can be done using network monitoring tools to track the amount of data being transmitted on the network. References: CompTIA A+ Certification Exam Objectives 1001, 2.9

This is a safe and sensible option if you value your data more than anything else. You don’t want to risk losing your data by trying other methods that may worsen the situation. You can use a software tool or a service provider to recover your data before attempting any repairs.

Dropping a smartphone can damage the digitizer, which is the component responsible for sensing touch input. This can cause issues with tapping and swiping on the screen, as well as other touchscreen-related issues. References: CompTIA A+ Certification Exam Core 1 Exam Objectives - 3.3 Given a scenario, troubleshoot mobile device issues

RAID 10 array is often used for server virtualization as it provides both redundancy and performance benefits. It uses a combination of mirroring and striping to provide both fault tolerance and improved I/O performance. An optical disk drive or eMMC storage device would not provide enough storage or performance for a VM host server, while a 15,000rpm drive may provide good performance but would not provide redundancy for fault tolerance. Therefore, a RAID 10 array is the best option for cost-effective storage that will be used for all VMs that run from the server.
