Axis Communications ANVE Axis Network Video Exam Exam Practice Test

When using the view area functionality in Axis cameras, each view area can have its own independent video stream. Additionally, each view area can have its own exposure control setting and text overlay setting. This allows for customized video streams with different exposure settings tailored to specific areas within the camera's field of view, as well as unique text overlays for each view area, providing flexibility in video management and presentation.

Axis P-iris technology is designed to optimize the camera's aperture to achieve better image quality. By precisely controlling the iris opening, P-iris technology can maintain the ideal aperture size for various lighting conditions. This helps limit optical artifacts such as diffraction and spherical aberration, ensuring sharp and clear images. While it can contribute to improved low light performance and reduce motion blur, its main advantage is optimizing the aperture to limit artifacts. Axis Network Video documentation explains that P-iris provides more precise iris control compared to traditional DC-iris, leading to enhanced image quality.

When using the AXIS Design Tool, it is crucial to convey to the end user that the calculations provided are only estimates and not final numbers. The tool is designed to offer a rough estimate of network bandwidth and storage needs based on various factors such as camera resolution, frame rate, and compression. However, real-world conditions and specific system configurations can affect these calculations, so they should be treated as approximations rather than exact figures.

In a network surveillance installation, the primary purpose of a switch is to forward the video stream to the correct receiver within a network. This functionality ensures that the video data captured by cameras is correctly directed to the appropriate storage device, monitoring station, or viewing client within the local network. Switches operate at the data link layer (Layer 2) of the OSI model and utilize MAC addresses to ensure that data packets reach their intended destination efficiently.

H.264 compression uses I-frames (intra-coded frames) as reference points, with P-frames (predictive frames) and B-frames (bi-directional frames) encoding only the changes from the previous frames. If a video contained no I-frames, there would be no reference frame for decoding, resulting in an inability to display any image. This would theoretically result in a black image being visible during the whole video. Therefore, the correct answer is B. For more detailed information, refer to Axis Communications' technical notes on video compression.

When zooming in on an object with a varifocal or zoom lens, the light sensitivity of the camera generally decreases. This is because zooming in reduces the amount of light reaching the sensor due to the longer focal length and narrower aperture, which can result in a darker image. This effect is more pronounced in cameras with lower-quality lenses or insufficient lighting. Axis Network Video documentation explains how lens properties and zoom settings can impact light sensitivity and overall image quality.

Top of Form

Bottom of Form

Gatekeeper is a feature in Axis PTZ cameras that allows the camera to automatically zoom in on an object when motion is detected within a predefined area. This function is useful for focusing on areas of interest, such as entry points or sensitive zones, enhancing security monitoring by providing detailed views of potential security events. Axis Network Video documentation explains that Gatekeeper uses video motion detection to trigger the zoom function, ensuring that important details are captured without manual intervention.

The AXIS Design Tool helps users estimate bandwidth and storage usage by using a statistical model based on the selected camera model. This tool takes into account factors such as scene complexity and motion to provide accurate estimates, enabling users to plan their surveillance system more effectively. [Reference: Axis Communications - AXIS Design Tool User Guide]

Top of Form

Bottom of Form

The Axis pixel counter is a tool that allows users to verify that the camera's resolution meets the requirements for a specific scene. This is particularly useful in ensuring that critical areas are captured with sufficient detail for identification and analysis. The pixel counter helps in confirming that the pixel density is adequate for the intended surveillance purposes. Detailed explanations can be found in Axis Communications' camera setup and configuration documentation.

To ensure the AXIS P3347 always delivers the full frame rate of 30 fps even in darker conditions, setting the priority to frame rate is the correct option. This setting ensures that the camera maintains a constant frame rate by adjusting other parameters like exposure time and gain accordingly. This is essential in maintaining video smoothness and capturing real-time motion without dropping frames.

For multicast streaming to be effective, the network infrastructure must support multicast protocols. This involves network switches and routers that can handle multicast traffic, allowing video streams to be efficiently distributed to multiple clients simultaneously. Multicast reduces the load on the network by sending a single stream of data to multiple receivers, making it essential for large-scale surveillance deployments. [Reference: Axis Communications - Multicast Streaming Requirements]

Top of Form

Bottom of Form

Day & Night cameras from Axis are designed to switch to a low-light mode by removing the IR-cut filter, making them sensitive to infrared light. In this mode, the cameras are most sensitive to IR light at a wavelength of 850 nm, which is commonly used in IR illuminators for night vision. This wavelength provides a good balance between visibility and discreetness, allowing the camera to capture clear images in low-light conditions. Axis Network Video documentation details the sensitivity range and performance characteristics of Day & Night cameras, emphasizing the importance of 850 nm wavelength for optimal night-time performance.

Top of Form

Bottom of Form

Fluorescent lighting can cause flickering effects in video due to the way these lights operate. Fluorescent lamps typically flicker at twice the power line frequency (50 Hz or 60 Hz), which can interfere with the camera's frame rate and shutter speed, leading to visible flickering in the recorded video. This effect is more pronounced when the camera's exposure settings are not synchronized with the frequency of the lighting. Axis Network Video documentation discusses the importance of using cameras with anti-flicker settings or adjusting the shutter speed to match the lighting frequency to mitigate this issue.

Managed switches offer a variety of security features essential for maintaining the integrity and confidentiality of network data. IEEE 802.1X port-based authentication ensures that only authorized devices can connect to the network by requiring each device to authenticate itself before gaining access. HTTPS encryption provides secure communication over the network by encrypting the data being transmitted, protecting it from interception and tampering. These two features are critical for securing network traffic and preventing unauthorized access. Axis Network Video documentation highlights the importance of these features in maintaining a secure video surveillance network.

To address the blurring that's occurring with faster moving objects in the image, adjusting the exposure settings is the best option. Specifically, reducing the exposure time (shutter speed) will help in capturing clearer images of fast-moving objects by reducing motion blur. This adjustment allows the camera to capture less light per frame, effectively freezing the motion and reducing the blur associated with movement.

The maximum distance for a 100BaseTX Ethernet carrying 802.3at PoE connection between a switch and a camera without any extenders or repeaters is 100 meters (328 feet). This standard distance is applicable for most Ethernet networks and ensures reliable power and data transmission over the specified length.

When initiating a surveillance project, the first and most critical step is to understand the customer's goals and requirements. This involves gathering detailed information about what the customer aims to achieve with the surveillance system, the specific areas they need to monitor, and any unique challenges or constraints they might have. This understanding helps in designing a tailored solution that meets the customer's expectations and operational needs. [Reference: Axis Communications - Surveillance Installation and Configuration Guide]

AXIS Video Hosting System (AVHS) allows customers to access between 2-4 channels of live and online stored video at any time. AVHS is a cloud-based video surveillance service that provides secure and scalable access to video streams and recorded footage, enabling users to monitor their premises remotely and manage their surveillance data effectively. [Reference: Axis Communications - AXIS Video Hosting System Documentation]

Infrared (IR) illuminators with a wavelength of 940 nm do not produce any visible glow. This wavelength is completely invisible to the human eye, making it ideal for covert surveillance applications where the presence of IR illumination needs to be undetectable. Other wavelengths like 650 nm, 750 nm, and 850 nm can produce a faint red glow that may be visible in low light conditions.

When using a wireless network for video surveillance, protecting the video stream is crucial to prevent unauthorized access and ensure data integrity. VPN (Virtual Private Network) encrypts the data transmitted over the network, providing a secure tunnel between the camera and the viewing/recording device. WPA2 (Wi-Fi Protected Access 2) is a security protocol that encrypts wireless traffic, ensuring that only authorized users can access the network.

A camera lens with a low f-stop value, such as 1.2, has a larger aperture, allowing more light to enter the camera. This improves the camera's performance in low-light conditions by increasing its sensitivity to light, resulting in clearer and more detailed images when lighting is poor. [Reference: Axis Communications - Camera Lens and Aperture]

The AXIS Camera Application Platform (ACAP) is a powerful tool that allows users to install and run third-party applications directly on Axis cameras. This capability transforms the cameras into intelligent devices that can perform a variety of tasks, such as video analytics, object recognition, and event detection, without the need for additional hardware. By running applications directly on the camera, ACAP enhances the flexibility and functionality of surveillance systems. Axis Network Video documentation explains how ACAP leverages the processing power of the cameras to deliver advanced features and capabilities.

The AXIS M3204 is a cost-effective mini dome camera with a varifocal lens. It does not include DC-iris or audio capabilities, making it suitable for the specified requirements. The other options either include additional features that are not needed or do not meet the cost-effectiveness criteria. For detailed product specifications, refer to Axis Communications' datasheets and product catalogs.

When connecting and powering a PIR sensor from an Axis camera's I/O port, the output DC voltage provided is 3.3 V. This is a standard output voltage for many Axis network cameras, which allows integration of various low-power devices and sensors directly with the camera’s I/O ports.

Using a smoked (tinted) dome on a camera reduces light sensitivity because the tinted material filters the amount of light that reaches the camera sensor. This can result in lower image quality, especially in low-light conditions. The decrease in light sensitivity does not affect color fidelity, field of view, or infrared capabilities directly. For more information, refer to Axis Communications' technical notes on dome coverings and their impact on camera performance.

The Group of Video (GOV) length setting affects both the bandwidth and storage requirements of video streams. A longer GOV length, which specifies the interval between keyframes in a video stream, reduces the frequency of keyframes, thus lowering the bandwidth consumption. However, it can also increase the storage time on an SD card because fewer keyframes are stored over a given period, making the video stream more compression-efficient.

When upgrading an analog system to IP using encoders, the end of the analog signal must be terminated with a 75 Ω resistor. This standard impedance ensures proper signal transmission and prevents signal reflections that can degrade the video quality. Terminating the signal correctly is crucial for maintaining the integrity of the video feed in an analog to IP conversion. For more information, refer to Axis Communications' technical documentation on analog to IP conversion and signal termination.

In a switched network with Unicast, data packets are sent from the source to a single specific recipient. No other computers on the network will receive the data intended for that recipient. This method ensures that the communication is direct and private between the sender and the receiver, which helps in managing network bandwidth efficiently. [Reference: Axis Communications - Networking Basics for IP Surveillance]

A DNS (Domain Name System) server translates human-readable domain names (like ) into IP addresses that computers use to identify each other on the network. This process is essential for accessing websites and other resources on the Internet using user-friendly domain names instead of numerical IP addresses. [Reference: Axis Communications - Networking Basics]

When installing a camera outdoors to an existing pole, the most important consideration is that the camera has to be ruggedized. Outdoor environments expose cameras to harsh weather conditions, varying temperatures, and potential physical impacts. Ruggedized cameras are designed to withstand these conditions, ensuring reliable performance and longevity.

Increased noise levels in a scene typically result in higher bandwidth usage. Noise introduces additional variations in the video signal, which the compression algorithm must encode, leading to increased data rates. This is particularly noticeable in low-light conditions where electronic noise can significantly impact the video stream. Axis Network Video documentation explains that noise reduction techniques and proper lighting can help manage and reduce the bandwidth impact caused by increased noise levels in surveillance video.

Top of Form

Bottom of Form

To achieve four H.264 streams at 30 fps from the same camera product that can deliver two full resolution 30 fps H.264 streams, the resolution of the streams must be decreased. By lowering the resolution, the camera reduces the amount of data processed and transmitted for each stream, making it possible to support additional streams. Axis Network Video documentation indicates that stream configuration, including resolution and frame rate adjustments, allows cameras to manage multiple streams effectively while maintaining performance.

The ONVIF (Open Network Video Interface Forum) standard provides several benefits to end users. One key benefit is that it helps create future-proof systems and more secure investments by ensuring interoperability between different manufacturers' devices, which protects against obsolescence. Additionally, ONVIF increases flexibility and offers greater freedom of choice, allowing users to mix and match devices from different vendors, thereby tailoring their security systems to specific needs without being locked into a single manufacturer's ecosystem.

In an Ethernet network, broadcast traffic is sent to all devices within the network segment. This means every device receives and processes the broadcast packets, which can lead to high network load and congestion, making it inefficient for applications like network video where large amounts of data need to be transmitted reliably and efficiently. Axis documentation advises against relying on broadcast traffic for video streams, as it can degrade network performance and the quality of the video feed due to the excessive load on the network.

Axis thermal cameras are designed to detect activity in both daylight and complete darkness by capturing the heat emitted by objects and people. Unlike traditional cameras that rely on visible light, thermal cameras are effective in various lighting conditions, including complete darkness, fog, smoke, and even camouflaged objects. This makes them suitable for perimeter protection and monitoring in challenging environments. [Reference: Axis Communications - Thermal Cameras]

According to Johnson's criteria, the detection range for a person with an AXIS Q1921 with a 60 mm lens in clear weather is 1200 meters (3900 feet). This means that a human observer is able to detect a person at this distance with a 50% probability. Johnson's criteria is a widely accepted method for calculating the probability of detection, recognition, and identification of objects in surveillance imagery.

Axis' Corridor Format is designed to provide a vertically oriented video stream, which is ideal for monitoring narrow areas such as aisles. This format minimizes wasted space in the field of view and focuses on the desired area. For a retailer wanting to capture more of the aisle and less of the shelves, enabling Corridor Format on the AXIS M3204 camera would be the best solution. Detailed setup instructions can be found in Axis Communications' user manuals and configuration guides for Corridor Format.

To achieve identification at 80 pixels per face for a scene that is 2 meters (6 feet 7 inches) wide, a minimum resolution of 1280 x 720 is needed. This calculation ensures that each face captured in the frame meets the pixel density requirement for clear identification purposes.

The IP51 and IP52 ratings indicate that the camera is protected against dust and dripping water. IP51 means the camera is protected against dust ingress to a level that would interfere with the operation and against vertically dripping water. IP52 offers the same dust protection but also protects against dripping water when tilted up to 15 degrees. These ratings make the cameras suitable for indoor use where dust and minor water exposure might occur. Axis Network Video documentation specifies the IP rating system and the levels of protection provided by different ratings.

Multicast video streaming has several important characteristics:

A. Multicast can help to save bandwidth in a network because it allows the same video stream to be delivered to multiple users simultaneously, reducing the need for multiple unicast streams.

B. Multicast can typically not be used to provide video over the internet because many routers and firewalls do not support multicast traffic across the internet, which is more suited for local network environments.

D. Multicast extends the viewer capacity of a camera or an encoder from 10-20 to an unlimited number, as it does not rely on multiple individual connections to distribute the video stream.

DHCP (Dynamic Host Configuration Protocol) is a network management protocol used on IP networks. It automates the process of configuring devices on IP networks by assigning IP addresses to devices, allowing them to communicate on the network. The DHCP server dynamically assigns IP addresses from a predefined pool and leases them to devices for a specified period. This eliminates the need for manual IP configuration and helps avoid IP address conflicts. References to Axis documentation confirm that DHCP is essential for managing and automating IP address allocation in networked environments.

H.264 is a video compression standard that adjusts the bit rate based on the motion in the scene. Increased motion results in a higher bit rate because more data is required to accurately represent the changes between frames. Additionally, a longer Group of Video (GOV) length, which means fewer I-frames and more P-frames in a sequence, reduces the overall bit rate since I-frames are larger and require more data. References can be found in the Axis Communications documentation and technical white papers on H.264 compression.

When dealing with a poorly lit scene, adding light is the most effective option to improve image quality. Proper illumination ensures that the camera's sensor can capture clear and detailed images, reducing noise and enhancing visibility. While adjusting exposure settings, brightness, or changing camera placement can help, they are secondary to the fundamental requirement of adequate lighting.

Exposure time can become a limiting factor for the camera in delivering full frame rate. Longer exposure times allow more light to hit the camera sensor, improving image quality in low light conditions but also reducing the number of frames per second (fps) that the camera can capture. Shorter exposure times allow higher frame rates but may result in underexposed images in low light conditions.

Operating cameras above their specified temperature limits can increase noise in the captured images. High temperatures can affect the electronic components of the camera, leading to higher thermal noise and degraded image quality. Ensuring cameras operate within their designated temperature ranges is critical for maintaining image clarity and overall performance. Refer to Axis Communications' product specifications and environmental guidelines for more information.

The inverse square law of light intensity states that the intensity of light is inversely proportional to the square of the distance from the light source. Given that the light intensity is 1024 lux at 1 meter, we can calculate the distance at which the intensity would be 256 lux.

Since 256 lux is one-fourth of 1024 lux, and the inverse square law states that intensity is proportional to 1/d21/d^21/d2, the distance must be doubled to reduce the intensity by a factor of four. Therefore, the distance at which the light intensity is 256 lux is 2 meters. [Reference: Axis Communications - Illumination Basics]

Axis Coverage Shapes is a tool within Axis' design software that helps determine the optimal placement and specifications of cameras to ensure that identification and surveillance goals are met. It allows the designer to visualize the camera's coverage area and assess the distance at which a person can be identified, ensuring that the camera's placement and specifications align with the security requirements. For more detailed information, refer to Axis Communications' resources on Axis Coverage Shapes.

The AXIS P3301 is a fixed mini dome camera that features a DC-iris lens, a 2.8-10 mm varifocal lens, and wide dynamic range (WDR). This combination of features makes it the only suitable choice among the listed options to meet the customer's requirements for a fixed mini dome camera with these specific capabilities. More details can be found in the Axis Communications product specifications and data sheets for the AXIS P3301.

The first time an Axis camera's Live View is accessed, the user is prompted to configure a root password. This step is essential for securing the camera and preventing unauthorized access. Setting a strong root password ensures that only authorized users can modify the camera's settings and view the video stream.

Zipstream’s Dynamic GOP (Group of Pictures) conserves bandwidth and storage by skipping new I-frames if the scene is unchanged. I-frames (intra-coded frames) are larger than P-frames (predictive frames) and B-frames (bi-directional frames) because they contain the full image data. By reducing the frequency of I-frames when there is no motion or change in the scene, Zipstream significantly lowers the data rate without compromising image quality. Axis documentation explains how Zipstream’s Dynamic GOP feature optimizes video encoding to conserve resources effectively.

The main benefit of signed firmware is that it allows the device to verify the integrity and authenticity of the firmware before it is installed. This process ensures that the firmware has not been tampered with and is from a trusted source, thereby enhancing the security of the device. Signed firmware prevents unauthorized or malicious firmware from being installed, which is crucial for maintaining the security and reliability of network devices. Axis documentation emphasizes the importance of signed firmware in protecting devices from potential security threats by verifying the firmware's integrity.

"The human eye can detect light in the 400–700 nm range. Below 400 nm is ultraviolet, above 700 nm is infrared."

— Axis Communications Academy, Network Video Fundamentals, 2022

"Visible spectrum: 400–700 nm."

— Axis Technology Overview: Light and Imaging

OptimizedIR technology in Axis cameras adjusts the IR illumination to match the camera's field of view. This ensures that the IR light is evenly distributed across the scene, reducing the risk of overexposure and enhancing image quality. Furthermore, this alignment helps to maintain image clarity and detail by preventing hot spots and ensuring a balanced exposure across the entire frame. According to Axis documentation, these benefits help improve the effectiveness of night-time surveillance and reduce the need for additional external IR illuminators.

"Dynamic FPS (frames per second) is a Zipstream setting that automatically lowers the frame rate when there is no activity in the scene, thus saving bandwidth and storage."

— Axis Zipstream Technology Overview

"Dynamic FPS reduces the frame count during low-activity periods to optimize bandwidth and storage usage."

— Axis Communications Academy, Network Video Fundamentals, 2022

"A longer focal length (such as 48 mm) results in a shorter depth of field compared to shorter focal lengths, meaning only a narrow range of distances will be in focus."

— Axis Communications Academy, Network Video Fundamentals, 2022

"Depth of field decreases as the focal length increases."

— Axis Lens Guide White Paper

On layer 3 of the OSI model, the protocol that enables network traffic is IP (Internet Protocol). IP is responsible for addressing and routing packets of data so that they can travel across networks and reach the correct destination. It provides logical addressing and handles the path through which data is transferred between source and destination nodes. Axis documentation confirms that IP is crucial for network communication and is fundamental for the operation of network video systems.

"The field of view (FOV) of a camera is determined by the focal length of the lens and the size of the image sensor. A shorter focal length gives a wider FOV, while a larger sensor size also increases the FOV."

— Axis Communications Academy, Network Video Fundamentals, 2022

"FOV = 2 × arctan (sensor size / (2 × focal length))."

— Axis Lens Guide White Paper

“Axis devices can use action rules with conditions such as schedule, input, or motion detection. For example, an action rule can be set to play a sound through a network speaker if motion is detected outside of business hours.”

— Axis Communications Academy, Network Video Fundamentals, 2022

“Action rules allow users to automate responses to events by setting conditions. Example: If motion is detected after hours, play a pre-recorded message on a network speaker.”

— Axis Device Event Configuration Guide

Concrete has the lowest reflectance among the listed surfaces. Reflectance refers to the ability of a surface to reflect light, and concrete typically reflects less light compared to sand, grass, or snow. This characteristic is important for surveillance in terms of minimizing glare and ensuring better image quality. Axis Communications' documentation on environmental considerations supports this information.

Axis Secure Remote Access simplifies making Axis cameras available over the internet without the need for complex network configurations. This service provides a secure, encrypted connection to access and manage Axis devices remotely. By using Axis Secure Remote Access, users can avoid issues related to NAT traversal and firewall configurations, ensuring a reliable and secure remote connection. Detailed instructions and benefits of using Axis Secure Remote Access are outlined in Axis' support documentation.

"Lightfinder technology provides Axis cameras with extreme light sensitivity, enabling them to deliver high-quality, full color images in extremely low-light conditions."

— Axis Lightfinder Technology Overview

"Lightfinder technology allows for color images in situations where other cameras would only produce black-and-white."

— Axis Communications Academy, Network Video Fundamentals, 2022

For AXIS P3247-LVE, the last digit '7' indicates the camera resolution. Axis uses a numerical system where the last digit often denotes the resolution of the camera. In this case, '7' represents a camera with a resolution of 5 MP (megapixels), providing high-quality video surveillance suitable for detailed monitoring.

"The pixel counter tool allows you to verify that the resolution at a given distance meets identification, recognition, or detection requirements for a surveillance scene."

— Axis Communications Academy, Network Video Fundamentals, 2022

"Axis cameras have a built-in pixel counter feature, helping installers confirm if a scene has the needed pixel density."

— Axis Pixel Counter Tool

Accelerometers are used in Axis cameras primarily for shock detection. They detect sudden movements or impacts that might indicate tampering or vandalism. When a shock is detected, the camera can trigger alerts or initiate protective actions to safeguard the device and maintain surveillance integrity. Axis technical specifications detail the use of accelerometers in various models for enhanced security through shock detection.

A decoder allows for displaying digital live video on a monitor. Axis decoders convert digital video streams from network cameras into standard video signals that can be displayed on monitors. This is particularly useful in surveillance setups where live monitoring on standard displays is required. Axis offers various decoders designed for seamless integration with their camera systems, as detailed in their product documentation and solution guides.

To calculate the storage used per hour by a camera’s recording stream with a bitrate of 8 Mbit/s, you can use the following formula:

Storage (GB/hour)=bitrate (Mbit/s)×seconds per hour8×1024\text{Storage (GB/hour)} = \frac{\text{bitrate (Mbit/s)} \times \text{seconds per hour}}{8 \times 1024}Storage (GB/hour)=8×1024bitrate (Mbit/s)×seconds per hour​

Since there are 3600 seconds in an hour:

Storage (GB/hour)=8×36008×1024=288008192=3.6 GB\text{Storage (GB/hour)} = \frac{8 \times 3600}{8 \times 1024} = \frac{28800}{8192} = 3.6 \text{ GB}Storage (GB/hour)=8×10248×3600​=819228800​=3.6 GB

Thus, the camera uses 3.6 GB of storage per hour. Axis documentation on storage requirements for video streams provides similar calculations to estimate storage needs based on bitrate.

“When decommissioning an Axis device, always perform a factory restore to securely remove all configuration, user data, and stored information from the device.”

— Axis Decommissioning Guide

“A factory restore erases all user data and settings, returning the device to its original state, which is necessary before removing the device from service.”

— Axis Communications Academy, Network Video Fundamentals, 2022

To minimize the risk of losing recordings if there is a disconnect between the camera and the server, failover recordings are recommended. This involves having a secondary recording location, such as an SD card in the camera, that can store video footage temporarily until the connection to the server is restored. This ensures continuous recording and prevents data loss. Axis Communications' documentation on system reliability and failover solutions supports this recommendation.

"Some PTZ cameras feature advanced autofocus technologies such as laser focus or focus recall to quickly and accurately focus at different zoom levels or positions."

— Axis Communications Academy, Network Video Fundamentals, 2022

"PTZ models with laser focus technology maintain image sharpness even at long distances."

— Axis PTZ Camera Series Overview

Axis Sharpdome technology provides the advantage of enabling PTZ cameras to see above the horizon. This innovative design allows for 360-degree coverage and significantly enhances the field of view, making it possible to monitor areas both above and below the camera’s position without distortion. This feature is particularly beneficial for applications requiring extensive coverage and flexible monitoring angles. Axis Communications' product details on Sharpdome technology highlight this capability.

To wire an external 12V relay to the output port of an Axis camera, the GND and I/O1 pins should be used. The GND (ground) provides the necessary electrical return path, and the I/O1 pin is used for the output signal to control the relay. According to Axis technical documentation, these connections allow for proper integration and control of external devices such as relays, ensuring they function correctly with the camera's output capabilities.

When an Axis camera is not behaving as expected, the maintenance functions available include "Camera restore" and "Factory default." The "Camera restore" function allows the user to reset the camera settings without affecting the network settings, while the "Factory default" function resets all settings to the original factory settings, including network settings. These functions help in troubleshooting and restoring normal operation of the camera. References: Axis Communications product manuals and support documentation.

"Scenes with large areas of uniform color and little movement, such as an empty office, are more compressible without noticeable loss in quality because there is less detail and fewer changes between frames."

— Axis Communications Academy, Network Video Fundamentals, 2022

"Static and simple scenes (e.g., an empty room) require less data and can be compressed more efficiently than complex or busy scenes."

— Axis Web Article: Video Compression

A video encoder effectively turns an analog camera into a network camera by converting the analog signal to a digital format, which can then be transmitted over a network. Additionally, video encoders add intelligent functionality found in network cameras, such as motion detection, event management, and video analytics capabilities. These features enable legacy analog systems to integrate with modern IP-based surveillance solutions. References: Axis Communications product documentation on video encoders.

"The compass-style indicators in the user interface display the current pan direction of a PTZ camera. This helps operators orient themselves and know which direction the camera is facing in real-time."

— Axis Communications Academy, Network Video Fundamentals, 2022

"On-screen compass indicators are designed to show operators the camera’s current field of view, making navigation and incident tracking easier."

— Axis PTZ Control User Manual

"Lossy compression algorithms such as H.264 and H.265 achieve greater bitrate reduction by discarding some image information, which is not recoverable. This enables efficient transmission and storage while maintaining acceptable image quality."

— Axis Communications Academy, Network Video Fundamentals, 2022

"Lossy compression reduces the file size significantly by removing information that is not needed for human viewing. The removed content cannot be restored."

— Axis Web Article: Video Compression

Session Initiation Protocol (SIP) is used to set up peer-to-remote calls, peer-to-peer calls, and SIP trunk calls. SIP is a signaling protocol widely used for initiating, maintaining, and terminating real-time communication sessions, including voice, video, and messaging applications. It facilitates communication between endpoints, whether they are directly connected or through a SIP trunk. Axis Communications' technical documentation on SIP and VoIP solutions confirms these uses.

ACAP (Axis Camera Application Platform) analytics run directly on the device. This means that the processing and analysis of data occur on the camera itself, rather than on a separate server or in the cloud. Running analytics on the device reduces the need for additional hardware and network bandwidth, and it allows for faster decision-making and real-time alerts. This information is confirmed by Axis Communications' documentation on ACAP.

Video analytics applications detect movement perpendicular to the camera more easily than movement toward or away from the camera. This is because objects moving perpendicular to the camera create more significant changes in the pixel patterns, making it easier for the analytics software to detect and analyze the movement. Movement toward or away from the camera results in smaller changes in pixel patterns, which can be harder to detect accurately. References: Axis Communications documentation on video analytics and movement detection.

"Radar devices provide detection and tracking capabilities, including real-time geographical position and speed of people and vehicles within their coverage area."

— Axis Radar Technology Overview

"Axis security radars accurately detect, classify, and track moving people and vehicles, providing precise GPS coordinates."

— Axis Communications Academy, Network Video Fundamentals, 2022

Pixel density increases when the field of view decreases. By narrowing the field of view, the same number of pixels are concentrated over a smaller area, resulting in higher pixel density. This means that more detail can be captured in a given area, which is essential for applications requiring high image resolution and clarity. This concept is confirmed by Axis Communications' documentation on image quality and pixel density.

A PoE switch with a power budget of 90 W can power 12 class 2 devices. Class 2 PoE devices typically require up to 7.5 W each. By dividing the total power budget (90 W) by the power requirement per device (7.5 W), we get 12 devices. This calculation aligns with the PoE standards defined in IEEE 802.3af/at, as outlined in Axis Communications' technical resources.

External (non-integrated) IR illumination can significantly enhance the performance of surveillance cameras in low-light conditions. By increasing contrast in the scene, it allows the camera to capture clearer images with more detail. Additionally, external IR illumination provides more flexibility in placement and coverage, ensuring that the entire area of interest is adequately illuminated. This can be particularly useful in large or irregularly shaped areas where integrated IR might not be sufficient. Axis documentation supports the use of external IR illuminators to improve image quality and scene visibility in low-light environments.

Typically, a system designer calculates the pixel density based on the horizontal resolution and the field of view. Pixel density is crucial in determining the level of detail a camera can capture in a specific area. Horizontal resolution refers to the number of pixels along the horizontal axis of the image sensor, while the field of view is the extent of the observable area captured by the camera. This calculation helps in ensuring that the camera setup meets the surveillance requirements.

"Dynamic range (often referred to as Wide Dynamic Range or WDR) is the difference between the lightest and darkest parts of a scene. A camera with high dynamic range can show details in both the highlights and shadows simultaneously."

— Axis Communications Academy, Network Video Fundamentals, 2022

"Wide Dynamic Range (WDR) improves image quality in scenes with very bright and very dark areas by balancing light and dark areas."

— Axis Communications, WDR Technology Overview

An opportunistic attack is characterized by the attacker not being acquainted with the target. These attacks are typically random and take advantage of any available vulnerability rather than being specifically targeted at a particular system or organization. The attacker usually seeks easy targets with known vulnerabilities and acts quickly when an opportunity arises. Axis security documentation describes opportunistic attacks as generally unsophisticated, focusing on exploiting common and readily available weaknesses in systems.

“Shutter speed determines how long the camera sensor is exposed to light. A fast shutter speed minimizes motion blur, while a slow shutter speed increases the likelihood of motion blur in moving objects.”

— Axis Communications Academy, Network Video Fundamentals, 2022

“Motion blur in surveillance footage is primarily affected by the camera’s shutter speed setting, not the frame rate or compression.”

— Axis Communications, Shutter and Exposure

A P-iris lens has better iris control in all lighting conditions. P-iris (Precise iris) lenses are designed to optimize the depth of field, contrast, and resolution of the camera by precisely controlling the iris opening, ensuring optimal image quality in varying light conditions. This technology is superior to manual, fixed, and DC-iris lenses. Axis Communications' product specifications highlight the benefits of P-iris lenses in maintaining image quality across different lighting scenarios.

“When using fiber connections for network cameras that lack onboard SFP slots, a midspan with an SFP slot is recommended. This device can accept the fiber connection, provide PoE power to the camera, and transmit data over standard Ethernet.”

— Axis Communications, PoE Midspans and Network Accessories

“A PoE midspan with an SFP slot allows you to convert fiber to copper (Ethernet), power the camera via PoE, and handle data transmission all in one device.”

— Axis Communications Academy, Network Video Fundamentals, 2022

The red tip on the cable is used to keep the connectors dust-free prior to installation. It protects the RJ45 connector from dust and debris, ensuring a clean and reliable connection once installed. Maintaining clean connectors is essential for preventing connectivity issues and ensuring optimal network performance. Axis installation guides specify the importance of keeping connectors covered until installation to protect against contamination and ensure a proper connection.

Reducing the frames per second (FPS) by 50% will reduce the bitrate by less than 50%. This is because the bitrate is influenced not only by the frame rate but also by the complexity of the image content and the compression efficiency. While lowering the FPS reduces the amount of data being processed, other factors like scene complexity and motion still impact the overall bitrate. Axis documentation on video compression and bitrate management indicates that halving the FPS typically results in a less than proportional reduction in bitrate.

Quality of Service (QoS) in networking means that different data packets can have different priorities on the network. QoS mechanisms ensure that critical or time-sensitive data, such as video or voice, receive higher priority and guaranteed bandwidth over less critical data. This helps maintain the performance and reliability of essential services even when the network is congested. Axis Communications' technical guides on networking principles and QoS confirm this definition and its importance in IP surveillance systems.

Lowering the shutter speed can produce motion blur because the camera sensor is exposed to light for a longer period, capturing the movement of objects within the frame. This results in a blurry representation of moving objects, which can be useful for artistic effects but undesirable for capturing fast-moving subjects clearly. References: Axis Communications camera user guides and image capture documentation.

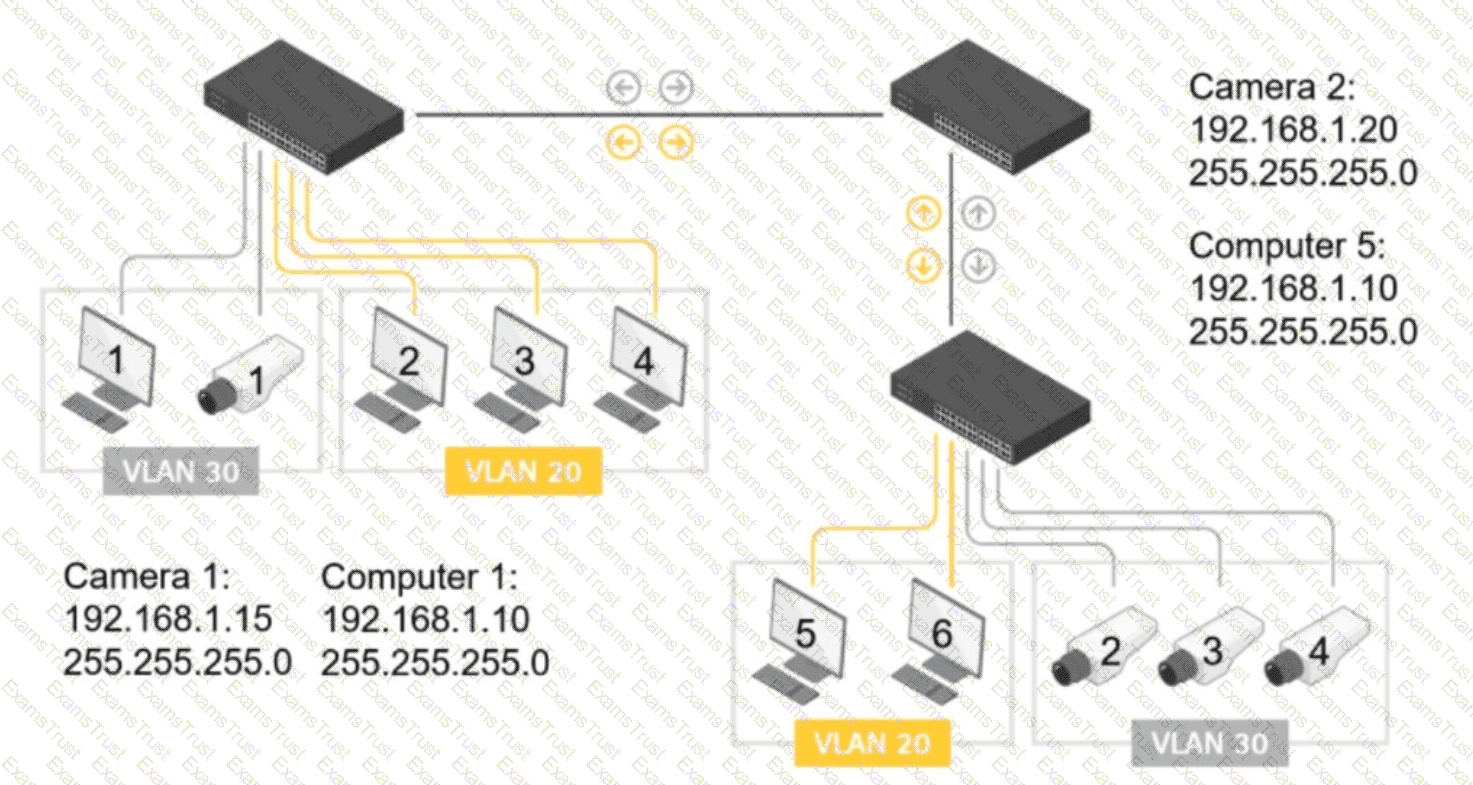

"Both Computer 1 (192.168.1.10) and Computer 5 (192.168.1.10) have the same IP address assigned within the same network (192.168.1.0/24). This creates an IP address conflict, causing communication errors on the network."

— Axis Communications Academy, Network Video Fundamentals, 2022

"An IP address conflict occurs when two devices share the same IP address, resulting in communication issues for both devices."

— Axis Networking Basics Guide

"An IR-pass filter blocks visible light and allows only infrared light to reach the camera sensor. This is commonly used for dedicated infrared imaging applications."

— Axis IR Filter Technologies

"An IR-cut filter, by contrast, blocks infrared light and lets visible light through."

— Axis Communications Academy, Network Video Fundamentals, 2022

"A shorter exposure time, such as 1/500 second, is recommended for capturing fast-moving objects in order to minimize motion blur, especially in well-lit conditions where there is sufficient light for proper exposure."

— Axis Communications Academy, Network Video Fundamentals, 2022

"To freeze fast-moving subjects, use fast shutter speeds such as 1/500s or shorter."

— Axis Web Article: Shutter and Exposure

The camera shown in the image is an Axis multidirectional camera, which typically features multiple sensors to cover a wide area. Based on the design and common configurations of Axis multidirectional cameras, it has a total of 4 camera sensors. Each sensor can be independently adjusted to capture different angles and areas, providing comprehensive surveillance coverage. Axis documentation on multidirectional cameras confirms that these models generally come with four sensors for optimal monitoring.

Axis helps prevent attackers from deceiving system owners into installing altered firmware by using signed firmware. Signed firmware ensures that only authentic and unaltered firmware can be installed on the device. This process involves cryptographic signatures that verify the integrity and authenticity of the firmware, thus preventing malicious code from being introduced into the system.

To prevent reflections from built-in IR illuminators from degrading the image quality, an installer can adjust the camera's field of view. By repositioning the camera or slightly altering its angle, the installer can minimize the direct reflection of IR light back into the lens, which often causes glare and reduces image clarity. Axis installation guidelines recommend adjusting the camera’s position to avoid reflective surfaces and ensure optimal use of IR illumination for clear, unobstructed images.

“The interval between two I-frames (intra-coded frames) in a compressed video stream is called the Group of Pictures (GOP). The GOP defines how many frames are between full image frames and is a key concept in video compression.”

— Axis Communications Academy, Network Video Fundamentals, 2022

“A GOP (Group of Pictures) consists of one I-frame followed by a series of P-frames and B-frames, until the next I-frame appears.”

— Axis Web Article: Video Compression
