AVIXA CTS Certified Technology Specialist Exam Practice Test

The main benefit of carrying out regular software updates provided by the device manufacturer is enhancing the data security of the system. Software updates often include patches for security vulnerabilities that have been discovered since the last update. By regularly updating the software, users can protect their systems against new threats and ensure that any known vulnerabilities are addressed. This is critical in maintaining the overall security and integrity of the system.

The optimal time to conduct training of end users in a new AV installation is at the time of system handover with accompanying user guides. This ensures that users receive hands-on training with the actual equipment they will be using, allowing them to understand its operation fully and ask questions while a technician is present. Providing user guides during this time also gives them a reference to consult after the training session. Axis Technology Specialist documentation stresses the importance of comprehensive training and support at the system handover phase to maximize user proficiency and satisfaction.

A high visibility vest is an example of Personal Protective Equipment (PPE), which is worn to increase safety by making the wearer more visible on-site, particularly in low-visibility or high-traffic areas.

CTS Technology Specialist Reference

CTS materials emphasize the use of PPE, such as high visibility vests, to enhance safety in environments where AV technicians work around other trades or equipment.

Blanking panels help direct airflow front-to-back, minimizing air recirculation in open areas and improving cooling efficiency. This method helps the cool air reach heat-producing components more effectively.

“Blanking panels eliminate hot air recirculation and promote efficient front-to-back cooling—a best practice in AV rack design.”

— CTS Exam Guide, Equipment Ventilation and Rack Design

When installing a projector, it is essential to account for ventilation ducts as they affect where a projector can be suspended. Ventilation ducts influence airflow and can affect the cooling requirements of AV equipment. Positioning near ducts may cause issues like vibration, interference with airflow, and temperature inconsistencies.

CTS Technology Specialist Reference

The CTS materials emphasize checking ventilation, HVAC placement, and airflow during site surveys to determine optimal equipment placement and avoid interference with cooling and sound.

A distribution amplifier (DA) is designed to take a single input signal and replicate it across multiple outputs without degradation in quality. It maintains signal integrity across longer distances and multiple destinations, which is essential when distributing video to several monitors.

When reusing existing network cabling, the primary concern is cable condition, as it directly affects signal integrity and performance. Damaged or deteriorated cables can lead to transmission issues, especially for audio and video signals, which require reliable connectivity.

CTS Technology Specialist Reference

CTS materials emphasize inspecting cable conditions for any AV project, particularly when reusing existing infrastructure, to ensure the system will function as intended without signal degradation or reliability issues.

The loud squealing noise is feedback, often caused by open (but unused) microphones picking up sound from the speakers and reintroducing it into the system. Muting unused channels eliminates that loop and is considered best practice during live sound reinforcement.

“Muting unused microphones prevents feedback loops and is an essential practice in live sound environments.”

— AVIXA CTS Exam Guide, Audio Troubleshooting and DSP Management

Mic-level, line-level audio, and relay control are all low-voltage, low-noise sensitive signal types. They can typically share a common cable pathway with proper shielding. RF and loudspeaker cables, on the other hand, can cause interference and should be routed separately.

“Group cables by signal type to reduce interference: low-voltage control and audio together; high-power (loudspeaker or AC) separately.”

— CTS Exam Guide, Cabling and Signal Management Chapter

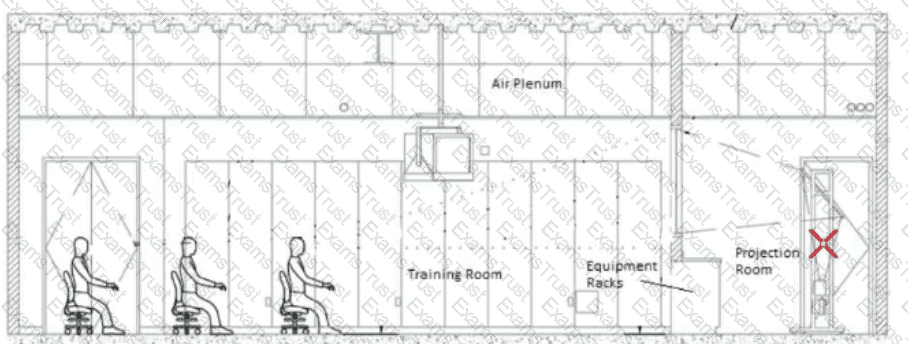

The correct answer is the Air Plenum area — the space above the ceiling tiles used for air circulation in HVAC systems.

According to NFPA 70: National Electrical Code (NEC) and referenced in the AVIXA CTS Exam Guide, cabling run through plenum spaces must meet stringent fire and smoke safety standards. This is because if a fire occurs, the plenum area can rapidly spread smoke and toxic fumes throughout a building.

From the CTS Exam Guide (5th Edition), under Chapter 2: Infrastructure, it states:

“Plenum-rated cable is required in spaces used for environmental air (plenum spaces), as these cables are designed with fire-retardant jackets that emit low smoke. Non-plenum cable cannot be used unless it is enclosed in a conduit rated for plenum use.”

— AVIXA CTS Exam Guide, Chapter 2, p. 42–44

Proper management of control system code during and after project delivery is crucial to ensure that the most current version of the code is always available. This allows for quick and accurate updates, troubleshooting, and maintenance when needed. Ensuring that the latest version of the code is well-documented and accessible helps maintain the integrity of the system and supports efficient operations and future modifications. This practice reduces the risk of running outdated or incorrect code, which can lead to system malfunctions and increased costs.

The section with the grayscale bars (bottom row, from white to black)

Brightness calibration is typically done using the grayscale section of a color chart. The grayscale bars provide a range of luminance levels from white to black, allowing the calibration process to adjust the display so that each shade is distinct and accurately represented. Proper calibration ensures that the display shows details in both bright and dark areas of the image, achieving the correct overall brightness.

Proper maintenance during lamp replacement includes cleaning the air filter (to maintain airflow and cooling efficiency) and resetting the lamp timer (to allow the projector to accurately track lamp life and provide warnings). Neglecting either may cause overheating or inaccurate lamp life reporting.

When an LED indicator on a projector blinks regularly, it typically signifies an error or a status message that needs attention. The correct course of action is to consult the projector's manual. The manual will provide specific information regarding what the blinking pattern means and the appropriate steps to resolve the issue. This method ensures that the engineer addresses the problem correctly without causing further damage or misdiagnosing the issue.

A customized quick start guide is particularly useful for helping end users remember key points of the training. These guides provide concise, easy-to-follow instructions tailored to the specific system and user needs, highlighting the most important operational steps and features. This helps users quickly familiarize themselves with the system and perform essential tasks without having to refer to extensive manuals. Including visual aids, such as diagrams and screenshots, further enhances the effectiveness of the quick start guide.

Security screws are a common method to prevent unauthorized removal of individual equipment from a rack. They require specialized tools for removal, thereby deterring theft.

CTS Technology Specialist Reference

The CTS curriculum includes recommendations for securing equipment in racks, with security screws listed as a practical solution to safeguard AV assets against theft.

The AV Project Manager is responsible for managing the schedule, budget, and scope of a project. This encompasses ensuring the project is completed on time (schedule), within the allocated funds (budget), and meets all the agreed-upon requirements (scope). These three aspects are often referred to as the "triple constraint" in project management and are critical for the successful completion of a project.

Plosives and breath noise occur when air hits the mic capsule directly. This can be mitigated by adjusting the mic’s position slightly off-center from the mouth and adding a windscreen to diffuse breath impact.

“Correct mic placement and windscreen use significantly reduce plosives and breath noise, especially with headworn microphones.”

— CTS Exam Guide, Microphone Placement and Audio Optimization

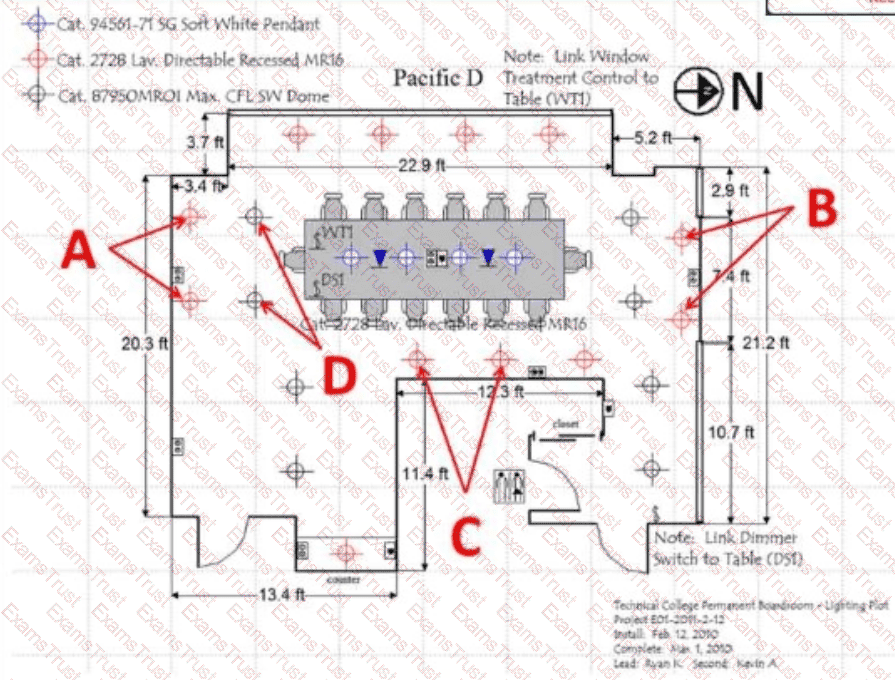

In the diagram, lighting zones are typically defined by separate control paths or groups of lights that are independently operated. Each uniquely grouped set of lights shown with a distinct wiring loop or pathway represents one lighting zone.

Upon analysis:

There are 6 clearly delineated lighting zones, each represented by a different control path (black arrows or loops) connecting light fixtures.

These zones correspond to:

Front center lighting area (yellow boxes)

Rear center lighting area (yellow boxes)

Left aisle lighting (green)

Right aisle lighting (green)

Front curved lighting (blue)

Rear curved lighting (blue)

Each of these zones serves a different function (e.g., audience areas, presentation zones, ambient or pathway lighting), which aligns with typical AV environment lighting zoning strategy.

According to the AVIXA CTS Exam Guide, 5th Edition – Chapter 8: Lighting and Control, it states:

"Lighting zones are separated based on control, purpose, and placement. Zoning enables flexible lighting control schemes for AV spaces such as classrooms, conference rooms, and auditoriums."

— AVIXA CTS Exam Guide, Chapter 8, p. 173–175

???? References:

AVIXA CTS Exam Guide, 5th Edition – Chapter 8: Lighting Systems & Control Zones

AV Design Best Practices: ANSI/AVIXA D401.01:2019 – AV Systems Performance Verification

AVIXA Body of Knowledge: Environmental Considerations in AV Design

The primary factor that must be considered when deciding how to attach a projector mount to a concrete ceiling is the condition of the concrete. Ensuring that the concrete is in good condition and can support the weight and stress of the projector mount is essential for safety and stability. Axis Technology Specialist documentation emphasizes assessing the integrity of the mounting surface to prevent structural failures and ensure secure installation.

Before confirming an anticipated completion date, it is critical to ensure that all components required for the project are available and not backordered. Backordered components can cause significant delays, impacting the overall project timeline. By verifying the availability of all necessary components, you can provide a realistic and reliable completion date to the customer. This step is essential for effective project planning and avoiding unexpected delays.

Cable A is a shielded twisted pair (STP) cable, which is suitable for carrying balanced microphone signals. Balanced audio cables have three conductors: two for the signal (positive and negative) and one for the ground. The twisted pair helps to cancel out electromagnetic interference, providing a cleaner signal with less noise. The shielding further protects against external interference, making it ideal for professional audio applications.

Top of Form

Bottom of Form

Understanding a client’s current and anticipated needs is essential for designing a system that truly supports their workflow. This involves asking targeted questions and assessing the functionality they expect from the AV system.

“Assessing user requirements is foundational to delivering an effective AV solution. Integrators must understand functional expectations to ensure alignment with the delivered system.”

— CTS Exam Guide, Needs Analysis and Client Interaction

The primary benefit of a remote monitoring system is that it reduces the need for service calls by allowing technicians to monitor equipment status, detect issues early, and perform diagnostics remotely. This proactive monitoring minimizes downtime and often resolves issues without the need for on-site intervention.

CTS Technology Specialist Reference

CTS training emphasizes the value of remote monitoring in AV maintenance, highlighting its role in reducing service costs and improving system uptime by enabling early issue detection and resolution.

According to the AVIXA AV System Performance Verification Standard, the system performance verification process is intended to “objectively demonstrate that an AV system performs in accordance with the project documentation and to the client’s expectations.” This step ensures that all subsystems are tested and that performance meets the pre-established metrics. It’s not merely administrative; it ensures compliance and satisfaction.

A dependency in a project task schedule describes a situation where a task cannot begin before another task is completed. Dependencies ensure that tasks are performed in the correct order to maintain the workflow and project timeline. Axis Technology Specialist documentation highlights the importance of identifying and managing dependencies to ensure smooth project execution and avoid delays.

AV integrators should provide construction drawings to a general contractor. These drawings contain detailed information about the AV system layout, including locations of equipment, wiring paths, and installation requirements. Construction drawings ensure that all supporting trades, such as electrical and carpentry, have the necessary details to accommodate AV system installations. They coordinate the work of different trades to avoid conflicts and ensure proper implementation. Construction drawings are essential for aligning the AV system installation with the overall building construction process, ensuring accuracy and efficiency.

Pantone data (PMS) is used to ensure color consistency between digital displays and printed materials. This is critical in branding to maintain accurate color representation across different mediums, particularly for logos and brand colors.

CTS Technology Specialist Reference

CTS guidelines on content creation emphasize color matching as a key consideration for client branding, often involving Pantone color standards to achieve consistency.

In audio technology, EQ (equalization) refers to the process of adjusting the balance between different frequency components of an audio signal. EQ types are specifically designed tools that allow sound engineers to manipulate frequencies in different ways. The types of EQ generally fall into categories like graphic, parametric, shelving, and band-pass, among others.

A parametric EQ is a type of equalizer that offers control over three primary parameters:

Frequency – the specific frequency to be adjusted.

Gain – the amount of boost or cut applied to the selected frequency.

Q (Quality Factor) – the bandwidth or range of frequencies affected around the selected frequency.

Unlike other choices, a parametric EQ provides precise control over these settings, making it highly versatile in audio production. The other options are not types of EQ but rather different types of audio processing tools:

Gate: Used to control the amplitude of an audio signal, often to suppress noise below a certain threshold.

Limiter: A dynamics processor that prevents a signal from exceeding a set level.

Compressor: Reduces the dynamic range of an audio signal by attenuating louder parts above a threshold.

CTS Technology Specialist Reference

The use of parametric EQ is a standard practice in AV system design, as outlined in the CTS (Certified Technology Specialist) training materials, which discuss various EQ types and their applications in optimizing audio fidelity. Parametric EQs are favored in professional settings for their flexibility and control over specific frequencies, as compared to fixed-frequency or limited-band EQs.

The throw distance of a projector can be calculated using the throw ratio formula: Throw Distance=Throw Ratio×Screen Width\text{Throw Distance} = \text{Throw Ratio} \times \text{Screen Width}Throw Distance=Throw Ratio×Screen Width

Given: Throw Ratio=2.3\text{Throw Ratio} = 2.3Throw Ratio=2.3 Screen Width=144 in\text{Screen Width} = 144 \text{ in}Screen Width=144 in

Throw Distance=2.3×144\text{Throw Distance} = 2.3 \times 144Throw Distance=2.3×144 Throw Distance=331.2 in\text{Throw Distance} = 331.2 \text{ in}Throw Distance=331.2 in

Therefore, the projector should be placed approximately 331 inches (8413 mm) from the screen.

Understanding the client’s procurement method is crucial to determine whether the project will go to a competitive bid. This awareness helps avoid wasting resources on a design that may not be directly awarded and instead go through a bidding process, which could result in another firm being chosen.

CTS Technology Specialist Reference

The CTS curriculum emphasizes the importance of clarifying procurement processes early to ensure alignment with project scope and avoid unnecessary design work that might not be retained.

Laser phosphor projectors offer longer operational life and lower maintenance needs compared to lamp-based projectors. Because they don’t require frequent lamp changes and generate less heat, they are ideal for hard-to-reach installations where routine maintenance would be difficult and costly.

The image shows a dynamic microphone, which works through electromagnetic induction. In a dynamic microphone, sound waves cause the diaphragm to move, which in turn moves a coil of wire within the magnetic field of a magnet. This movement generates an electrical signal that corresponds to the sound. The visible components, such as the diaphragm, coil, and magnet, are characteristic of a dynamic microphone’s internal structure.

CTS Technology Specialist Reference

The CTS curriculum details the workings of various microphone types, explaining that dynamic microphones are durable and suitable for live sound due to their ability to handle high sound pressure levels.

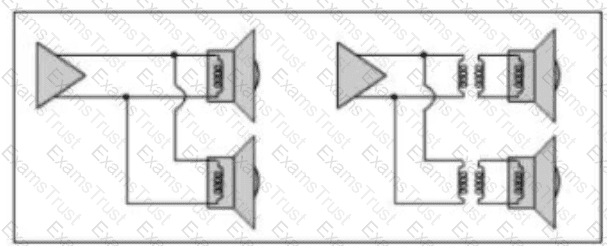

Constant voltage distributed audio systems use a parallel wiring scheme, allowing multiple speakers to be connected to a single amplifier without needing to match impedances precisely. This setup is common in large venues where many speakers are distributed over a wide area.

CTS Technology Specialist Reference

CTS materials explain that parallel wiring is standard in constant voltage systems, as it simplifies installation and allows for flexible speaker placement across large areas.

The responsibility for the installation of conduit in a construction project is typically outlined in the bid (tender) documents. These documents detail the scope of work, responsibilities, and specifications agreed upon during the competitive bidding process. They serve as a binding agreement between the parties and clearly delineate who is responsible for various aspects of the project, including the installation of conduit.

For mounting a 50-inch monitor on the south wall of the boardroom, recessed lights labeled as D will need to be separated into their own zone to turn them off when the monitor is on. This will prevent glare and reflections on the screen, ensuring a clear and visible display. Axis Technology Specialist documentation supports the necessity of proper lighting control in AV installations to optimize viewing conditions.

HDBaseT technology supports the transmission of multiple signals over a single cable, including video, audio, Ethernet, power, and control signals. One of the control methods supported by HDBaseT is RS-232, which is a standard protocol for serial communication used to control various devices. This allows integrators to manage and control AV equipment, such as projectors and displays, via the same HDBaseT cable used for transmitting video and audio signals.

Distortion occurs when an audio device can no longer accurately reproduce the input audio signal. This happens when the signal exceeds the device's capacity to process it linearly, resulting in a corrupted output that differs from the original signal. Distortion can be caused by overloading the device's input or output stages, improper gain settings, or defects in the audio components. It degrades the quality of the audio signal and can manifest as unwanted noise or alterations in the sound.

A performance bond provides a third-party guarantee that the contractor will complete the project as specified in the contract and offers protection against financial losses if the project is not completed. This bond ensures that the client has recourse if the contractor fails to meet contractual obligations.

CTS Technology Specialist Reference

CTS study materials note that performance bonds are commonly requested in construction and large AV projects to provide clients with financial protection and assurance of project completion.

The first step in creating an estimate for an RFP is to read the project description thoroughly. This ensures that you fully understand the scope, requirements, and objectives of the project. By doing so, you can accurately determine what is needed, identify potential challenges, and make informed decisions on costs, resources, and scheduling. Starting with a clear understanding of the project description sets

The main benefit of an inventory tracking system in an AV rental and staging business is having an accurate record of the current state and commitments of assets. This allows the business to manage inventory efficiently, track availability, schedule rentals, and ensure that equipment is maintained and ready for use. According to Axis Technology Specialist documentation, maintaining accurate records of asset status and commitments is crucial for operational efficiency and customer satisfaction in the AV rental industry.

Company information, statement of work, drawings, and bill of materials are presented to the customer as a bid packet (response). This set of documents is used to respond to a request for proposal (RFP) and provides detailed information about how the contractor intends to meet the project requirements. Axis Technology Specialist documentation emphasizes the importance of a comprehensive bid packet to communicate the scope, approach, and cost of a project to the client.

Maintaining AV operations involves ensuring that all system components are up to date and functioning correctly. One critical aspect is updating the control system firmware. Firmware updates often include performance improvements, security patches, and new features that can enhance the reliability and functionality of AV systems.

While institutional policies, existing infrastructure, and organizational standards are important considerations in AV project planning, local safety ordinances and building codes are legal requirements that must be adhered to. Non-compliance can result in legal penalties, project delays, or safety hazards. Therefore, they take precedence over other considerations.

Owner standards and design manuals are examples of architectural documentation, as they provide guidelines for the physical design, layout, and aesthetics of a space. These documents influence AV design by dictating structural and design requirements.

CTS Technology Specialist Reference

The CTS study materials classify owner standards and design manuals as part of architectural documentation, which provides foundational design parameters for AV integration.

For optimal viewing comfort, the top of a display should not be positioned more than 30 degrees above the viewer’s line of sight. This guideline ensures that viewers do not have to strain their necks to see the entire screen. While Options A and B might seem reasonable, 30 degrees is considered the upper limit for comfortable viewing, with viewers ideally positioned to see the full display without needing to look up excessively.

CTS References: AVIXA CTS Exam Guide, Chapter on Display Mounting and Viewing Angles; CTS Handbook, Section on Ergonomic Viewing Considerations.

Comprehensive Detailed Explanation with all Technology Specialist References:

Ambient noise is any unwanted background sound that can interfere with the clarity and intelligibility of the desired audio signal. In an AV setting, ambient noise can reduce speech intelligibility, making it harder for the audience to understand the speaker or experience the audio as intended.

Option B, “canceling it out,” would refer to techniques like active noise cancellation, which isn’t the primary effect of ambient noise on sound but rather a solution to it. Options A and D, “enhancing” and “complementing,” are not applicable because ambient noise typically detracts from audio quality rather than adding to it.

CTS References: AVIXA CTS Exam Guide, Chapter on Audio Basics and Acoustics; CTS Handbook, Section on Acoustic Principles and Noise Management in AV Systems.

=========================

A project kick-off meeting is the project management activity that coordinates project requirements and resources. This meeting involves all stakeholders and team members to ensure everyone understands the project scope, objectives, timelines, and resource allocations. It sets the stage for the project execution and aligns the team on the plan ahead. According to Axis Technology Specialist documentation, project kick-off meetings are crucial for aligning expectations and ensuring all necessary resources are allocated effectively from the start.

Connector A is a BNC (Bayonet Neill-Concelman) connector, which is commonly used for a variety of signal types, including video (such as composite and SDI), RF signals, and even some data signals. It is known for its ease of termination, with a simple twist-lock mechanism that ensures secure and quick connections. The BNC connector's versatility and reliability make it popular in professional AV environments.

Connector B is a VGA (Video Graphics Array) connector, typically used for analog video signals, particularly between computers and monitors. However, VGA connectors are not typically associated with ease of termination due to their multiple pins and more complex soldering requirements compared to the quick-connect design of BNC connectors.

CTS Technology Specialist Reference

The CTS curriculum highlights BNC connectors as versatile and easy-to-use, suitable for a range of AV signal types. Their locking mechanism and straightforward assembly process make them a preferred choice for AV professionals needing quick and reliable connections across various applications.

System performance verification occurs when the system is completely installed. This process involves testing all components and ensuring that the system meets the design specifications and functions as expected before it is handed over to the client. It is a critical step for quality assurance and confirming that the installation meets both the technical and functional requirements.

CTS Technology Specialist Reference

According to CTS standards, performance verification is conducted post-installation to validate that the system is operating correctly, helping to address any issues before final client approval.

For critical listening environments like enclosed booths or mixing stations, the most important factor is a flat frequency response, meaning the monitors reproduce sound as accurately as possible, without coloration or enhancement.

“A flat response ensures that the sound engineer hears the audio signal as it truly is, which is essential for accurate mixing and mastering.”

— AVIXA CTS Exam Guide, Audio Systems Chapter

The issue described is likely due to HDCP (High-bandwidth Digital Content Protection) incompatibility. Since PC B does not work through the switcher but works directly, it indicates an HDCP handshake issue between the switcher and PC B. Adding an HDCP-compliant device, such as an HDCP-compliant switcher or repeater, can resolve this issue by ensuring that content protection protocols are properly managed.

CTS Technology Specialist Reference

CTS materials on digital video highlight the importance of HDCP management when dealing with protected content in HDMI connections, especially in videoconferencing systems.

When upgrading an AV system in a boardroom and adding control of the lights and shades to the control panel, the most relevant information to gather is the communications protocols. Understanding the protocols used by the lighting and shading systems ensures compatibility with the AV control panel, enabling seamless integration. Axis Technology Specialist documentation highlights the necessity of knowing communication protocols to ensure different systems can interact correctly and be managed from a unified control interface.

The sound absorption characteristics of a material are highly influenced by the frequency and direction of the sound waves. Materials often absorb higher frequencies more effectively, and the angle at which sound waves strike a surface can affect the absorption rate. Distance (Option A) and loudness (Option C) impact perceived sound levels but not absorption properties. Ambient sound (Option B) relates to background noise rather than material absorption.

CTS References: AVIXA CTS Exam Guide, Chapter on Acoustics; CTS Handbook, Section on Acoustic Properties of Materials and Room Treatments.

=========================

A public address (PA) system is designed to amplify and distribute sound across different zones or areas. Each zone can have its own set of microphones, amplifiers, and speakers to cater to specific needs, allowing for targeted announcements or audio distribution.

Installers are directly involved with on-site activities and provide essential updates on daily progress, issues, and requirements. Regular updates from installers enable project managers to monitor timelines, resource allocation, and budget considerations more effectively.

CTS Technology Specialist Reference

CTS guidelines highlight the importance of regular communication with installers for tracking project progress, as they are most familiar with day-to-day developments and challenges.

Reverberant sound reaches the listener's ears after the direct sound. This occurs because reverberant sound is reflected off various surfaces within a space, such as walls, ceilings, and floors, before arriving at the listener. The time delay between the arrival of the direct sound and the reverberant sound contributes to the sense of space and ambience in an environment.

Understanding the customer's goals is crucial because it helps the integrator design a solution that meets the customer's expectations and functional requirements. Knowing what the customer expects to achieve with the space allows the integrator to tailor the AV system to those needs, ensuring satisfaction and effective use of the system. This understanding also helps in aligning the project scope with the customer's vision and can prevent misunderstandings and misalignments later in the project.

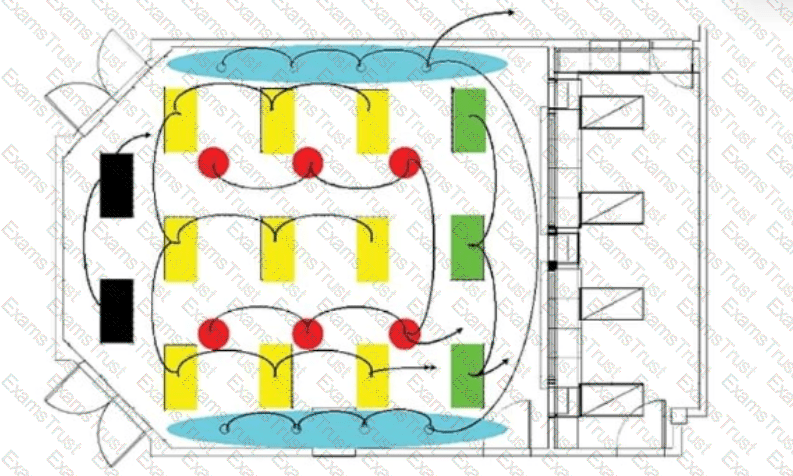

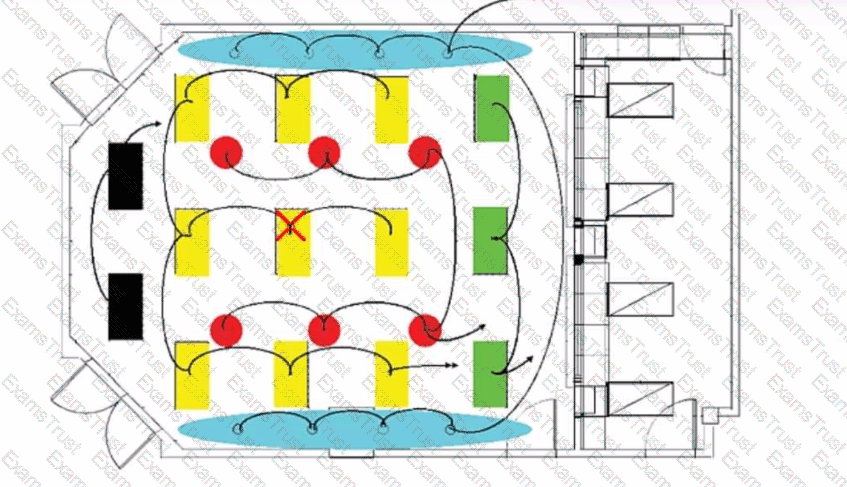

Yellow-colored zones (any light fixture within the yellow zones directly above the seating area).

In video conferencing, balanced and well-placed lighting is crucial for achieving good facial visibility and reducing harsh shadows. Overhead lights can cast shadows on participants' faces, particularly under the eyes and nose, which can detract from a professional appearance on camera. By dimming lights directly above (in this case, the yellow zones), you reduce the intensity of the light falling straight down onto faces, softening shadows and creating more even lighting.

Dimming lights in the green or blue zones would be less effective, as they are positioned at the perimeter of the room and provide indirect lighting that does not directly influence facial shadows over the conference table.

CTS References: AVIXA CTS Exam Guide, Chapter on Lighting Considerations for Video Conferencing; CTS Handbook, Section on Proper Illumination Techniques for AV Environments.

Ceiling microphones are sensitive to air handling noise. Coordination with HVAC is crucial to avoid placing microphones near noisy vents or ducts, which can cause unwanted ambient noise and reduce intelligibility.

“Microphones should be kept clear of HVAC vents and diffusers. Coordination with mechanical trades prevents noise contamination.”

— CTS Exam Guide, Audio and Integration Planning Chapter

In AV system schematics, signal flow is traditionally depicted from left to right. Inputs (sources) are placed on the left, and outputs (displays, speakers) are on the right. This makes signal tracing intuitive and consistent for documentation and troubleshooting.

“Standard AV system drawings depict signal flow from left to right, starting at source and ending at output, to provide logical signal tracing.”

— CTS Exam Guide, Documentation and Schematics Chapter

Each display in a 2x2 video wall setup at Full HD resolution (1920 x 1080) requires a total resolution of 3840 x 2160 for two displays horizontally and 2160 x 2 vertically, which equals 7680 x 4320. This resolution ensures each display shows content at the highest quality without scaling down.

CTS References: AVIXA CTS Exam Guide, Chapter on Video Walls and Resolutions; CTS Handbook, Section on Display Technologies and Scaling.

=========================

Once a labor change is approved, the next step for the project manager is to update the project schedule. Changes in labor can affect the timeline of the project, and updating the schedule ensures that all stakeholders are aware of the new timelines and can adjust their plans accordingly. This step is critical for maintaining project organization and ensuring that the project stays on track despite the changes.

A system warranty is provided by the AV integrator and covers the entire installed system, including materials and workmanship, for a specified period post-installation. This ensures that any issues arising from the installation process are addressed without additional cost to the client.

The AVIXA PISCR (Projected Image System Contrast Ratio) standard specifies that the minimum acceptable contrast ratio for "basic decision-making" environments is 15:1, with higher ratios required for analytical and full-motion video content.

“For basic viewing tasks, AVIXA recommends a minimum contrast ratio of 15:1 between full white and full black.”

— ANSI/INFOCOMM 3M-2011 Standard: Projected Image System Contrast Ratio (PISCR)

The circuit on the right is a combination parallel/series circuit. In this configuration, two sets of speakers are connected in parallel, and these parallel sets are then connected in series. This type of arrangement allows for balancing the load across multiple speakers while maintaining the desired impedance levels.

The most important factor during the development of an AV project scope is understanding stakeholders' requirements. This ensures the project aligns with the needs and expectations of those who will be using or impacted by the system, making it central to project success.

CTS Technology Specialist Reference

CTS training underscores the importance of gathering detailed stakeholder requirements to define a project scope that meets the client’s objectives and use cases.

According to AVIXA standards for rack design, there should be a minimum distance of 100 mm (approximately 4 inches) between AC power cables and data twisted pair cables. This spacing helps to reduce the potential for electromagnetic interference (EMI) between power and data cables, ensuring signal integrity and reducing noise.

CTS Technology Specialist Reference

The AVIXA standards emphasize proper cable management to minimize interference in AV installations. Maintaining a 100 mm separation aligns with best practices for reducing crosstalk and preserving data quality in networked systems.

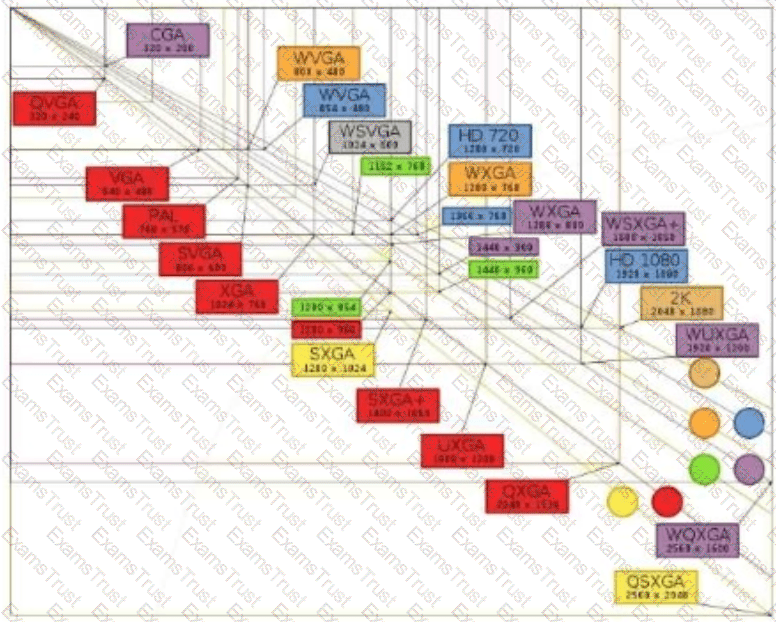

WUXGA stands for Wide Ultra Extended Graphics Array and has a resolution of 1920 x 1200 pixels. To determine the aspect ratio, we divide the width by the height:

=1.6:1\text{Aspect Ratio} = \frac{1920}{1200} = 1.6:1Aspect Ratio=12001920​=1.6:1

Therefore, the aspect ratio for WUXGA is 1.6:1. This aspect ratio is common for widescreen monitors and provides a wider display format compared to traditional 4:3 screens, enhancing the viewing experience for multimedia content.

In a 70 V distributed audio system, the total power requirement is the sum of the power taps of all speakers. With 12 speakers each tapped at 30 W:

12 speakers × 30 W = 360 W

It's standard practice to add a 20% headroom to accommodate potential future expansions and to ensure the amplifier isn't operating at full capacity continuously:

360 W × 1.2 = 432 W

Therefore, an amplifier that can deliver at least 432 W at 70 V is appropriate. Option A provides 500 W at 70 V, which meets this requirement with additional headroom, making it the best choice.

A change order (also known as a variation) refers to an official modification to the original project scope, budget, or schedule. It is typically initiated after the project has begun and must be documented and approved.

“Change orders document approved deviations from the original project scope, ensuring all parties agree on modified costs or timelines.”

— CTS Exam Guide, Project Management Chapter

When creating a project schedule, labor hours are critical as they directly impact the timeline. Labor hours dictate how long tasks will take, which influences the entire schedule and project completion date.

CTS Technology Specialist Reference

Project management materials in CTS emphasize that accurate labor estimates are essential for realistic scheduling and resource allocation, directly impacting project duration.

Foam microphone wind screens should be cleaned using warm water. This method effectively removes dirt and oils without damaging the foam material. Using harsh chemicals, like bleach or alcohol, can deteriorate the foam and potentially affect sound quality.

CTS Technology Specialist Reference

CTS materials on equipment maintenance recommend gentle cleaning methods for foam components, as using harsh solvents can degrade the material and reduce the lifespan of equipment.

The correct setting is the section marked with “V⎓” (DC Voltage), specifically within the range that matches your expected DC power supply output, e.g., 20V under the “V⎓” section.

According to the AVIXA CTS Exam Guide, Chapter 6: Troubleshooting, checking if a DC power supply has failed requires measuring the DC output voltage. This involves setting your multimeter to the DC voltage (V⎓) range that covers the expected output.

From the guide:

“When testing a DC power source, use the DC voltage range on your digital multimeter. Begin with a higher range (e.g., 200V) to avoid damaging the meter, then narrow down for precision if needed.”

Avoid using resistance (Ω), AC voltage (V~), or current (A) ranges when checking voltage output.

Multicast transmission in a network AV solution significantly reduces network bandwidth when using multiple decoders. With multicast, a single stream of data is sent from the source and is then distributed to multiple recipients by the network infrastructure. This contrasts with unicast, where a separate stream is sent to each recipient, leading to higher bandwidth consumption. Multicast is particularly efficient in scenarios where the same content needs to be delivered to multiple devices, such as digital signage or IPTV.

Preventive maintenance is planned maintenance conducted at regular intervals to ensure system reliability and prevent issues before they occur, rather than in response to system failures.

CTS Technology Specialist Reference

CTS training on maintenance highlights the importance of scheduled preventive maintenance to keep systems operating smoothly and extend equipment lifespan.
