API API-580 API 580 - Risk Based Inspection Exam Practice Test

API 580 provides the following standard definition under Section 3.1.62:

“Risk: The combination of the probability of an event and its consequence.”

This is the classic risk formula used throughout the RBI methodology: Risk = PoF × CoF. The other options overcomplicate or misrepresent this core principle.

Per Section 5.5 of API 580:

“The mechanical integrity and functional performance of equipment depends on the suitability of the equipment to operate safely and reliably under the normal and abnormal (upset) operating conditions to which the equipment is exposed.”

Also, Section 9.4 confirms PoF depends heavily on: a) The damage mechanisms and deterioration rates under current operating conditions;

b) The ability of inspection to detect these issues before failure.

Thus, the equipment's suitability within its current and anticipated operating environment directly affects its PoF.

As stated in Section 11.4 of API 580:

“Sensitivity analysis typically involves reviewing some or all input variables to the risk calculation to determine the overall influence on the resultant risk value.”

This process helps identify which input variables most significantly affect the final risk values. Such variables are prioritized for validation and refinement to improve the quality of the analysis.

According to API 580, Section 16.1:

“A documented management system to implement and sustain an RBI program shall be developed and typically would include... procedures covering implementation, maintenance and reassessment, roles/responsibilities, documented assumptions, timeframe for applicability, and more.”

This is a minimum program requirement and foundational to RBI integrity.

According to API 580, Section 10.6.1:

“The consequences of releasing a hazardous material can be estimated in six steps…

a) estimate the release rate;

b) estimate total volume of fluid…

c) determine if the fluid disperses…”

Therefore, “Estimating the release rate” is the first step in the consequence evaluation process and is essential for modeling potential impact scenarios.

API 580, Section 15.2.4:

“A qualified corrosion specialist shall be responsible for assessing the types of damage mechanisms and their applicability and severity to the equipment considering the process conditions, environment, metallurgy, age, and other relevant data.”

Other roles may assist but the designated responsibility lies with the corrosion specialist.

According to Section 9.1 of API 580:

“The POF analysis shall address all credible damage mechanisms to which the equipment being reviewed is or can be susceptible. Further, it shall address the situation where equipment is or can be susceptible to multiple damage mechanisms (e.g. thinning and creep).”

Thus, C is the most accurate and complete choice. Option D is incorrect because the analysis is focused on equipment-specific mechanisms, not the entire site.

API 580, Section 9.1 states:

“The POF analysis shall address all credible damage mechanisms to which the equipment being reviewed is or can be susceptible.”

This confirms that the analysis focuses only on damage mechanisms that are realistically applicable to the equipment—i.e., credible mechanisms based on process, materials, and operating conditions—not every possible or theoretical mechanism.

According to API 580 Section 10.6.1:

“The consequences of releasing a hazardous material can be estimated in six steps... including:

b) estimate total volume of fluid that will be released.”

This step is essential to quantify the severity of potential loss and to assess the overall consequence of a hazardous material release.

API 580 Section 6.6 specifies:

“The resources and time required to implement an RBI assessment will vary widely between organizations depending on a number of factors including... g) degree of precision required.”

Other listed factors include knowledge and training, data availability, and complexity of analysis, but not the number of mitigation activities or whether CoF or PoF is the dominant risk driver.

As per API 580, failure is typically defined in terms of a breach in the pressure boundary — most clearly indicated by loss of containment. In Section 5.2, API 580 explains the fundamental focus of RBI:

“One objective of RBI is to determine what incident could occur (consequence) in the event of an equipment failure and how likely (probability) it is that the incident could happen. For example, if a pressure vessel subject to damage from corrosion under insulation develops a leak, a variety of consequences could occur.”

This leak constitutes a loss of containment and is therefore categorized as a failure.

Other options are not necessarily defined as equipment failures:

B (corrosion beyond allowance) is degradation, but failure only occurs if it breaches containment.

C (end of service life) is a lifecycle condition, not a failure by definition.

D (fire or explosion) are consequences of a failure, not the failure itself.

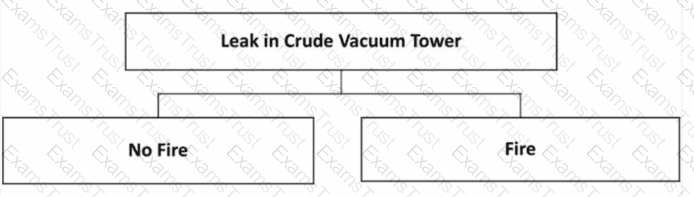

In RBI, risk is typically calculated using the basic formula:

      Risk = Probability of Failure (PoF) × Consequence of Failure (CoF)

Based on the question:

Probability of Fire = 0.00001 per year

Consequence of Fire = $50,000,000

Applying the formula:

      Risk = 0.00001 × $50,000,000

      Risk = $500/year

This is the annualized risk estimate associated with the fire event originating from a leak in the crude vacuum tower.

As per API 580, Section 10.2.1:

“A common approach used to express risk is to multiply the probability of failure by the consequence of failure. This simple equation is useful for determining the relative risk ranking among equipment items.”

And in Section 10.3.1:

“Risk can be expressed in various units such as monetary value per year (e.g., $/year)... This allows for comparison of risk levels in economic terms.”

Hence, the correct calculated value, $500/year, corresponds to option A.

API 580 clearly states under Section 13.6:

“Emergency depressurizing and/or de-inventory should be achieved within a few minutes to reduce the risk from an explosion/fire. This method reduces the amount and rate of release.”

While other methods (such as substitution or containment) reduce hazard or consequence, emergency depressuring directly targets the rate and quantity of material released.

As clearly stated in API 580, Section 7.2:

“The precision of the data should be consistent with the RBI method used. The individual or team should understand the precision of the data needed for the analysis before gathering it.”

This means qualitative, semi-quantitative, and quantitative approaches may require different levels of data precision.

API 580, Section 6.1 and 6.2 clearly states:

“At the conclusion of the planning portion of the development of the RBI program the following should have been completed:

b) identify the physical boundaries;

c) identify the operating boundaries...”

Thus, one of the primary deliverables of the planning stage is defining boundaries to scope the risk evaluation.

API 580 clearly identifies this capability:

“The RBI process is capable of generating:

a) a ranking by relative risk of all equipment evaluated.”​

Additionally, Section 4.6 explains that:

“Calculating absolute risk can be very time-consuming and costly… RBI is focused on a systematic determination of relative risk.”

According to Section 7.3 of API 580:

“The data quality has a direct relation to the relative accuracy of the RBI analysis… Although the data requirements are quite different for the various types of RBI analysis, quality of input data is equally important no matter what approach to RBI is selected.”

This clearly establishes that regardless of whether a qualitative, semi-quantitative, or quantitative RBI method is chosen, the quality of data must remain consistently high to ensure meaningful risk assessments.

“Integrity Operating Windows (IOWs)” are described in API 580 and API RP 584. Process parameters such as temperature, pressure, and fluid velocity are IOWs.

From API 580 Section 15.2.6:

“Operations personnel are responsible for verifying that the facility/equipment is being operated within the parameters set out in the process operating window,” which includes fluid velocity.

Materials of construction and vibration frequency are not typical IOWs.

API 580 Section 4.4 clearly lists residual risk factors that remain even after RBI implementation. These include:

“Residual risk not affected by RBI includes:

a) human error

…

d) secondary effects from nearby units

…

i) unknown or unanticipated mechanisms of damage.”

These are limitations of inspection-based risk mitigation. Options B and E (maintenance plans and change of ownership) are not part of the residual risk list, although they may influence long-term planning.

Section 11.3.1 of API 580 explicitly states:

“Many companies have corporate risk criteria defining acceptable and prudent levels of safety, environmental and financial risks… Because each company may be different in terms of acceptable risk levels, risk management decisions can vary among companies.”

This highlights that risk acceptance criteria are typically developed internally by organizations based on their own tolerance and business drivers—not by API or external regulations.

According to API 580, multiple API inspection codes include provisions for RBI. Section 4.3 of API 580 clearly states:

“The RBI methodology is recognized in the API inspection codes — API 510, API 570, and API 653 — as an acceptable method to determine inspection intervals.”

Each of these codes outlines both the requirements and limitations for using RBI in their specific contexts:

API 510 — for pressure vessels

API 570 — for piping systems

API 653 — for aboveground storage tanks

On the other hand:

API 573 is a recommended practice for the inspection of fired heaters and does not include formal RBI provisions.

API 578 focuses on Positive Material Identification (PMI) and is unrelated to RBI methodologies or requirements.

Therefore, the correct selection includes:

✔️API 510

✔️API 570

✔️API 653

According to API 580 Section 10.3.3:

“Cost is commonly used as an indicator of potential consequences. Consequence may be expressed in relative monetary units (e.g. dollars)… This will permit adding the different consequences of a single event and facilitate comparisons of risk from one process unit to another.”

Cost can represent multiple consequence dimensions, including production loss, emergency response, equipment damage, fines, and more. This method enables direct comparison of diverse consequence types on a unified basis, making it the most commonly applied indicator in practice.

According to Section 16.6 of API 580:

“Clearly documenting the key assumptions made during the analysis of probability and consequence will greatly enhance the capability to either recreate or update the RBI assessment.”

This confirms that the purpose of documenting assumptions is to ensure that future assessments can be reconstructed with accuracy and accountability. None of the other answer choices reflect this core reason.

According to API 580, risk reduction is primarily achieved through implementing mitigation activities that are designed to lower either the probability of failure (PoF), the consequence of failure (CoF), or both.

As stated in Section 10.1:

“Risk can be reduced by reducing the likelihood (probability) of failure, the consequence of failure, or both. This is typically accomplished through mitigation activities such as inspection, process control, or equipment modification.”

This clearly confirms that “mitigation activities” is the most direct and encompassing method of achieving risk reduction in an RBI program. While the other options (like process control or inspection activities) may be forms of mitigation, they fall under the broader category of mitigation activities and are not the definitive general method.

As defined in Section 3.1.59 of API 580:

“Risk assessment: The systematic use of information to estimate risk and conduct risk evaluation.”

Option A refers more closely to hazard identification, C is the definition of risk management, and D describes part of the risk analysis process, but not the full definition of risk assessment.

API 580, Section 12.4 and 12.6 emphasize that inspection should be optimized and risk-focused. Excessive inspections can increase exposure to damage mechanisms (such as mechanical or corrosion risks introduced during inspection activities), especially if not needed.

From Section 12.4:

“Organizations should be deliberate and systematic in assigning the level of risk management achieved through inspection and should be cautious not to assume that there is an unending capacity for risk management through inspection.”

Further, in risk-optimization contexts (Section 12.5):

“While there is a potential for reduction of inspection costs through utilization of RBI, increased equipment integrity and inspection cost optimization should remain the focus.”

Therefore, excess inspections may be:

Unjustified

Economically wasteful

Risk-enhancing (e.g., opening equipment unnecessarily may lead to deterioration)

API 580 emphasizes the importance of identifying risk drivers as part of a systematic method to manage risks:

“Development of an appropriate inspection program to address key risk drivers. A method to systematically manage risks associated with the operation of process equipment.”

Understanding risk drivers is necessary to target mitigation actions effectively and to ensure that resources are allocated based on what contributes most to the risk.
